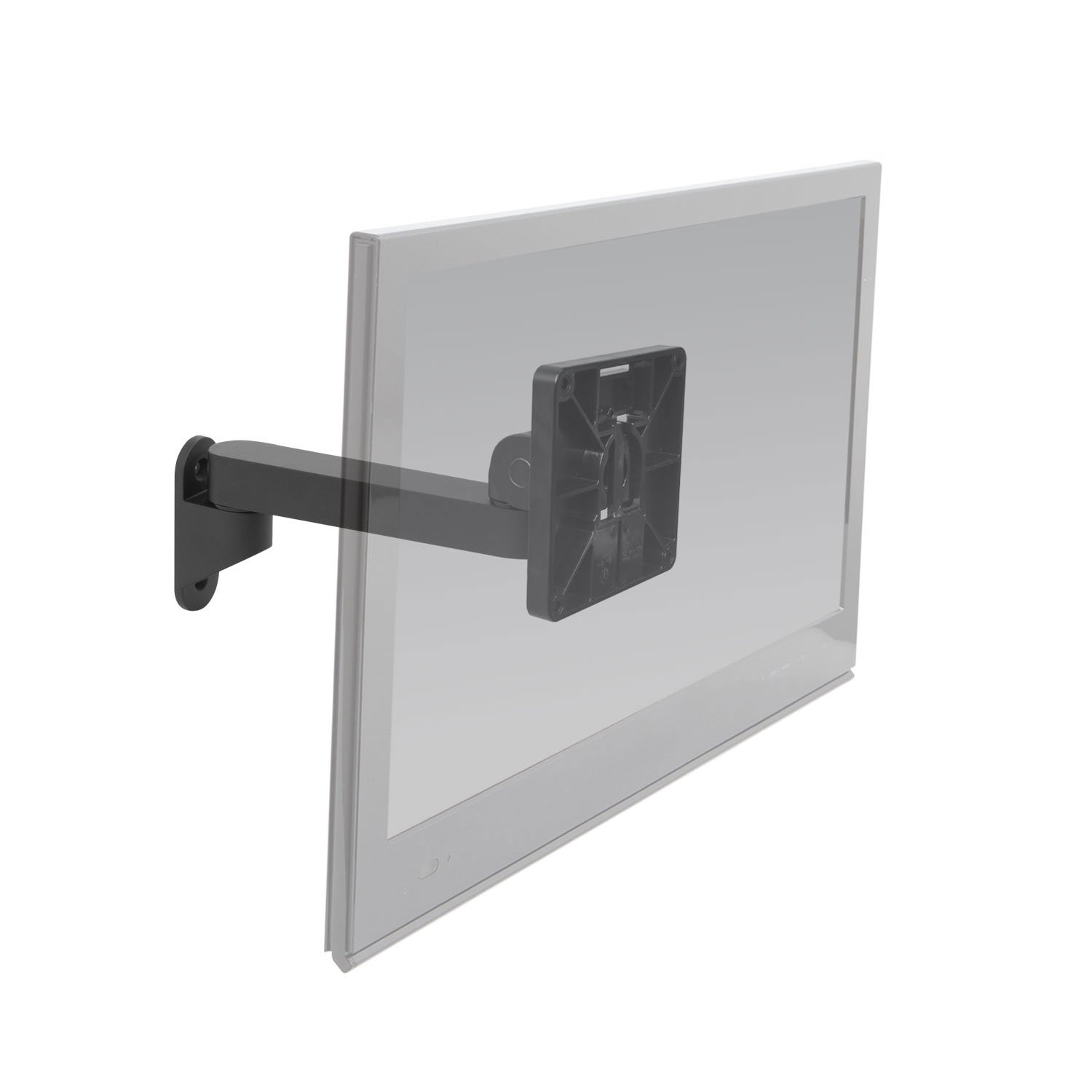

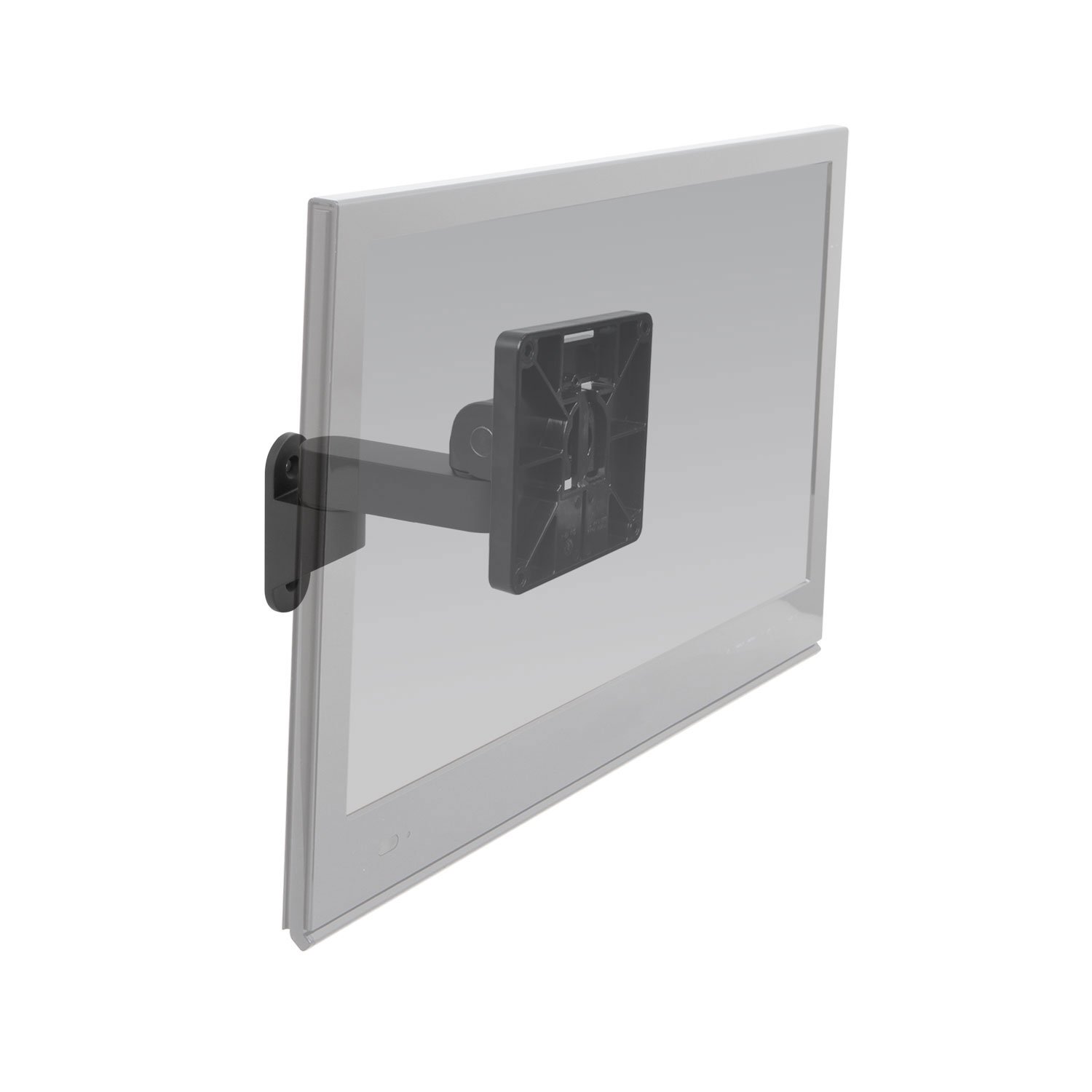

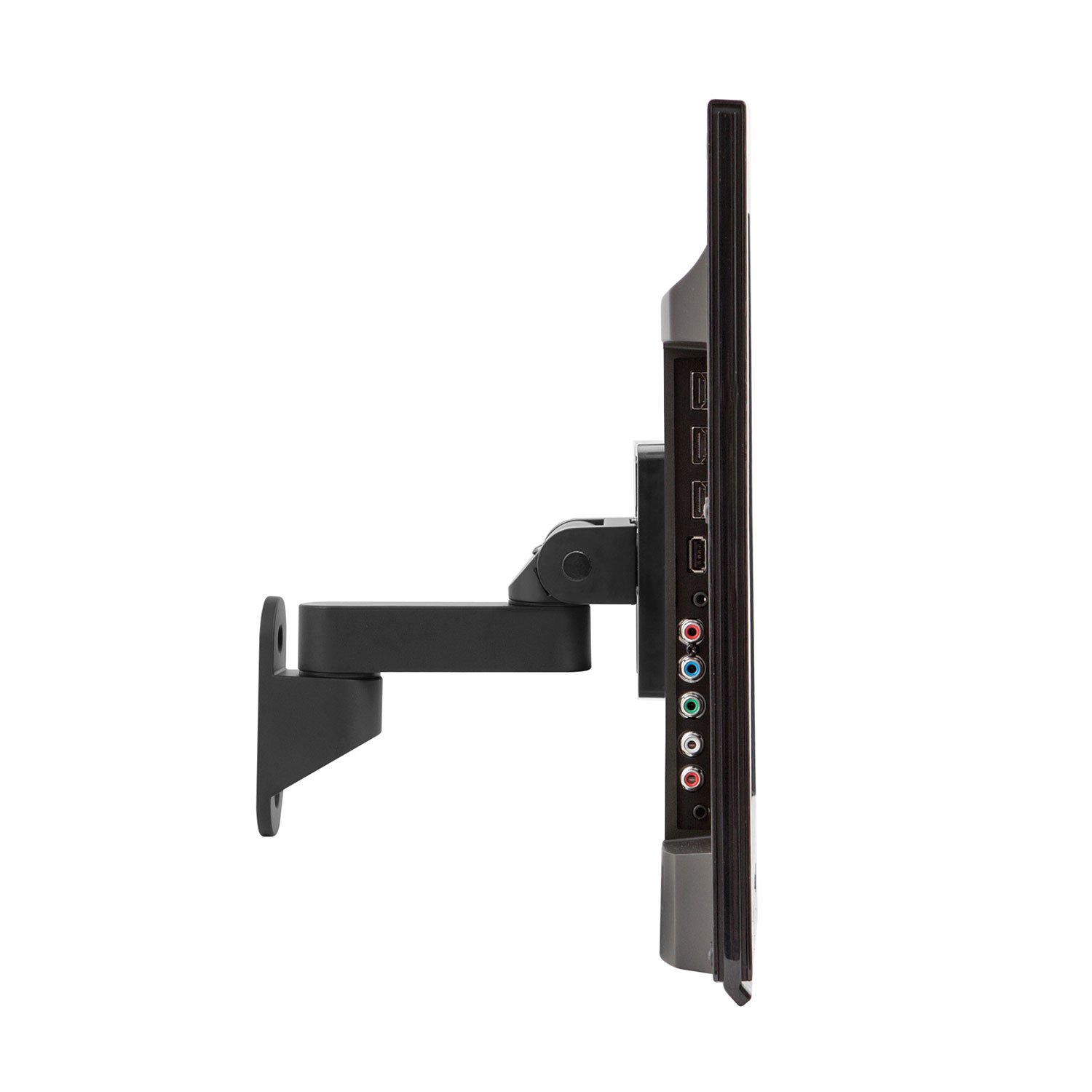

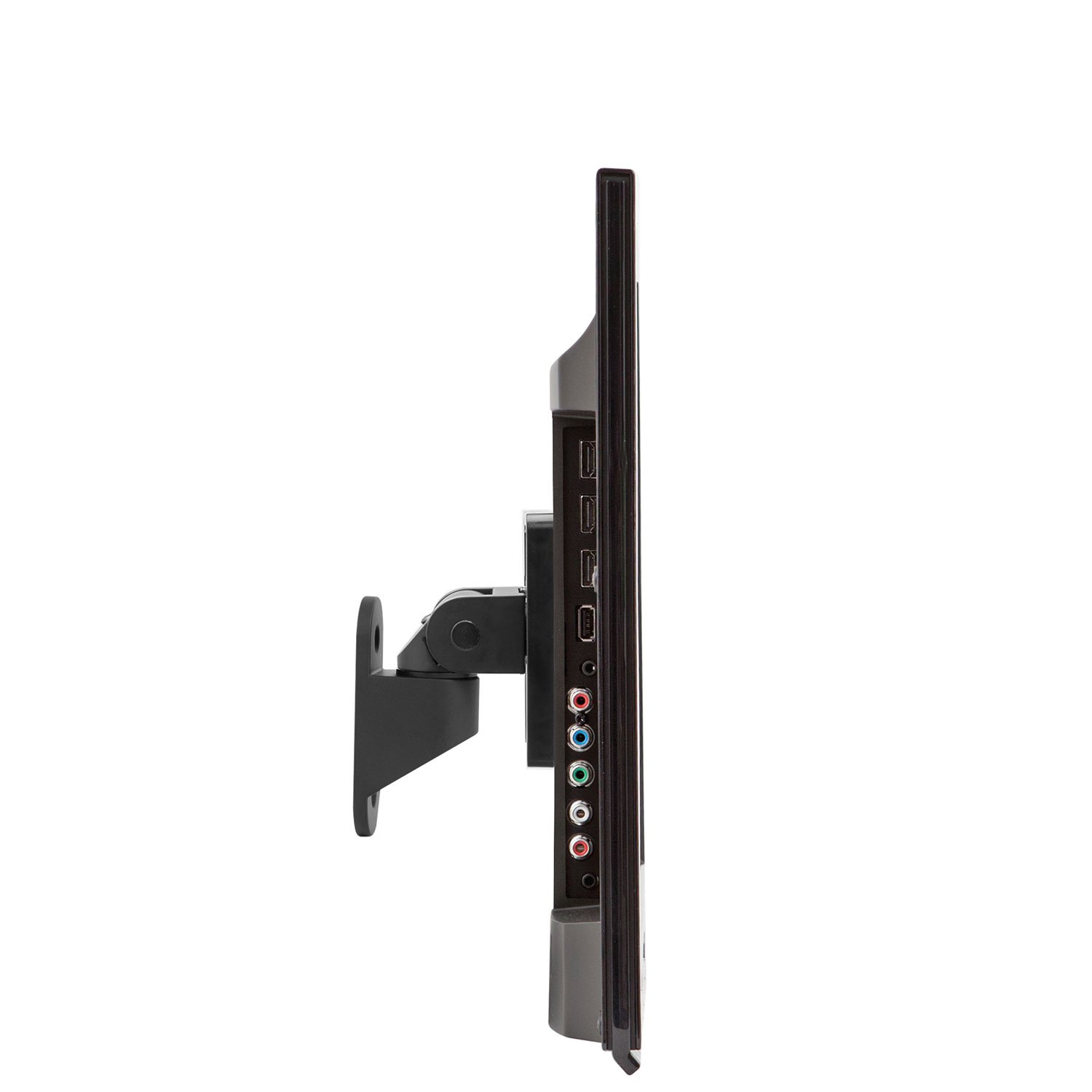

Innovative 9110 - Monitor/TV Wall Mount

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 16133


  • Wall Mount for Heavy Monitor and TV
  • Supports monitors, TVs up to 45 lbs
  • 100mm VESA adapters included
  • Choose from different extensions, combinations to add horizontal reach
  • Horizontal reach up to 16" possible by adding extensions

Dimensional Diagram for Innovative 9110 Pivoting LCD TV Wall Mount

Related Products

Part Number

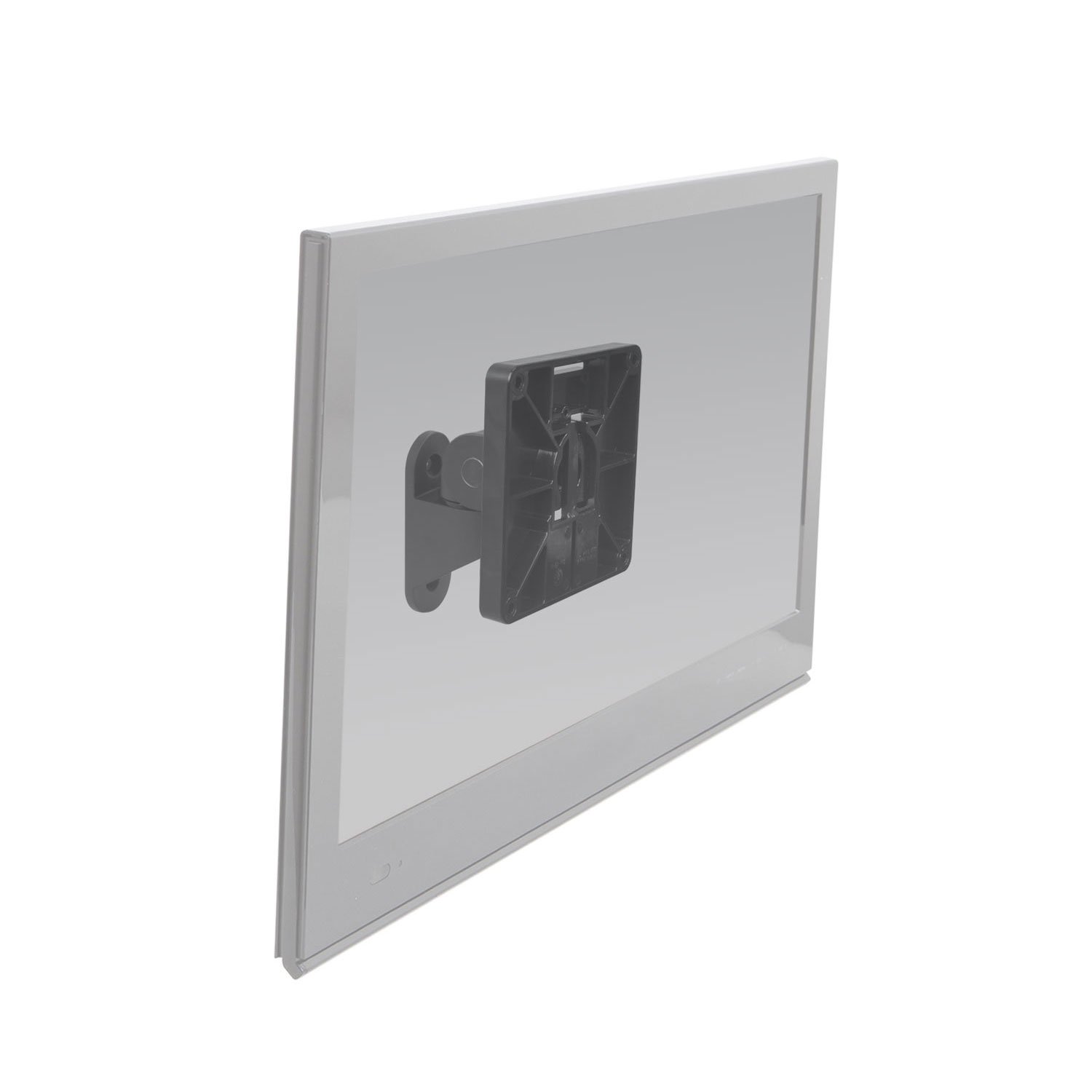

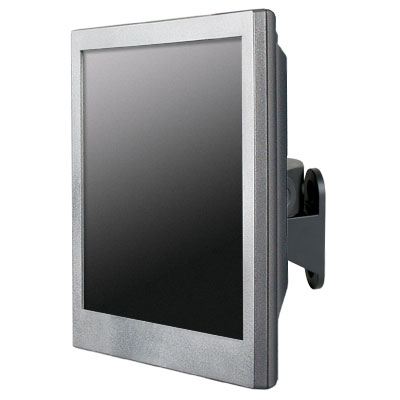

9110 Pivoting LCD Wall Mount, Weight Range up to 45 lbs

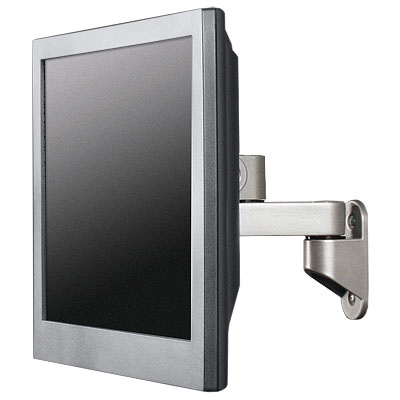

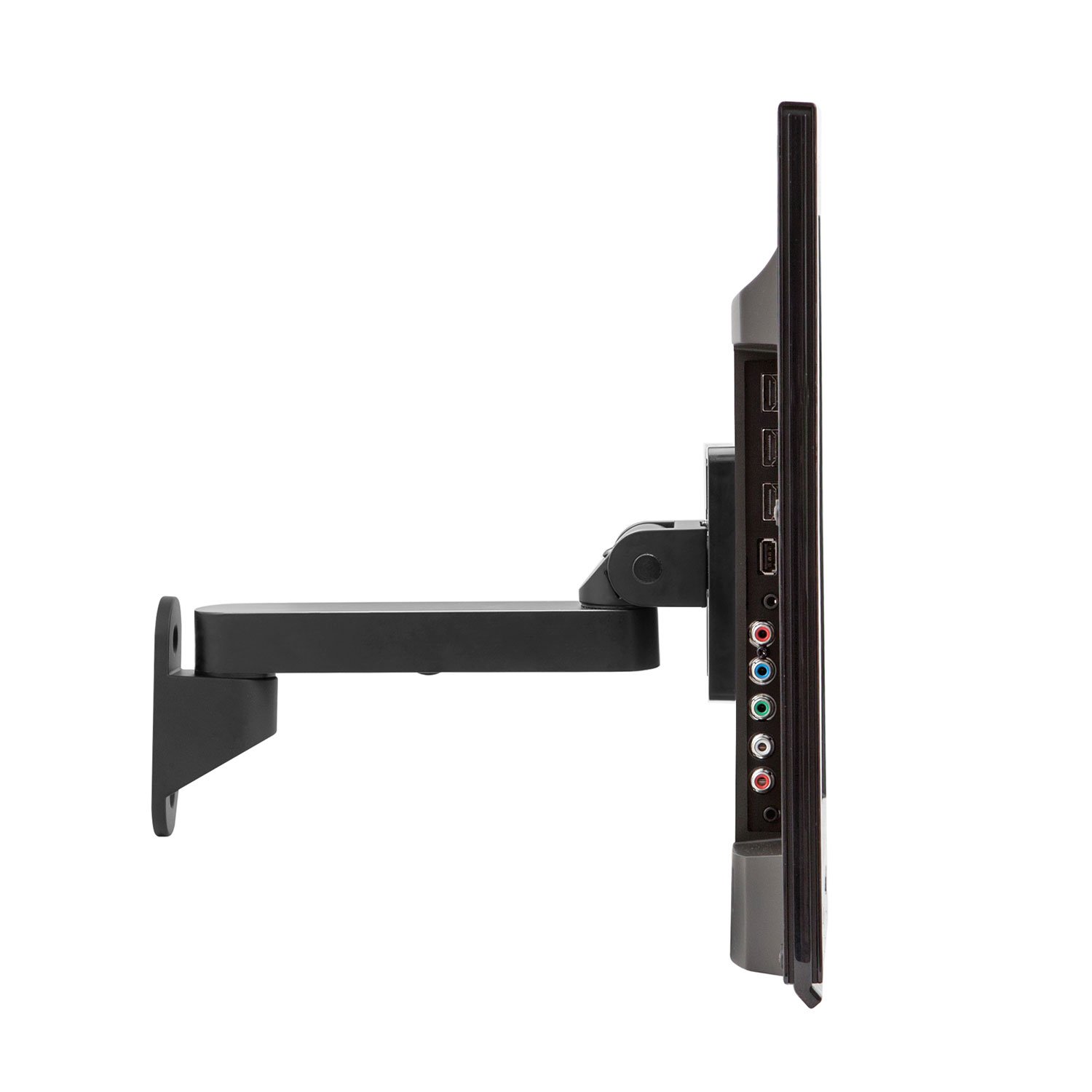

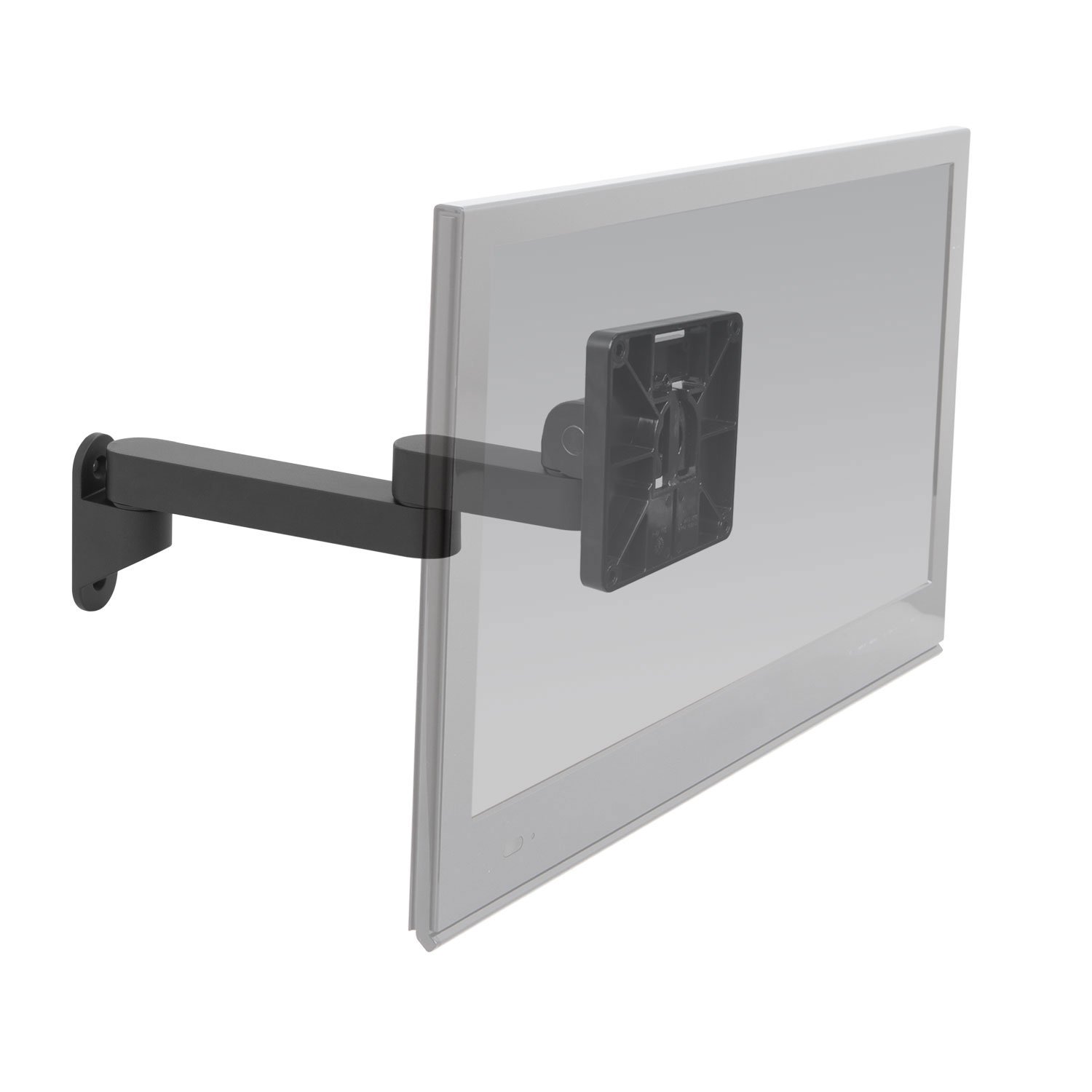

9110-4 LCD Wall Mount with 4" Extension Arm, Weight Range up to 40 lbs

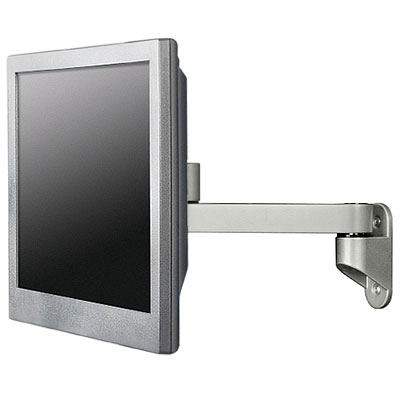

9110-8.5 LED Wall Mount with 8.5" Extension Arm, Weight Range up to 40 lbs

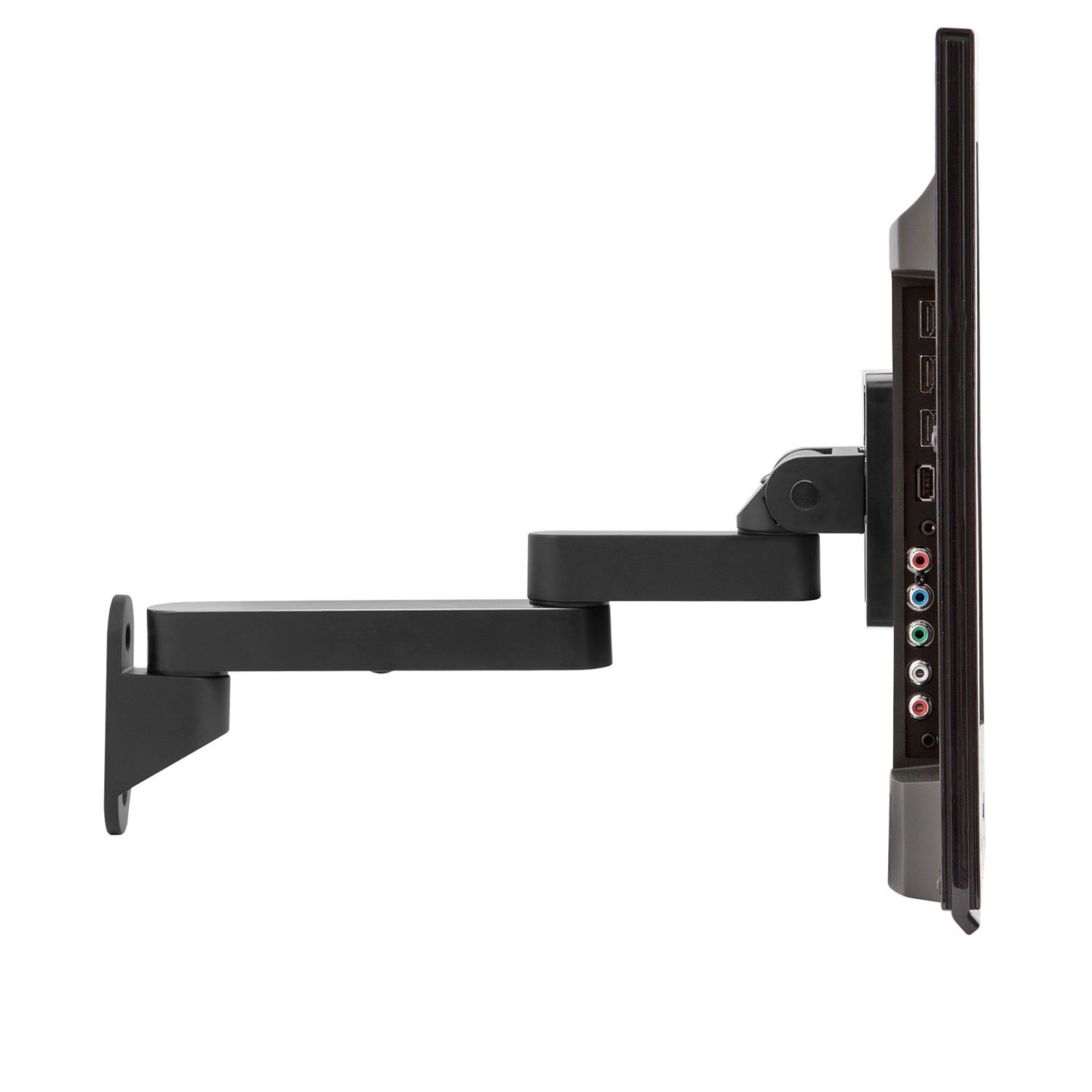

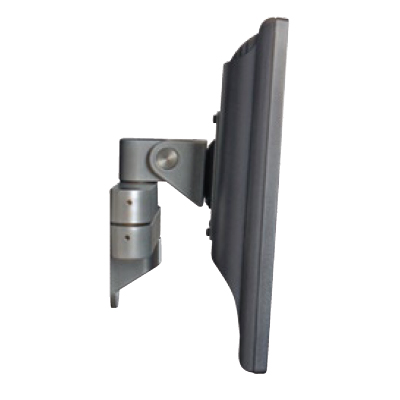

9110-8.5-4 LCD Wall Mount with 8.5" + 4" = 12" (some overlap) Extension Arm, Weight Range up to 35 lbs
9110-4-4 LED Wall Mount with 4" + 4" = 8" Extension Arm, Weight Range up to 40 lbs
9110-8.5-8.5 Wall Mount with 8.5" + 8.5" = 16" (some overlap) Extension Arm, Weight Range up to 35 lbs



Hang your LCD or LCD TV on the wall to save maximum space. Allows pivot and tilt. Add optional extender arms to allow even greater flexibility and range for 9110. For 9110-4, includes our 4-inch extender arm for greater flexibility and range. For 9110-8.5, includes our 8.5-inch extender arm for greater flexibility and range. For 9110-8.5-4, includes 2 extension arms (8.5 and 4-inches) for 12.5 inches of reach. Offered in black only - inquire about up charge for special color runs.



Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

Technical Drawing

Dimensional Diagram for Innovative 9110 Pivoting LCD TV Wall Mount


Technical Specifications

Monitor Tilt

30 degree up and down or left to right

Monitor Pivot

Landscape to Portrait

Monitor Weight

Up to 35 lbs

Mounting Options


Monitor Compatibility

VESA 100 mm



  • Adjustable tension at joints - ideal for touch-screen applications
  • The LCD display can tilt up and down 30 degree and turn left and right 30 degree
  • Pivot monitors from portrait to landscape
  • For 9110, 4" and 8" extension arms available, can be combined to increase extension up to 12"
  • For 9110-4, includes 4" extension arm, combine extension arms to increase reach
  • For 9110-8.5, includes 8.5" extension arm, combine extension arms to increase reach
  • For 9110-8.5-4, includes 8.5" and 4" extension arms for 12.5" reach
  • VESA-monitor compatible - 100mm VESA adapter included. Please call for non-VESA options
Model 9110, 9110-4, 9110-4-4, 9110-8.5, 9110-8.5-4, 9110-8.5-8.5
Manufacturer Innovative LCD Arms
Part Number 9110, 9110-4, 9110-4-4, 9110-8.5, 9110-8.5-4, 9110-8.5-8.5
UPC 895026000345
Weight lb(s)
Number of Monitors 1 Monitor
Color 104 - Vista Black
Monitor Size Up to 43"
Extension 9110: 4", 9110-4: 7.6", 9110-8.5: 11.1", 9110-8.5-4: 14.6"
Pivot Landscape to portrait
Mounting Options Wall
Mounting Pattern VESA 100mm
Warranty 10 Years
Weight Capacity 9110: Up to 45 lbs (20.4 kg), 9110-4: Up to 38 lbs (17.2 kg), 9110-8.5: Up to 28 lbs (12.7 kg), 9110-8.5-4: Up to 22 lbs (9.9 kg)
