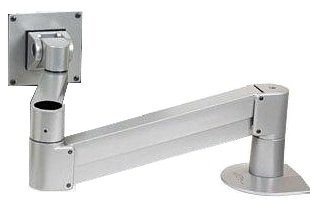

Innovative 7000-HY Radial Arm with Hydrostrut for Lightweight

For Lightweight LCD, iPad, Tablet or Notebook/Laptop

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16673
Options
List Price: $374.00
Our Price: $261.80
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

Related Products

Part Number Description
7000-500HY-NM Horizontal Range 24", Weight Capacity 2-15 lbs, No Mount
7000-800HY-NM Horizontal Range 24", Weight Capacity 7-26.5 lbs, No Mount
7000-1000HY-NM Horizontal Range 24", Weight Capacity 10.5-31.5 lbs, No Mount

Description

The best selling 7000 LCD radial arm suspends flat panel above the desk, allowing for quick repositioning the monitor with just one hand. Reclaim your desk space, allow you to work in greater ergonomic comfort.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter		 Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount

Innovative 8524 Top Down Mount



Innovative FLEXmount

Technical Drawing

Dimensional Diagram for Innovative 7000 Flexible Flat Panel Radial Arm with 24

Technical Specifications

Vertical Range 16" (+/- 8" from horizontal)
Horizontal Range 24"
Rotation 360 degrees at three joints
Monitor Tilt 200 degrees
Monitor Pivot Landscape to portrait
Monitor Compatibility VESA 100mm
Cable Management Cables are concealed in arm
Mounting Options FLEXmount, Wall, Thru-Desk

Features

  • 24" of horizontal range

  • 16" of vertical range (8" up and down from horizontal)

  • Folds up to occupy just 3'' of space

  • Rotates 360 degrees at three joints

  • Monitor tilter mechanism can tilt over 200 degrees

  • Monitor pivots 90 degrees for portrait to landscape viewing

  • VESA-monitor compatible - 100mm VESA adapter included. Please call for non-VESA options

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details

  • Approved to AFRDI standard 126:2001, Level 3

Model 7000-500HY-NM, 7000-800HY-NM, 7000-1000HY-NM
Manufacturer Innovative LCD Arms
Part Number 7000-500HY-NM, 7000-800HY-NM, 7000-1000HY-NM
Mounting Options Desk
Mounting Options Wall
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
