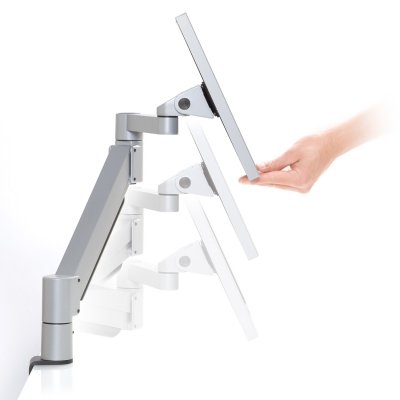

Innovative 7000-500-8424 Arm with Secure iPad Holder

The Innovative 7000-500-8424 comes with a universal mounting option. It can be mounted on a desk as well as on the wall. The horizontal range of the arm is 24.8" and vertical range is 16". iPad enclosure 8424 is compatible with iPad gen 1,2,3 and 4.

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 17115
Options
List Price: $383.00
Our Price: $268.10
Shipping: $29.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

Description



The Apple iPad is increasingly finding a home in self-service and kiosk applications. However, the iPad's compact size and mobility creates a theft and security risk.

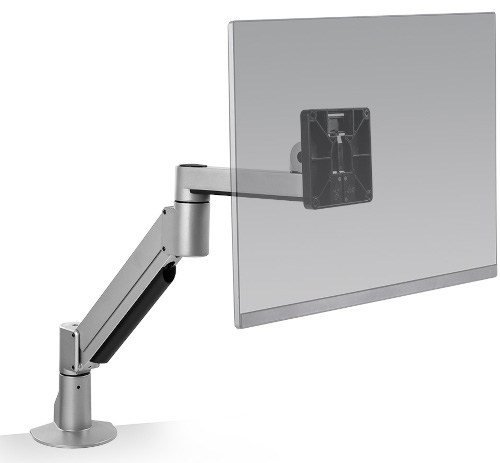

Innovative solves that problem with our Secure iPad Mount, a sturdy steel enclosure for the iPad. Combined with our best-selling 7000 LCD Arm, you are able to position the iPad wherever you need it, without fear of theft.

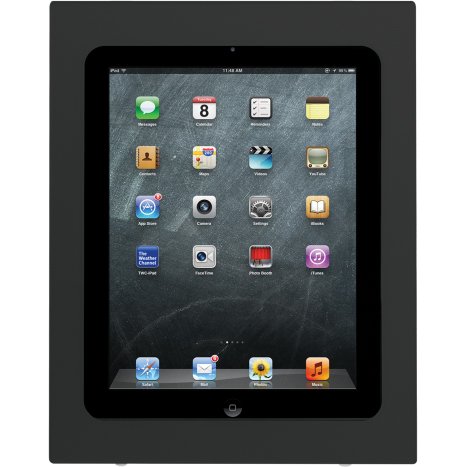

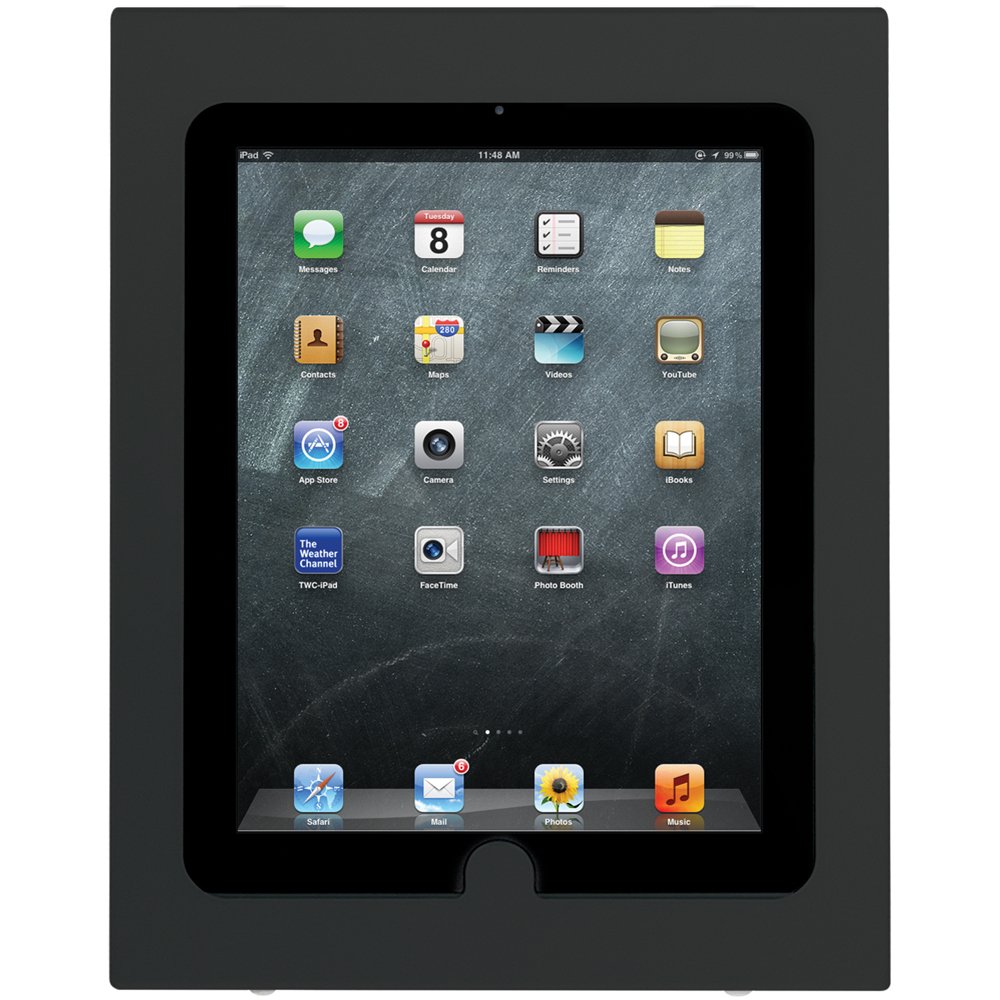

This model allows the user to access the 'home' button. If this is not desired, please contact us for a version which blocks home button access.



Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

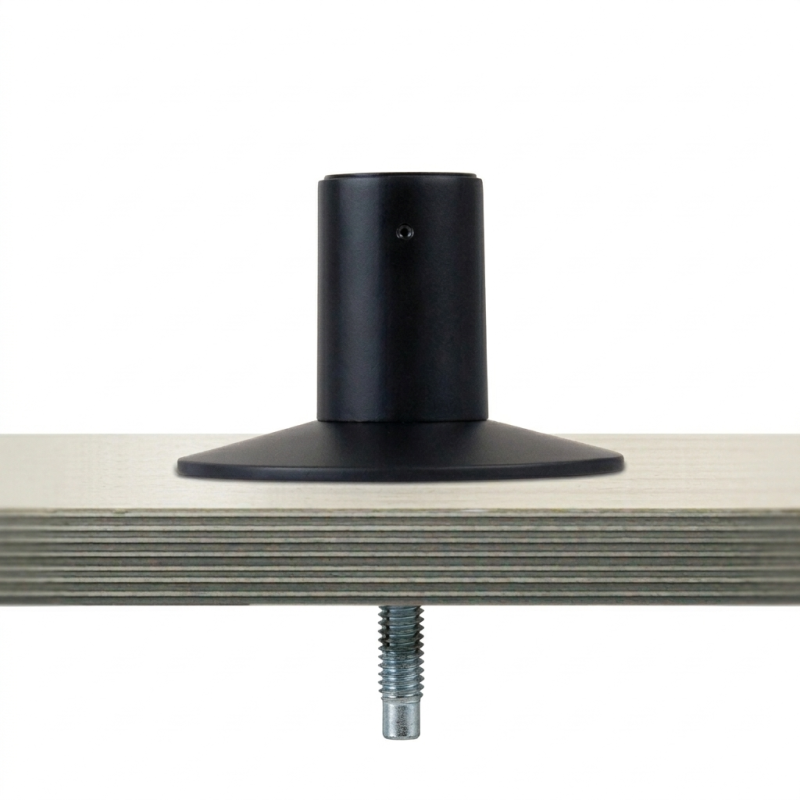

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount

Innovative 8524 Top Down Mount



Innovative FLEXmount



Technical Drawing



Technical Drawing for Innovative 7000-500-NM 7000 Arm with 8424 Secure iPad Holder





Features of Innovative 7000-500-8424:



  • Secure mount prevents theft or damage to Apple iPad.

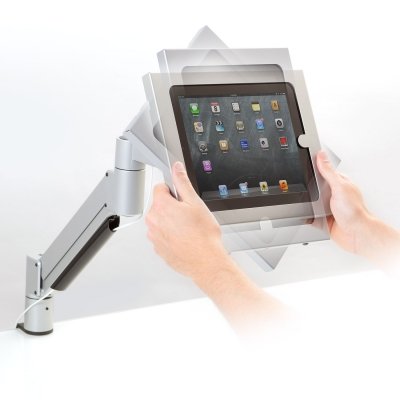

  • Arm features intuitive movement - no buttons or levers, simply move monitor to desired position.

  • Vertical range of +/- 8" from horizontal.

  • Extends up to 24", collapses to just 3".





Technical Specifications of Innovative 7000-500-8424:



Vertical Range:

16" (+/- 8" from horizontal)

Horizontal Range:

24.8"

Monitor Rotation:

360 degrees at three joints

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to portrait

Monitor Compatibility:

VESA 100 mm

Cable Management:

Cables are concealed in arm

Weight Range:

Supports all iPad models

Model 7000-500-8424
Manufacturer Innovative LCD Arms
Part Number 7000-500-8424
Color 104: Vista Black, 124: Silver
Vertical Range 16" (+/- 8" from horizontal)
Horizontal Range 24.8"
Rotation 360 degree
Tilt 200 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75 mm and 100 mm
Mounting Options Desk
Mounting Options Wall
