Laptop Holder with Height Adjustable Arm ED-7F-5501

Product ID 17659
Laptop Holder with Height Adjustable Arm ED-7F-5501
Laptop Holder with Height Adjustable Arm ED-7F-5501


  • Laptop Holder with Height Adjustable Arm
  • Laptop Holder keeps the back of the laptop uncovered, allowing free flow of air, which keeps the laptop cool
  • Holds the laptop tight with 2 clamps on sides and 2 clamps at  the bottom
  • Arm is adjustable (24" horizontal and 16" vertical)
  • Carries laptops weighing up to 15 lbs;  If  horizontal extensions added, the weight capacity of the laptop will be lowered.
  • FlexMount of the Arm allows you to install this arm on the wall or on a desk
  • Please see, if you want this Laptop Holder on a Wall Mounting Sit-Stand Arm


Innovative 7Flex LCD Arm will change the way you work. The arm suspends your flat panel above your desk, allowing you to quickly reposition the monitor with just one hand. Simply move the monitor to where you need it. The arm eliminates the monitor footprint on your desk- reclaim your desk, even as you work in greater ergonomic comfort. Includes our FLEXmount, with 6 mounting options including desktop and grommet clamp, thru-desk bolt, and wall mounting. 7Flex is Innovative's best-value product - incredible flexibility and versatility at an attractive price.

Attaches to arm via quick-install mechanism. Configures to support laptops or tablet PCs. Discover a new way of interfacing with your tablet PC or laptop, the EVO Tablet Arm suspends your portable above the desk where it can be instantly repositioned for comfortable viewing. Combine with a wireless keyboard and mouse to create an ergonomic docking station for your computer. It's an ideal solution for workers on the move. Improve productivity while working at your primary desk, then simply grab the computer and go when it's time to leave.


Technical Drawing

7Flex LCD Arm

Technical Diagram for Innovative 7Flex-104i LCD Arm Black


EVO 5501 Laptop Holder

Technical Drawing for Innovative EVO-5501 Tablet PC or Notebook Holder


Technical Specifications

7Flex Arm

Vertical Range

+/- 8" (20.3 cm) from horizontal

Horizontal Range

24" (61.0 cm)


360 degrees at three joints

Monitor Tilt

200 degrees

Monitor Pivot

Landscape to portrait

Monitor Compatibility

VESA 75mm and 100 mm

Cable Management

Cables are clipped beneath arm

Mounting Options

FLEXmount, Wall, Thru-Desk

Monitor Weight/Model Number

5-17 lbs (2.3-7.7 kg)/7Flex-104i


Minimum Width

10.5" (26.7 cm)


9.1" (23.1 cm)

Length with Clips

  • 0.6" (1.5 cm)
  • 0.9" (2.3 cm) Minimum
  • 1.8" (4.6 cm)
  • 2.1" (5.3 cm) Maximum


Tablet PCs and Laptops



7Flex Arm

  • Includes FLEXmount with 6 mounting options, including desk clamp and thru-desk and wall mounting
  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options
  • 24" of horizontal range
  • 16" of vertical range (8" up and down from horizontal)
  • Monitor tilter mechanism can tilt over 200 degrees
  • Rotates 360 degrees at three joints
  • Folds up to occupy just 3'' of space

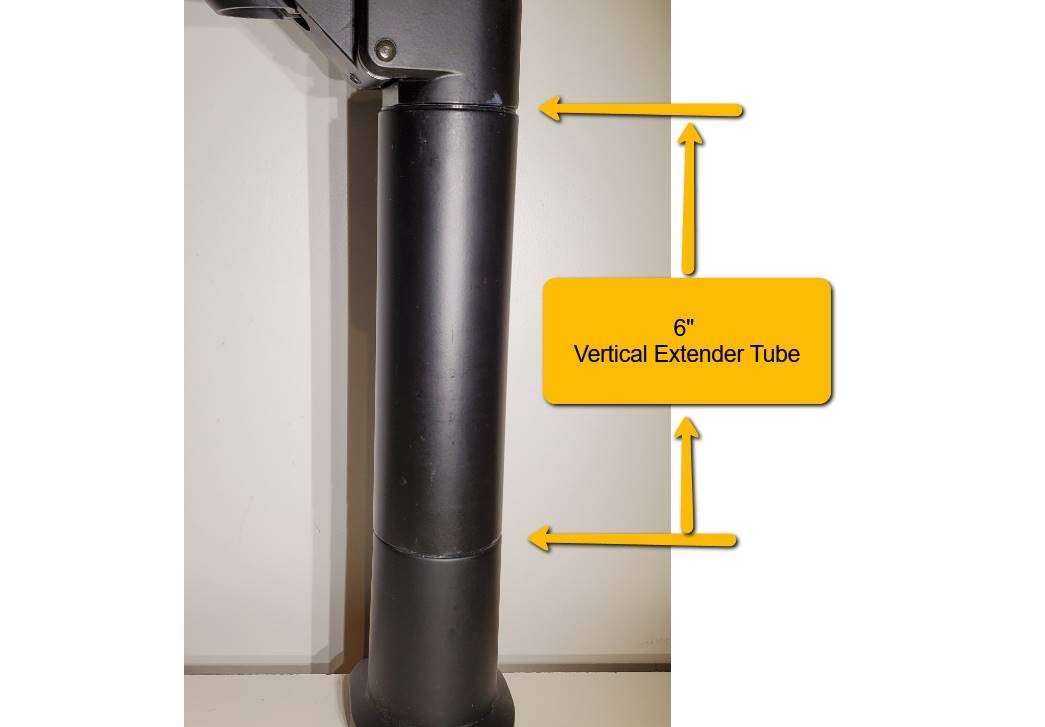

  • Optional 6" extender tube available to raise monitor

EVO 5501

  • Adapts to support both tablet PCs and laptops
  • Securely grips tablet or laptop, with quick attach and release
  • Adjustable clasps allow free access to jacks and ports
  • When used with tablet PCs, enables one-handed use of the tablet
  • Allows tablet to be used in portrait or landscape position
  • Mounting arm floats computer above desk - simply grab and move to desired position
  • Arm extends up to 18", with vertical adjustment of +/- 5" from horizontal
  • Integrated cable management keeps cords off the desk
  • Mount clamps to desk or through grommet with integrated handle (may also combine with slatwall, slatrail or wall mount)

Frequently Asked Questions

q My laptop weighs about 5 lbs. Is the ED-7F-5501 the compatible product. Are there other mounting options? I'm planning to order both vertical and 8" horizontal extenders.

This arm can hold your 5lb laptop. This mounts 6 different ways (clamp, grommet, wall, side bolt, reverse wall and thru-desk).

Model 7Flex-104i, EVO 5501
Manufacturer Ergodirect
Part Number 7Flex-104i, EVO 5501
Color 104 - Vista Black
Horizontal Range 24"
Vertical Range 16"
Tilt 200 degree
Rotation 360 degree
Mounting Options Wall
Mounting Options Desk
