Chief Kontour K1C Dynamic Column Mount, Dual Monitor Array - K1C22HB

Product ID 17870
Chief Kontour K1C Dynamic Column Mount, Dual Monitor Array - K1C22HB
Chief Kontour K1C Dynamic Column Mount, Dual Monitor Array - K1C22HB


Chief K1C22HB enhanced Kontour K1C Dynamic Height-Adjustable Column Mounts are the perfect solutions for the office, healthcare facilities or home. K1C mounts provide the maximum amount of both dynamic and manual height adjustment for the ultimate ergonomic solution. And best-in-class weight capacity range makes specification simple.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.

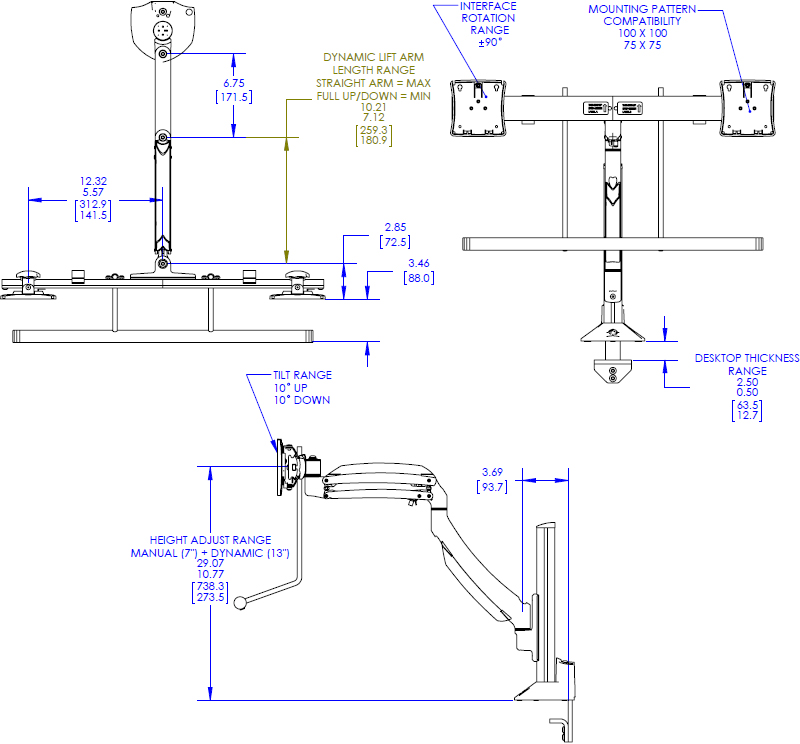

Technical Drawing

Technical Drawing for Chief K1C22HB or K1C22HS Kontour Dynamic Column Mount, Dual Monitor Array


Color Black, Silver
Certifications TAA Compliant
Desktop Thickness Range 0.50 - 2.50" (12.7 - 63.5 mm)
Dynamic Height Adjustment 13" (330.2 mm)
Manual Height Adjustment 7.0" (177.8 mm)
Maximum Extension 23.12" (587.2 mm)
Minimum Depth 6.16" (156.5 mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Screen Array Configuration 2 x 1
Shipping Weight 20.76 lbs (9.42 kg)

+/- 10°

TV Width Range Up to 24.90" (632.5 mm)
Typical Screen Sizes 10 - 24" (254 - 609.6 mm) diagonals
Weight Capacity 2 - 9 lbs (0.9 - 4.1 kg)
Orientation Landscape, Portrait


  • New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment

  • Sleek, solidly-constructed forged aluminum arms in enhanced silver & black finishes

  • Enhanced Column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment

  • 20" (508mm) of total height adjustment range

  • 13" of dynamic height adjustment using smooth motion gas-spring technology

  • Additional 7" of manual height adjustment on the column

  • Enhanced 3-step installation and quick-release Monitor Interface for easy mounting and maintenance, with included tool storage in the updated Base

  • Easily clamps to edge of desk or through standard grommet hole, or through bolt hole with included Kit

  • Tool-free cable management covers for a clean, professional look

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

Frequently Asked Questions

q Hi. Looking for a dual monitor setup, in a sit-stand environment (user is 6 foot, one inch). This Chief mount seemed like a good option, as did the Ergotron LX HD Sit-Stand Desk Mount LCD Arm.

Since you are looking for a sit-stand workstation (for a 6 foot, 1" user) I recommend a workstation with minimum 20” height adjustment. Chief Kontour K1C22HB/S is not a sit-stand workstation for a tall person. Ergotron ED-LX2-SitStand WorkFit Dual Monitor Workstation is a dual monitor workstation with 20" height adjustment and a good candidate for sit-stand. Another related product comes with an independently adjustable keyboard tray. Another very popular solution is WorkFit-S, Dual Monitor. It installs in front of the desktop with more stable keyboard tray which goes below desktop for an ergonomic typing position.

Model K1C22HB, K1C22HS
Manufacturer Chief Mounts
Part Number K1C22HB, K1C22HS
UPC 841872160115
Color Black, Silver
Desktop Thickness Range 0.50 - 2.50
Dynamic Height Adjustment 13
Manual Height Adjustment 7.0
Maximum Extension 23.12
Minimum Depth 6.16
Mounting Pattern 75 x 75mm, 100 x 100mm
Shipping Weight 20.76 lbs (9.42 kg)
Tilt +/- 10 degree
TV Width Range Up to 24.90
Monitor Size 10 - 24
Weight Capacity 2 - 9 lbs (0.91 - 4.08 kg) per monitor
Orientation Landscape, Portrait
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Maximum Monitor Size 24
Monitor Placement Side-by-Side

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
