$76.00

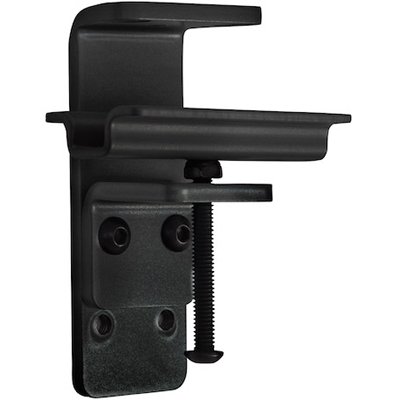

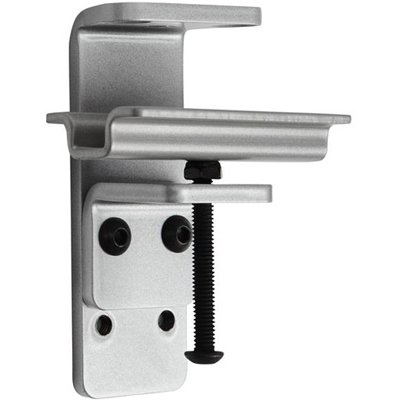

Chief KRA219 Kontour K1 and K2 Narrow-Gap Table Clamp Kit

Product ID 17864
Chief KRA219 Kontour K1 and K2 Narrow-Gap Table Clamp Kit
Silver
Chief KRA219 Kontour K1 and K2 Narrow-Gap Table Clamp Kit
Silver

Description

Use the enhanced Chief Kontour KRA219 K1 & K2 Table Clamp Kit for installations when the gap between edge-of-table and rear wall panel is less than 1/2" (12.5 mm).

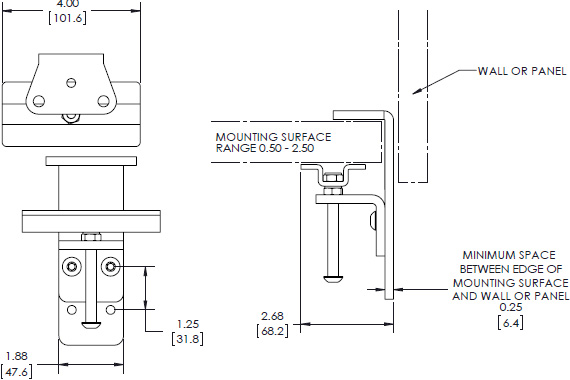

Technical Drawing

Technical drawing for Chief KRA219 Kontour K1 and K2 Narrow-Gap Table Clamp Kit



Specifications

Color

Black, Silver

Notes

TAA Compliant

Weight Capacity

40 lbs (18.1 kg)

Shipping Weight

2.25 lbs



Features

  • The KRA219 enables clamping of any K1C, K1D, or K2C product in applications where the gap between the back edge of table and rear wall or panel is less than 1/2" (12.5 mm)

  • The standard Table Clamp provided with these products will not work in such narrow-gap scenarios

  • TAA Compliant

Product Options/Accessories

Model KRA219B, KRA219S
Manufacturer Chief Mounts
Part Number KRA219B, KRA219S
UPC 841872160764
Color Black, Silver
Shipping Weight 2.25 lbs
Weight Capacity 40 lbs (18.1 kg)
