Description

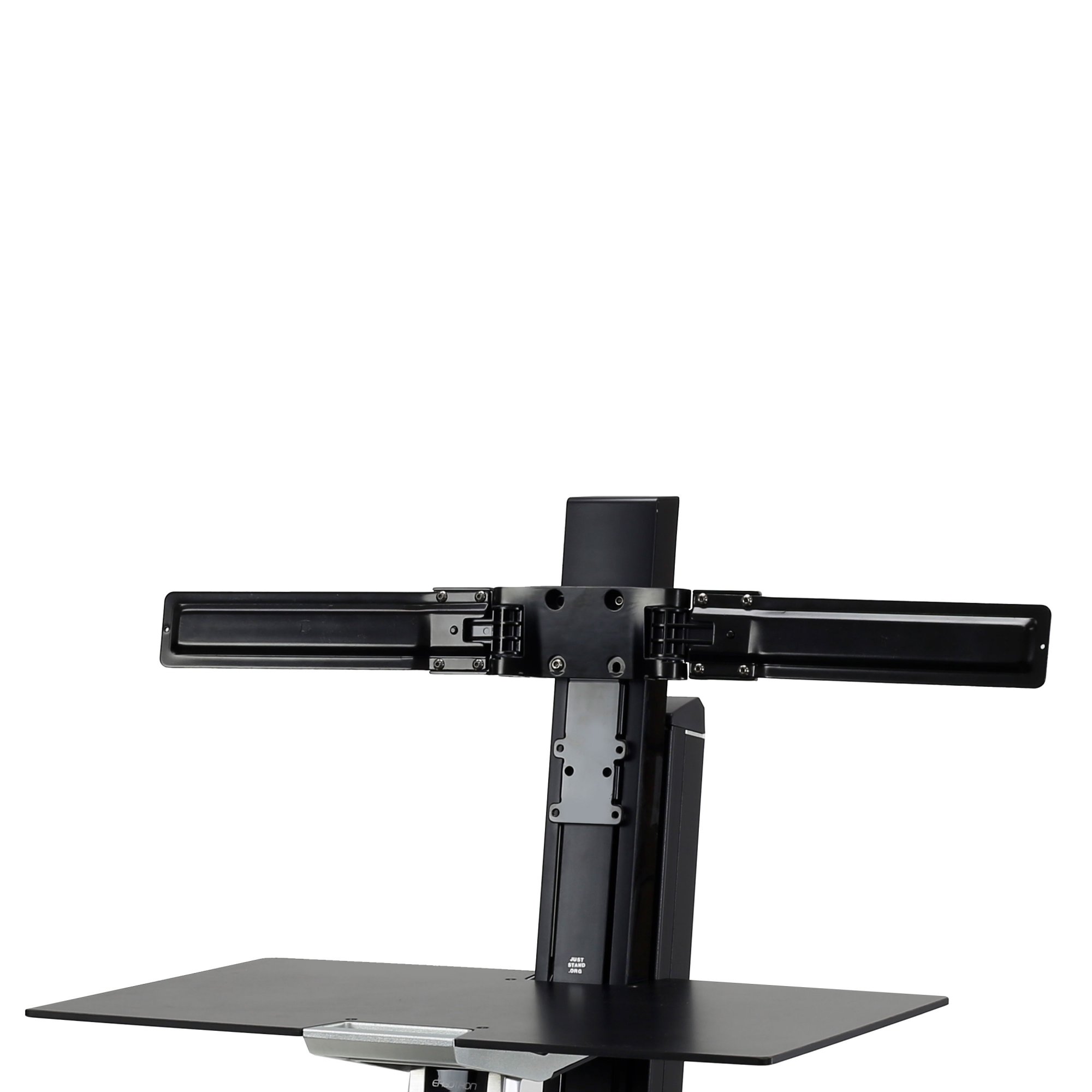

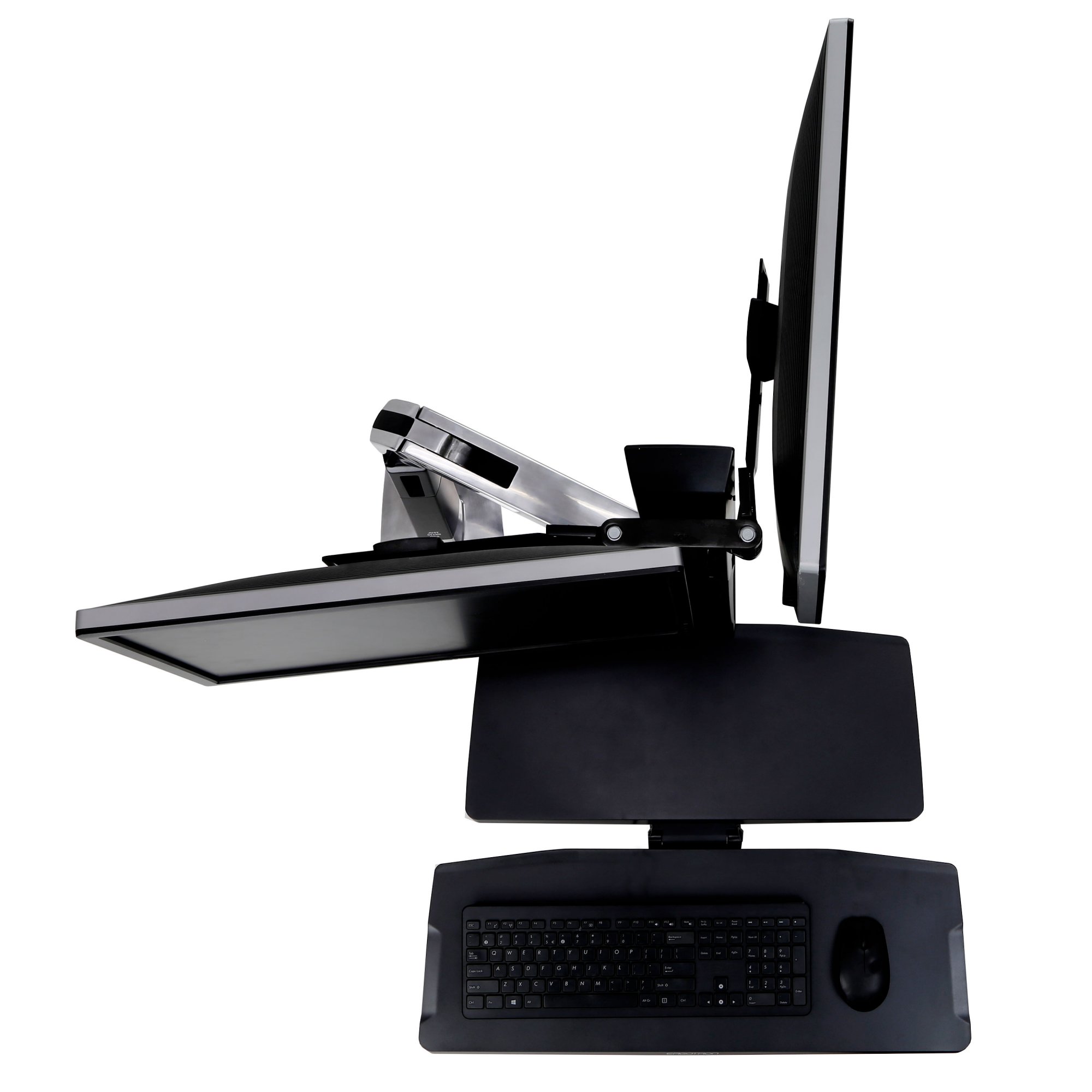

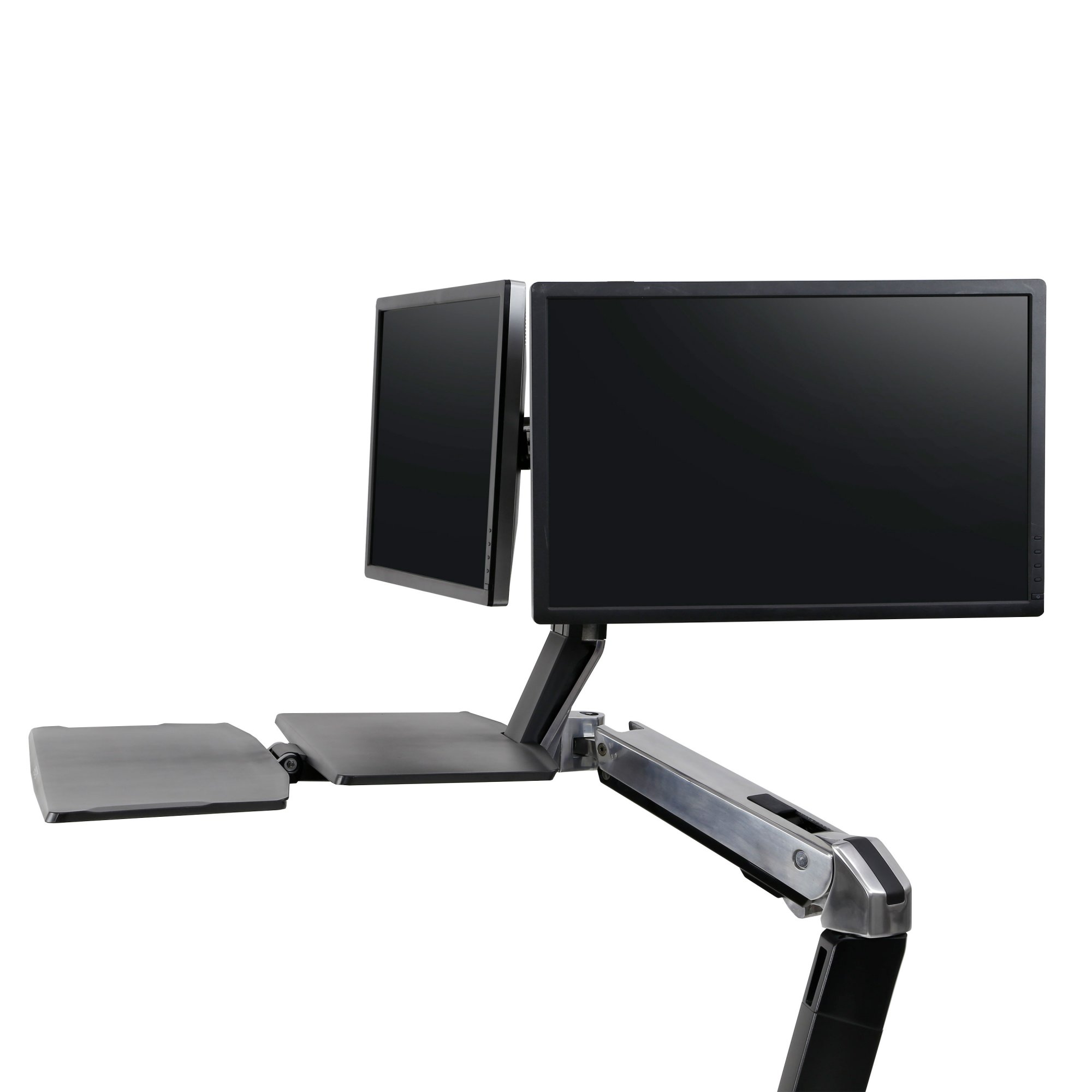

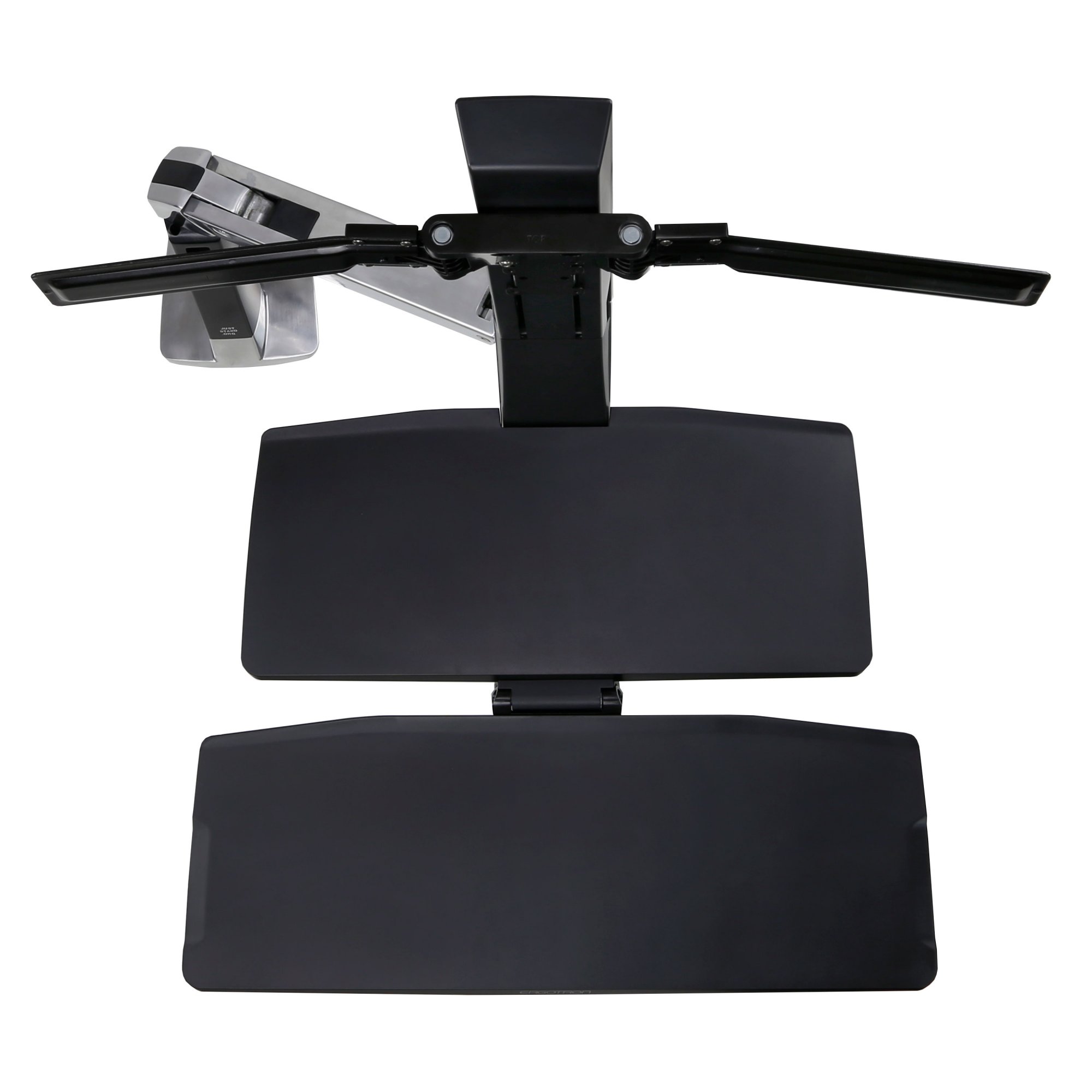

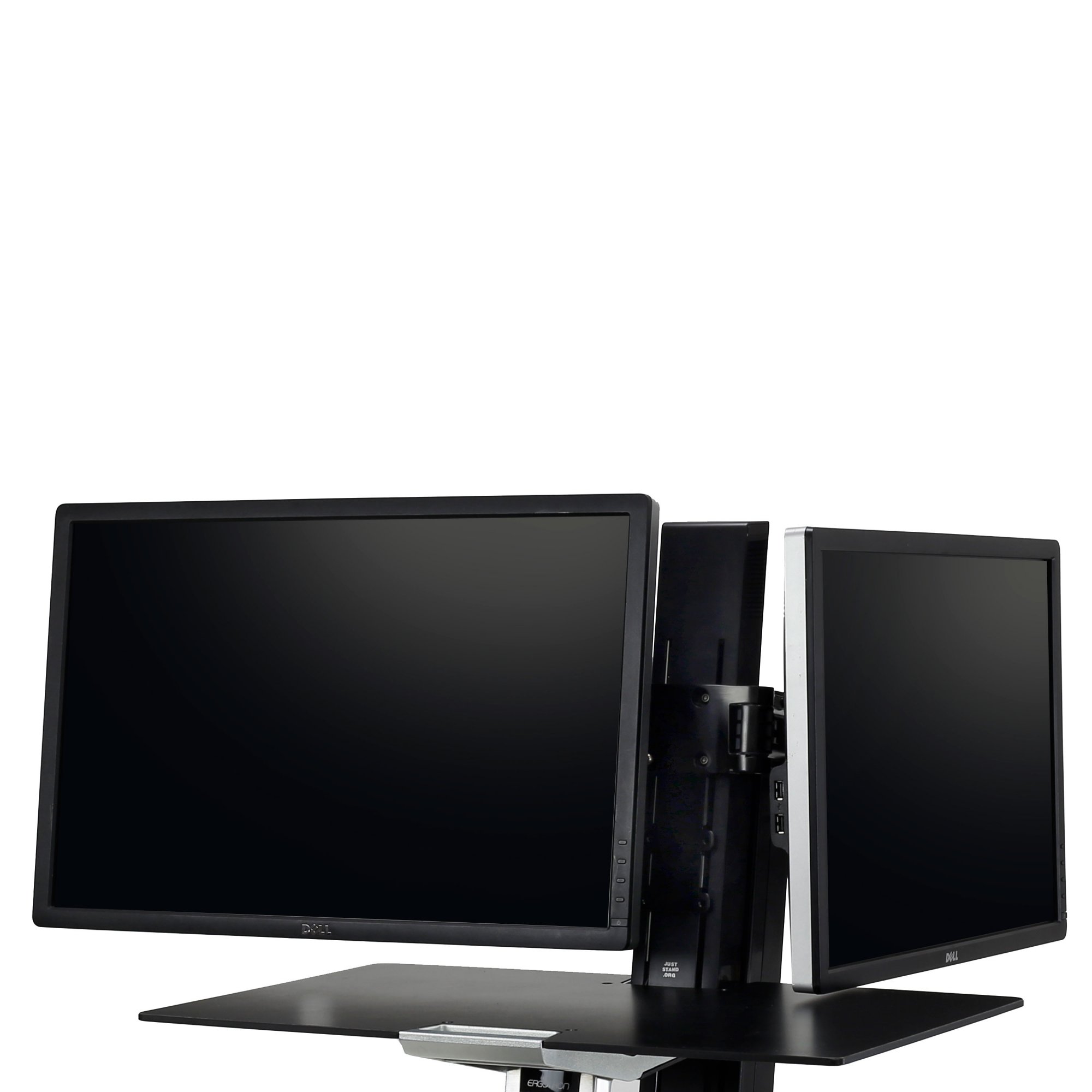

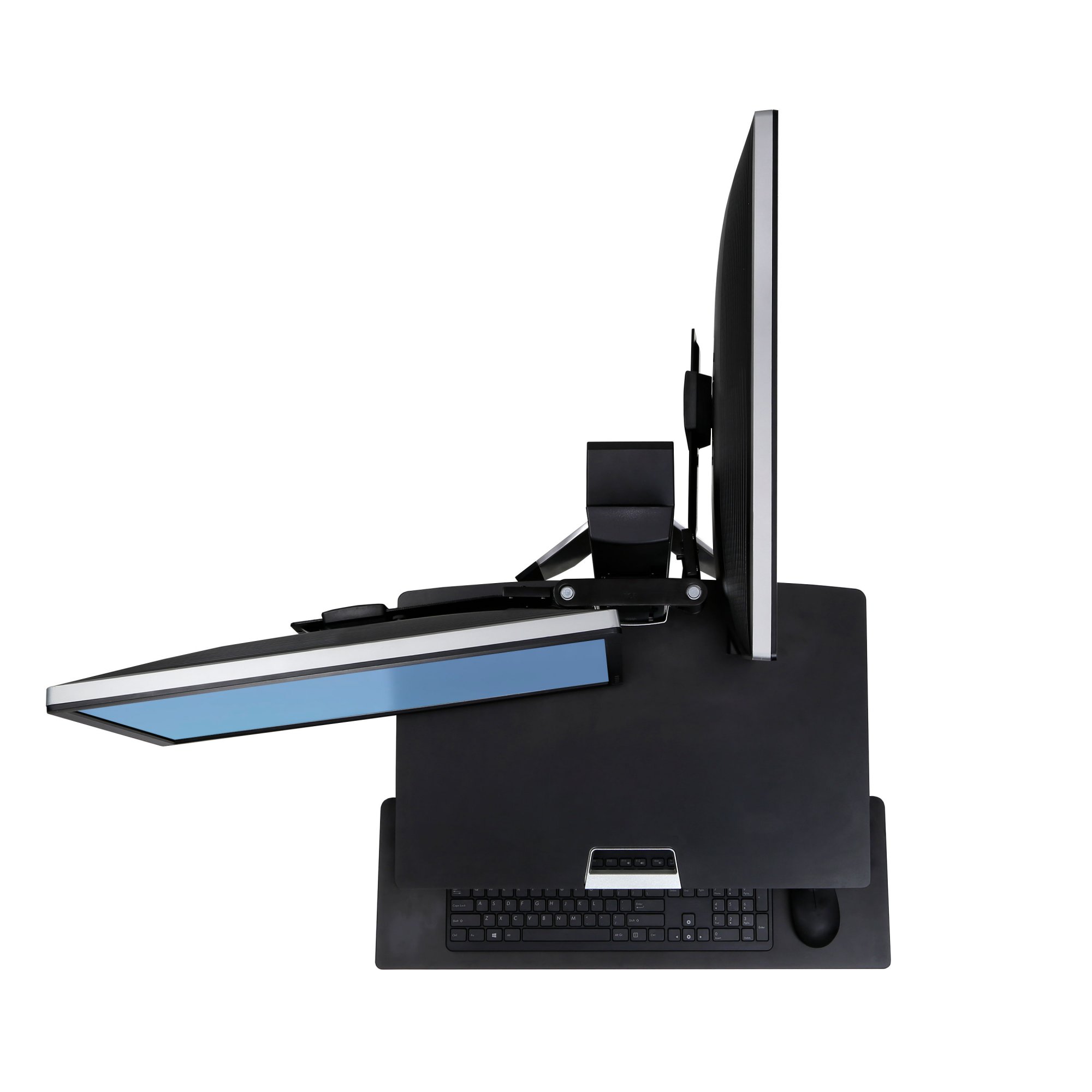

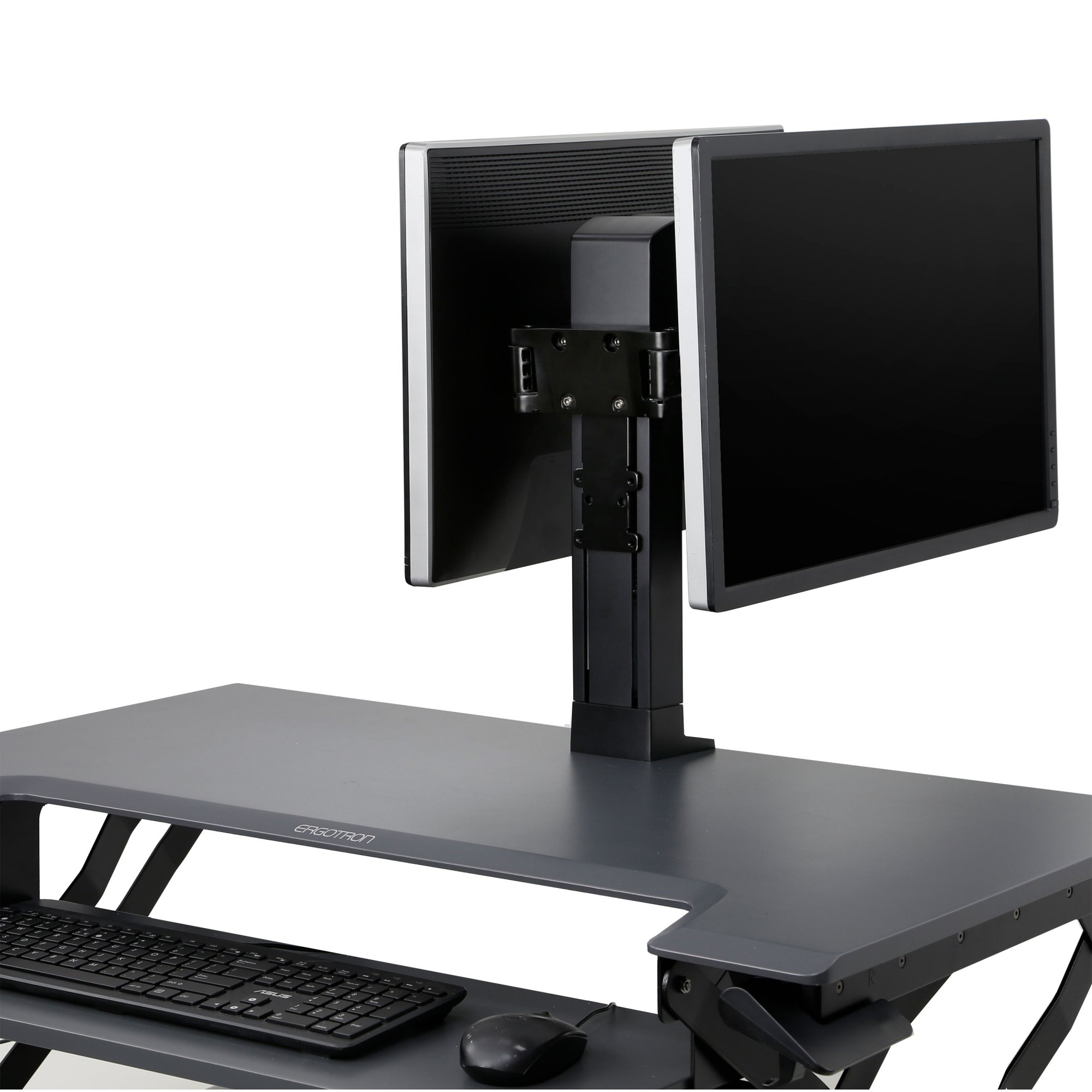

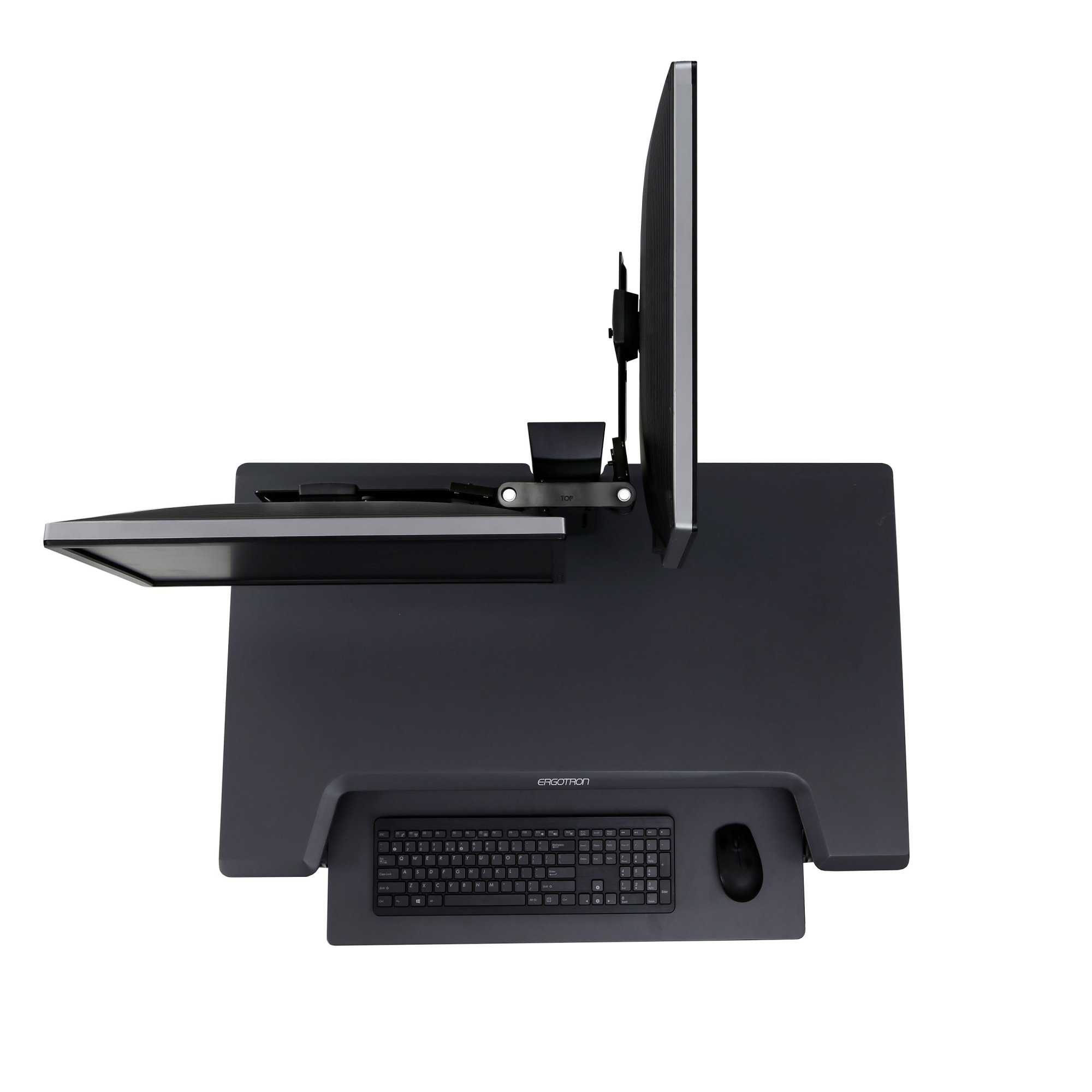

Upgrade your existing dual monitor WorkFit with the ultimate in viewing-angle control. Increase productivity while enhancing workplace collaboration. Ergotron 98-101-009 Double-Hinged Bow allows you to turn screens inward to customize the viewing parabola, or you can turn a screen outward to share a view with others.

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 25"

6-14 lbs

2.7-6.4 kg

- - 168° - -

Product Information

Part Number 98-101-009
Description Dual Monitor Double-Hinged Bow Accessory for WorkFit Dual Workstations (black)

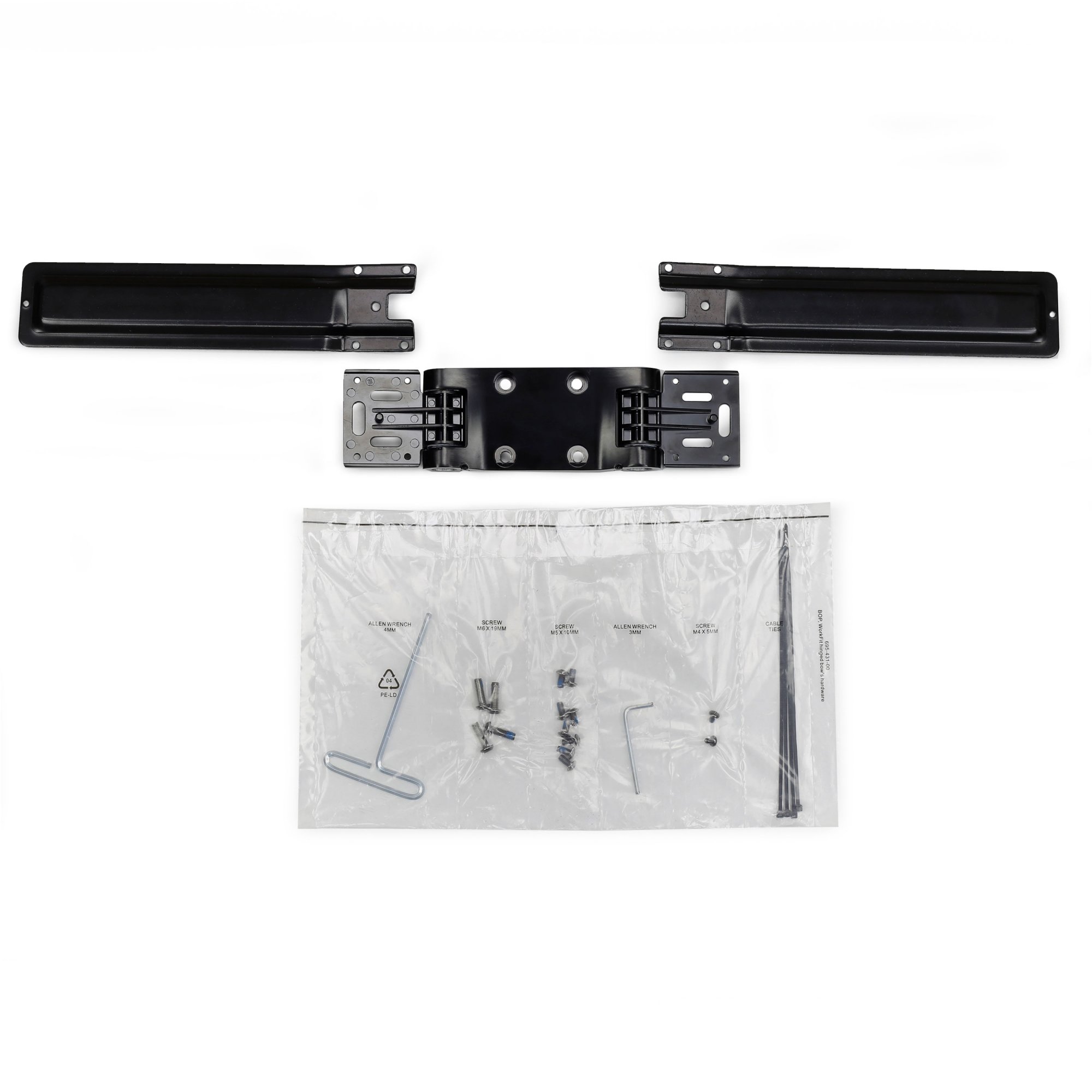

Includes
  • Double-hinged bow

  • Mounting hardware

Not Included Pivots are not included. Use pivots from your current workstation
Not Compatible This product is intended for use with most WorkFit Dual Workstations. It is NOT compatible with WorkFit-C, WorkFit-LX, WorkFit-D and WorkFit-DL products. When attaching to WorkFit-T, WorkFit-TL or WorkFit-PD products, an accessory dual-monitor riser kit must be in place (pt # 97-904, 97-907, 97-933-062 or 97-934-062)
Hinge Bow Pans 168° from from front to back using monitors smaller than or equal to 18" screen size. The forward panning motion may be restricted when using screens 19"-25" in size
Weight Capacity 6-14 lbs (2.7-6.4 kg) each. Weight capacity will vary depending on the capacity of your existing WorkFit
Product Weight 3.0 lbs (1.4 kg)
Shipping Dimensions 12.3" x 6" x 3.5" (31 x 15 x 9 cm)
Shipping Weight 3.5 lbs (1.6 kg)
Warranty Five (5) years

Benefits

  • Provides convenient pivoting motion of either screen: position both screens forward or share a view to the left or right.

  • Accommodates screens up to 25" in size

  • Robust design ensures many years of service

  • Ease of installation: design features prevent improper installation

  • Conceal and organize cables: display cables can be neatly routed behind displays

Product Options/Accessories

Model 98-101-009
Manufacturer Ergotron
Part Number 98-101-009
UPC 698833062298
Color Black
Monitor Size Up to 25"
Weight Capacity 6-14 lbs (2.7-6.4 kg)
Pan 168 degree
Weight 3.0 lbs (1.4 kg)
Shipping Dimensions 12.3" x 6" x 3.5" (31 x 15 x 9 cm)
Shipping Weight 3.5 lbs (1.6 kg)
Warranty Five (5) years
