Workrite SA1000 SwingArm Flat Panel LCD LED Monitor Arms SA-1000S

Ball Joint screws must be loosened to adjust the tilt when arm reached to desired height. Then tightened once desired location is achieved.
0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 14041
Recommended Accessories
List Price: $391.00
Our Price: $234.60
Shipping: $0.00 * - Free
Usually ships in 3 to 5 business days
* applies to Contiguous United States



Workrite SA1000 SwingArm Flat Panel LCD LED Monitor Display Arm SA 1000



Workrite SA1000 SwingArm









Workrite SA1000 SwingArm:





Articulating flat panel display arm provides the ultimate flexibility in flat panel monitor positioning.

The right monitor supports can help you swing into action. Optimizing the viewing angle, focal length and monitor height with a few simple twists and turns, WorkRite's

SwingArm articulates to virtually any position.

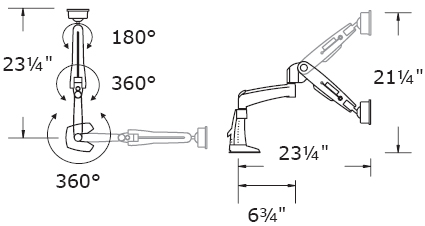

Dimensional Diagram for SA1000 SwingArm





Horizontal and Vertical Reach

Monitor Tilt and Rotation

Horizontal and Vertical Reach

Monitor Tilt and Rotation





SwingArm - Dual

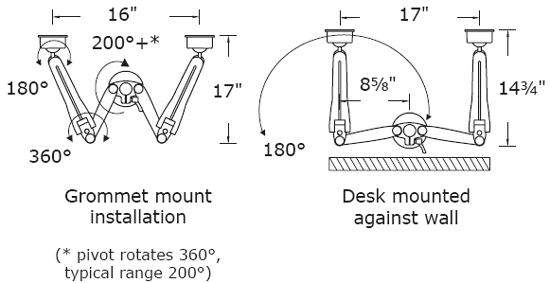

SwimgArm Dual - Grommet mount and Desk mounted against wall



 Get a clear line of sight from any angle

The right monitor supports can help you swing into action. Optimizing the viewing angle, focal length and monitor height with a few simple twists and turns, WorkRite's SwingArm articulates to virtually any position.





Folded depth of 4 inch frees up more of your workspace

more of your workspace

Ball joint provides multiple axis adjustment

Ball joint provides multiple axis adjustment

Integral pneumatic cylinder backed by 10 year warrant

Integral pneumatic cylinder backed by 10 year warrant

SwingArm-Dual clamp handle provides 7 inch vertical range

SwingArm-Dual clamp handle

provides 7" vertical range







Features of Workrite SA1000 SwingArm:

  • Create a Healthier, Safer, More Comfortable Work Environment - SwingArm allows users to easily adjust monitor height, focal distance and tilt angle. Stores easily to the rear of the work surface.

  • Widest Range of Adjustments for Excellent Flexibility - SwingArm's height range is best-in-class at 21.5". Also leads in reach adjustability and supports monitors up to 25 lbs. Ball swivel allows users to easily set viewing angle and monitor rotation.

  • Works with Most Flat Panel Monitors - If your monitor is equipped with an industry-standard VESA 75mm or 100mm mount, the SwingArm quickly attaches. You'll see and feel the benefits of the SwingArm's durable, stylish design.

  • Mounts to a Variety of Surfaces - Included with your standard SwingArm are clamp and grommet style mounts, for use when mounting to a worksurface up to 2.125" thick. An optional wall mount and slat wall mount allow easy integration with vertical mounting surfaces, including the new Sierra Tool Bar and Sierra Privacy Panel. NEW - mounts are now available for many manufacturers' panel systems, order SA1000-WM and mount (ie SAPAN-03) separately

  • Integral cable management system

  • Silver or Graphite

  • High-quality pneumatic strut counter-balance

  • 10-year limited warranty







Specifications:

2 Piece Clamp Range

0.75 - 2 1/8

Grommet Clamp Range

0.75 - 2 1/8

Tilt Range

145 degree

Monitor Rotation

360 degree

First & Second Pivot Rotation

360 degree

Monitor Pivot Rotation

180 degree

Weight Capacity

Up to 25 lbs

Height Range

21.25"

Reach

23.25"

Stored Depth

4





Comparison Chart:

With a 360 degree rotation, monitor can be changed quickly from landscape to portrait orientation. For customized control, including touch screen use, tension is adjustable at all pivot points. All SwingArm products support monitors up to 25 lbs. For security, monitors attach with 4 screws.

Specifications

SwingArm

SwingArm-Extended

SwingArm-Dual

Reach

23.25"

30.25"

23.25" (two arms)

Tilt Range

145 degree tilt range (+/- 72.5 degree)

145 degree tilt range (+/- 72.5 degree)

145 degree tilt range (+/- 72.5 degree)

Height Range

21.25"

21.25"

21.25" + 7.125" on pole

Pivot at Base

360 degree

360 degree

360 degree

Pivot at Monitor Mount

180 degree

180 degree

180 degree

Stored Depth

4"

4"

4"

75mm/100mm VESA Mount

X

X

X

Accessories

Wall Mount Bracket,

Slatwall Adapter

none

C-Clamp,

Grommet Base Kit





Additional Images:

SA1000 SwingArm Extension

SA1000 SwingArm Extension

Workrite SA1000 SwingArm Monitor Arm SA-1000

SA1000 SwingArm Extension













SA1000-S SwingArm in Silver

SA1000-S SwingArm in Silver



Workrite SA1000-G SwingArm in Graphite





SA1000-G SwingArm in Graphite











Similar Products:

WorkRite SA1500-DB Swing Arm Extended Flat Panel Monitor Arm SA1500DB

SA1500-DB Swing Arm Extended



WorkRite SA2000 SwingArm Dual

SA2000 SwingArm Dual
