Workrite Ergonomics Conform Articulating Monitor Arm

Product ID 18494


  • TAA compliant (Assembled in the USA)
  • Must Read : Your monitor must be less than 16" in height or it hits the desktop at lowest position of the monitor arm
  • Horizontal reach: 22.5"
  • Monitor Arm weight capacity: 5-17 lbs
  • Warranty: 10 year
  • For non-articulating static Monitor Arm, click here

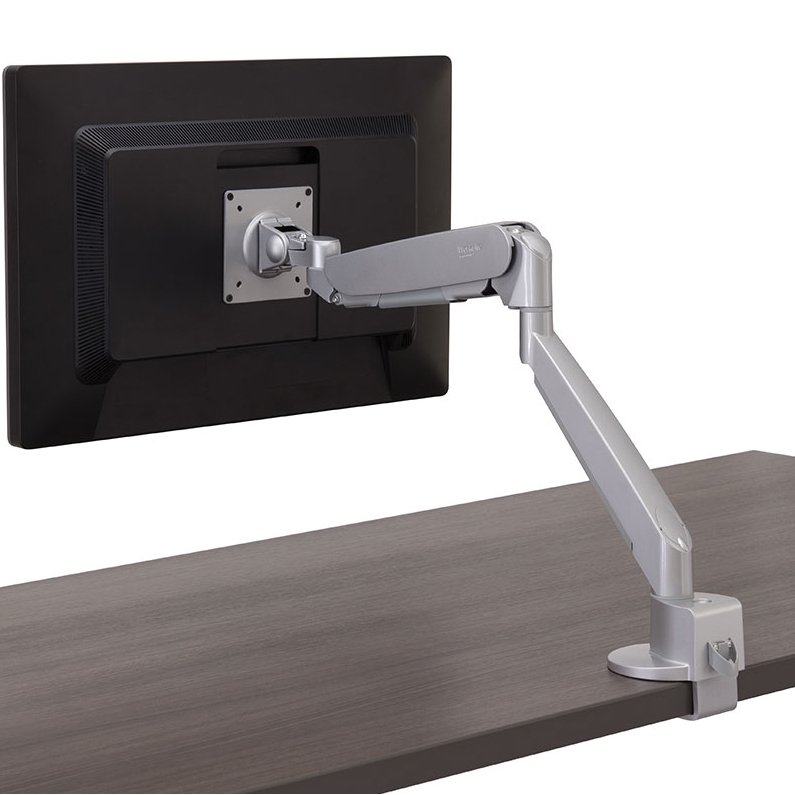

The Conform Articulating Monitor Arm adapts to your changing needs through an easy to use, pin assembly system. Mount the arm to a variety of bases, add additional arms or reconfigure as hardware and office personnel needs change. The exceptionally smooth lifting gas spring, coupled with precision bushings, provides years of maintenance-free maneuverability. The Conform Articulating Monitor Arm has been engineered to support over 12,000 cycles and exceeds ANSI/ BIFMA x5.5 requirements. TAA Compliant.

For more than 25 years, Workrite Ergonomics has been helping organizations create happier, healthier and more productive workplaces. We take issues like neck and back pain, blurred vision, and headaches caused by extended computer use seriously, and are committed to helping organizations fight these increasingly common problems.
Since creating our first elevated monitor solution two decades ago, the market and Workrite have changed, a lot. What hasn’t changed is our passion for developing the best ergonomic solutions possible and our keen focus on listening to the industry. Every Workrite product is designed with the direct input of the ergonomics community to ensure they not only perform complex functions but are also intuitively simple to use.

We took a ground up approach to developing the Conform Series, which resulted in the most ergonomic, flexible, and easy to install system that we’ve ever created. The Conform Series features a variety of articulating and static arms, mounts, and accessories, making it an extremely versatile product that can accommodate virtually any design application or monitor configuration.
Articulating Arm options feature a pneumatic strut coupled with a vertical linkage system, allowing users to easily position monitors weighing up to 40 lbs with one hand. Static Arms provide a range of up to 2 feet of reach over the work surface and can be easily configured in arrays from 1 to 6 monitors.

The core of the Conform Series is the pin connection system, which enables arms to be inter changed and attached to a variety of base options and accessories. This allows a single desk mounted monitor system to easily become a dual arm system, or a desk mounted system to become a toolbar mounted system, or a wall mounted system to become a pole mounted system. As your needs change, Conform can easily change with you.
Conform Articulating Arms are available with pneumatic struts that easily lift monitors weighing up to forty pounds with one hand, providing users with smooth one-touch adjustability. Precision bushings coupled with a vertical linkage system allow arms to effortlessly float back and forth as users reposition their monitors to their desired focal distance and angle.

These arms are designed for fast and easy installation, and are pre-assembled, ready to slip on to your selected base option with ease. Utilizing the interchangeable pin connection system, Articulating Arms can be used with Conform Static arms, accessories, and a variety of base options. Reconfigure the Conform as hardware and office personnel needs change.
Designed for mounting multiple monitors in shallow work environments, Conform Static Arms may be used to display up to 24" wide monitors in side-by-side configurations and stacked arrangements from two to six monitors. The static height design maintains monitor alignment for a consistent appearance.

Like the rest of the Conform series, the pin connection system allows a multiple monitor arrangement to be converted into an extended single arm solution for use with a touch screen monitor, laptop or keyboard application, should business needs change in the future.


Technical Drawing

Technical drawing for Workrite CONF-1SDA-WOB-S Conform Articulating Monitor Arm


Technical Specifications


Silver and Black


One 5-17 lbs monitor

Maximum Monitor Height

16" (full range of motion)

Articulation Range


Forward Reach


Stowed Depth


Monitor Tilt






Mounting Pattern

Standard VESA (75 mm & 100 mm)


10 years



  • Smooth lifting, maintenance-free gas spring supports one 5-17 lbs monitor

  • Interchangeable pin system ensures future adaptability

  • Extends to 22.5" of forward reach, for easy monitor viewing

  • Quickly folds down to 5.25", freeing up user workspace

  • Easily route and conceal cables through the integrated wire managers

  • Adjust to the perfect height, with 13" of vertical movement

  • Discrete silver color blends into office environments

  • Designed for fast and easy installation


Manufacturer Workrite Ergonomics
Color Silver and Black
Weight Capacity 5-17 lbs
Monitor Height 16" (full range of motion)
Articulation Range 13"
Forward Reach 22.5"
Stowed Depth 5.25"
Tilt +90/-45 degree
Pivot +/-90°
Rotation +/-90 degree
Mounting Pattern Standard VESA 75 mm & 100 mm
Warranty 10 years
Number of Monitors 1 Monitor
