The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

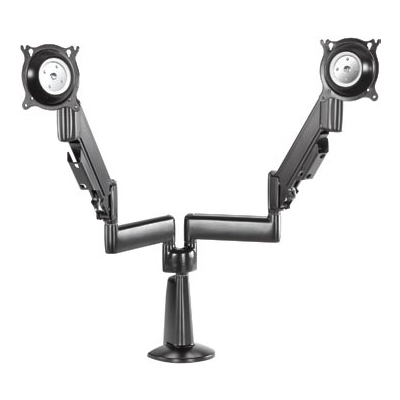

Chief KCY220 Height-Adjustable Dual Arm Desk Mount, Dual Monitor
|
|
|
|
Chief KCY220 works
fine with 2 x 24" monitors. Maximum Weight Capacity is 40 lbs
total or 20 lbs per monitor. |
|
|
||
|
||
Features of Chief KCY 220B: |
||
1. Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust.
|
||
2. Easy 3-Step Installation:Ships fully assembled, clamp option can be installed from top of desk, grommet bolt through hardware included.
|
||
3. Independent height adjustment: Dual arm, dual monitor. Maximize possible viewing angles. Adjust the height and position of each screen independently for ergonomic alignment
|
||
4. Advanced Display Mounting:Teardrop hole pattern makes mounting the screen quick and easy.
|
||
5. Adjustable tension in individual pivot points, touch screen compatible.
|
||
6. Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
|
||
7. Clean look with minimal hardware visible from underside of work surface
|
||
8. Quick, easy cable management |
||
9. VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)
|
||
10. Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3" (10-76 mm) |
||
|
||

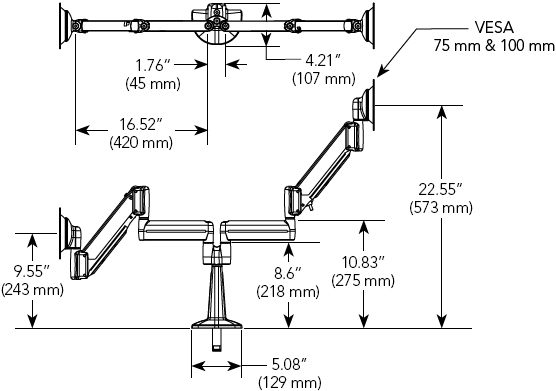

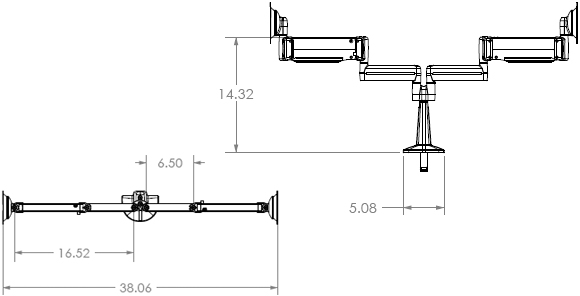

Technical Drawings for Chief KCY-220 Desk Mount Height Adjustable Dual Monitor LCD Arm
|
||
|
||
|
||
|
||
Description of Chief KCY-220B: Chief's KCY220 for small flat panel monitors provides maximum ergonomic flexibility for viewing multiple monitors. (Previously sold as FCY220)
|
||
|
||
|
||
Depth (closed): |
2.19" (56 mm) |
|
Maximum Extension: |
20" (508 mm) |
|
Height Adjustment: |
13.25" (337 mm) |
|
Tilt: |
+/-15 degree |
|
Pivot (Desk/Display/Arm): |
360 degree/180 degree/360 degree |
|
Dimensions (W x H x D): |
5.06" x 10.81" x 4.2" (129 x 275 x 160 mm) |
|
Color: |
Black |
|
Weight Capacity: |
40 lbs (18.2 kg), 20 lbs (9.1 kg) per mounting arm |
|
VESA Compatibility: |
75 x 75mm and 100 x 100mm (without extra interface bracket) |
|
|
||
More Images: |
||
|
||
|
Product Options/Accessories










Model | KCY220B |
Manufacturer | Chief Mounts |
Part Number | KCY220B |
UPC | 841872075143 |
Weight | 22.00 lb(s) |
Mounting Options | Desk |
Monitor Arm Types | 2 Monitors |
Color | Black |
Desktop Thickness Range | 0.5 - 3.5" (13 - 89mm) |
Dynamic Height Adjustment | 13.25" |
Grommet Hole Size Range | 0.38 - 3" (10 - 76mm) |
Maximum Extension | 20" (508.mm) |
Minimum Depth | 2.19" (55.6mm) |
Mounting Pattern | 75 x 75mm, 100 x 100mm |
Overall Dimensions | 12.0" x 10.0" x 4.2" (305 x 254 x 107mm) |
Tilt | + 15 degree, - 15 degree |
TV Width Range | 10 - 32" (254 - 813mm) |
Screen Size | 10 - 30 in |
Weight Capacity | 5 - 20 lbs (2.3 - 9.1kg) per monitor |
Shipping Weight | 22 lbs |
