Chief Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors - K1D220

Product ID 17847
Chief Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors - K1D220
Kontour K1D Dynamic Desk Mount, 2 Monitors in silver
Kontour K1D Dynamic Desk Mount, 2 Monitors in white

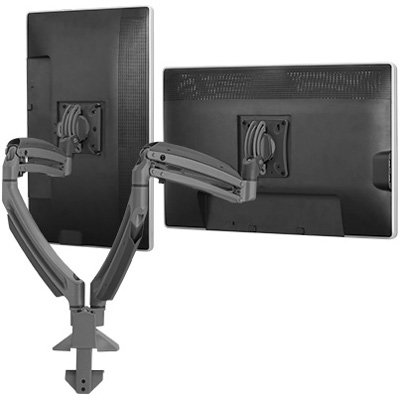

Chief Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors - K1D220

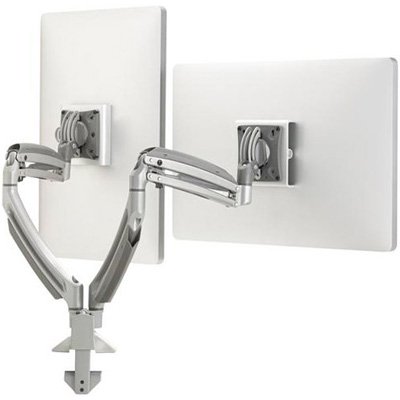

Kontour K1D Dynamic Desk Mount, 2 Monitors in silver
Kontour K1D Dynamic Desk Mount, 2 Monitors in white


  • Desk mounting Dual Monitor arm
  • Height adjustability: Provides 13" vertical adjustment
  • Reach: 21.6" horizontal adjustment
  • Screen size: 10-30"
  • Weight capacity: Each monitor can weigh between 5-25 lbs
  • Desktop thickness: Desktop can be 0.5-2.5" thick, attaches to the desk with clamp, grommet hole or bolt
  • Please see, if you are looking for a desk mounting single monitor arm


The enhanced Chief K1D220 Kontour K1D Dynamic Height-Adjustable Desk Clamp Mounts are the perfect monitor mount solutions for the office, healthcare facilities or home. Best-in-class weight capacity range makes specification simple.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work space.

Technical Drawing

Technical Drawing for Chief Kontour K1D Dynamic Desk Clamp Mount, 2 Monitors - K1D220


Color Black, Silver and White
Certifications TAA Compliant
Desktop Thickness Range 0.5 - 2.5" (13 - 63 mm)
Dynamic Height Adjustment 13.0" (330 mm)
Maximum Extension 21.6" (549 mm)
Minimum Depth 2.45" (62 mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Shipping Weight 17.4 lbs (7.89 kg)
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Orientation Landscape, Portrait


  • Best-in-class weight capacity range of 5 to 25 lbs makes specification simple

  • No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One

  • Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes

  • Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing

  • 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology

  • Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base

  • Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit

  • Tool-free cable management covers for a clean, professional look

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

  • Most Kontour K1 products are TAA-compliant - see respective product pages for details

Model K1D220B, K1D220S, K1D220W
Manufacturer Chief Mounts
Part Number K1D220B, K1D220S, K1D220W
UPC 841872160184
Color Black, Silver and White
Desktop Thickness Range 0.5 - 2.5
Dynamic Height Adjustment 13.0
Maximum Extension 21.6
Minimum Depth 2.45
Mounting Pattern 75 x 75mm, 100 x 100mm
Shipping Weight 17.4 lbs (7.89 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg) per monitor
Orientation Landscape, Portrait
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Maximum Monitor Size 30
Monitor Placement Side-by-Side

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
