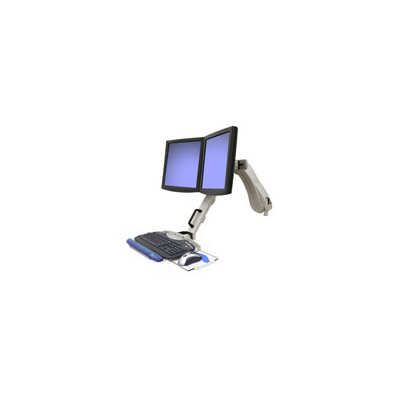

Ergotron 44-407-200 HD Dual-Monitor Combo Arm, no mount black
|
|
Ergotron 44-407-200 HD Dual-Monitor Combo Arm, no mount
This combo solution holds two monitors and a keyboard on the same arm, providing easy, single-motion height adjustment. Mount not included. Order Vertical Mount Base separately (60-378-180).
|
|

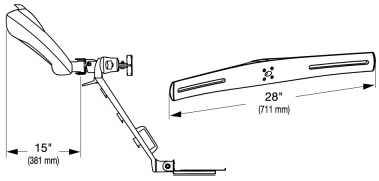

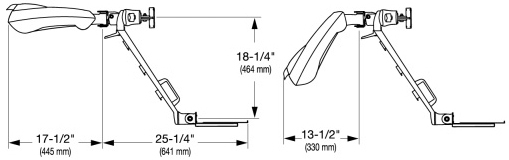

Dimensional Diagram for Ergotron HD Dual Combo Arm
|
|
|
|
|
|
|
|
Technical Specifications:
|
|
|
 |
 |
 |
 |
 |
 |
|
LCD Size
|
Wt. Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
|
up to 24"
|
up to 20 lbs
up to 9.1 kg
|
15"
38.1 cm
|
35°
|
180°
|
360˚ P/L
|
MIS-D
|
|
|
Product Information:
|
|
Part Number
|
Ergotron 44-407-200
|
|
Description
|
HD Dual-Monitor Combo Arm without mount (black)
Also available in grey. Contact Ergotron for details
|
|
Includes
|
Does not include mounting base; order Vertical Mount Base separately (60-378-180). Alternatively, an HD Extender (44-396-180) may be used in place of the Vertical Mount Base
Wrist rest not included
|
|
Weight Capacity
|
*20 lbs (9 kg) per monitor, 5 lbs (2.3 kg) for keyboard, 45 lbs (18 kg) total
Weight capacity may be diminished if monitor depth is greater than 2 inches
|
|
Mounting Standards
|
VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm (3.937" x 3.937") and 75 x 75 mm (2.952" x 2.952"))
|
|
CPU Size Range
|
1-3/8" to 3-3/4" (35 to 95 mm) wide
|
|
Shipping Weight
|
36 lbs (16.3 kg)
|
|
Warranty
|
Five (5) years
|
|
|
Benefits:
|
|
Adjusts 15" vertically accommodating a wide range of user heights. |
|
View multiple monitors simultaneously with patented Paraview Technology. |
|
Maintains the relative position of screens and keyboard throughout full range of motion. |
|
Integrated cable management. |
|
