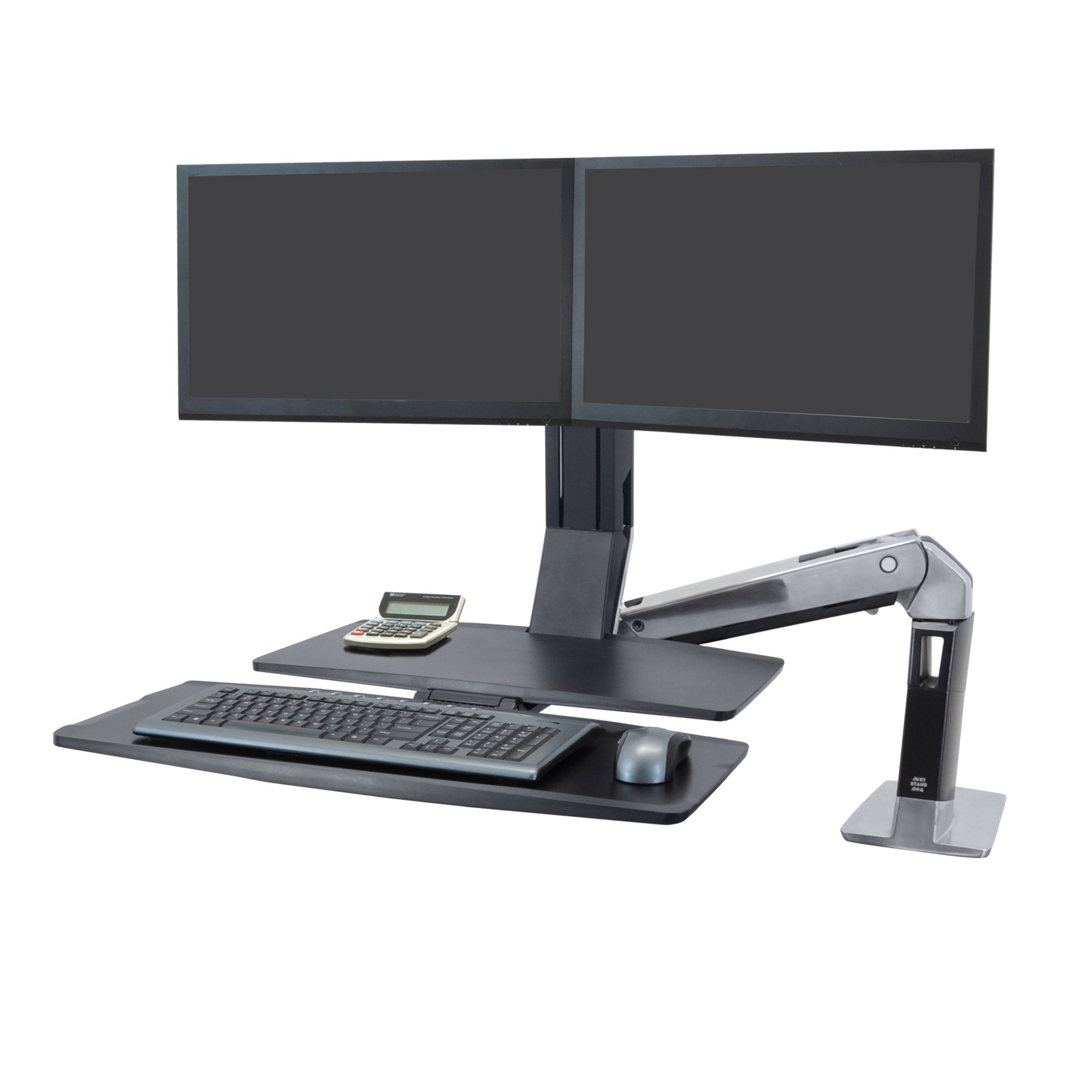

Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface

Product ID 17655

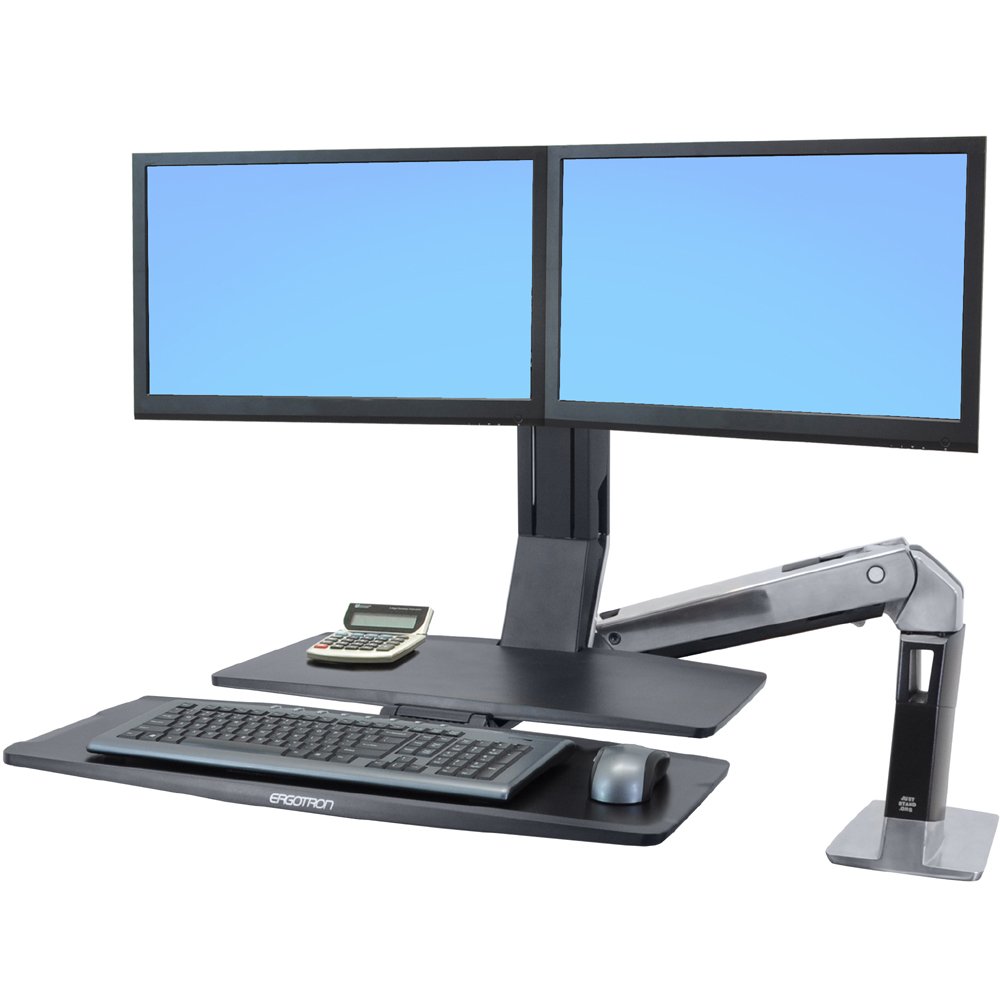

Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface

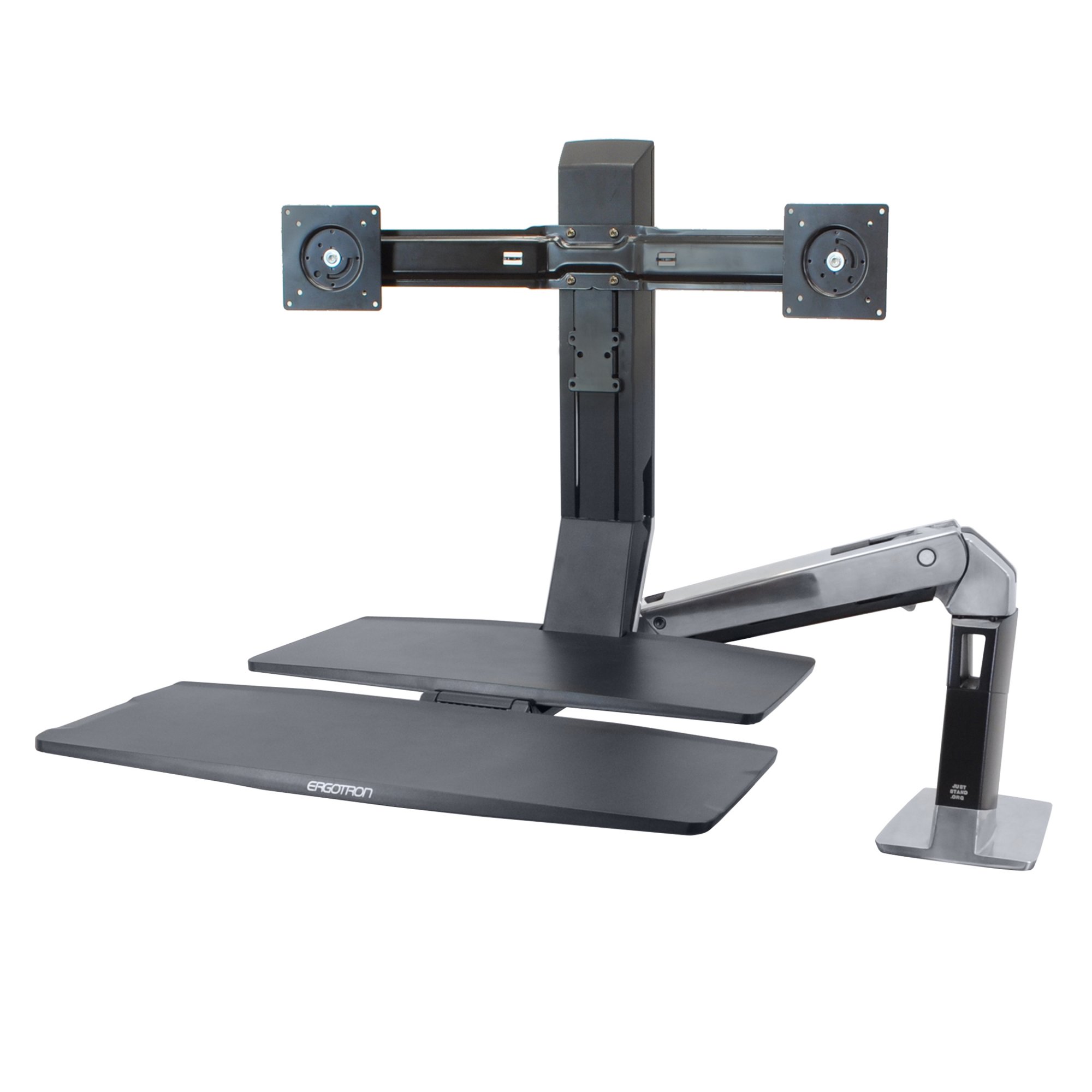

Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Technical drawing
Motion of  Ergotron 24-316-026 WorkFit-A

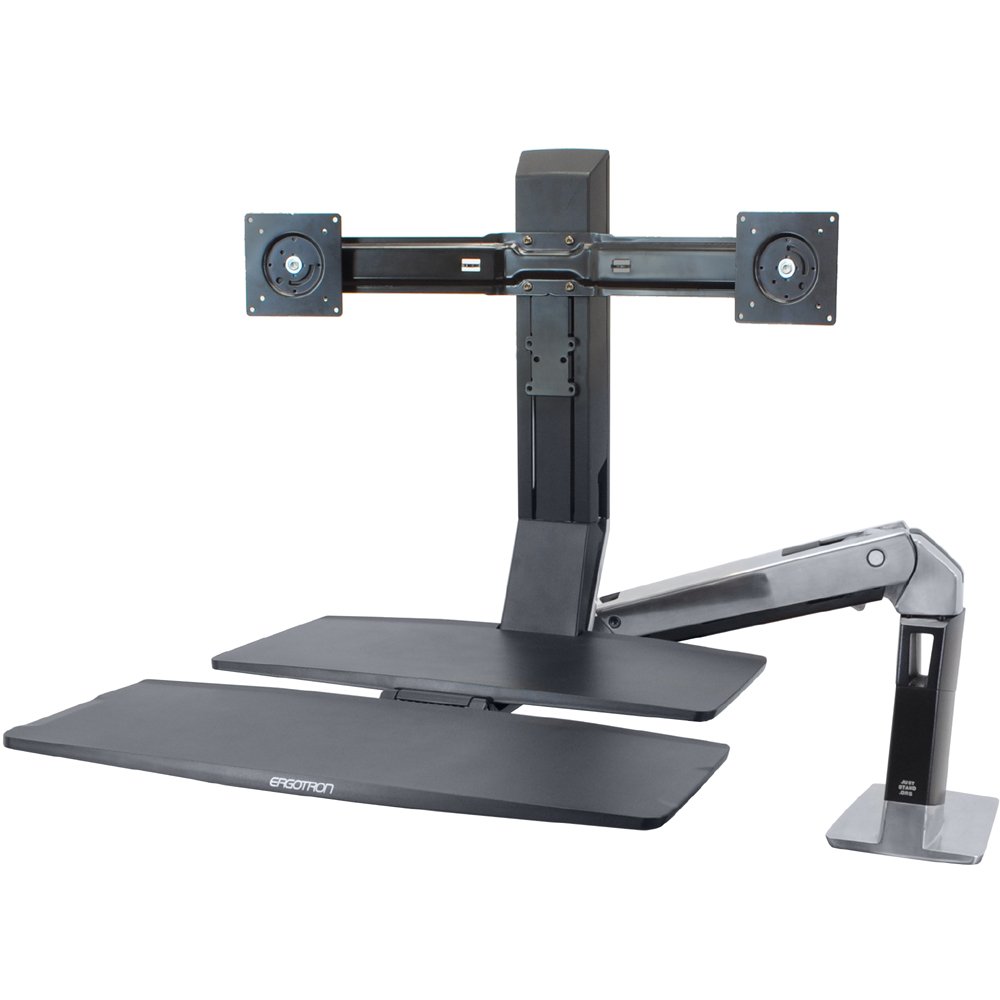

Ergotron 24-316-026 WorkFit-A
Stand and work with Ergotron 24-316-026 WorkFit-A
Sit and work with Ergotron 24-316-026 WorkFit-A
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface
Technical drawing
Motion of  Ergotron 24-316-026 WorkFit-A
Ergotron 24-316-026 WorkFit-A
Stand and work with Ergotron 24-316-026 WorkFit-A
Sit and work with Ergotron 24-316-026 WorkFit-A


  • Dual monitor Sit-stand workstation: Lets you sit or stand while working
  • 25" height adjustment: Maximum possible vertical adjustment of monitors is 25"
  • 24" screen size: Supports 2 monitors up to 24" in screen size (maximum outside width of display is 24.5" when display is 2" thick)
  • 9-20 lbs weight: Holds 2 monitors with a combined weight of 9-20 lbs
  • Horizontal extension: Arm extends 42" from back of the desk and retracts to 18.25"
  • Worksurface can hold a phone, tablet or any writing material
  •  Keyboard tray can be folded up and monitors moved out of the way when not in use
  • Please see, if you do not need a worksurface for this WorkFit-A
Animation for Ergotron 24-316-026 WorkFit-A, Dual Monitor with Worksurface


Ergotron 24-316-026 is ideal for corner workstations or confined areas, WorkFit-A attaches to the rear or side of most surfaces while keeping the keyboard upon the desktop when sitting. Featuring an unprecedented range of motion for a standing desk solution, you can swing your system left, right, up or down.

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. With its extra vertical reach, this model is well suited for taller users.

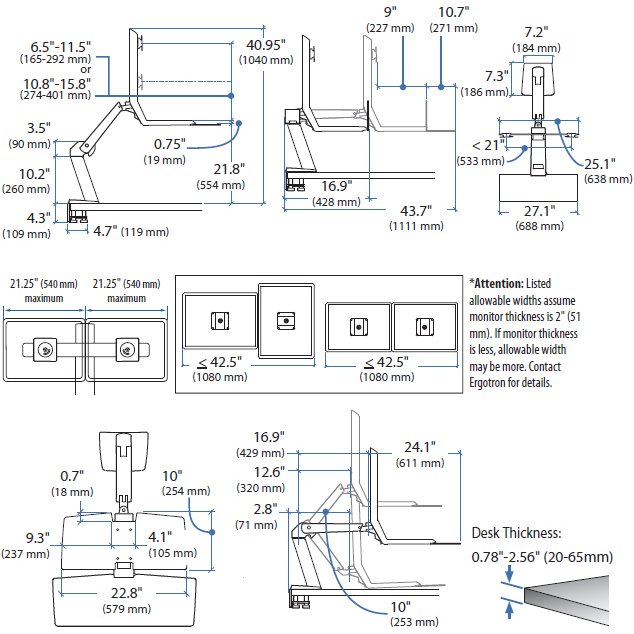

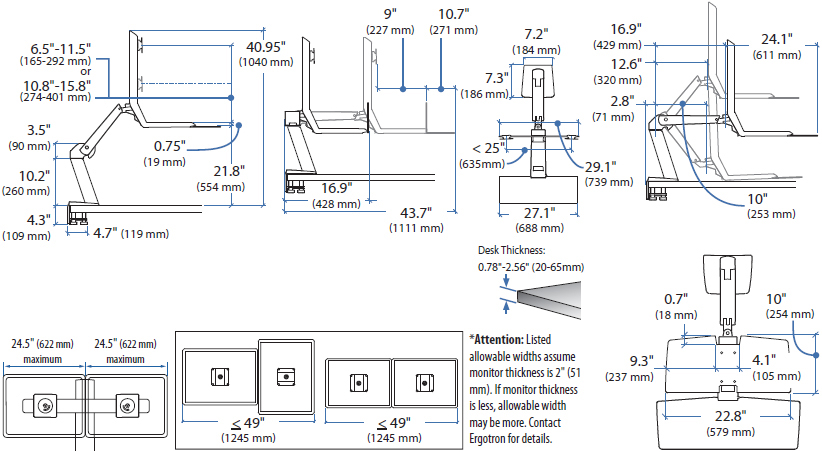

Technical Drawing

Technical Drawing for Ergotron 24-316-026 WorkFit-A Dual LCD Sit-Stand Workstation with Worksurface

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 25 lbs

11.3 kg


63.5 cm

- 180° 360° MIS-D

Product Information

Part Number 24-316-026
Description WorkFit-A, Dual Monitor Sit-Stand Workstation, with Worksurface (polished aluminum/black)
  • Arm
  • Two (2) LCD pivots
  • Worksurface
  • Keyboard tray
  • Desk clamp
  • Complete hardware kit
Display Size

Maximum outside width of display is 24.5" (62 cm) when display is 2" (5 cm) thick. This range accommodates most displays with screens up to 24" as well as some displays with screens as large as 26".

Actual allowable width of displays will vary slightly depending on display thickness. Note that older versions of this product used a narrower crossbar, which accommodated monitors with screens of up to 22"

Weight Capacity

Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCD weight = 4.5–10 lbs (2.0–4.5 kg) each, worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 2 lbs (.9 kg).

For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg)

Lift Range LCDs and keyboard adjust 20" (51 cm) in tandem; LCDs adjust 5" (13 cm) independently
Desk Clamp Attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
  • Extra-long cables may be required to span between standing and sitting heights
Arm Extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted
Worksurface Dimensions 22.63" x 9.75" (57.5 x 24.8 cm)
Keyboard Tray Dimensions 27" x 9.75" (68 x 24.8 cm)
Keyboard Tray Installed Keyboard tray can be installed in 3 different positions: centered, offset right or offset left
Cable Management Routes and hides cords
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

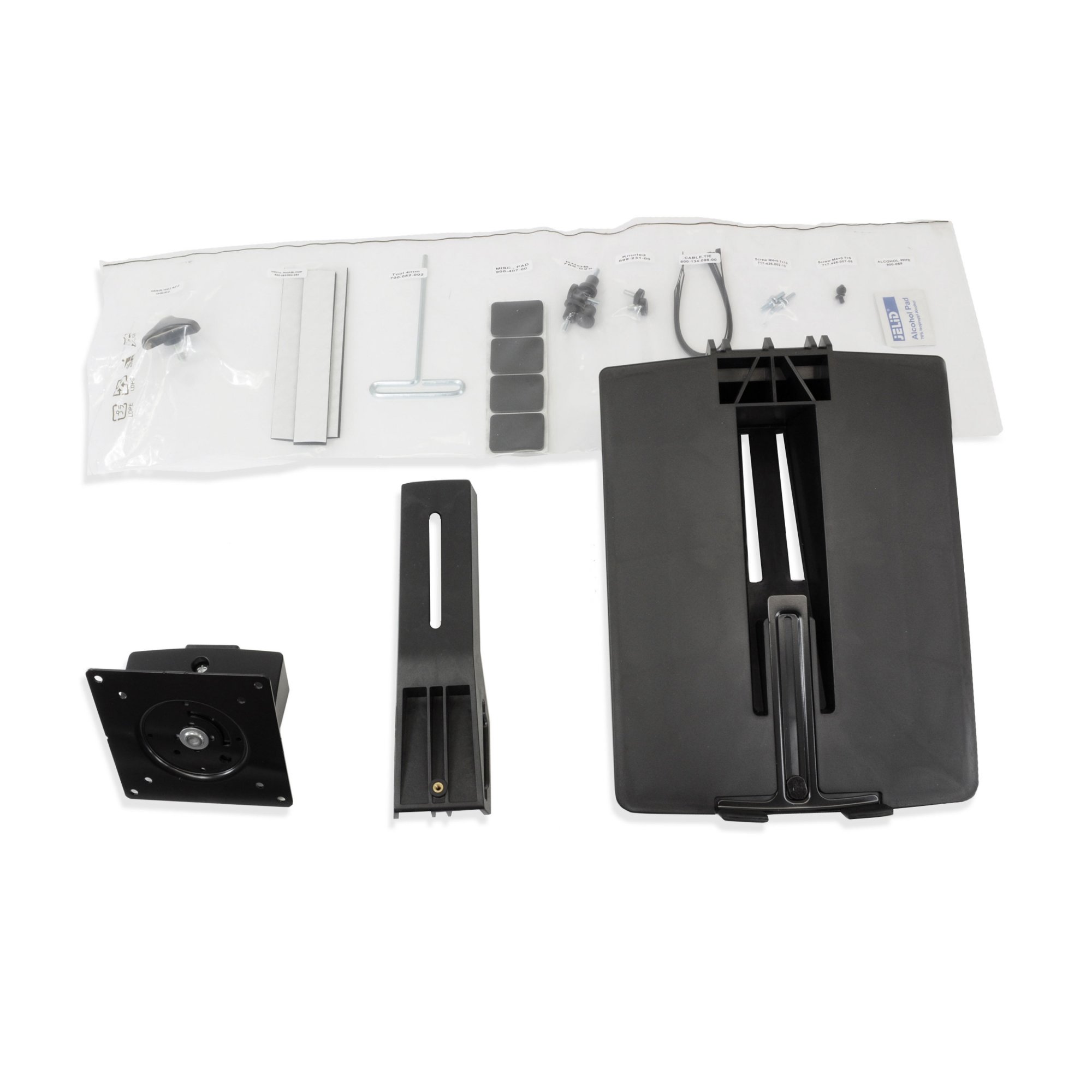

Configured Can be configured to hold a laptop alongside a monitor: order Conversion Kit (97-617)
Washington State Analysis A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Shipping Dimensions 37" x 21" x 11.5" (94 x 53 x 29 cm)
Shipping Weight 51 lbs (23.2 kg)
Warranty Five (5) years


For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism
  • Safe, easy to use - simple installation and effortless operation
  • Easily and simultaneously lift keyboard and screens to proper height for unsurpassed ergonomic comfort
  • Double your view - and move it too! With two monitors you can save time by using multiple applications at once - eliminate toggling back and forth between documents and programs
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor
  • Fold keyboard up and swing arm and monitors out of the way when you need your desk surface
  • Included worksurface provides ample space and quick access to a tablet computer, phone, cup of java or task-related items

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers
  • Safe and neat routing of cables
  • For HR/Risk Management and Company Cost Savings

Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Frequently Asked Questions

q Do both monitors need to be the same size/weight for the WorkFit-A Dual with Worksurface? I have a 24 inch Samsung monitor and a 17 inch Dell monitor. Would I be able to rotate the smaller monitor to portrait orientation and back again? How difficult would that be?

Both monitors do not have to be the same screen size or weight. They do however need to be in between the combined weight capacity. For this unit, the monitors must weigh between 9-20lbs combined. To rotate the monitor from landscape to portrait mode, you would need to remove a set screw in the back of the monitor. So you cannot just tilt the monitor to change from landscape to portrait, you would have to remove the set screw every time you want to change the back and forth from landscape to portrait. This screw is easy to remove and is shown in the installation manual.

q What mounting bracket come with this unit?

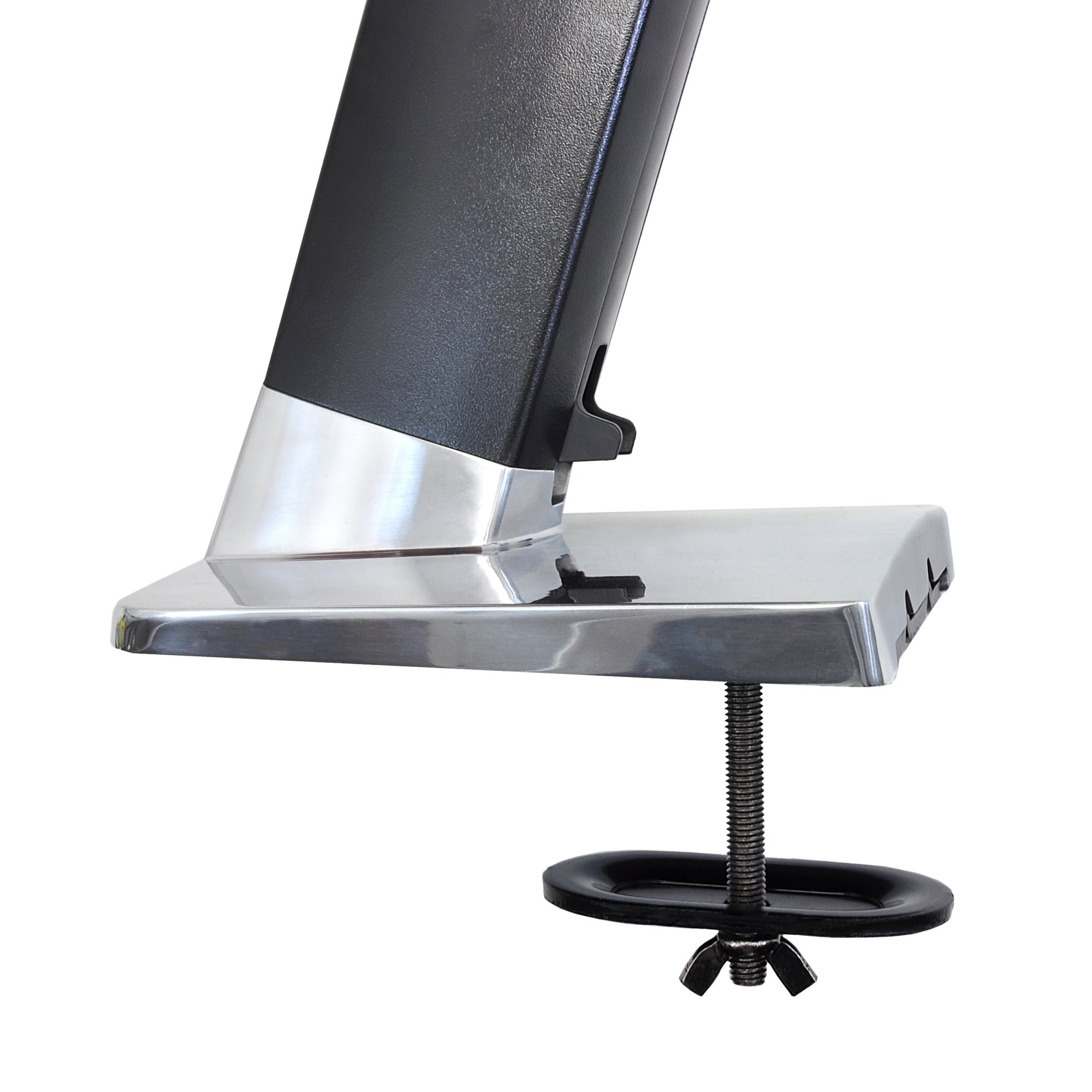

This unit comes with a desk clamp. Grommet mount is sold separately. Please see "Option 2" if you are interested in a Grommet mount.

q How does this WorkFit-A mount to the desk? I'm hoping it will clamp to the desk. If it does clamp, then does that come standard or is it one of the many possible add-ons?

The WorkFit-A comes with a clamp mount standard. There is an optional grommet mount available (for mounting to a hole in the desk) under Option 2.

q Does the desk have to be 100% square in order to install it? My desk is completely flush in the front but has a curve to it in the back of my desk, where the unit would be installed. Also will 12" wall cabinets be a problem for desk going up and down? What kind of clearance is needed?

The Ergotron 24-316-026 WorkFit-A does have a clamp mount, which needs to clamp to the back of your desk. However if the mounting edge is not a straight line, this workstation will not work as it needs a straight edge to support the weight of the unit. But you have the option of choosing a grommet mount (extra purchase), which requires a hole (0.5"-2.5") to be drilled in the desk. As for your cabinets, the maximum height of this unit is 40.95". After adding a screen, the overall maximum height from the desktop to top of the screen is about 45". The workstation has a 25" height adjustability so the lowest point will be about 20" from the desktop to the top of the screen.

Model 24-316-026
Manufacturer Ergotron
Part Number 24-316-026
UPC 698833025682
Color Polished aluminum/black
Weight Capacity Up to 25 lbs (11.3 kg)
Lift (63.5 cm) 25 in
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.6" (2 to 6.5 cm) thick
Worksurface Dimensions 22.63" x 9.75" (57.5 x 24.8 cm)
Keyboard Tray Dimensions 27" x 9.75" (68 x 24.8 cm)
Extend/Retract Range Arm extends up to 42" (107 cm) from back of desk and pushes back to within 18.25" (46 cm) when fully retracted
Shipping Dimensions 37" x 21" x 11.5" (94 x 53 x 29 cm)
Shipping Weight 51 lbs (23.2 kg)
Warranty Five (5) years
Mounting Options Desk
Screen Size Up to 24 in
Monitor Weight 4.5–10 lbs (2.0–4.5 kg) each
Suspended Keyboard No
Worksurface Yes
Tilt 0 degree
Monitor Arm Types 2 Monitors
Monitor Arm Types Sit-Stand Workstation
Price $400 - $499
