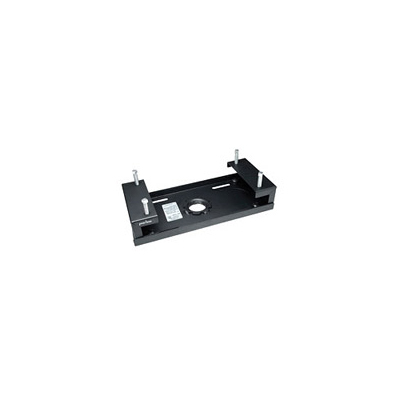

Peerless ACC558 or ACC559 Single Monitor I-Beam Clamp

Be the first to review this product
Product ID: 15472
Recommended Accessories
List Price: $97.00
Our Price: $74.06
Shipping: $9.50 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Description

Peerless ACC558 I-Beam Clamp is designed to anchor a Peerless-AV ceiling mount to an overhead I-beam. Two sizes are available, with a 4" (102 mm) or 5" (127 mm) adjustment range. The 1 1/2-11.5 NPS threaded fitting is compatible with Peerless-AV Extension Columns (several models available, both fixed length and adjustable).

Helpful Hints: Width: Minimum 7", Maximum 12"; Height: Minimum 0.25", Maximum 1"

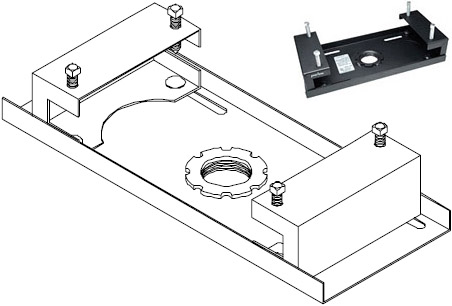

Technical Drawing

Technical drawing for
Peerless ACC558 or ACC559 Single Monitor I-Beam Clamp

Specifications

Color Black
Finish Powder Coat
Weight Capacity 250 lbs (113kg)
Security Features Non-Security Hardware
Weight

ACC558: 4.4 lbs (2kg)

ACC559: 4.8 lbs (2.2kg)

Dimensions

ACC558: 4"-8" (101-128 mm) x 0.25"-1" (6-25 mm)

ACC559: 7"-12" (128-304 mm) x 0.25"-1" (6-25 mm)

Shipping Dimensions

ACC558: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm)

ACC559: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm)

Shipping Weight

ACC558: 4.8 lbs (2.2kg)

ACC559: 5.3 lbs (2.4kg)

UPC Code

ACC558: 735029200529

ACC559: 735029200512

Features

  • Unit has 1 1/2" 11.5 NPT fitting for attachment of extension column

  • Scratch-resistant black fused epoxy finish

  • Important: Architect or installer must verify that the I-beam will safely support the combined load of all attached hardware and components.

Model ACC558, ACC559
Manufacturer Peerless Mounts
Part Number ACC558, ACC559
UPC 735029200512
Color Black
Finish Powder Coat
Weight Capacity 250 lbs (113kg)
Weight ACC558: 4.4 lbs (2 kg), ACC559: 4.8 lbs (2.2 kg)
Dimensions ACC558: 4"-8" (101-128 mm) x 0.25"-1" (6-25 mm), ACC559: 7"-12" (128-304 mm) x 0.25"-1" (6-25 mm)
Shipping Weight ACC558: 4.8 lbs (2.2kg), ACC558: 5.3 lbs (2.4kg)
Shipping Dimensions ACC558: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm), ACC559: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm)
