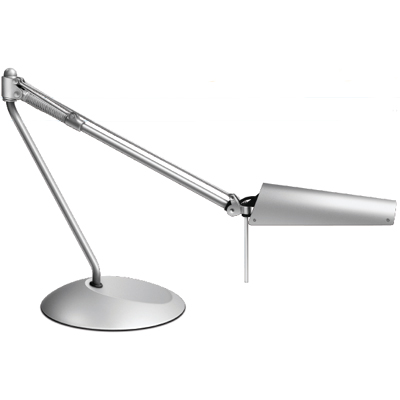

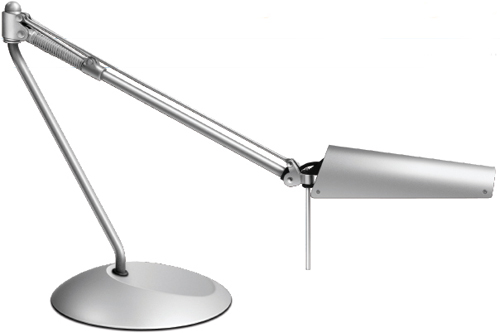

Workrite SoleilSOL energy efficient LEDs and elegant Task lighting style
Dimensional Diagram forSoleilSOL energy efficient LEDs lighting

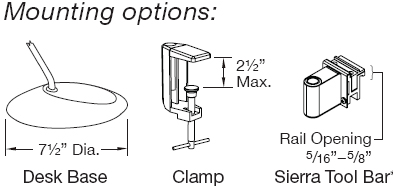

Mounting Options:
Models:
Mounting
Model
Weight
Desk Base
SOL-111-01
10
Clamp
SOL-121-01
4
Sierra Tool Bar
SOL-131-01
4
Mounting Hardware Only (for replacement orders)
Mounting
Model
Weight
Desk Base
SOL-BSE-01
7
Clamp Mount
SOL-CLP-01
1
Sierra Tool Bar Mount
SOL-STR-01
1
Features ofSoleilSOL Task Lighting
Illuminate your work with style and sustainability - The Workrite Soleil LED task light brings elegance and functionality to the workspace. Combining energy efficient LED’s with the fluid motion and elegant styling of the arm, the Workrite Soleil represents the next generation of lighting technology.
Ergonomic Adjustability - The Workrite Soleil task light features a spring-loaded, self-balancing arm for smooth vertical and lateral adjustments. The shade maintains position to optimize the incident angle of light, thus minimizing glare. Soleil’s user-adjustable features include: 14" adjustable height range, 22" of horizontal reach, 360º of rotation at base and 160º lateral pivot for shade.
Green Features for LEED Eligibility - Workrite Soleil is eligible for 3-5 LEED credits based on its energy use and material composition. The energy efficient LED’s in the Soleil consume only 9 watts, providing significant energy savings over fluorescent and incandescent lamps. The integrated long-lasting LED’s provide an average lifetime of 50,000 hours of operation—up to 20 years of normal function. The fixture is manufactured from up to 60% post-consumer recycled materials in the body and base, using a VOC-free manufacturing process. These materials are recyclable at the end of the product’s lifetime. Together, these green features and sustainable design make Workrite Soleil a natural choice.
Engineered to Reduce Glare and Improve Visual Comfort - The Workrite Soleil features precision engineered optical grade PMMA lenses to optimize the light distribution. Each LED and lens is precisely aligned to create a combined light output that reduces glare and maximizes visual comfort for better productivity.
product Information:
Spring loaded, self–balancing arms provide wide range of vertical and lateral motion
Specify mount: desk base (shown), clamp and Sierra Tool Bar mount available
9 watts of power with quantity 3, 3 watt LED’s, 0.3 watts of stand-by power
LED’s feature 50,000 hours average lifetime
Color temperature: 3200 K, CRI 76
Optical grade PMMA lenses optimize light distribution and minimize glare
2 prong switch-mode transformer with 8" cord mates to 6’ power cord
120v, 60 Hz. transformer: 23/8 inch H × 1 inch W × 1¾ inch D
Pre-programmed to dim if ambient temperature of shade reaches 100 degree F
UL listed, CUL listed, 10 year warranty
Available in silver with aluminum shade
Post-consumer recycled content used in packaging, aluminum and zinc components, all recyclable
LEED credit eligibility
Energy and atmosphere, credit 1.1
Optimize energy performance: lighting power (1·3 points)
Energy and atmosphere, credit 1.2
Optimize energy performance: lighting controls (1 point)
Materials and resources, credit 3.3
Resource reuse: 30% furniture and furnishings (1 point)
Literature(Please open the following document for more technical information)
