$386.00

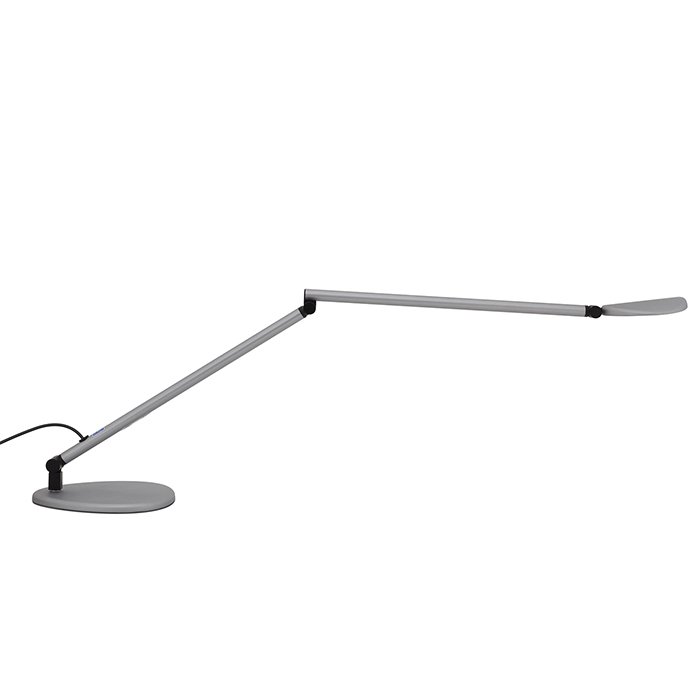

Workrite AST3-DA-WOB-S Astra 3 Double Arm LED Desk Task Light

Product ID 18873
HIGHLIGHTS
Workrite AST3-DA-WOB-S Astra 3 Double Arm LED Desk Task Light
Inused image
Workrite AST3-DA-WOB-S Astra 3 Double Arm LED Desk Task Light
Energy saving Occupancy Sensor turns on with movement and off after 15 minutes of inactivity
Touch button design with auto shut-off programming and brightness memory.
Photometrics
Workrite AST3-DA-WOB-S Astra 3 Double Arm LED Desk Task Light
Inused image
Workrite AST3-DA-WOB-S Astra 3 Double Arm LED Desk Task Light
Energy saving Occupancy Sensor turns on with movement and off after 15 minutes of inactivity
Touch button design with auto shut-off programming and brightness memory.
Photometrics

Highlights

  • 34.9" Reach from base/mount

  • Bright white light output: 3100K, 93 CRI

  • Includes energy saving occupancy sensor

  • Continuous dimming from 100% - 5%

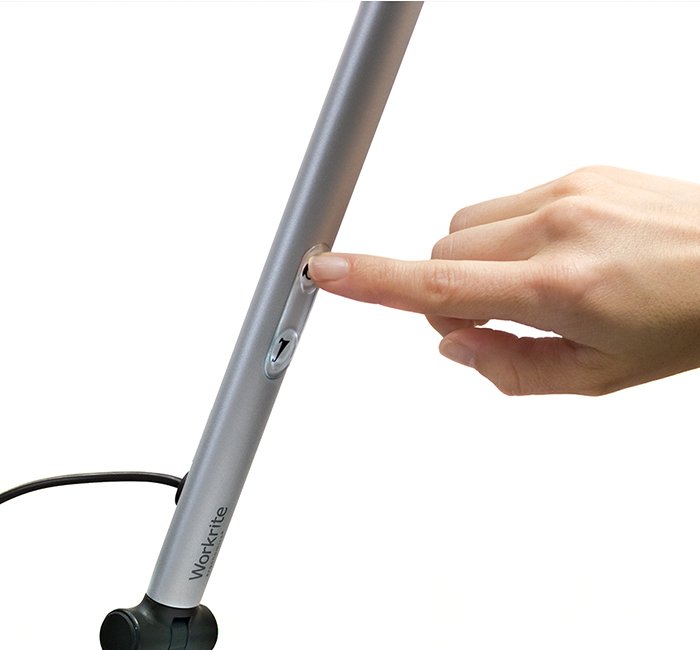

  • Touch button on/off & dimming controls

  • UL Certified, Energy Star Compliant Luminaires V1.2

  • 50,000+ hour life LED’s (L70 rating)

  • 5 year fixture warranty

  • 12 W transformer included: 24 V, 0.5 A, Class 2 transformer

  • Two prong plug on 6 ft cord, connects to 3 foot cord attached to fixture

Description

Workrite Astra 3 Dual Arm was designed to provide outstanding reach in a small footprint. With nearly 3 feet of extension from the base, the Astra 3 Dual Arm puts illumination exactly where it is needed. Clustered high-output, high CRI LEDs provide a highly efficient white light with no shadowing effect.

The intuitive touch button programmable control enables the user to return to the same light level that was last used and a simple double touch of the button adjusts the Astra 3 to maximum brightness instantaneously. Astra 3 can also be programmed for auto shut off after 5 or 10 hours of use and the plug in occupancy sensor maximizes energy savings by automatically turning off the light when the workspace is not in use.

Technical Drawing

Technical Drawing for Workrite AST3-DA-WOB-S Astra 3 Double Arm LED Desk Task Light

Specifications

Astra Luminaire

  • Foot candle power (@ 15"): 157 fc

  • Light output (lumens): 384 lm

  • Power consumption (wattage): 5.7 W

  • Lumens per watt: 67 lm/W

  • Light color temperature (CCT): 3100 K

  • Color Rendering Index (CRI): 93 CRI

  • Includes energy saving Occupancy Sensor

Astra 3 Double Arm Photometrics

  • re

Model AST3-DA-WOB-S
Manufacturer Workrite Ergonomics
Part Number AST3-DA-WOB-S
Color Silver
Reach 34.9" from base/mount
Light Output 3100K, 93 CRI
Warranty 5 year fixture
Mounting Options Tool Bar/Slatwall Mount, Table Base or C-clamp
