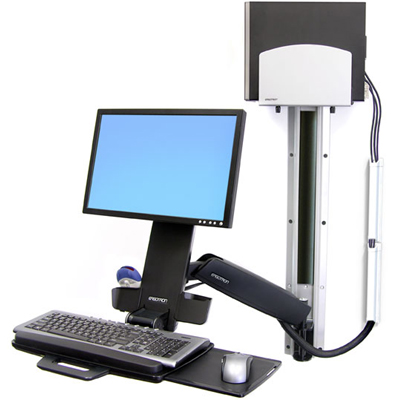

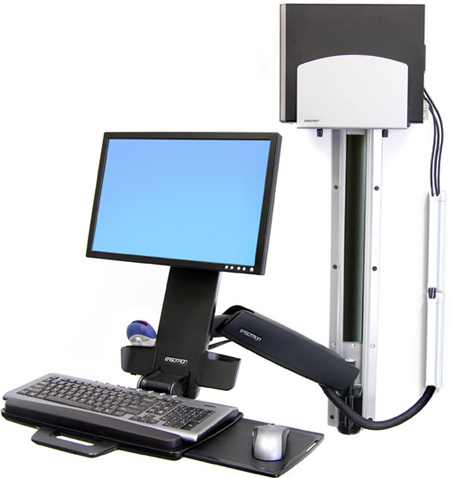

Ergotron 45-216-200 StyleView HD Combo System Black 45216200
|
|
|
|
|
|
|
|
Description of Ergotron 45-216-200 HD Combo System:
|
|
This complete system provides easy re-positioning of your entire workstation - move your display, keyboard, mouse and barcode scanner in a single motion.

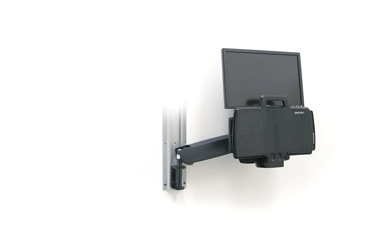

The ample height-adjustment range lets you work sitting or standing. The arm also extends and retracts, so you can fold it back out of the way when not in use. A unique cable management system conceals cords, making cleaning easy.
|
|
|
|
|
|
|
|
Technical Drawing for Ergotron 45-216-200 StyleView HD Combo System Black
|
|
|
|
|
|
|
|
Technical Specifications:
|
|
|
|
|
|
|
|
|
|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
|
up to 24"
|
6 - 18 lbs
2.7 - 8.2 kg
|
20"
51 cm
|
30° |
180° |
90° P/L
|
MIS-D
|
|
|
|
|
|
|
Product Information:
|
|
Part Number:
|
45-216-200
|
|
Description:
|
StyleView HD Combo System (Black)
|
|
Included:
|
-
HD Combo Arm
-
34" Wall Track with (2) black track covers
-
CPU Holder
-
(2) 10" cable channels
-
Track anchor hardware kit
-
CPU and Arm track mount bracket kits
-
CPU direct wall mount kit
-
Height-adjustable LCD mount
-
Wrist rest
-
Scanner and mouse holders
-
Integrated keyboard tray with left/right mouse tray
-
Handle
-
VESA monitor mounting kit
-
Cable ties
|
|
Exterior:
|
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel
|
|
Weight Capacity:
|
Display = 6 - 18 lbs (2.7-8.2 kg);
Keyboard, mouse and barcode scanner = 5 lbs (2.3 kg)
|
|
Lift Range:
|
LCD and keyboard adjusts 15" (38 cm) in tandem,
LCD adjusts 5" (13 cm) independently,
maximum LCD height adjustment = 20" (51 cm)
|
|
Monitor up/down tilt:
|
+25°/-5
|
|
CPU Size Range:
|
2" to 8" (2 to 20 cm) wide
|
|
CPU Holder:
|
Includes fasteners for locking the holder’s width
|
|
Patended CF:
|
Patented CF lift-and-pivot motion technology provides premium five-inch (12.7 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
|
|
Mounting Standards:
|
VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
|
|
Fold-down keyboard tray:
|
Includes mouse tray that slides out to either right of left side, tray features mouse-pad surface |
|
Negative-tilt keyboard tray:
|
Adjustable between 0 and -10 degrees
|
|
Optional:
|
18" (46 cm) extender arm (45-219-216 or 45-219-200) increases range of motion for even greater reach
|
|
Shipping Dimensions:
|
12.6"H x 37.7"W x 19.7"D (316 x 958 x 500 mm)
|
|
Shipping Weight:
|
42 lbs (18.9 kg)
|
|
Warranty:
|
Five (5) years
|
|
|
|
|
|
|
|
|
Benefits of Ergotron 45-216-200:
|
|
1. Flexible, open-architecture design is scalable for future computer equipment.
|
|
2. Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) lift adjustment.
|
|
3. Maintains the relative position of screen and keyboard throughout full range of motion.
|
|
4. Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates average range of users.
|
|
5. Easy to clean design promotes infection control.
|
|
6. Barcode scanner holder provides easy access to hand-held scanner.
|
|
7. Extend LCD and keyboard up to 39" (99 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30.5 cm).
|
|
8. Ergonomic negative-tilt keyboard tray (with left or right mouse tray) ensures wrists remain in a neutral position during data entry.
|
|
9. Clean, concealed and neat routing of cables through the expansive cable management system.
|
|
|
|
|
|
