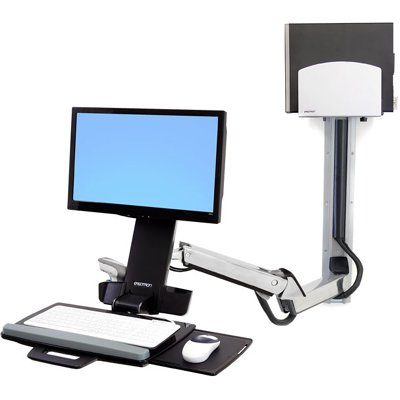

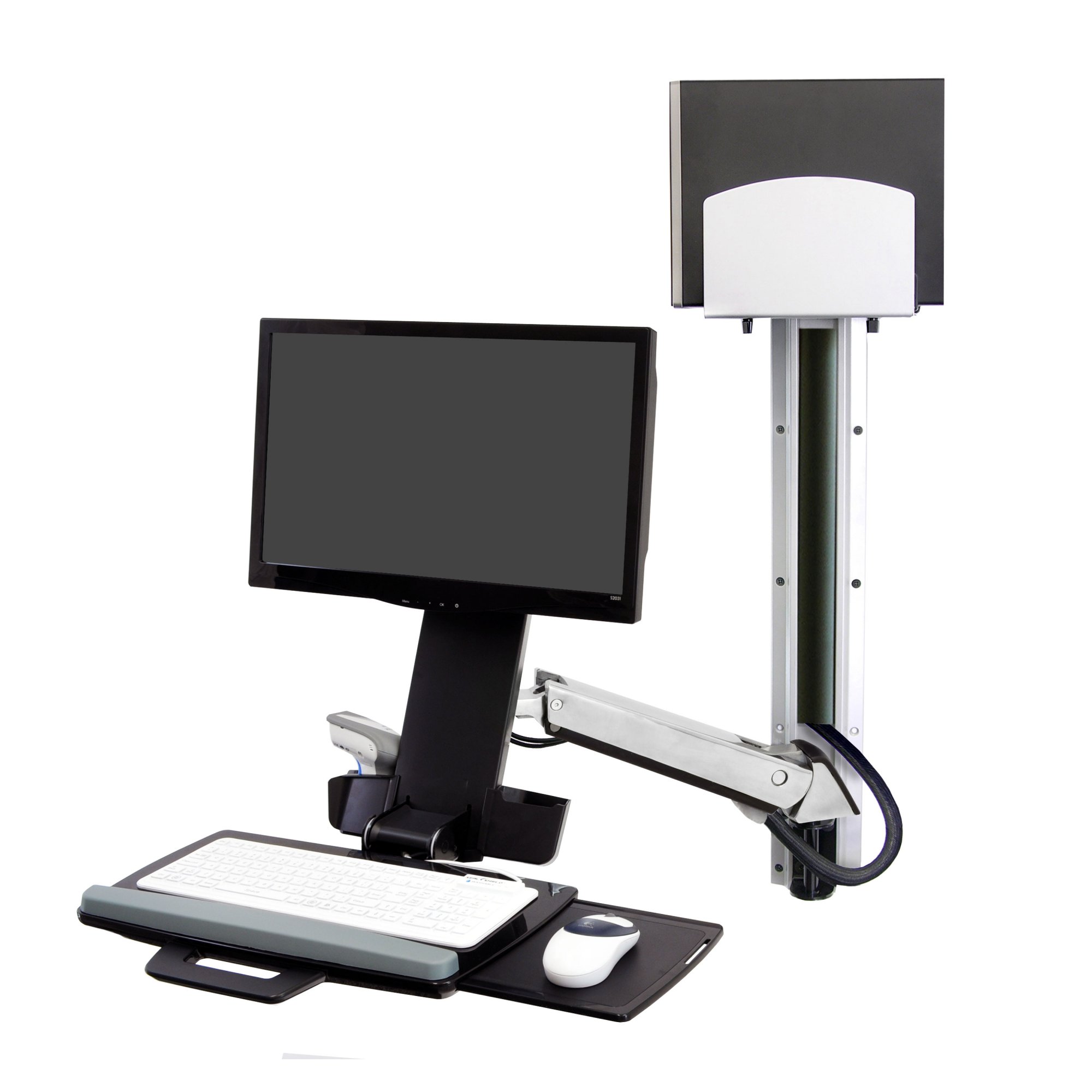

Ergotron 45-271-026 StyleView Sit-Stand Combo System

Be the first to review this product
Product ID: 16737
Highlights
  • Ergonomic Data Entry Combo System
  • Reposition keyboard, mouse and bar code scanner in one single touch
  • Work sitting or standing with this Workstation
  • Fits LCD  sizes up to 24" between 6-18 lbs
  • Maximum LCD height adjustment is 20" with 39.75" of horizontal extension for LCD and Keyboard
  • folds back to 12" when not in use
Recommended Accessories
List Price: $1,315.00
Our Price: $748.00
Shipping: $55.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

Ergotron 45-271-026 comes with Medium Silver CPU Holder. This complete system provides easy re-positioning of your entire workstation, move your display, keyboard, mouse and barcode scanner in a single motion.

Durable polished aluminum construction! Work sitting or standing with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

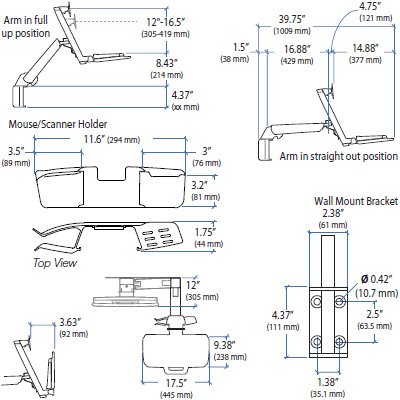

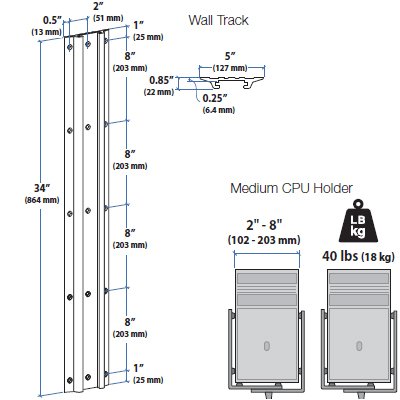

Technical Drawing

Technical Drawing for Ergotron 45-271-026 StyleView Sit-Stand Combo System

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 29 lbs

13.2 kg

25"

63.5 cm

30° 360° 360° MIS-D

Product Information

Part Number 45-271-026
Description StyleView Sit-Stand Combo System with Medium CPU Holder (Polished Aluminum)
Includes
  • Combo Arm

  • 34" Wall Track with (2) black track covers

  • Medium Silver CPU Holder

  • CPU spacer

  • (2) 10" cable channels

  • CPU and Arm track mount bracket kits

  • Wall Track fasteners for concrete and wood

  • CPU direct wall mount kit

  • Height-adjustable LCD mount

  • Wrist rest

  • Scanner and mouse holders

  • Integrated keyboard tray

  • Handle

  • VESA monitor mounting kit

  • Cable ties

Exterior Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
Weight Capacity Display = 6–18 lbs (2.7–8.2 kg) or up to 25 lbs (11.4 kg) with tilt and lift lock-out features engaged; keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18 kg)
Lift Range LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
Tilt Monitor up/down tilt = +25°/-5°
CF Technology Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Mouse and Barcode Scanner Holder Integrated mouse and barcode scanner holder provide easy access
Keyboard Tray
  • Fold-down keyboard tray to support workflow needs. Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)

  • Back-tilt keyboard tray adjustable from 0° to -10°

CPU Size Range 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
CPU Holder CPU Holder includes fasteners for locking the holder’s width
Extender Optional Extender (45-261-026) increases range of motion for even greater reach
Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Product Weight 38.4 lbs (17.5 kg)
Shipping Dimensions 37.1" x 22.1" x 11.1" (942 x 561 x 282 mm)
Shipping Weight 47 lbs (21.4 kg)
Warranty Five (5) years

Benefits

  • Flexible, open-architecture design is scalable for future computer equipment

  • Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) single-motion lift adjustment

  • Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users

  • Easy-to-clean features promote superior infection control

  • Barcode scanner holder provides easy access to hand-held scanner

  • Extend LCD and keyboard up to 39.75" (101 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30 cm)

  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface

  • Maintains the relative position of screen and keyboard throughout full range of motion

  • Clean, concealed and neat routing of cables through the expansive cable management system

Model 45-271-026
Manufacturer Ergotron
Part Number 45-271-026
UPC 698833018172
Color Polished Aluminum/Black
Weight Capacity Display = 6–18 lbs (2.7–8.2 kg) or up to 25 lbs (11.4 kg) with tilt and lift lock-out features engaged; keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18 kg)
Lift (64 cm) 25 in
Tilt Up +25 degree/ Down -5 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Shipping Weight 47 lbs (21.4 kg)
Shipping Dimensions 37.1" x 22.1" x 11.1" (942 x 561 x 282 mm)
Warranty Five (5) years
Monitor Size Up to 24"
Pan 360 degree
Rotation 360 degree
Keyboard Tray Dimensions 18.6"W x 9"D (47.2 x 22.8 cm)
CPU Dimension 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder.
Weight 38.4 lbs (17.5 kg)
