Ergotron 24-246-085 PS Laptop Management Cart

The Ergotron 24-246-085 charges and syncs up 20 devices laptops, netbooks and tablets. If you are interested in a cart that only charges but does not sync up devices, please see Ergotron 24-291-085. This cart is not returnable.

5 out of 5 (based on 1 review)
Product ID: 17055
Recommended Accessories
Our Price: $1,799.00
Shipping: $0.00 * Oversized box 214 pounds. Shipping cost subject to change based on destination
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

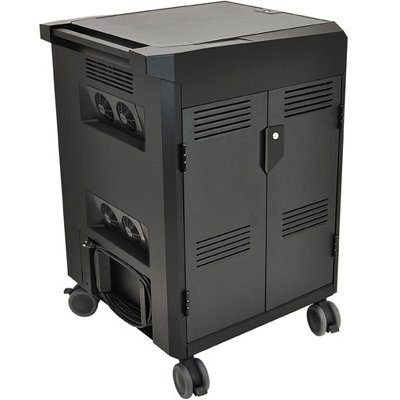

This cart’s universal interface charges up to 20 devices (works with laptops, netbooks and tablets), and manages software on laptops and netbooks through an Ethernet connection. PowerShuttle Technology optimizes total charge time while safely preventing electrical circuit overload by efficiently grouping the number of devices that are charged at one time. Ergotron 24-246-085 works in any environment, including education, healthcare and enterprise applications.



Technical Drawing

Technical Drawing of Ergotron PS Laptop Management Cart



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 15.6" Up to 6.5 lbs

2.9 kg

- - - - -



Product Information

Part Numbers

  • North America = 24-246-085

  • Europe = 24-250-085

  • United Kingdom/Singapore/Hong Kong = 24-249-085

  • Australia/New Zealand = 24-251-085

  • China = 24-247-085

  • Japan = 24-248-085

Description

PS Laptop Management Cart with PowerShuttle Technology (black)

Includes

  • 20 device slots

  • 12' (3.8 m) power cable

  • Country-specific power strip

  • Cable management tray

  • Four 4" medical-grade locking casters

  • 20 CAT 6 Ethernet cables

  • Standard 1U Ethernet switch mounting brackets

  • External auxiliary outlet

  • Internal auxiliary outlet

  • Integrated handle

  • Note: WAP and Ethernet switch are not included

Device Slot Size

15.7"D x 12.3"H x 1.9"W (398 x 313 x 48 mm). Laptop with power cord and Ethernet cable installed must fit within these dimensions

Maximum Device Weight

≤ 6.5 lbs (2.9 kg)

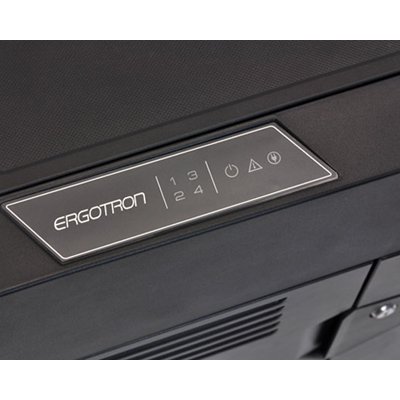

PowerShuttle Technology

  • Efficient charging system uses Ergotron’s innovative PowerShuttle Technology to automatically optimize total charge time for up 20 laptops or mobile devices

  • Cart is powered using one power cord (12', 3.8 m) plugged into a wall outlet. Cord wrap is recessed into side of cart

  • Never waste time charging an empty set of slots

  • Safely prevents overloading electrical circuits

Compact Size
  • Lightweight; up to 49% smaller than competitive product, this compact cart design makes it easy to safely move from room to room

  • Cart Dimensions: 28.0"W x 24.4"D x 40.5"H (71.1 x 62.0 x 101.6 cm)

  • Cart Weight (unloaded): 157 lbs (71 kg)

Durable, Secure Storage

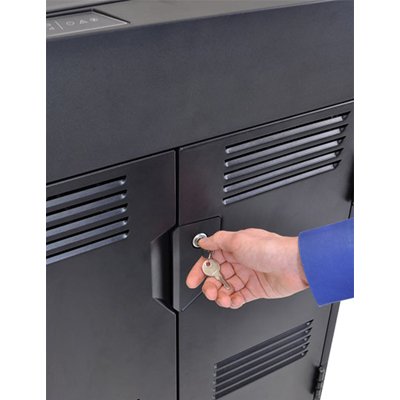

  • Robust two-point key and lock assembly keeps devices secure. Double-hinged, locking steel front doors open 180º to reveal storage shelves

  • Rugged steel-frame construction, steel front and rear doors, and molded fire-rated ABS exterior withstands heavy-use classroom settings

  • Separate top and back storage compartments provide IT access to power brick storage

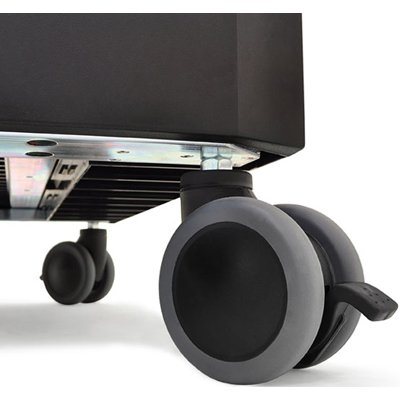

  • Four 4" (10 cm) locking medical-grade, dual-wheel casters

Certification

  • UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands and Entertainment Centers for Use with Audio and/or Video Equipment

  • ICES-003 Issue 4, Class A

  • FCC Part 15 Class A

  • Country-specific certification as required

  • RoHS and Reach compliant material used

Management Capability

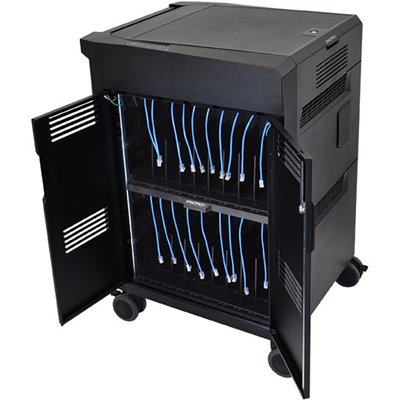

  • 20 pre-installed CAT 6 RJ45 Ethernet cables (1 GB) enable remote management of laptops for software updates via wake-on-LAN (with customer supplied Ethernet Switch)

  • External RJ45 Ethernet cable: 14' feet (4.3 m)

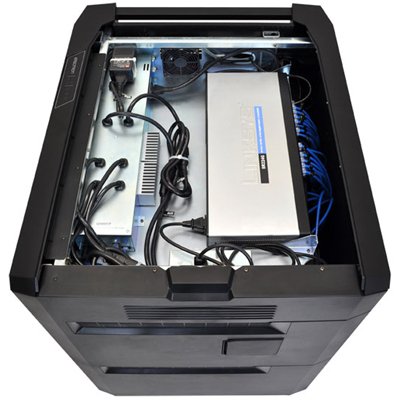

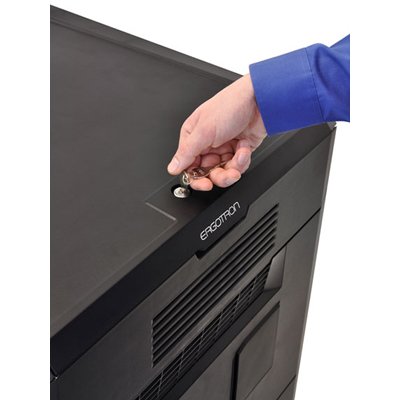

  • Secure top-access compartment provides space, mounting brackets for customer-provided 19" (48.3 cm) 1U standard rack-mounted Ethernet switch and Wireless Access Point (WAP): inside dimensions between brackets: 17.72" (45 cm); bracket hole to hole dimension: 18.31" (46.5 cm)

  • Includes country-specific internal auxiliary outlet for switch and WAP power (max current 100-120V ~ 50/60Hz, 4A or 220-240 ~ 50/60Hz, 2.5A)

Clean Cable Management

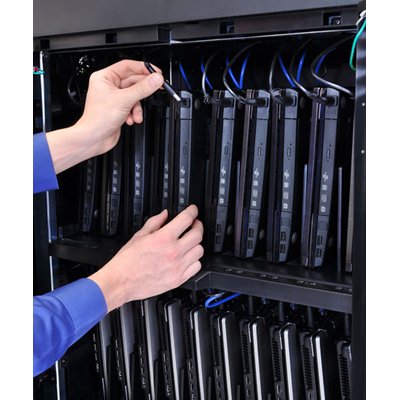

  • Unique cable management channels inside the storage area keep laptop power cords and Ethernet cables neatly stowed

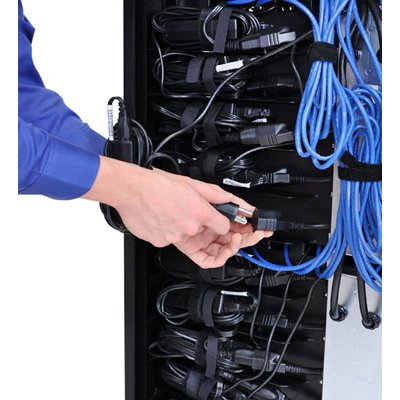

  • Cables route from laptop compartment to separate back power brick storage compartment. Velcro strips hold power bricks neatly on their individual storage shelf

All the Details Covered
  • Cart ships fully assembled with the exception of the top shelf dividers. Dividers are added after device power cables are installed

  • Includes country-specific external auxiliary outlet for other peripheral devices (max current 100-120V ~ 50/60Hz, 8A or 220-240 ~ 50/60Hz, 5.5A)

  • Ventilation: Venting is provided in side panels, the front doors, and the rear door of the cart. 5–12V DC continuous operating fans are included to keep equipment cool, ensuring long-life performance of devices. 4 are located in the laptop compartment, 1 in the top compartment

  • Built-in temperature sensor protects your equipment by shutting down charging activity if the maximum internal cart temperature is exceeded. Charging activity will resume automatically once temperature returns to safe levels

Operating Temperature

32° to 86°F (0°C to 30°C)

Power

  • North America/Japan SKUs: 100-120V ~ 50/60Hz, 12A

  • UK/Europe/Australia/China SKUs: 220-240V ~ 50/60Hz, 8A

Shipping Dimensions

32.7" x 27.6" x 46.4" (830 x 702 x 1179 mm)

Shipping Weight

214 lbs (97.1 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components



Benefits



Universal Design

  • Open-architecture design works with laptops, netbooks and tablets with displays up to 15.6"

  • Country-specific power strip is provided to plugin 20 AC adapters. Unique, flexible design accommodates a variety of brick and plug styles for laptops, netbooks and tablets that won’t fit in standard outlet strips



PowerShuttle Technology

  • Integrated PowerShuttle charges up to 40% faster than competitors’ round-robin charging systems and doesn’t require manually switching between outlets or adjusting timers



Management Capability

  • Accommodates IT hardware such as a WAP and standard 1U Ethernet switch (WAP and Ethernet switch not included)

  • Pre-installed CAT 6 Ethernet cables enable management of laptops for software updates via wake-on-LAN (with customer supplied Ethernet Switch)



Durable, Secure Storage

  • Robust key and lock assembly keeps devices secure. Double-hinged, locking steel front doors with recessed handle open 180° to reveal notebook storage shelves

  • Rugged steel-frame construction, steel front and rear doors, and molded fire-rated ABS exterior withstands heavy-use classroom settings

  • For user and equipment safety, the ENTIRE cart is tested and certified to UL 60950 and 1668 standards; this means it is completely certified, at the levels of both the power system and cart mechanics

  • Secure top access compartment provides space for customer-provided 19" (48 cm) 1U rack-mounted Ethernet switch and WAP equipment

  • Secure back compartment provides IT access to power brick storage and power strips. Clean, neat cable management runs power and Ethernet cables to units



Easy to Use

  • Lightweight, up to 49% smaller than competitive product, this compact cart design makes it easy to safely move from room to room

  • Ships fully assembled

  • Four 4" (10 cm) medical-grade, dual-wheel locking casters allow easy push/pull mobility





Model 24-246-085
Manufacturer Ergotron
Part Number 24-246-085
UPC 698833019520
Color Black
Screen Size Up to 15.6 in
Weight Capacity Up to 6.5 lbs (2.9 kg)
Maximum Device Size 15.7"D x 12.3"H x 1.9"W (398 x 313 x 48 mm)
Dimensions 28.0"W x 24.4"D x 40.5"H (71.1 x 62.0 x 101.6 cm)
Cart Weight 157 lbs (71 kg) (unloaded)
Temperature 32° to 86°F (0°C to 30°C)
Power North America/Japan SKUs: 100-120V ~ 50/60Hz, 12A. UK/Europe/Australia/China SKUs: 220-240V ~ 50/60Hz, 8A
Shipping Dimensions 32.7" x 27.6" x 46.4" (830 x 702 x 1179 mm)
Shipping Weight 214 lbs (97.1 kg)
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
Display Type Laptop
