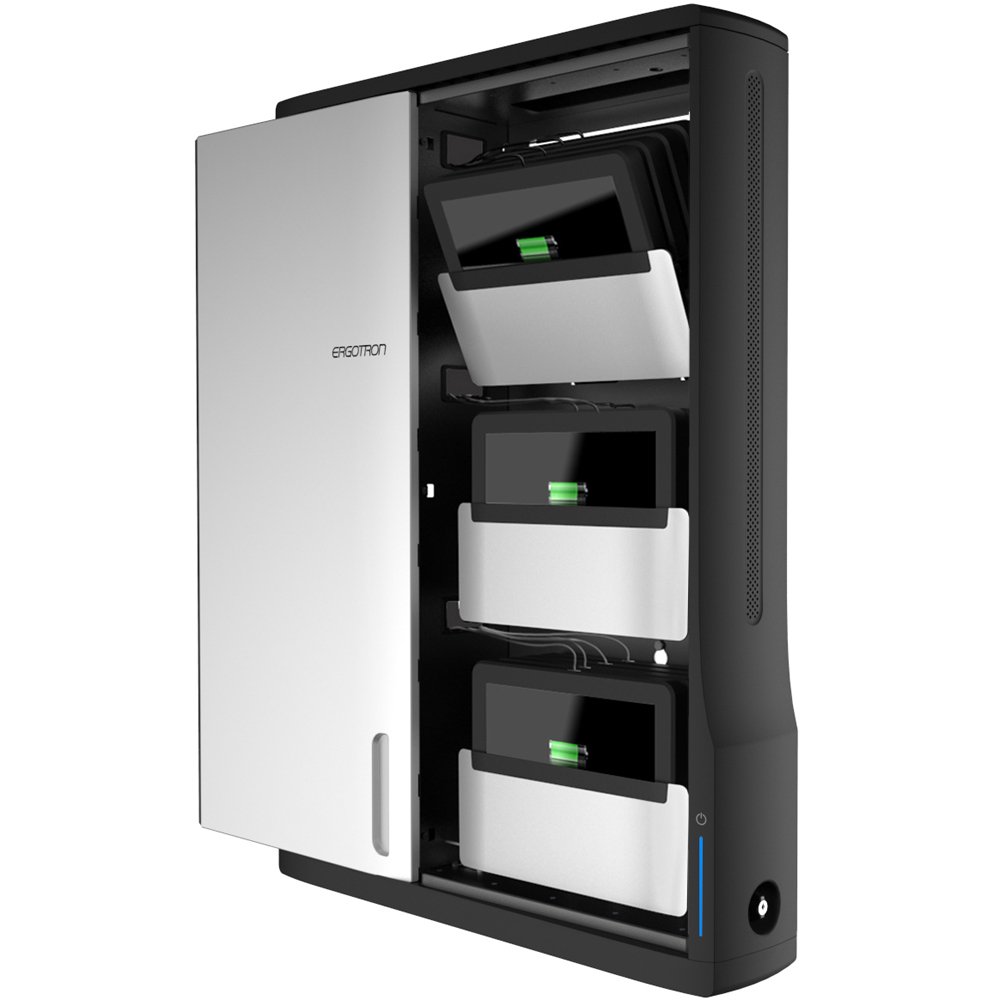

Closed view
Front closed view
Inused image
Inused image
Key lock

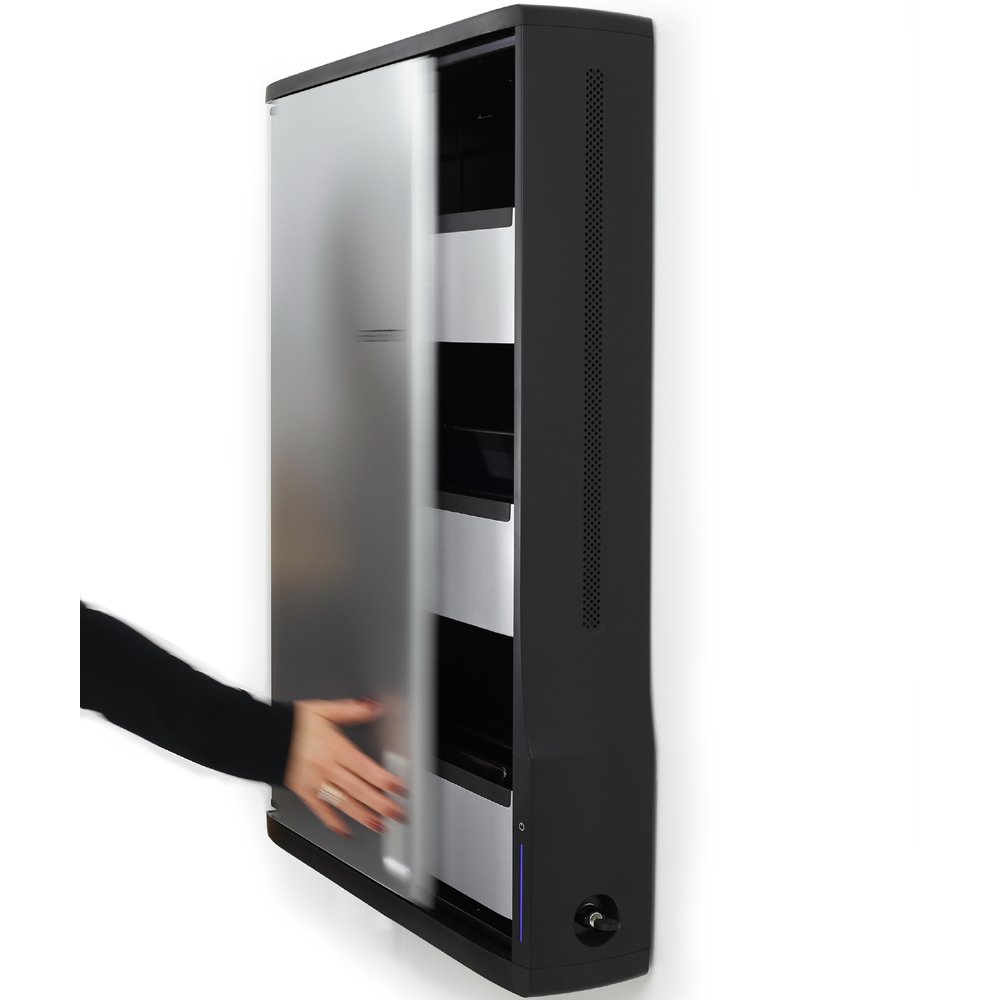

Door

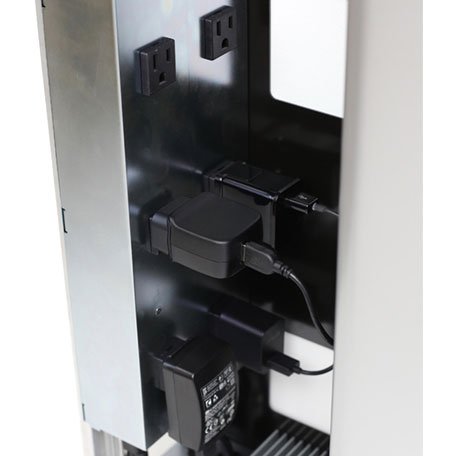

Outlets

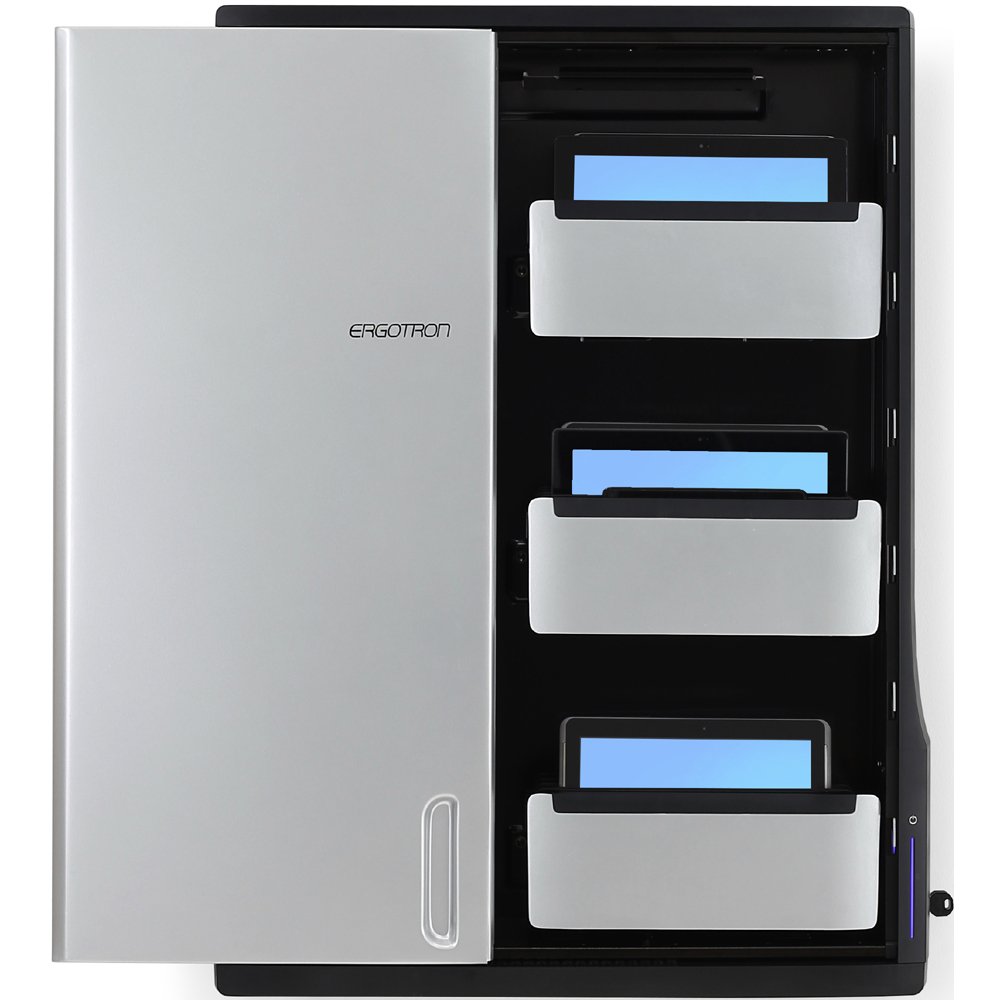

Front open

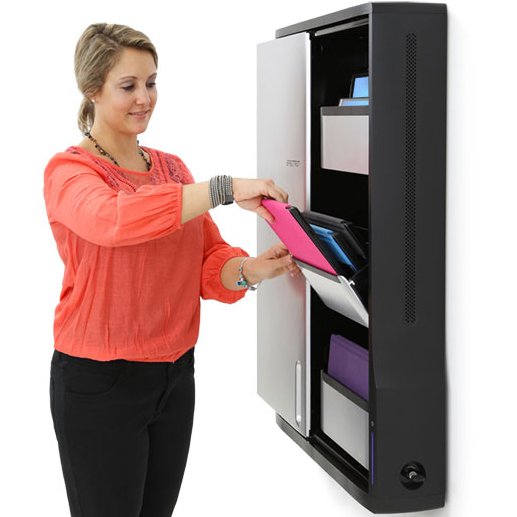

Loading
Closeup
Low-profile design
Low-profile design
Ergotron DM12-1006-1 Zip12 Charging Wall Mount Storage Cabinet

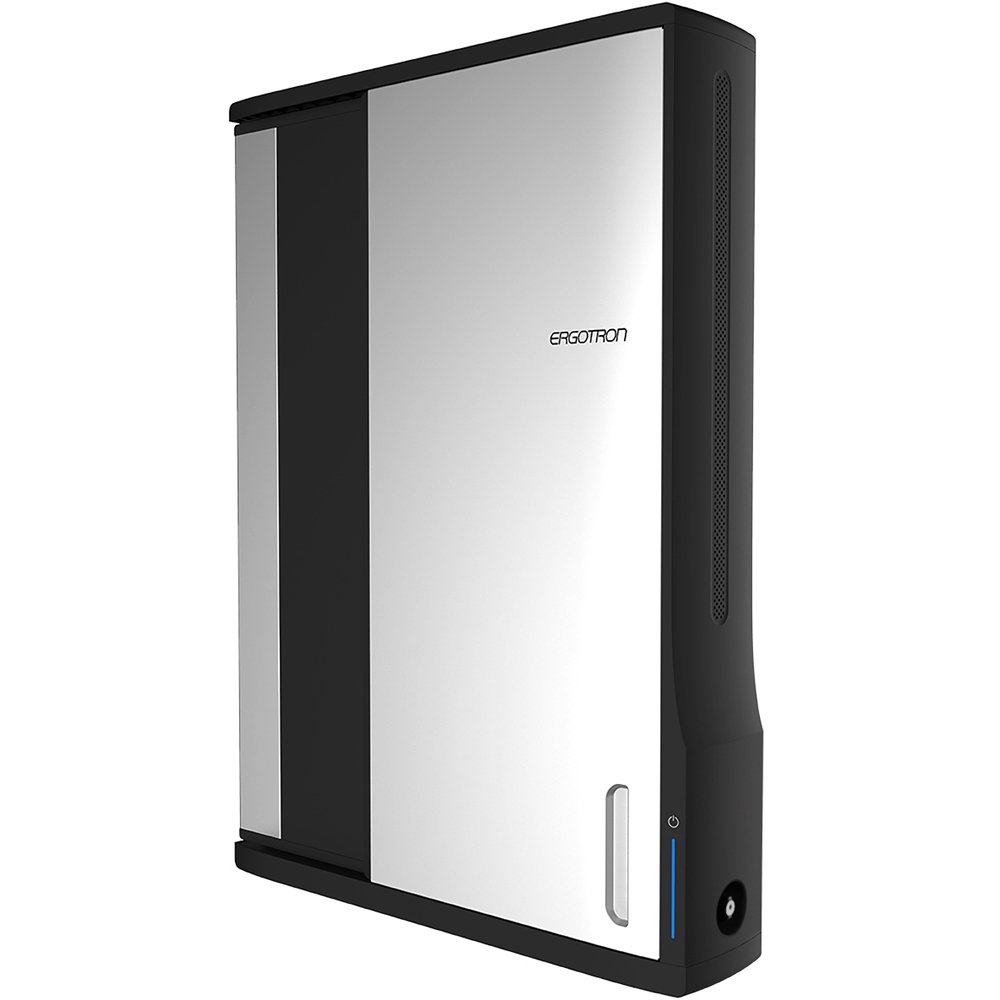

Closed view

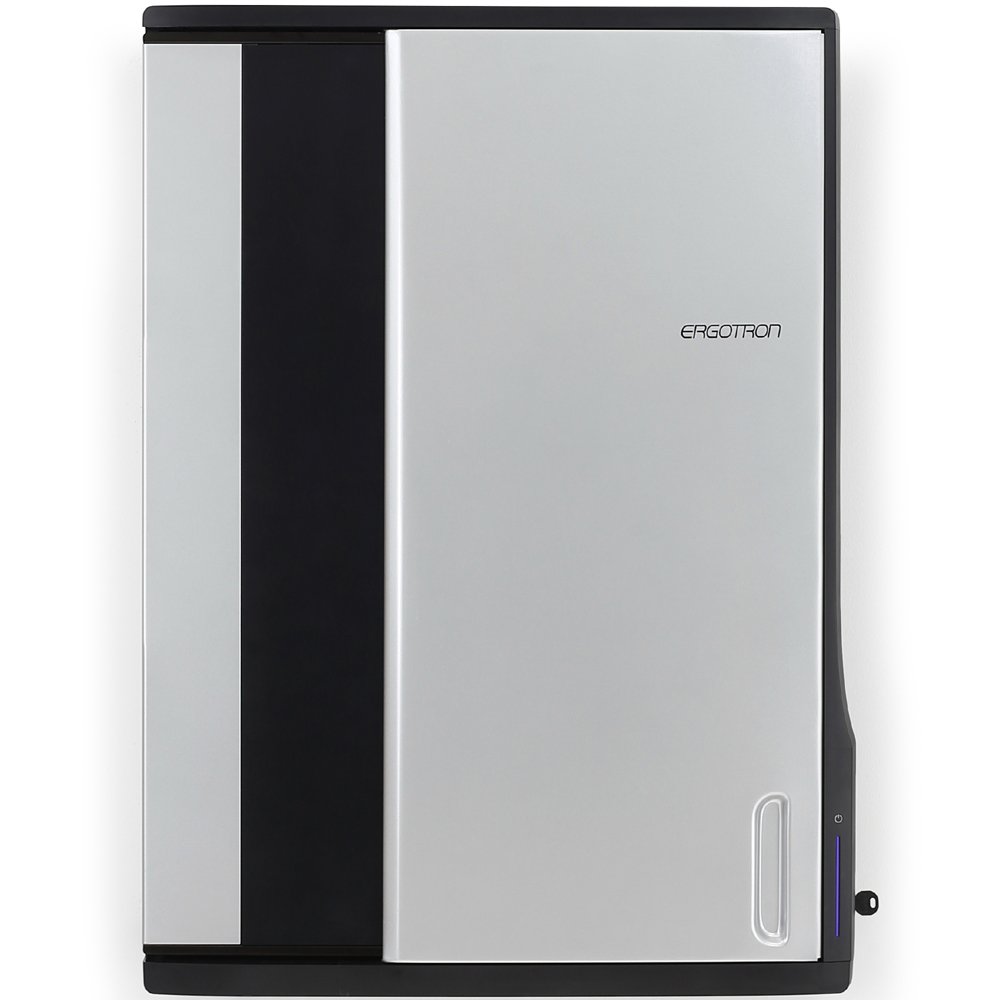

Front closed view
Inused image
Inused image
Key lock
Door
Outlets
Front open
Loading
Closeup
Low-profile design
Low-profile design

Description

Power up. Ergotron DM12-1006-1 slim storage enclosure is perfect for charging and securing up to 12 tablets and Chromebooks. It’s designed to be compatible with a wide variety of manufacturers like Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus, Acer and many others. Features include a space-saving profile and easy device access with Show & Stow technology.

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 12"

Up to 3 lbs

1.4 kg

- - - - -

Product Information

Part Numbers
  • DM12-1006-1

Description Zip12 Charging Wall Mount Storage Cabinet (black/silver)
Includes
  • Charging and storage cabinet

  • Wall-mounting bracket

  • Mounting hardware for wood stud

  • Concrete and hollow-wall installation

  • Installation template

  • 6-foot (1.8 m) power cord

  • Key

Total Capacity 12 devices
Individual Device Maximum Dimensions 11.9" W x 8.9" H x 1.0" D (30.2 x 22.6 x 2.5 cm) including case and cord
Compatible Compatible with Apple’s eighth-generation iPad
Individual Device Maximum Weight 3 lbs (1.4 kg). Total rated weight capacity = 44.4 lbs (20.1 kg)
Country Specific Outlet Strip Country-specific 12-receptacle outlet strip is designed to work with oversized wall adapters and mini-sized bricks. AC adapter maximum dimensions = 4.1"H x 2.0"W x 4.0"D (10.4 x 5.0 x 10.1 cm)
Uses Uses the AC adapters that come with each device. AC adapters are not included
UL/IEC 62368-1 and CSA C22 2 No. 62368-1 UL/IEC 62368-1 and CSA C22 2 No. 62368-1 for Safety of Information Technology Equipment
CE marked Based on compliance with Safety, EMC, and RoHS directives
Environmentally Clean RoHS, REACH, WEEE and EU (94/620EC) packaging compliant
Temperature Range Operating = 0° to 30°C (32° to 86°F); storage = -40°C to -60°C (-40° to 140°F)
Relative Humidity Operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
Cooling/Ventilation One 12V DC continuous operation fan
Product Dimensions 26.4" W x 35.6" H x 5.9" D (67 x 91 x 15 cm)
Product Weight61.1 lbs
Shipping Dimensions 40.9" x 28.9" x 8.4" (104 x 74 x 21 cm)
Shipping Weight 69.3 lbs
Warranty Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables

Benefits

  • Open-architecture design works with most tablets (including Surface, Android and iPad) and Chromebooks with screens up to 12" in size

  • Designed to be compatible with a wide variety of manufacturers such as Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus, Acer and many others

  • Smooth sliding door provides easy access to devices and stays within the sleek profile

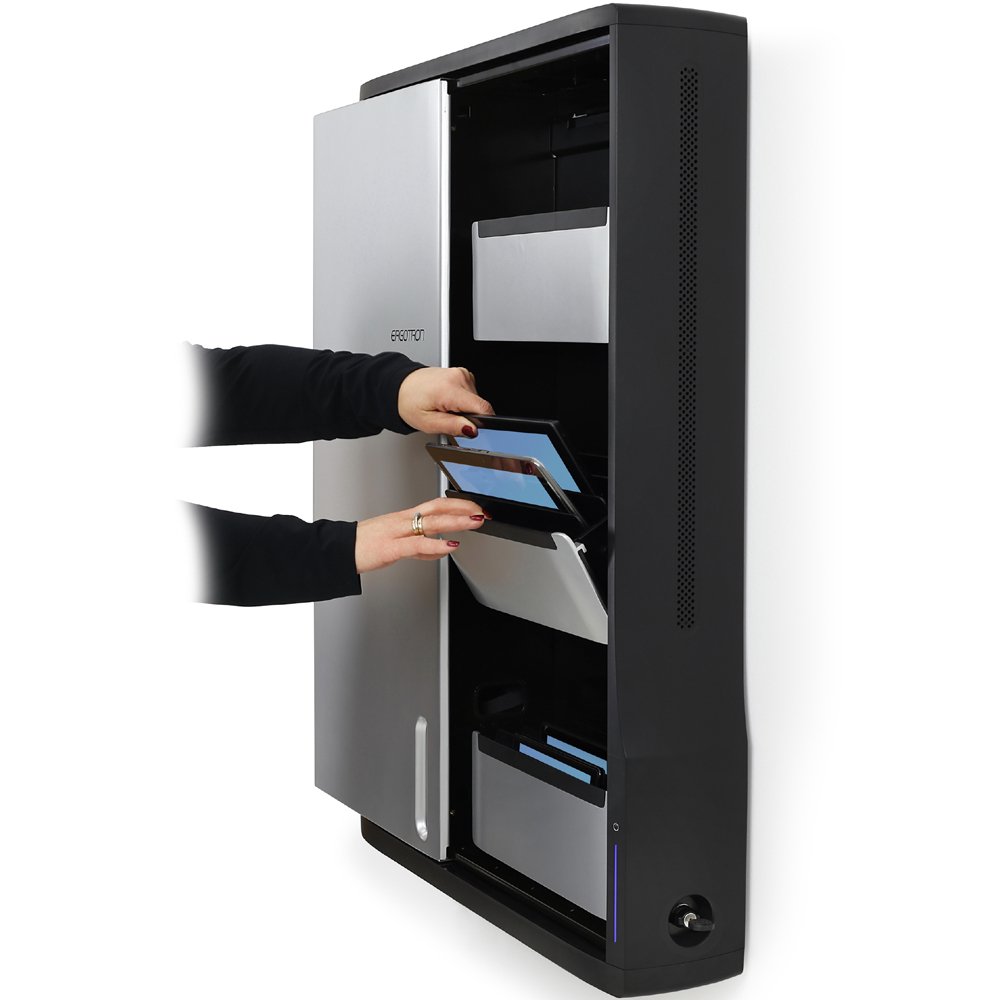

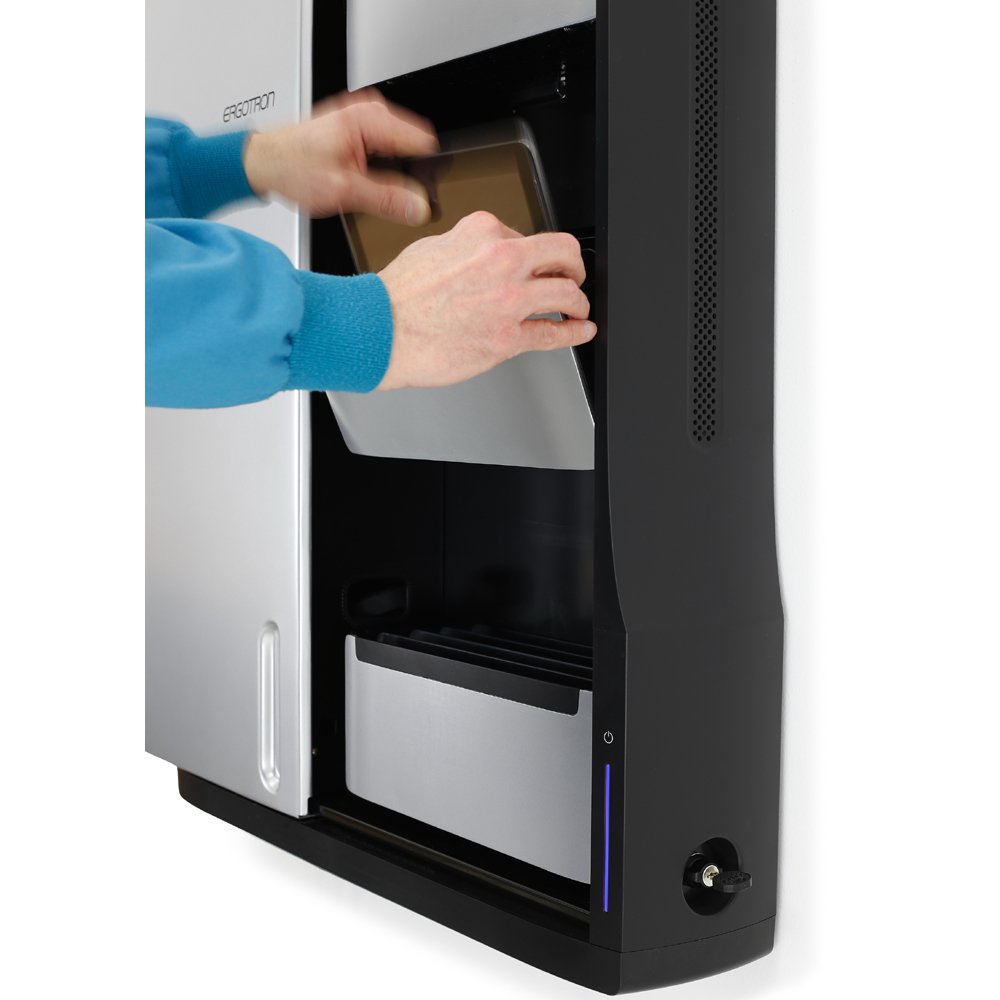

  • Show & Stow technology tilting tablet trays make loading and unloading devices simple. Pull trays out to load or unload and they will automatically retract

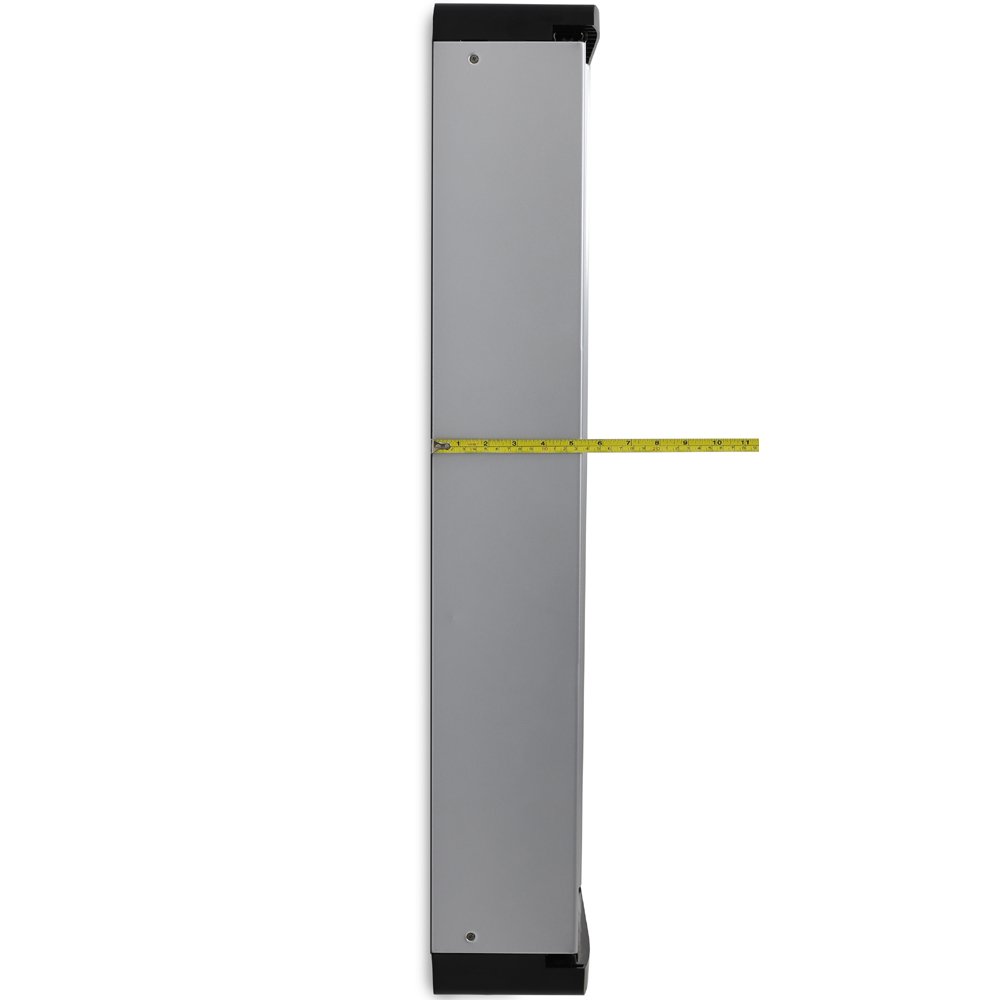

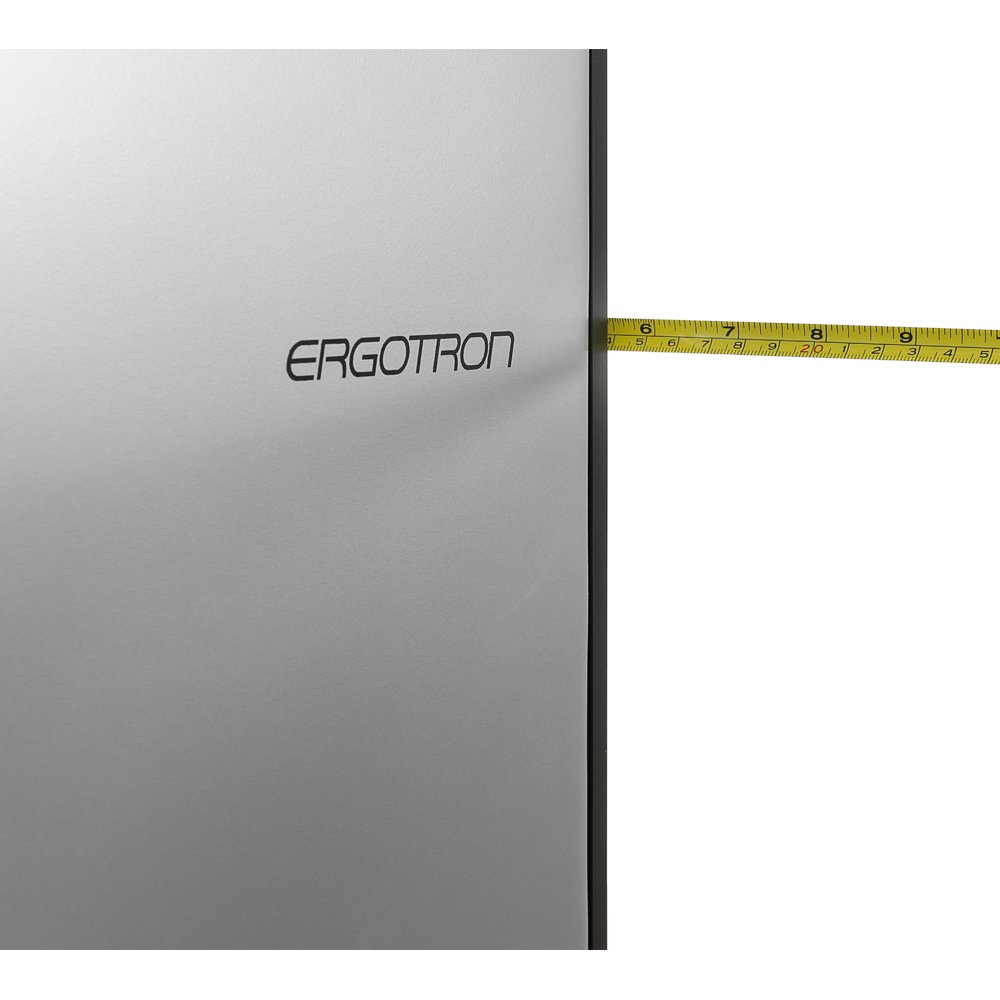

  • Low-profile design protrudes less than 6" (15.2 cm) from the wall saving space within the classroom

  • Quick, simple installation includes mounting template, mounting bracket, and hardware. Mount the bracket on the wall, hang the cabinet and secure with two heavy-duty screws

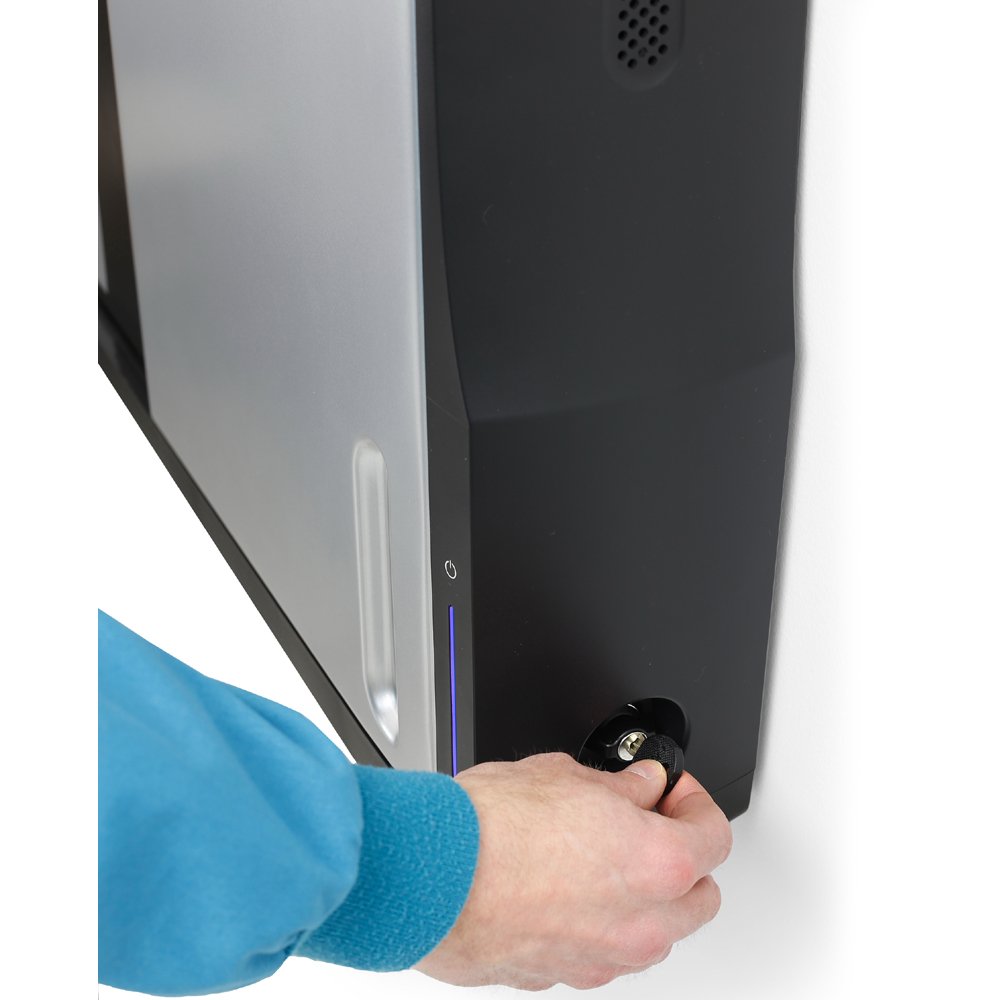

  • Six-point locking bracket keeps devices safe and secure

  • Snap-in tablet tray cable clips make setup simple and keep the device cables perfectly positioned for easy insertion

  • Separate AC adapter storage area for easy one-time setup and clean cable storage. Custom country-specific outlet strip includes plenty of space to work with oversized wall adapters and mini-bricks

  • For user and equipment safety, the entire cabinet is tested and certified to UL standard. CE marked based on compliance with Safety, EMC, and RoHS directives

Model DM12-1006-1
Manufacturer Ergotron
Part Number DM12-1006-1
UPC 698833050301
Color Black/silver
Dimensions Individual: 11.9"W x 8.9"H x 1.0"D (30.2 x 22.6 x 2.5 cm) including case and cord
Weight Capacity Individual: 3 lbs (1.4 kg). Total: 44.4 lbs (20.1 kg)
Temperature Operating = 0° to 30°C (32° to 86°F); storage = -40°C to -60°C (-40° to 140°F)
Humidity Operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
Dimensions 26.4"W x 35.6"H x 5.9"D (67 x 91 x 15 cm)
Weight 61.1 lbs
Shipping Dimensions 40.9" x 28.9" x 8.4" (104 x 74 x 21 cm)
Shipping Weight 69.3 lbs
Warranty Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables
Display Type Tablet
