Ergotron 60-615 Neo-Flex Fixed Wall Mount, VHD


Be the first to review this product
Product ID: 16496
Recommended Accessories
List Price: $135.00
Our Price: $66.01
You Save: $68.99
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Ergotron 60-615 fits most 23"ā€“42" flat panels and TVs up to 80 lbs (36.3 kg) and is ideal for those looking for an easy-to-use medium fixed mount.

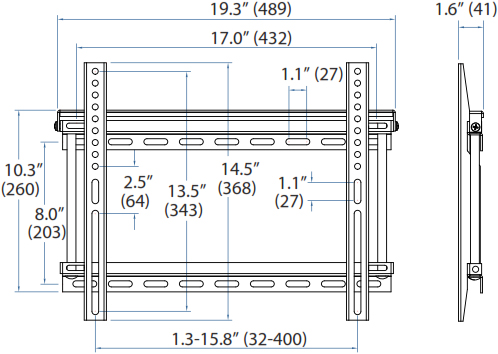

Technical Drawing

Technical drawing for Ergotron 60-615 Fixed VHD Wall Mount



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

23"-42" Up to 80 lbs

36.3 kg

- - - - MIS-D/E/F



Product Information

Part Number

60-615

Description

Neo-Flex Wall Mount, VHD, Very Heavy Duty (black)

Includes

  • Wall plate
  • Two (2) fixed rails
  • Locking bar
  • Installation and attachment hardware

Screen Size

Is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity

Universal Monitor Attachment

Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 400 mm (max.), Vertical = 100 mm (min.) to 300 mm (max.).

Profile off the Wall

1.6" (41 mm)

UL Certified and Listed

To UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use).

Full Compliance

With RoHS directive is in progress.

Shipping Dimensions

10.1" x 20.4" x 1.4" (257 x 518 x 36 mm)

Shipping Weight

3.9 lbs (1.8 kg)

Warranty

Three (3) years



Benefits

  • Low 1.6" (41 mm) mounting profile

  • A universal TV wall mount: rails provide greater display compatibility

  • Lift nā€™ Lock allows you to easily attach your flat panel to the mount

  • Sliding lateral on-wall adjustment

  • Open architecture provides easy access to in-wall wiring

  • Locking bar secures panel to mount

  • Simple to install and use

  • Includes complete hardware kit





Model 60-615
Manufacturer Ergotron
Part Number 60-615
UPC 698833017694
Mounting Options Wall
Color Black
Monitor Size 23"ā€“42"
Weight Capacity Up to 80 lbs (36.3 kg)
Mounting Pattern Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 400 mm (max.), Vertical = 100 mm (min.) to 300 mm (max.)
Profile off the Wall 1.6" (41 mm)
Shipping Dimensions 10.1" x 20.4" x 1.4" (257 x 518 x 36 mm)
Shipping Weight 3.9 lbs (1.8 kg)
Warranty Three (3) years

Be the first to review this product

Ergotron 60-615 Neo-Flex Fixed Wall Mount, VHD
