We are sorry but item below has been discontinued.

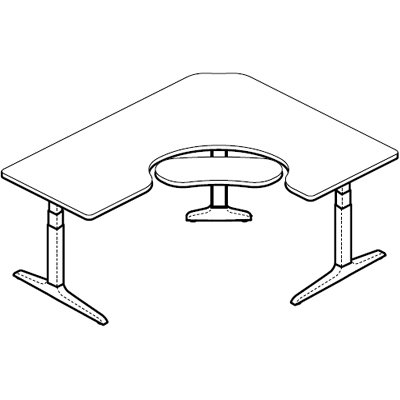

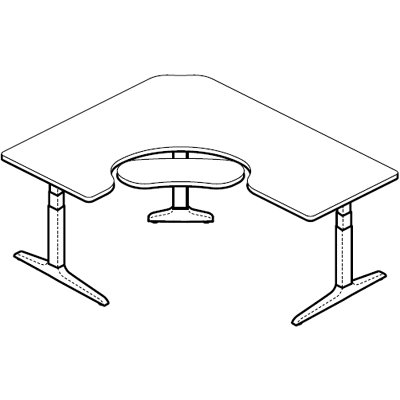

WorkRite Sierra HX Electric Offset Corner Keyboard Cutout Table

Lead times: Classic laminates: 10 working days for 20 or less. Designer laminates: 20 working days for 10 or less. Silhouette: 10 working days for 10 or less. Colors and patterns for Laminates, Edges and Base Frames are representative only. Actual colors and patterns may vary slightly.
Be the first to review this product
Product ID: 17417
Recommended Accessories
List Price: $3,828.00
Our Price: $2,296.80
You Save: $1531.20
Shipping: $0.00 *  - See delivery options below
Usually ships in 3 to 5 business days
* applies to Contiguous United States



Description

Raise the Bar on Workcenter Comfort. The Workrite Sierra HX is the most innovative adjustable height workcenter for the professional workplace. The standard crossbar has been eliminated to allow maximum leg clearance for worker comfort. Instead, a mount structure under the worksurface provides unmatched stability and plenty of room to attach a CPU holder and keyboard platform and lots of space to position your mobile pedestal.

Sierra HX features our beautiful Silhouette Collection of worksurfaces. These sleek tops are whisper thin at just ½", use GREENGUARD certified material, and are available in a variety of edge treatments.

Sierra HX Electric workcenters will lift your spirits along with your essential worktools. Quiet motors provide over 100 pounds of lifting force per leg, so no matter how heavy your workload, the Sierra Electric HX Electric is there to support you.



Specifications

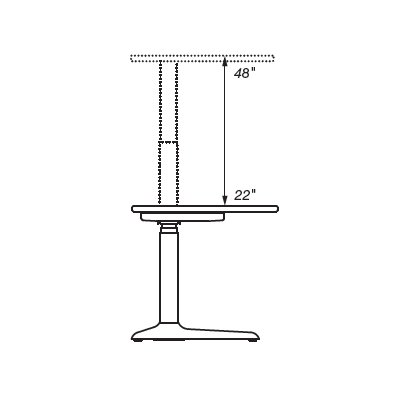

Height Range, Base and Leg Dimensions

Sierra HX Electric Specifications of Height range, base and leg dimensions



Features

  • Hidden crossbar design provides optimum knee clearance and under worksurface access
  • Adjusts 22" - 48" at 1.6" per second

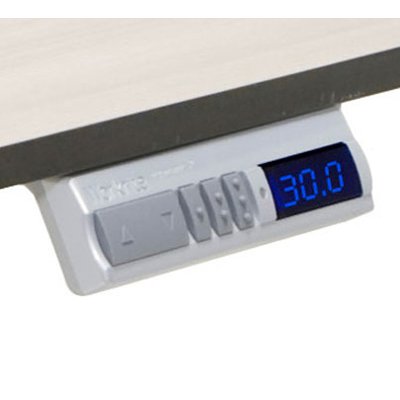

  • Up/down control with 3 memory presets under front of worksurface
  • Load capacity on worksurface: two leg workcenter 225 lbs, three leg workcenter 300 lbs
  • Available in 24 worksurface styles in over 60 laminate options including slender Silhouette worksurfaces
  • Available in Sierra silver or charcoal finish
  • Base only or full workcenter
  • Compatible with full line of tool bar and rail system accessories



Environmental Considerations

  • LEED Credit Eligibility
  • Material & Resources Credit 4.1–4.2 (1–2 points)
  • LEED Base Only: 26–29%
  • LEED with laminate: 31–37%
  • LEED with Silhouette: 13–18%
  • Innovation in Design Credit 1.1–1.4 (1–4 points)
  • Standby power use is only 0.1W
  • GREENGUARD Silhouette top material
  • VOC free powdercoat





Option 1 and 2: Choose your Desk Top Position and Surface Dimensions

Left (Long side at left, short side at right) Right (Long side at right, short side at left)
Offset Corner Left 3 legs, Keyboard Cutout Offset Corner Right 3 legs, Keyboard Cutout

SEHX604824A: 60" x 48" x 24" Surface Dimensions

SEHX486024A: 48" x 60" x 24" Surface Dimensions

SEHX724824A: 72" x 48" x 24" Surface Dimensions

SEHX487224A: 48" x 72" x 24" Surface Dimensions

SEHX726024A: 72" x 60" x 24" Surface Dimensions

SEHX607224A: 60" x 72" x 24" Surface Dimensions

SEHX844824A: 84" x 48" x 24" Surface Dimensions

SEHX488424A: 48" x 84" x 24" Surface Dimensions

SEHX604830A: 60" x 48" x 30" Surface Dimensions

SEHX486030A: 48" x 60" x 30" Surface Dimensions

SEHX724830A: 72" x 48" x 30" Surface Dimensions

SEHX487230A: 48" x 72" x 30" Surface Dimensions

SEHX726030A: 72" x 60" x 30" Surface Dimensions

SEHX607230A: 60" x 72" x 30" Surface Dimensions

SEHX844830A: 84" x 48" x 30" Surface Dimensions

SEHX488430A: 48" x 84" x 30" Surface Dimensions





Option 3: Switch Position

Sierra HX Switch Position UNDER Worksurface

Under Worksurface (U)





Option 4: Choose your Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Frame Base Color Silver

Sierra Silver (S)

Frame Base Color Charcoal

Charcoal (C)





Option 5: Choose your Laminate Top Colors

Classic Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Folkstone Gray SG241

Folkstone Gray

SG241

Opti Gray SG213

Opti Gray

SG213

Black SE101

Black

SE101

Ice Fishin WF181

Ice Fishin

WF181

White Spectrum AW785

White Spectrum

AW785

Gateway To the Future AV100

Gateway To the Future

AV100



Cavalcade South AT650

Cavalcade South

AT650

Tropical Gateway AV110

Tropical Gateway

AV110

Summer Heat Wave AO360

Summer Heat Wave

AO360

IL Palio Papel AV981

IL Palio Papel

AV981

Coriander Fiber AT981

Coriander Fiber

AT981

Leave Likatre WP120

Leave Likatre

WP120



Looks Likatre WP110

Looks Likatre

WP110

Appears Likatre WP115

Appears Likatre

WP115

Seems Likatre WP125

Seems Likatre

WP125

Hardrock Maple WM791

Hardrock Maple

WM791

Pearwood WX031

Pearwood

WX031

Shaker Cherry WC521

Shaker Cherry

WC521



Oiled Cherry WC421

Oiled Cherry

WC421

Jewel Mahagony WY351

Jewel Mahagony

WY351

Black Ashwood SZ101

Black Ashwood

SZ101



Designer Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Spa White S740T

Spa White

S740T

Almond ST655

Almond

ST655

Putty Gray SG209

Putty Gray

SG209

Taupe AT606

Taupe

ST606

Sage AV720

Sage

SV720

Cubicle Papel AG561

Cubical Papel

AG561



Gray Santos AG291

Gray Santos

AG291

Negotiating In Geneva PFA60

Negotiating In Geneva

PFA60

Beige Crepe AT251

Beige Crepe

AT251

Opti gray Crepe AG341

Opti Gray Crepe

AG341

Vanilla Fiber AW871

Vanilla Fiber

AW871

Wheat Fiber AT991

Wheat Fiber

AT991



Oatmeal Fiber AT101

Oatmeal Fiber

AT101

Thyme Fiber AV721

Thyme Fiber

AV721

Shipping Seattle Java PFA48

Shipping Seattle Java

PFA48

Pepper Fiber AG581

Pepper Fiber

AG581

Manila Linen AT231

Manila Linen

AT231

Gridlock In LA PFA51

Gridlock In LA

PFA51



Travelin Light AT680

Travelin Light

AT680

Gold Pannin AT710

Gold Pannin

AT710

Passin Through AV250

Passin Through

AV250

Blue Sandstone AB191

Blue Sandstone

AB191

Caramel Crepe AT111

Caramel Crepe

AT111

Amber Raffia AO351

Amber Raffia II

AO355



Brick by Brick AR350

Brick by Brick

AR350

Anigre WX041

Anigre

WX041

Millwork Cherry WC431

Millwork Cherry

WC431

Honey Maple WM951

Honey Maple

WM951

Yorkshire Cherry WC411

Yorkshire Cherry

WC411

Moroccan Fresco AT121

Moroccan Fresco

AT121






Option 6: Choose your Edge Treatments

Edge Treatments for Laminated Surfaces

Edge Treatment Standard

Standard

Colors 01 - 05

Edge Treatment Wedge

Wedge

Black only - 06

Edge Treatment Ripple

Ripple

Black only - 07

Standard Edge Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Folkstone - 01

Folkstone - 01

Black - 02

Black - 02

Opti Gray - 03

Opti Gray - 03

Almond - 04

Almond - 04

HW Brown - 05

HW Brown - 05

Soft White - 53

Soft White - 53





Option 7: Choose your Casters

Sierra Locking Casters

Sierra Locking Casters

Features

  • Low profile locking casters 2" W x 1.5" H
  • Casters raise work centers by 1" versus installed adjustable glides
  • Can be used with all Workrite Sierra HX, HXL adjustable workcenters
  • Four (4) casters required for 2 leg workcenters, five (5) or six (6) casters required for 3 leg workcenters

The following Casters are available

  • 95234 - 4 casters for 2 leg tables
  • 95235 - 5 casters for 3 leg tables
  • 95236 - 6 casters for 3 leg tables





Option 8: Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 42" × 42" × 24" corner table has an actual dimension of 40" × 40" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".





Option 9: HX Spacers

HX Accessory Spacers

HX Accessory Spacers

Attach the spacer to the leg motor with the #M6x12 mm Button Cap Screws



HX Accessory Spacers

Secure the support angle to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws

Features

  • Provides 3" or 5" of additional mounting depth under worksurface for accessories including keyboard platforms
  • 3" spacer can mount to either 24"D or 30"D workcenters; 5" spacer can only be used on 30"D workcenters
  • For 3 leg dual depth workcenters, order spacer for narrowest side
  • Quantity 2 spacers provided

The following Spacers are available

  • SHX-24SPCR: 3" depth spacer, weight 4 lbs
  • SHX-30SPCR: 5" depth spacer, weight 7 lbs





Workcenter Ordering Information

Classic Collection Laminates - 10 working days for quantity 20 or less

Silhouette Collection Laminates - 10 working days for quantity 10 or less

Designer Collection Laminates - 20 working days for quantity 10 or less

Modular, high strength steel frame mounts to worksurface; exceeds ergonomic knee clearance requirements.

All tables have adjustable glides providing ½" adjustment. Table surfaces are predrilled with mounting location for bases. Silhouette surfaces include screws to mount accessory items under the worksurface. Special drill bit required, can be ordered separately.

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only. Sierra HXL Electric legs rated at 175 lbs maximum force per leg. Control box powered by 120V / 60Hz. May draw 2.9 amps maximum under full load. Standby power is 0.1W. 10' power cord with IEC type connection at control box provided.

Cable management spool provided to manage excess control cables; optional cable mount accessories are available.





Literature (Please open the following documents for more technical information)

Workrite Sierra HX Electric 3 Leg Sit Stand Table - Assembly Instruction

 - pdf

Workrite Sierra HX Electric Height Adjustable Workstation - Product Sheet

 - pdf

Workrite Sierra HX Electric Adjustable Height Workcenter - Color and Trim Options

 - pdf

Workrite Workcenter Comparison Guide

 - pdf

Workrite Sierra HX Spacer Kit - Installation Instruction

 - pdf

Model SEHX604824A, SEHX724824A, SEHX726024A, SEHX844824A, SEHX604830A, SEHX724830A, SEHX726030A, SEHX844830A, SEHX486024A, SEHX487224A, SEHX607224A, SEHX488424A, SEHX486030A, SEHX487230A, SEHX607230A, SEHX488430A
Manufacturer Workrite Ergonomics
Part Number SEHX604824A, SEHX724824A, SEHX726024A, SEHX844824A, SEHX604830A, SEHX724830A, SEHX726030A, SEHX844830A, SEHX486024A, SEHX487224A, SEHX607224A, SEHX488424A, SEHX486030A, SEHX487230A, SEHX607230A, SEHX488430A
Height Range 22"-48" at 1.6" per second
Lifting Capacity 3-leg: 300 lbs
