$2,280.00

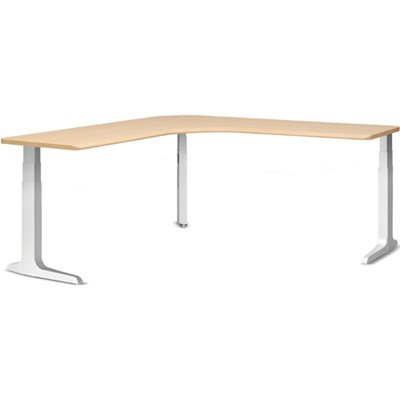

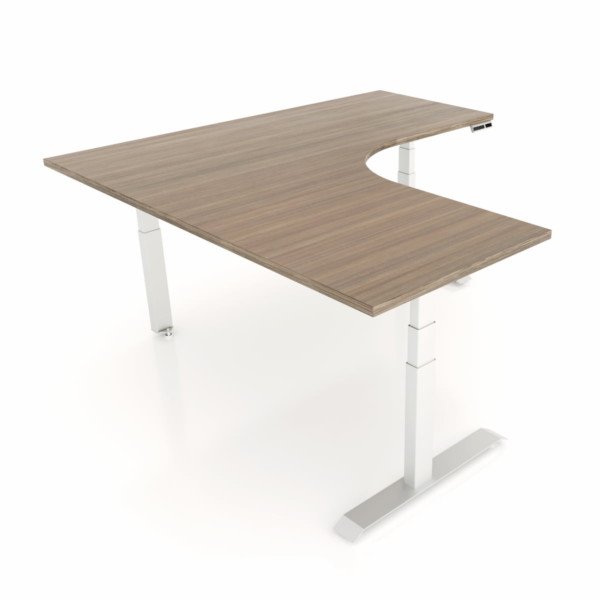

WorkRite Sierra HX Electric Equal Corner 3 Legs Workcenter

Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less.

Product ID 16560
WorkRite Sierra HX Electric Equal Corner 3 Legs Workcenter

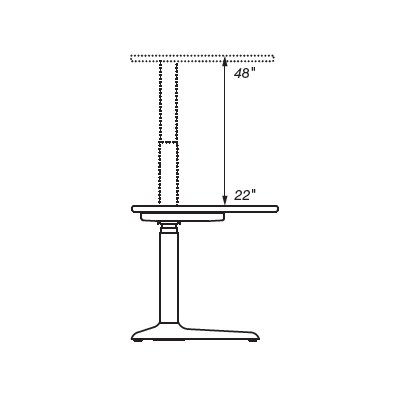

Height range from 22 to 48"

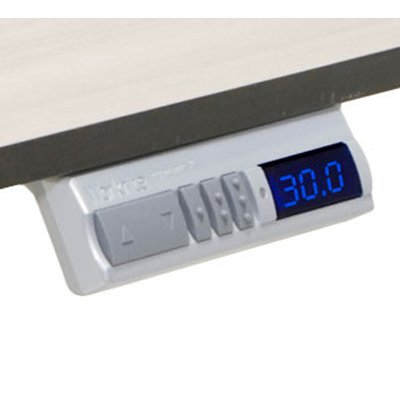

Switch Under Worksurface
Programmable Switch PROSWITCH
WorkRite Sierra HX Electric Equal Corner 3 Legs Workcenter
WorkRite Sierra HX Electric Equal Corner 3 Legs Workcenter
Height range from 22 to 48"
Switch Under Worksurface
Programmable Switch PROSWITCH
WorkRite Sierra HX Electric Equal Corner 3 Legs Workcenter

Description

Sierra HX Electric Base Set - All Sierra HX Electric Base Sets include a Frame Set (legs, brackets, motor(s) and cables) as well as your choice of Foot and Switch. Workrite Sierra HX is the foundation for the most innovative adjustable height workcenter for today’s professional workplace. The Frame Sets feature high quality, European engineering and design and meet BIFMA G1-2013 height adjustability requirements. They can handle payloads of 225-300 pounds, and features hidden crossbar design that provides greater knee clearance for the user. Sierra HX Frame Sets are available in three finishes with the widest range of size configurations and feature options, making it the most versatile workcenter in the Workrite portfolio.

Lifetime Warranty - The Workrite Sierra series is our most durable, long-lasting product line that now carries a Lifetime Warranty. With exceptional versatility, range, load-capacity and new bluetooth switch options, Sierra HX offers something for everyone in the commercial office.

Dimensions

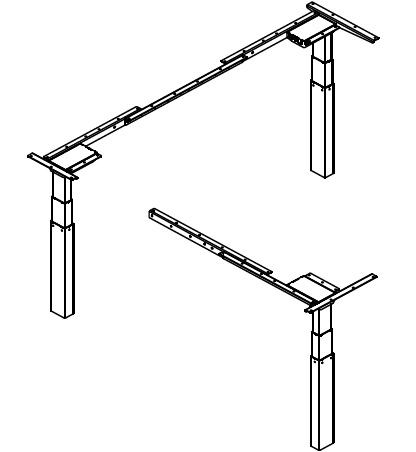

Dimensions of Workrite Sierra HX Electric Frame Set

Frame Set Features

  • Frame options: 2-leg and 3-leg frames

  • Compatible with 24" or 30" deep worksurfaces

  • Widths from 34" to 84" depending on shape

  • Finish options: silver, black, and white

  • Height range: 22.5" to 48.7" for full BIFMA G1-2013 compliance

  • Payload capacity: 225 pounds for 2-leg models. 300 pounds for 3-leg models

  • Travel speed: 1.6 inches per second

  • Max power draw: 120 V, 60 Hz, 4.25 A (2-leg) 3.3 A (3-leg)

  • Standby power: 0.1 W

  • MEMS Anti-Collision technology

  • 10′ power cord

  • Meets BIFMA X5.5 standards for performance and durability

  • Workrite Sierra HX Base Set has achieved GREENGUARD GOLD Certification

  • UL962 Certified when paired with Workrite worksurface

  • Sierra HX 2-Leg Frame Set Features - Widths range from 30" to 90" wide. Payload carry capacity: 225 lb (after top). Gross load capacity: 352 lb (not including top and safety factor).

  • Sierra HX 3-Leg Frame Set Features - Widths range from 42" to 90" wide. Payload carry capacity: 300 lb (after top). Gross load capacity: 528 lb (not including top and safety factor).

Option 1: Surface Dimensions

Worksurface 58" x 58" x 23" ST585823-B3 and Frame Set SEHX5472-4272EOC
Worksurface 64" x 64" x 23" ST646423-B3 and Frame Set SEHX5472-4272EOC
Worksurface 70" x 70" x 23" ST707023-B3 and Frame Set SEHX5472-4272EOC
Worksurface 58" x 58" x 29" ST585829-B3 and Frame Set SEHX5472-4272EOC
Worksurface 64" x 64" x 29" ST646429-B3 and Frame Set SEHX5472-4272EOC
Worksurface 70" x 70" x 29" ST707029-B3 and Frame Set SEHX5472-4272EOC

Option 2: Laminate Top Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Tier 1

Laminate White SW811SD

White

SW811SD

Laminate Folkstone Gray SG241SD

Folkstone Gray

SG241SD

Laminate Slate SG228SD

Slate

SG228SD

Laminate Hardrock Maple WM791SD

Hardrock Maple

WM791SD

Laminate Millwork Cherry WC431SD

Millwork Cherry

WC431SD

Laminate Formal Mahogany WY031SD

Formal Mahogany

WY031SD

Laminate Walnut Grove WW050SD

Walnut Grove

WW050SD

Tier 2

Laminate Beigewood 0785060

Beigewood

0785060

Laminate River Cherry 0793738

River Cherry

0793738

Laminate Pinnacle Walnut 0799238

Pinnacle Walnut

0799238

Laminate Monticello Maple 0792538

Monticello Maple

0792538

Laminate Wild Cherry 0705460

Wild Cherry

0705460

Laminate Persian Cherry 0798938

Persian Cherry

0798938

Laminate Shadow Zephyr 0485760

Shadow Zephyr

0485760

Laminate Misted Zephyr 0484360

Misted Zephyr

0484360

Tier 3

Laminate Grey Elm 8201K12

Grey Elm

8201K12

Laminate Fawn Cypress 8208K16

Fawn Cypress

8208K16

Laminate Veranda Teak 8209K28

Veranda Teak

8209K28

Laminate Phantom Cocoa 8213K28

Phantom Cocoa

8213K28

Laminate Studio Teak 7960K18

Studio Teak

7960K18

Laminate Phantom Charcoal 8214K28

Phantom Charcoal

8214K28

Laminate Skyline Walnut 7964K12

Skyline Walnut

7964K12

Laminate Walnut Heights 7965K12

Walnut Heights

7965K12

Laminate Figured Mahogany 7040K78

Figured Mahogany

7040K78

Laminate Black Velvet 0159538

Black Velvet

0159538

Option 3: Base Frame Color

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Frame Base Color Silver

Silver (S)

Frame Base Color Black

Black (B)

Base Frame Color White

White (W)

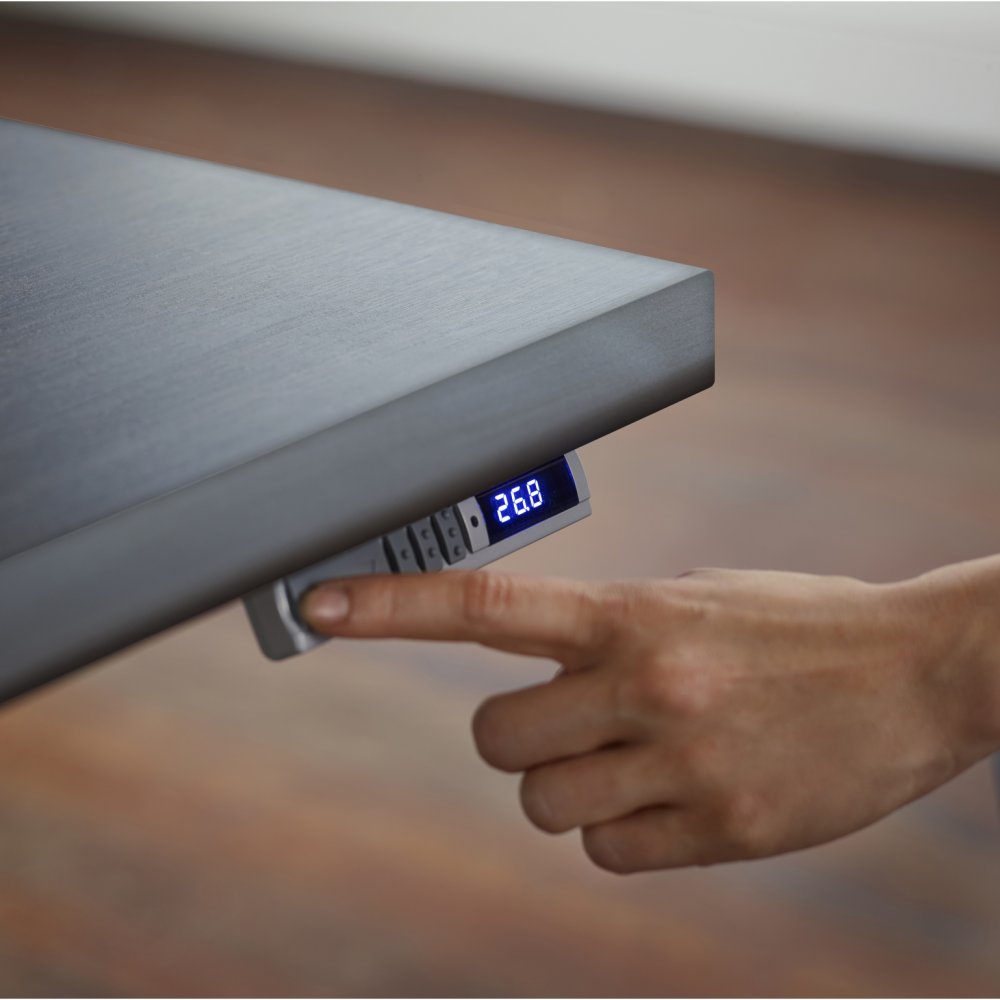

Option 4: Control Switch

Standard Switch

Standard Switch STDSWITCH

Programmable Switch

Programmable Switch PROSWITCH

Bluetooth Programmable Switch

Bluetooth Switch BT-PROSWITCH

Standard switch for simple Up/Down control or the Programmable switch for more advanced options including 3 memory pre-sets that can be easily customized by the user or the Bluetooth switch.

Option 5: Foot Type

Flat Foot Set

Flat Foot Set

Styled Foot Set

Styled Foot Set

Flat foot or the styled foot for use with any Workrite electric height adjustable workcenter. Both options are available in finishes that coordinate with our frame sets and in 23" or 29" lengths.

Option 6: Casters - Wheels

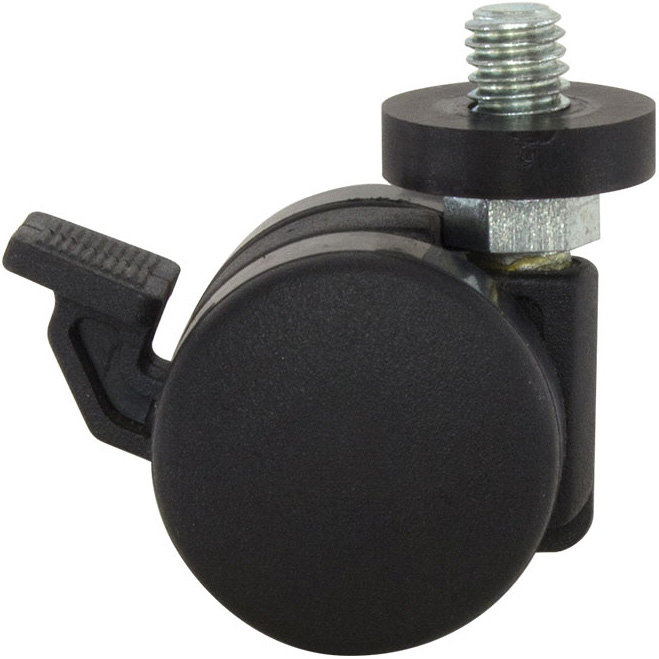

Low Profile Casters

Low Profile Casters

  • Dual wheel casters designed for use on carpet floors
  • Low profile 2" w x 1.5" h, locking, 37 mm diameter black wheels
  • Casters raise work centers by 1"
  • Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
  • 95234 - Four casters for 2-leg work centers, 95235 - five casters for 3-leg work centers
  • 400 lbs gross capacity

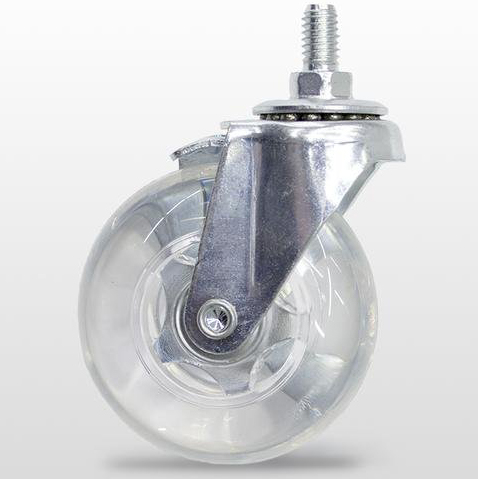

Premium Polyurethane Casters

Premium Polyurethane Casters

  • Compatible with carpet and hard flooring
  • Locking casters with smooth rolling 1"w × 3"h translucent polyurethane wheels
  • Casters raise work centers by 3.5"
  • Use with all Styled Foot and Flat Foot Kits (not available on Cascade Work centers)
  • ACC-CASTER-4PK3IN-CP - Four casters for 2-leg work centers, 400 lbs gross load capacity
  • ACC-CASTER-5PK3IN-CP - Five casters for 3-leg work centers, 500 lbs gross load capacity

Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.

Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.

Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.

Important Notes:

  • Workcenters ship unassembled and require simple hand tools to install.

  • If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

  • If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

  • All workcenters have adjustable glides providing 0.5" of adjustment.

  • Mobile pedestals may limit lower height range.

Model SEHX606024, SEHX666624, SEHX727224, SEHX606030, SEHX666630, SEHX727230
Manufacturer Workrite Ergonomics
Part Number SEHX606024, SEHX666624, SEHX727224, SEHX606030, SEHX666630, SEHX727230
Desk Type Electric
Desktop Shape Corner
Height Range 22.5" - 48.7"
Travel Speed 1.6" per second
Lifting Capacity 300 lbs
Width Range 42" - 90"
Motor Manufactured in Denmark
Warranty Limited Lifetime

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year
