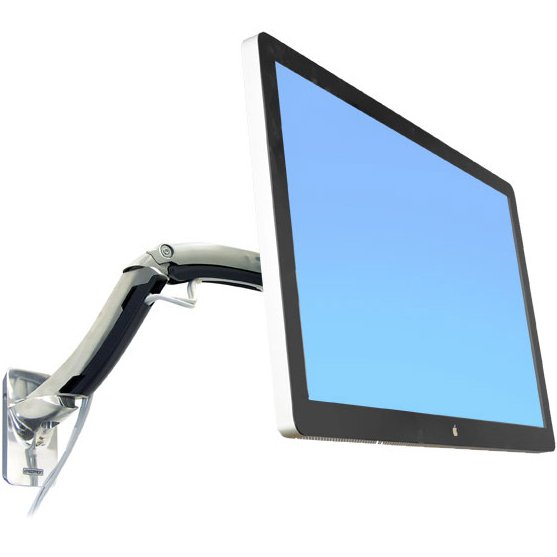

Ergotron 45-228-026 MX Wall Mount Monitor Arm

Product ID 15795


  • Wall Mount Monitor Arm
  • 42" Screen size: Holds monitors, displays up to 42" screen size
  • 14-30 lbs weight capacity: Carries monitors, displays in the weight range 14-30 lbs
  • 5" Vertical Adjustability: Provides 5" vertical adjustment
  • 17" Horizontal Reach: 17" Extension, retraction possible
  • Please see, if you want a desk mounting monitor arm

Animation forErgotron 45-228-026 MX Wall Mount Monitor Arm

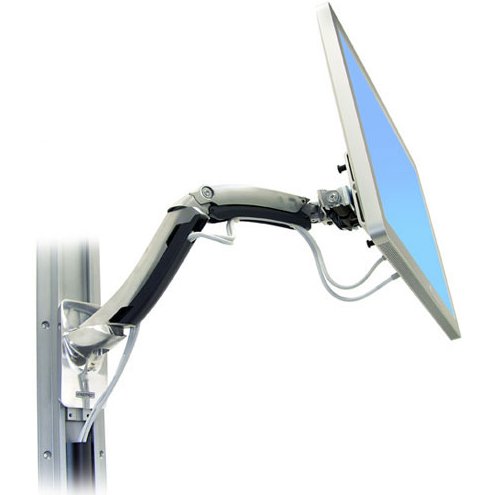

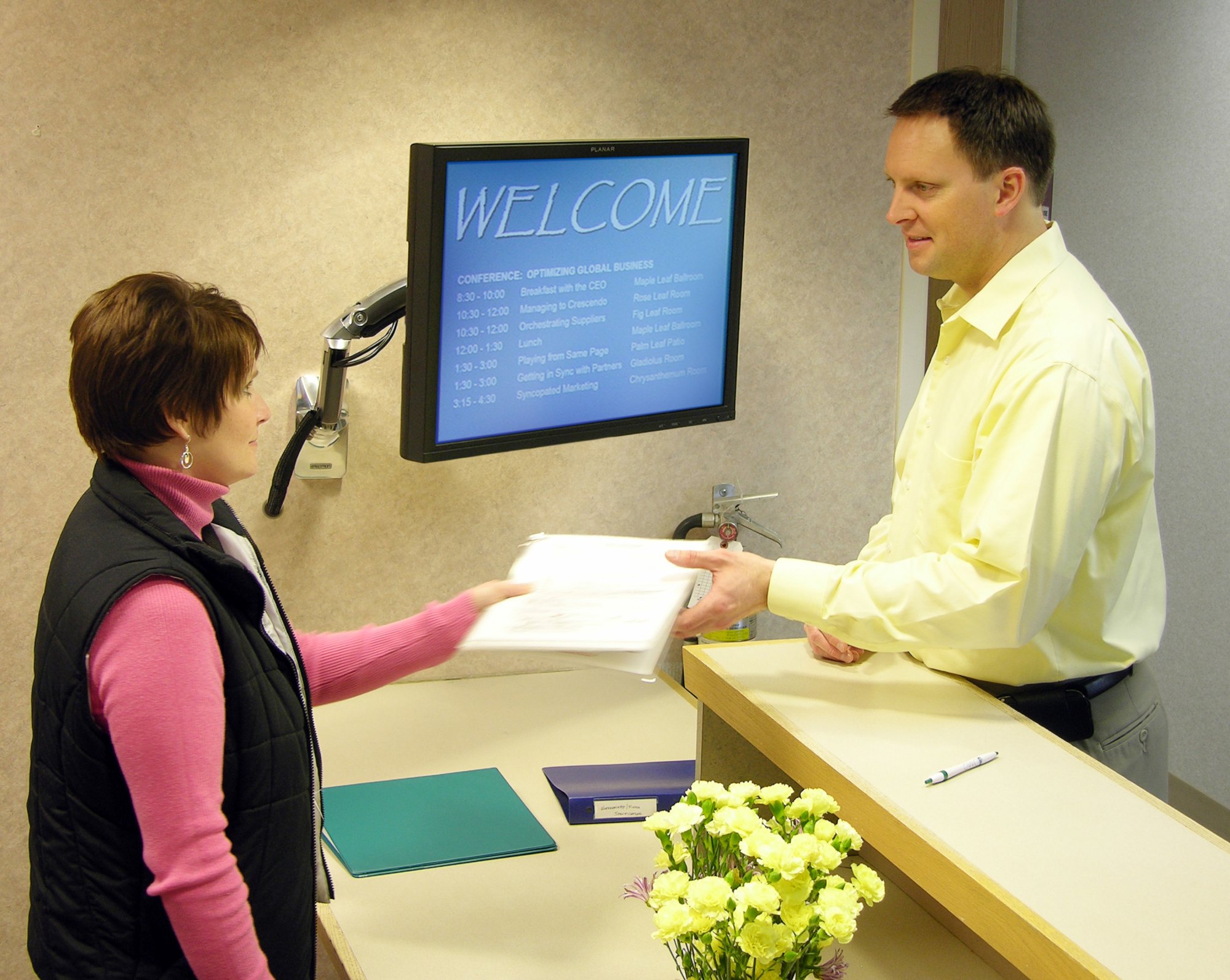

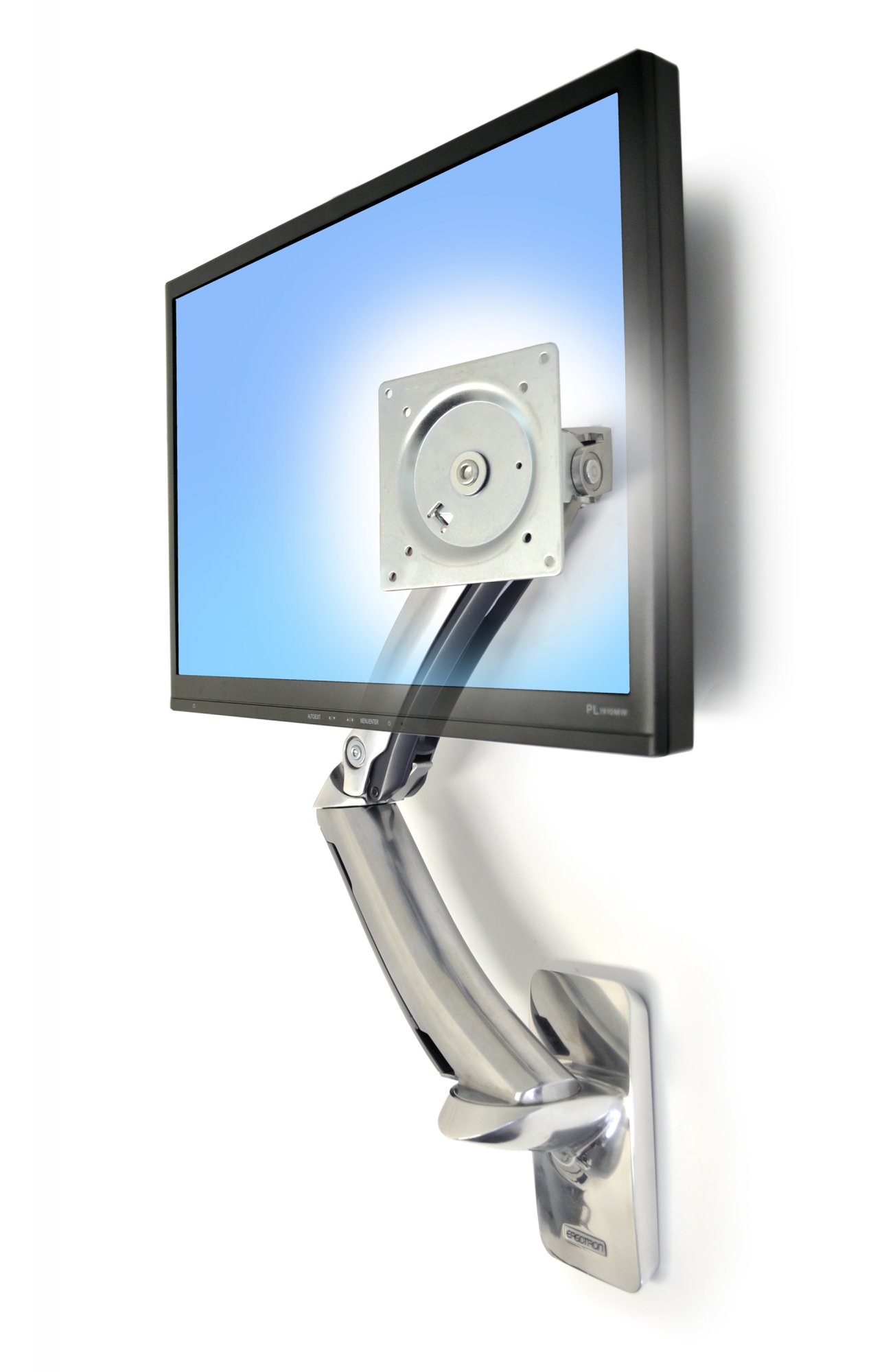

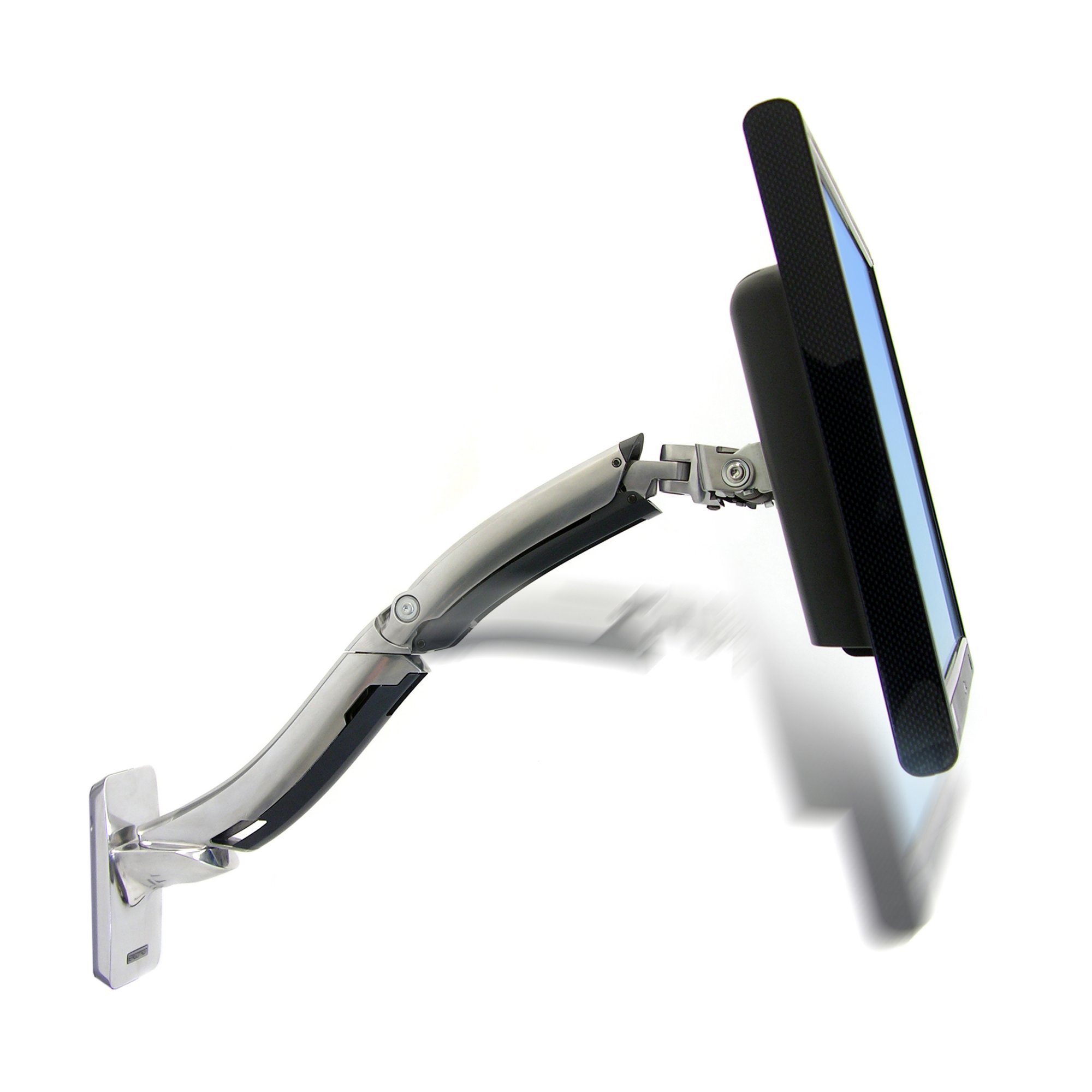

Ergotron 45-228-026 is a wall mounting arm that can carry medium-sized displays and computer monitors weighing up to 30 lbs (13.6 kgs) for digital display purposes. Ideal in a retail or public environment too like a library or a hospital, the 45-228-026 provides 5" height adjustment, 17" horizontal reach and retraction and also portrait/landscape rotation.

Note: It is recommended that this arm be installed no higher than 60" (152 cm) above the floor

Technical Drawing

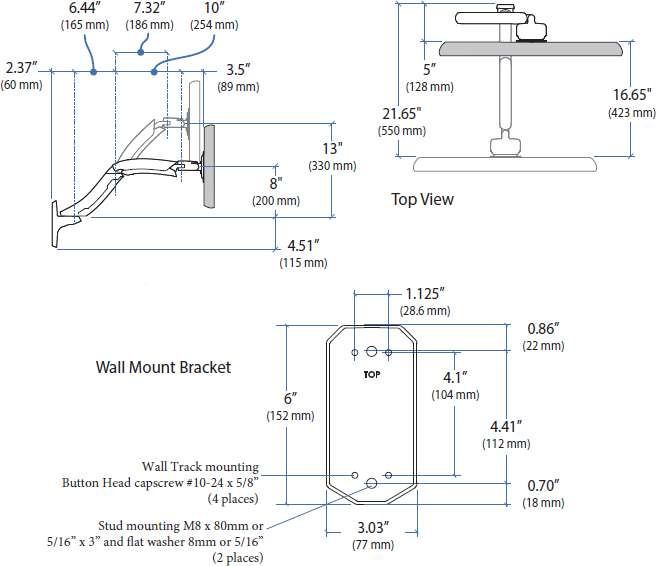

Technical drawing for Ergotron 45-228-026 MX Wall Mount Monitor Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 42"

14 - 30 lbs

6.4 - 13.6 kg


12.7 cm

80° 360° 90° MIS-D/E/F

Product Information

Part Number 45-228-026
Description MX Wall Mount LCD Monitor Arm (polished aluminum)
  • MX arm

  • Vertical mount base

  • VESA adaptor brackets

Weight Capacity 14 to 30 lbs (6.3 to 13.6 kg). Monitor depth greater than 4" (102 mm) may diminish capacity. Contact Ergotron for more information
Tilts Monitor tilts 75° up and 5° down
Pan Pan at base = 180°; pan at extension = 360°; pan at monitor = 180°
Portrait/Landscape Portrait/landscape rotation includes position lock
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Recommended Installation Height Upper mounting hole of base should be placed no higher than 60" (152 cm) above floor
Cable Management Internal cable management
Product Weight 8.1 lbs (3.7 kg)
Shipping Dimensions 29.25" x 10.5" x 6.5" (745 x 265 x 160 mm)
Shipping Weight 10.25 lbs (4.65 kg)
Warranty Ten (10) years


  • Stylish design and super sturdy construction; steel and polished aluminum exterior

  • Position your display for maximum ergonomic comfort to relieve eye, neck and back strain

  • Pre-assembled arm offers monitor/TV theft deterrence

  • Easy to use, simple installation and effortless operation

  • Cable management system conceals and routes cables under the arm, out of the way

  • Upgrade LCD monitors and TVs with improved ergonomic adjustment

  • Rotate screen for portrait viewing of photos and pages - eliminate scrolling

  • Extends/retracts up to 16.7" (42 cm); push your display out of the way when not in use

  • Patented CF motion technology provides premium ease-of-use display adjustment

Frequently Asked Questions

q Can you tell me which wall track/s are suitable for this arm please?

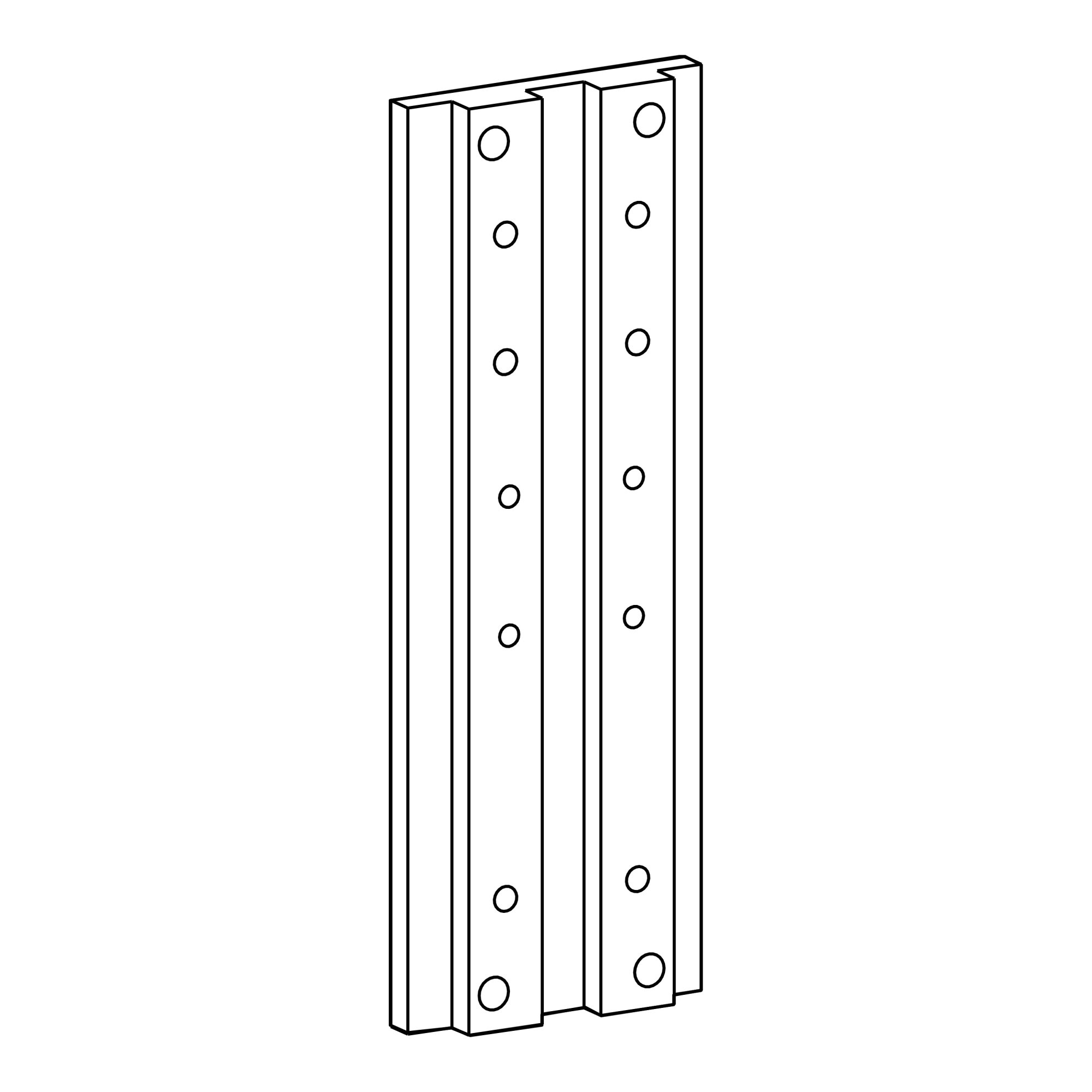

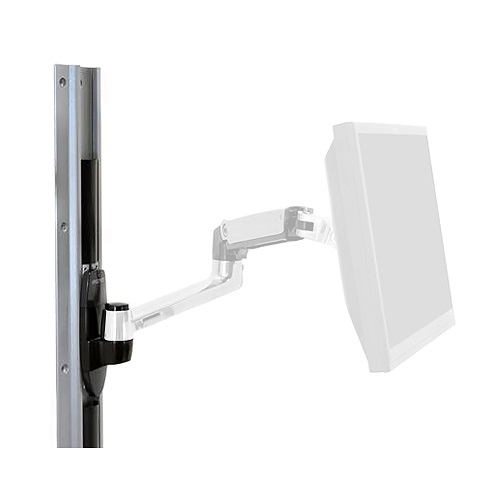

The suitability of a wall track will depend upon the height adjustment that you need and the amount of space you have on the wall. Please choose from different lengths 10", 26", 34" and 42" of the Wall Track from Option 2. Please keep in mind that you need a "Wall Track Mounting Bracket Kit," Option 3, if you want to mount this arm on a wall track.

Model 45-228-026
Manufacturer Ergotron
Part Number 45-228-026
UPC 698833010466
Weight lb(s)
Color Polished Aluminum
Weight Capacity 14-30 lbs (6.3-13.6 kg). Monitor depth greater than 4" (102 mm) may diminish capacity. Contact Ergotron for more information.
Lift (13 cm) 5 in
Tilt Up 75 degree and down 5 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (200 x 100 mm); VESA FDMI, MIS-F, C (200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm, VESA Adaptor Kit (97-759) can be ordered separately
Shipping Dimensions 29.25" x 10.5" x 6.5" (745 x 265 x 160 mm)
Shipping Weight 10.25 lbs (4.65 kg)
Warranty Ten (10) years
Monitor Size Up to 42"
Pan 360 degree
Rotation 90 degree
Extend/Retract Range Up to 16.7" (42 cm), push your display out of the way when not in use
Mounting Options Wall
Monitor Arm Types 1 Monitor
Weight 8.1 lbs (3.7 kg)
