Ergotron 45-246-026 LX Wall Mount Keyboard Arm

Product ID 16143
Ergotron 45-246-026 LX Wall Mount Keyboard Arm
Technical drawing
Ergotron 45-246-026 Wall Mount Keyboard Arm

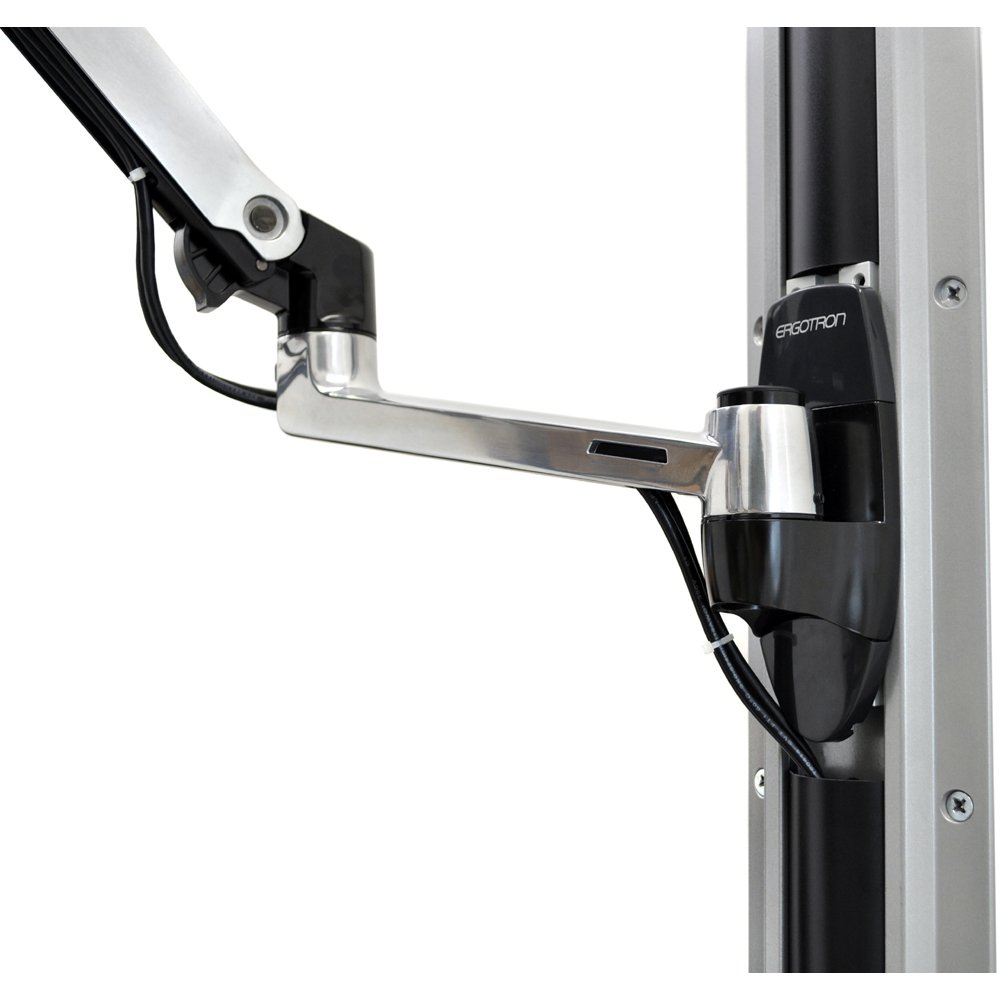

LX Wall Mount Keyboard Arm on a Wall Track (sold separately)
Inused image
Ergotron 45-246-026 LX Wall Mount Keyboard Arm
Technical drawing
Ergotron 45-246-026 Wall Mount Keyboard Arm
LX Wall Mount Keyboard Arm on a Wall Track (sold separately)
Inused image


  • Wall mounting keyboard arm
  • 13" height adjustment: Provides ergonomic relief to wrists, shoulders, neck
  • 35" extension up to front of the keyboard: side-to-side keyboard tray motion
  • 17.5"x10.1": Maximum keyboard size that fits on this product
  • RetractabilityKeyboard tray folds up within 3.5" of the wall making it suitable for space-constrained areas
  • Includes: LX arm, extension, keyboard tray, mouse tray, wall mount, mouse holder and wrists rest
  • Creates a complete ergonomic workstation when coupled with LX LCD Arm
Ergotron 45-246-026 LX Wall Keyboard Arm


Ergotron 45-246-026 allows you to position your keyboard to the most comfortable typing position, seated or standing. With the ability to slide the mouse tray to the left or right, this wall mount keyboard tray can provide the most ergonomic relief to the forearms, wrists and shoulders.

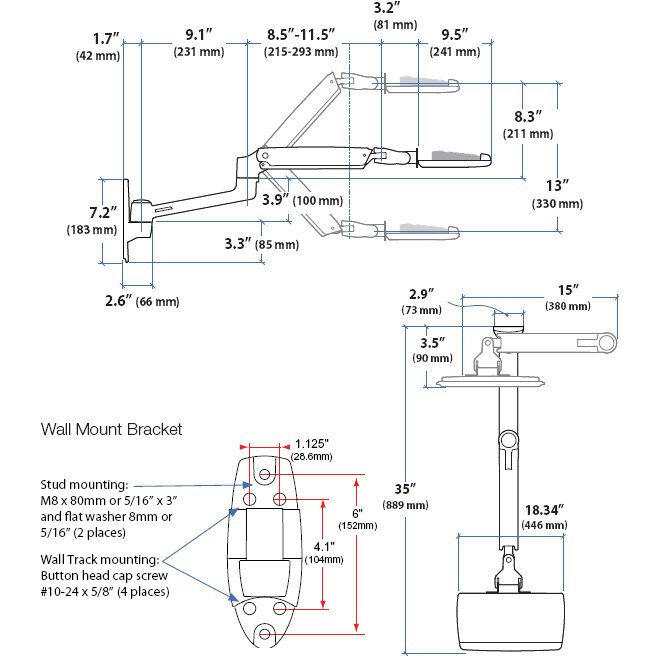

Technical Drawing

Technical drawing for Ergotron 45-246-026 LX Wall Mount Keyboard Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA

Up to 5 lbs

2.3 kg


33 cm

80° 360° - -

Product Information

Part Number 45-246-026
Description LX Wall Mount Keyboard Arm (polished aluminum)
  • LX arm
  • Extension
  • Keyboard tray
  • Mouse tray
  • Wall mount base
  • Mouse holder
  • Wrist rest
Arm Can be used with or without the extension
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Snap-fit cap secures interface of arms to extensions for greater stability
Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately)
Fasteners For direct attachment to wood/metal studs or concrete surface are not included - customer supplied
Base Includes theft deterrent anchor holes for cable locks
Product Weight 9.0 lbs (4.1 kg)
Shipping Dimensions 20.75" x 11.25" x 7.5" (53 x 29 x 19 cm)
Shipping Weight 9.7 lbs (4.4 kg)
Warranty Ten (10) years


  • Adjust your keyboard for pain-free typing, ergonomic relief and increased productivity
  • Arm extends keyboard tray up to 35" (89 cm); 13" (33 cm) height adjustment
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Creates a complete workstation when paired with the LX LCD Arm
  • Easy to use - simple installation and effortless operation
  • Mouse tray slides out to left or right, depending on user preference
  • Folds to within 3.5" (9 cm) of wall, making it perfect for high-traffic, space-constrained areas like hospital corridors, retail store floors and small offices
  • Integrated cable management leaves the cables out of the way and sight of the user
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
  • Patented Constant Force lift-and-pivot motion technology

Frequently Asked Questions

q How easy is the LX Wall Mount Keyboard Arm to maneuver? In other words, do you have to turn a bunch of knobs at each joint to make the adjustments or is it a smooth articulation? Also, is it infinitely adjustable in both height and movement or does it only have certain "stopping" points for use?

The adjustment is easy, you just move it where you want with no knobs and turns. Move up and down or side to side and tilt just by moving with your hands. There are no stopping points and you can infinitely move it where you want and it will stay.

q I want to mount the LX Wall Mount Keyboard Arm to a sheetrock wall, does it come with all mounting accessories and hardware or does this need to be ordered separate? If no, what is the model number of the mounting kit ?

This LX Wall Mount Keyboard Arm is sold with the hardware required to mount directly to sturdy vertical surfaces. Unfortunately it is not recommended to mount this arm on sheetrock. It needs to be mounted on a stud in order to be stable. If it is not mounted to a stud, the manufacturer's warranty might be voided.

Model 45-246-026
Manufacturer Ergotron
Part Number 45-246-026
UPC 698833012040
Weight lb(s)
Color Polished Aluminum
Weight Capacity Up to 5 lbs (2.3 kg)
Lift (33 cm) 13 in
Tilt 80 degree
Pan 360 degree
Extension Arm extends keyboard tray up to 35" (89 cm)
Shipping Dimensions 20.75" x 11.25" x 7.5" (53 x 29 x 19 cm)
Shipping Weight 9.7 lbs (4.4 kg)
Warranty Ten (10) years
Mounting Options Wall
Monitor Arm Types Keyboard
Weight 9.0 lbs (4.1 kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 2
(5 out of 2)
Awesome product

by Marty R, Santa Cruz, California, Mar 10, 2021

Just what I was looking for to create stand-up desk scenario in a small space. It's pricey but worth it. Highly recommend

Quality Product

by Terry D S, Wisconsin, May 16, 2016

Spent the Extra $$ and it's worth it.
A couple years ago we were looking for a Quality Monitor Wall Mount, Finally on our third attempt we found Ergotron. Now all we buy is Ergotron Products.
