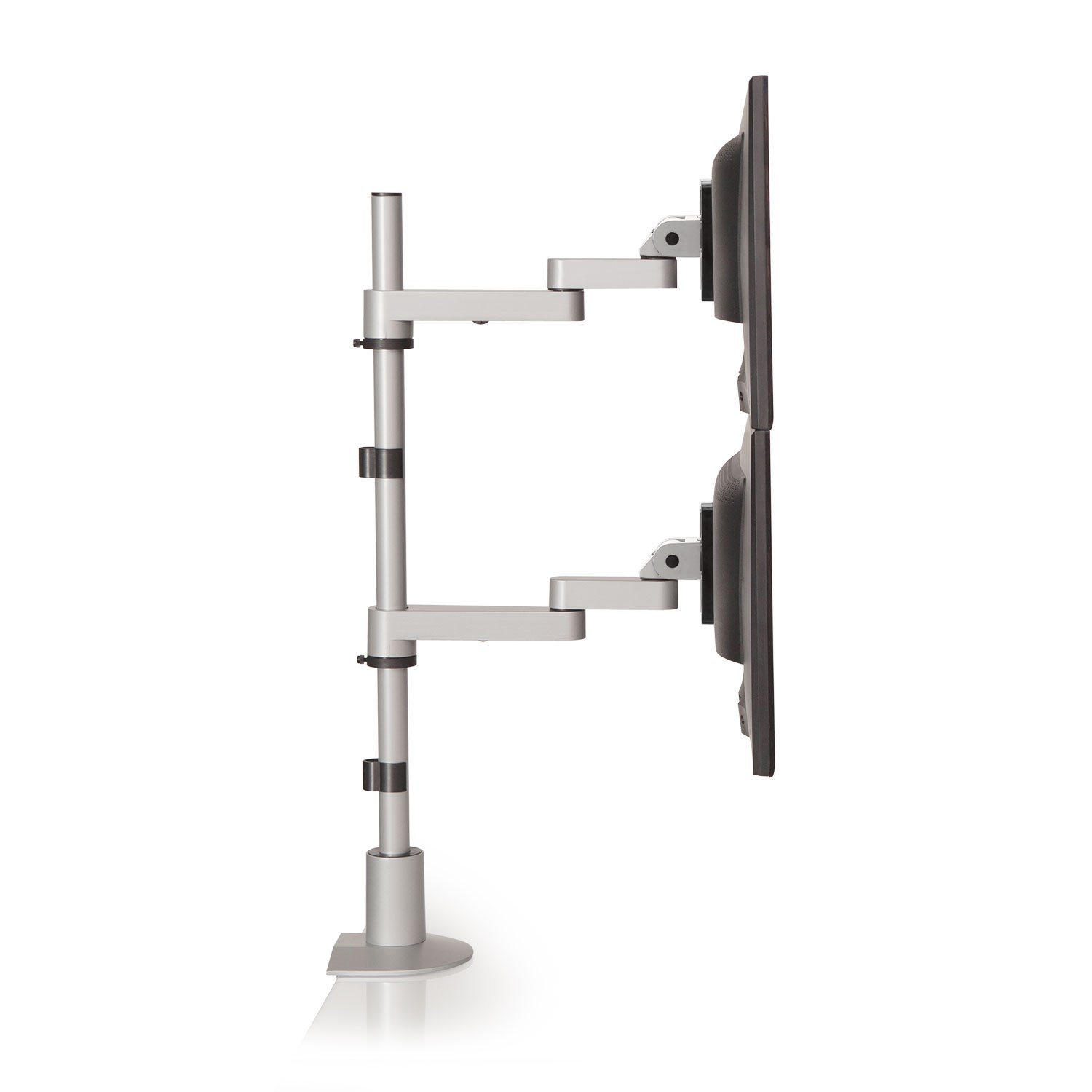

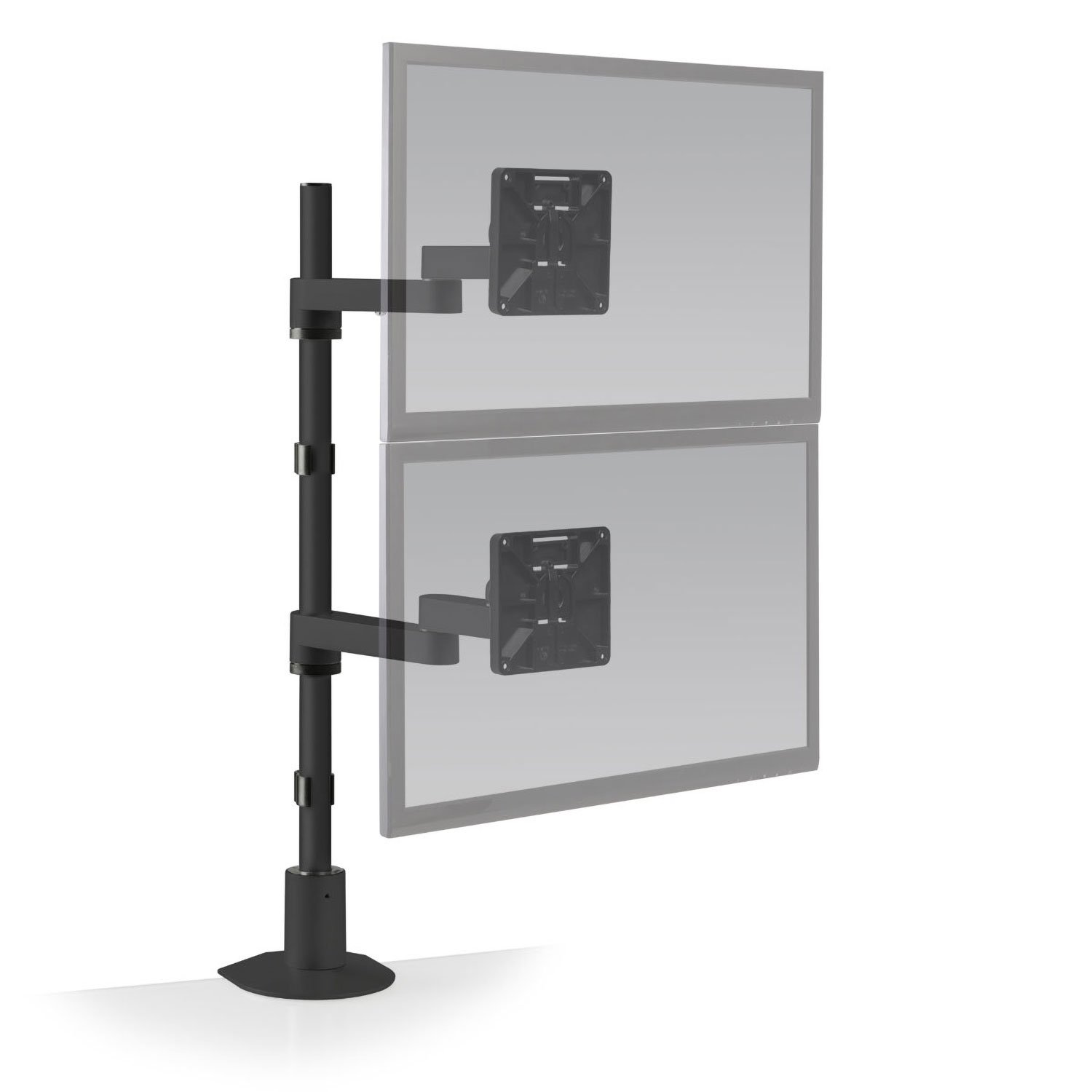

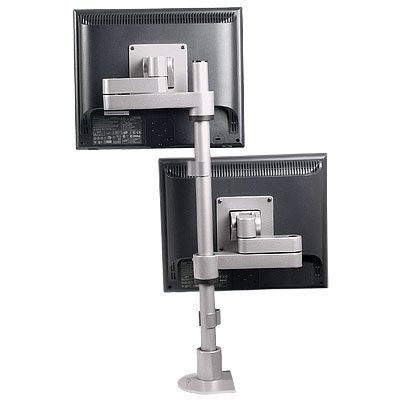

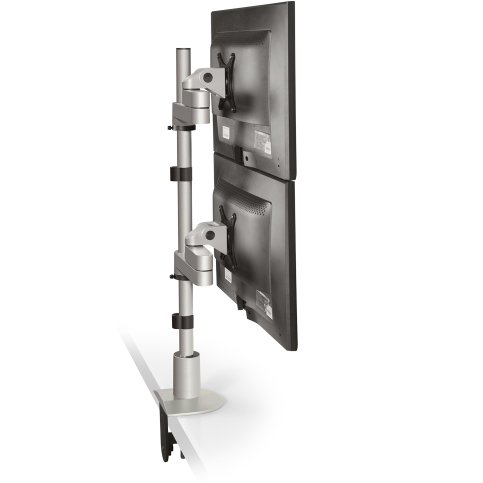

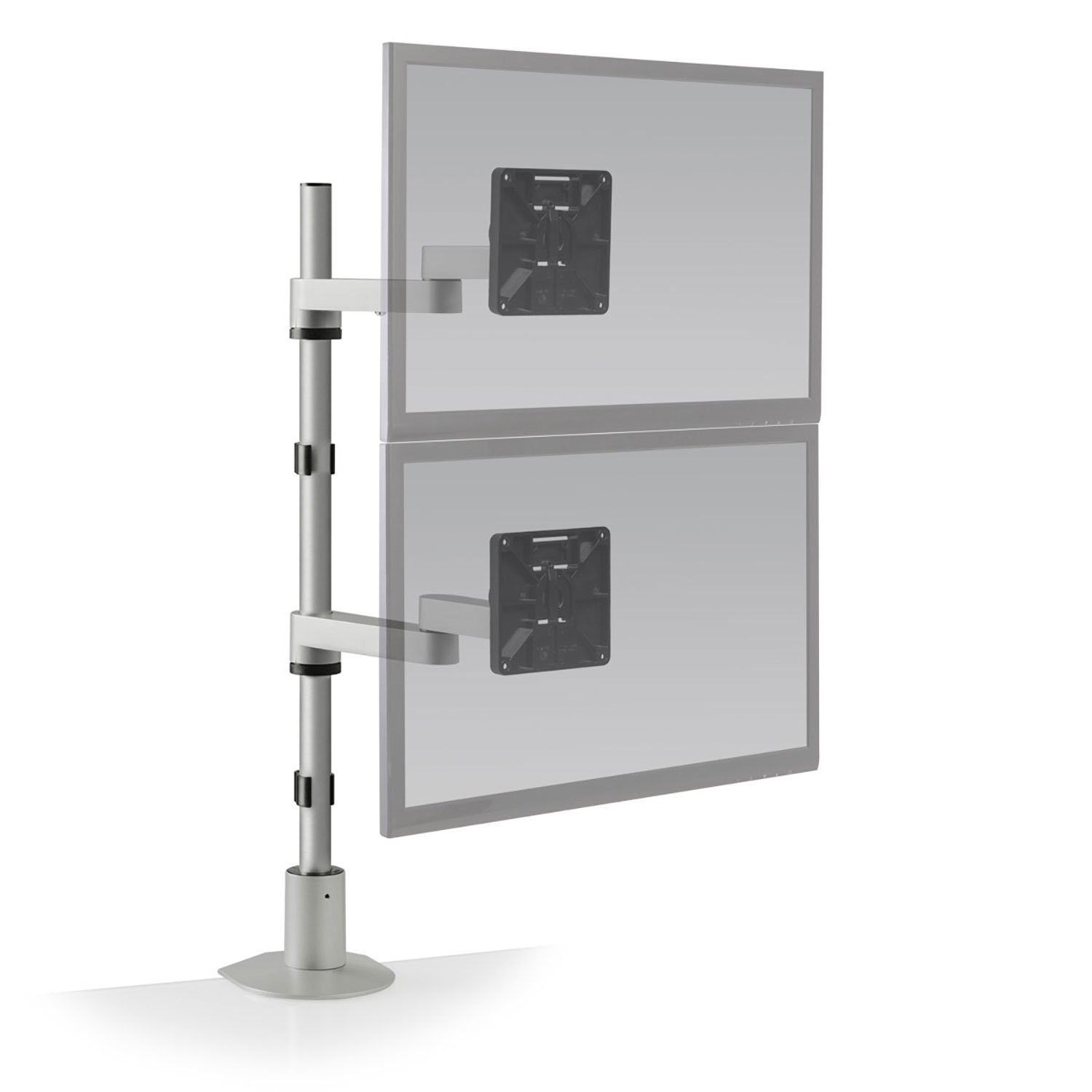

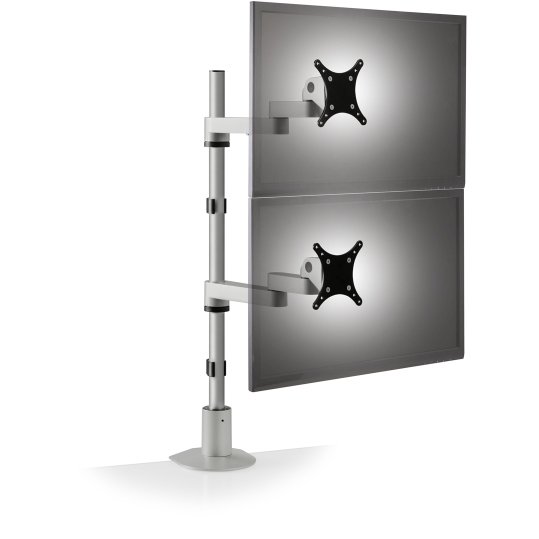

Innovative 9112-D-28 Articulating Dual Monitor Mount - 28" Pole

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 15956


  • Dual monitor mount with articulating arms
  • Standard pole height: 28"
  • Pole diameter: 1-3/16"
  • Horizontal monitor arm reach:  14"
  • Monitor weight capacity: 40 lbs per monitor
  • Articulating arms fold into 3" of space

Innovative FLEXmount


Innovative 9112-D-28 mounts 2 flat panels, one over another. Each monitor may be positioned independent of the other. Foldable arms adjust vertically up and down the 28" pole. The arms can fold up to fit in about 3" of space and extend out 14".

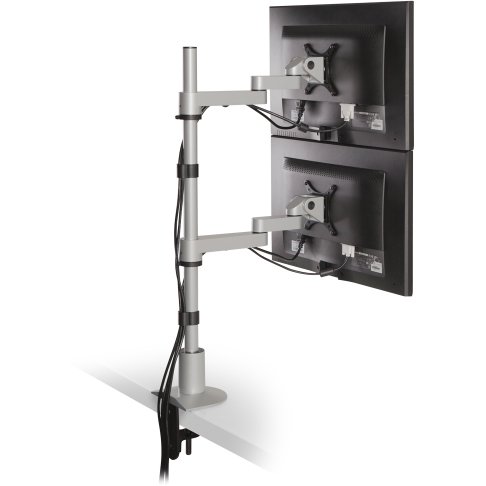

Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to tucked under the forearm extensions.

The dual 9112-D-28 monitor desk mount displays two flat panel monitors with dual articulating monitor arms for easy positioning. Various pole mount lengths and monitor extension arms are also available.


Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

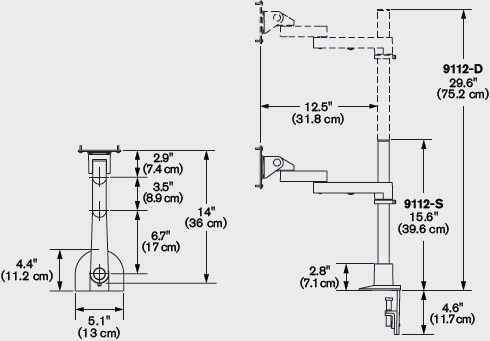

Technical Drawing

Technical Drawing for Innovative 9112-D-28 Articulating Dual Monitor Mount - 28

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Screen Size Up to 27"
Extension Range 14" (36 cm)
Pivot Landscape / Portrait
Rotation Three rotation joints
Pole Height 28" (71.12 cm)
Monitor Tilt 200 degrees

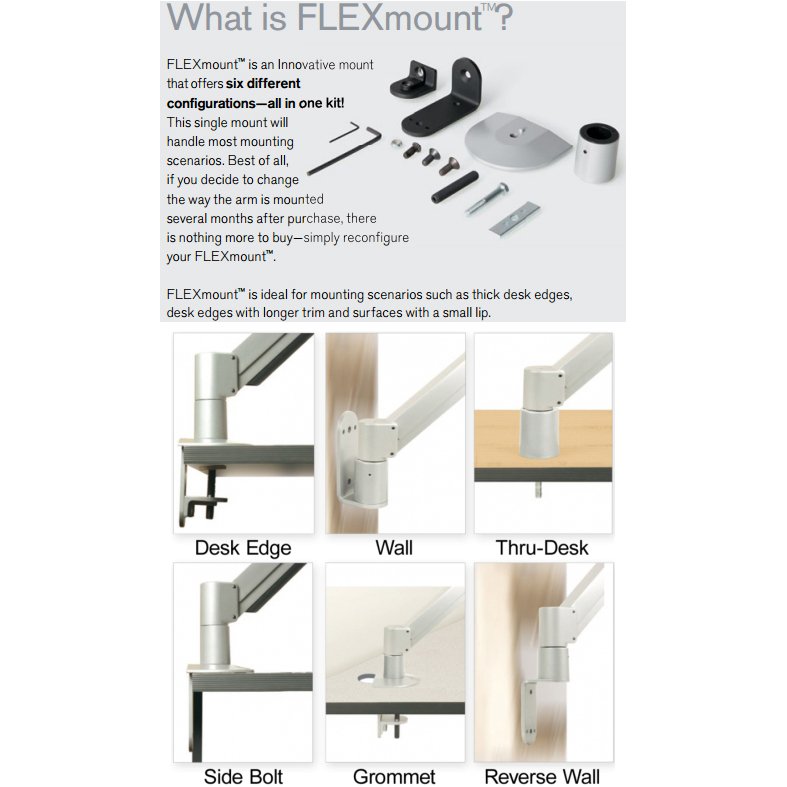

Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 100mm adapter included
Weight Capacity Up to 40 lbs (18 kg) per monitor
Warranty 10 years


  • FLEXmout with six monitor mounting options is available.

  • Standard 28" pole mount included; please call for custom options

  • Monitor tilter mechanisms can tilt over 200 degrees

  • Adjustable tension at monitor arm joints - ideal for touch screen applications

  • Accessory products are available for keyboard mounts or notebook computers

  • VESA monitor stand compatible - 100mm VESA adapter included; please call for non-VESA options

  • Ideal for slatwall mounting; can be combined with all Innovative monitor mount options (sold separately)

  • Optional upgrade to install/release monitor bracket; consult your sales rep for details

Model 9112-D-28-NM
Manufacturer Innovative LCD Arms
Part Number 9112-D-28FM or 9112-D-28-FM-104 or 9112-D-28-FM-124 or 9112-D-28-FM-232
Weight lb(s)
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Monitor Arm Types 2 Monitors
Mounting Options Pole
Color 104 - Vista Black, 124 - Silver
Horizontal Range 14" from back of pole
Pole Length 28"
Tilt 200 degree
Mounting Pattern VESA 100mm
Weight Capacity Up to 40 lbs per monitor
Number of Monitors 2 Monitors
Rotation At three joints 360 degree
Monitor Size Up to 27"
Extension 14" (36 cm)
Pivot Landscape / Portrait
Warranty 10 years
Maximum Monitor Size 27"
Monitor Placement Stacked One Over the Other
