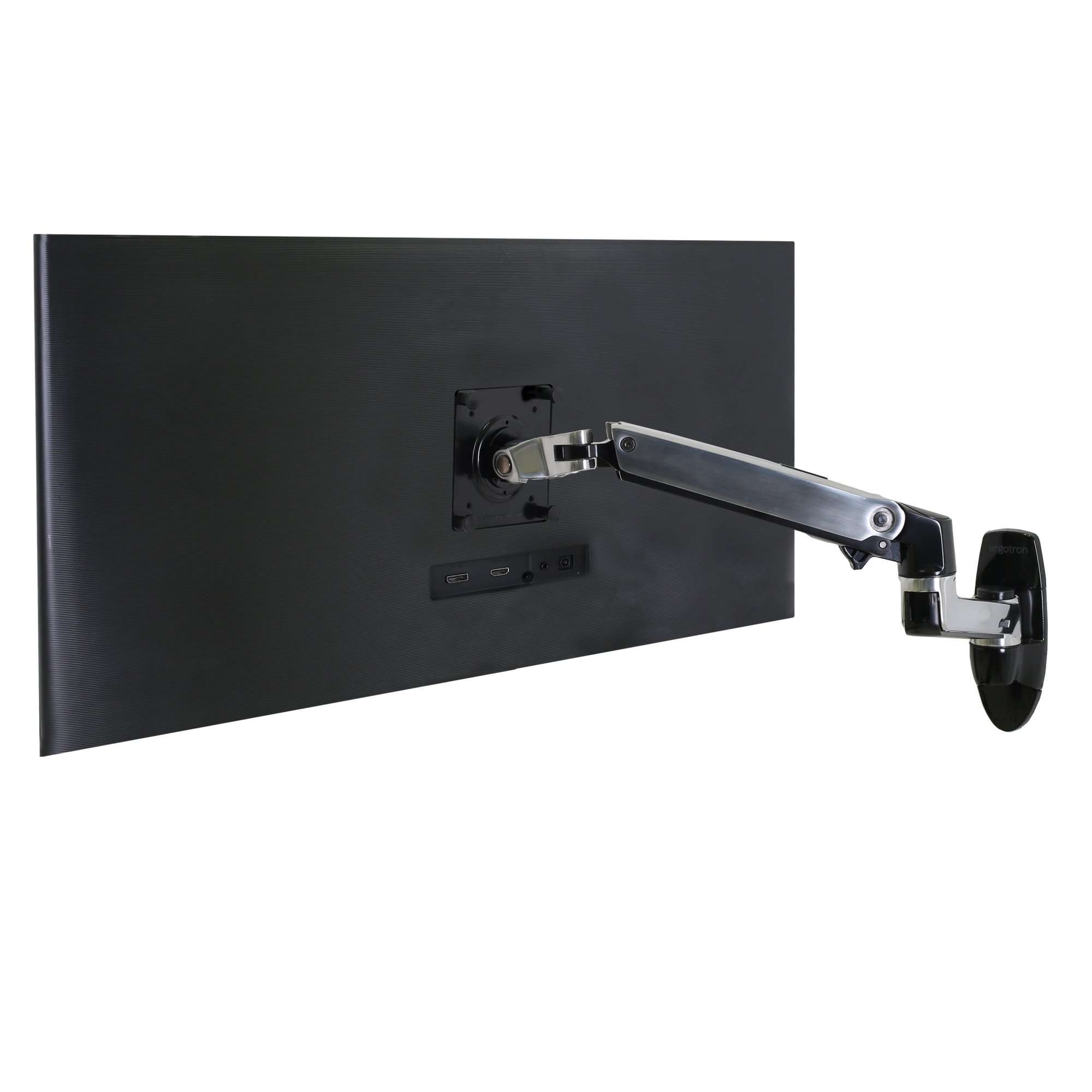

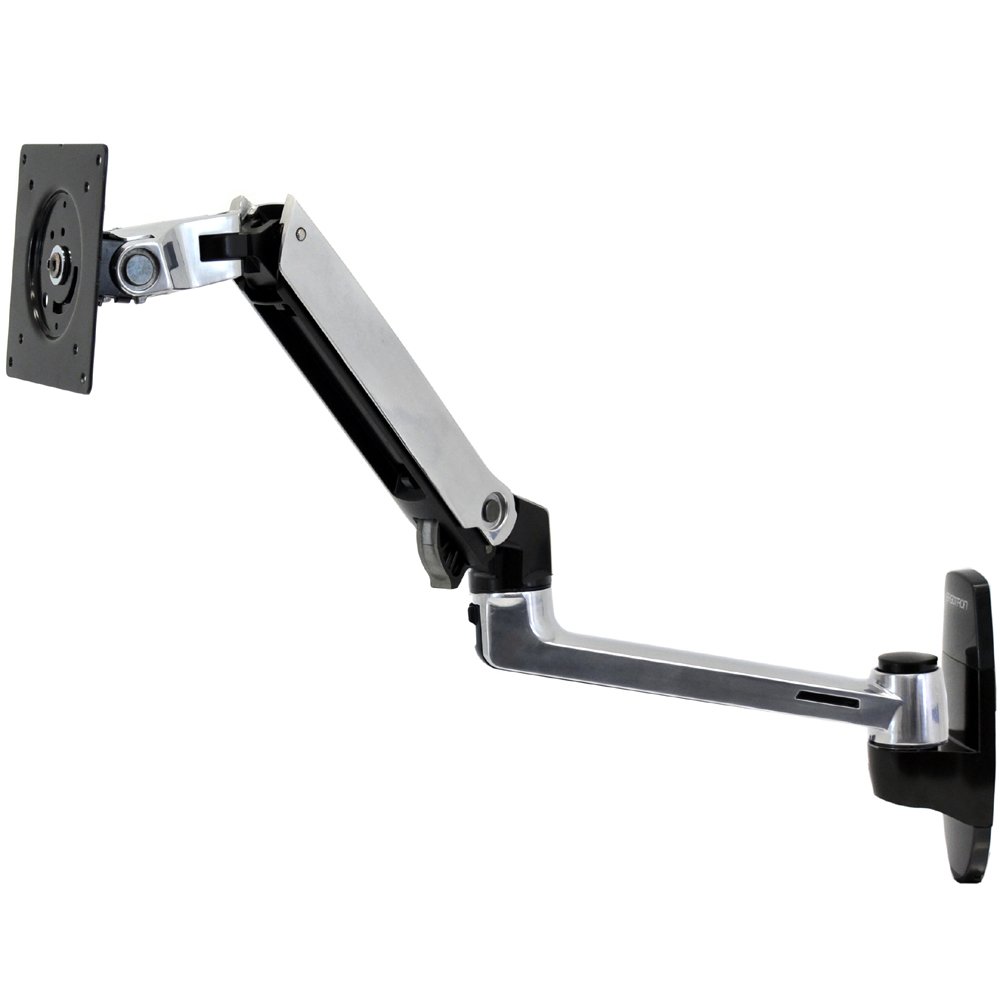

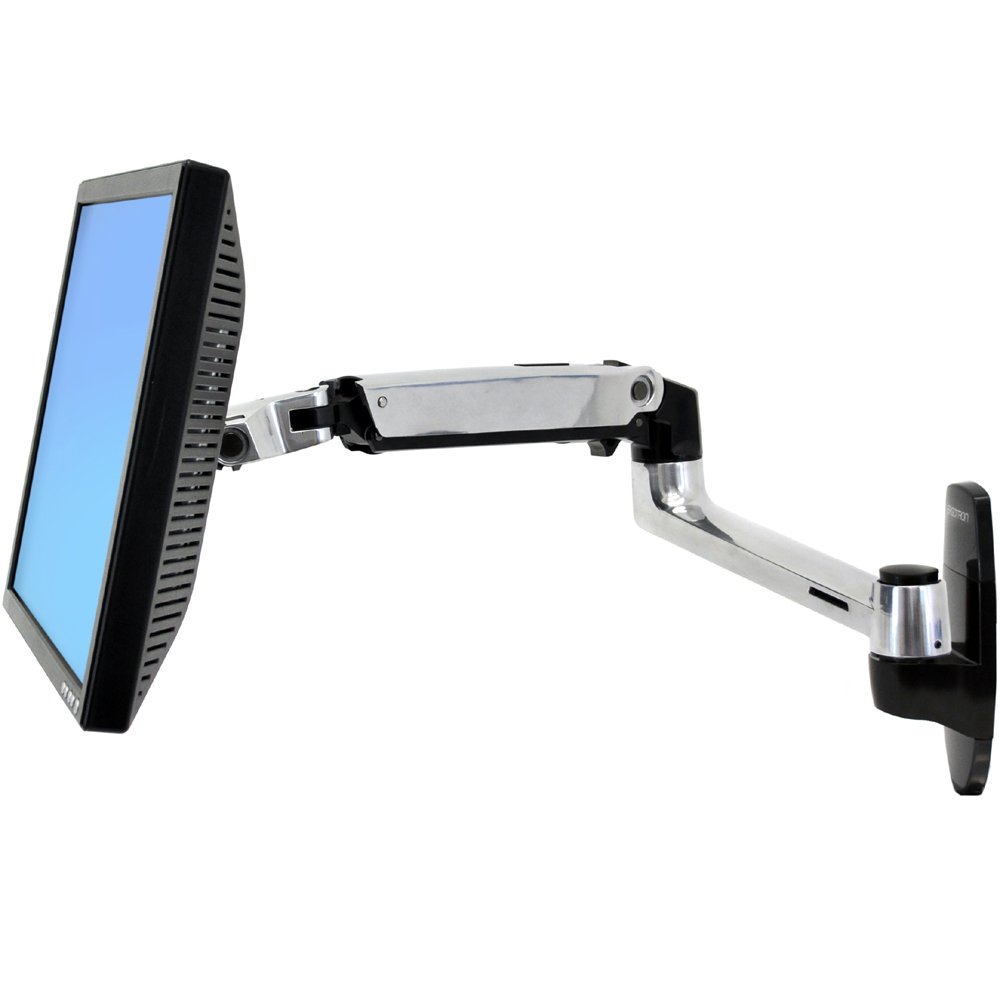

Ergotron 45-243-026 LX Wall Mount Monitor Arm

Product ID 16107


  • Wall mount monitor arm
  • Looking for a Long Reach Wall Mount Monitor Arm?
  • 13" height adjustment: Vertical lift range meets needs of most adults
  • 25" horizontal extension: Arm extends to get out of the way when not in use
  • 34" screen size: Monitor should not be more than 34" in screen size
  • Weight capacity of the arm: 7-25 lbs
  • Retractability: Folds back over the base to get out of the way when not in use
  • Please see, if you want a bigger, heavier display and more vertical adjustment
  • Please see if you want this arm in matte black

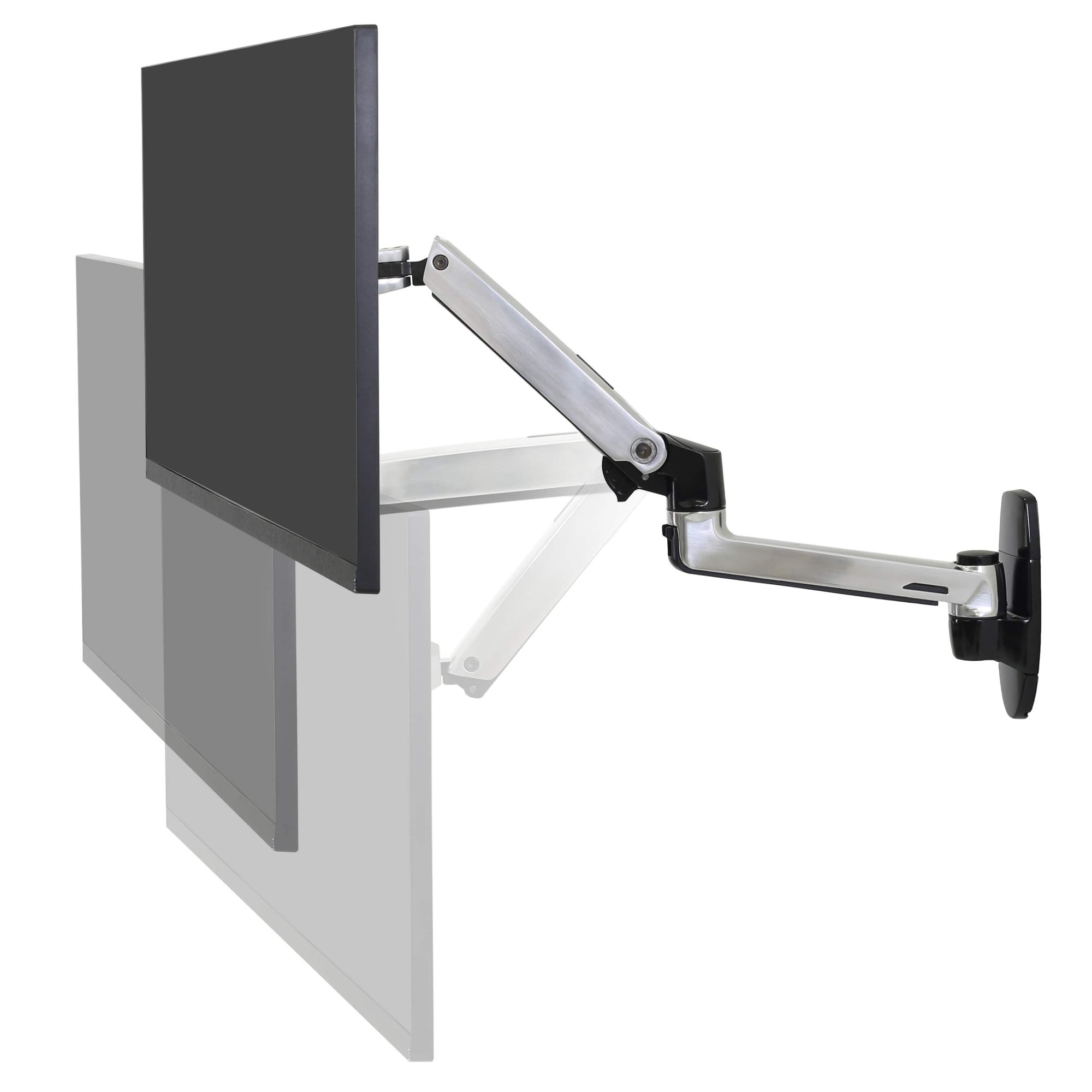

Animation of Ergotron 45-243-026 LX Wall Mount Arm

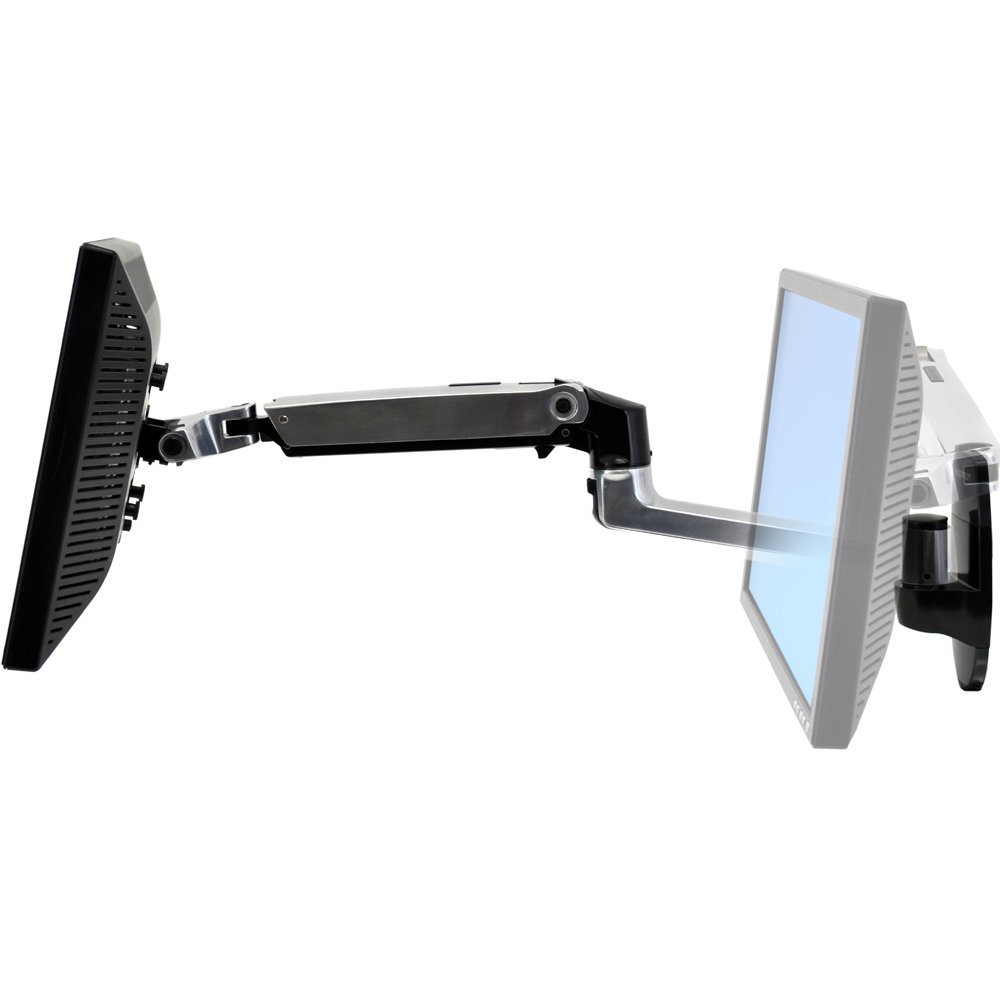

Ergotron 45-243-026 can mount a monitor to the wall up to 34" in size and weighing from 7 to 25 lbs. With the flexibility of this arm, the monitor can be extended 25" and moved out of the way, when not in use. It can also be adjusted 13" vertically. The 45-243-026 has universal application. Install it in your office to use your desk space entirely for non-computer work, install it in the patient room for the medical staff to look up patient information or in the back end of a restaurant for the servers to convey orders to the kitchen. (Though the video in the thumbnail images shows directions to install a desk mounting arm, please note that the functionality and specifications of the LX desk mounting arm and LX wall mounting arm are the same, even though the mounting location differs.)

Technical Drawing

Technical Drawing for Ergotron 45-243-026 LX Wall Mount LCD Arm

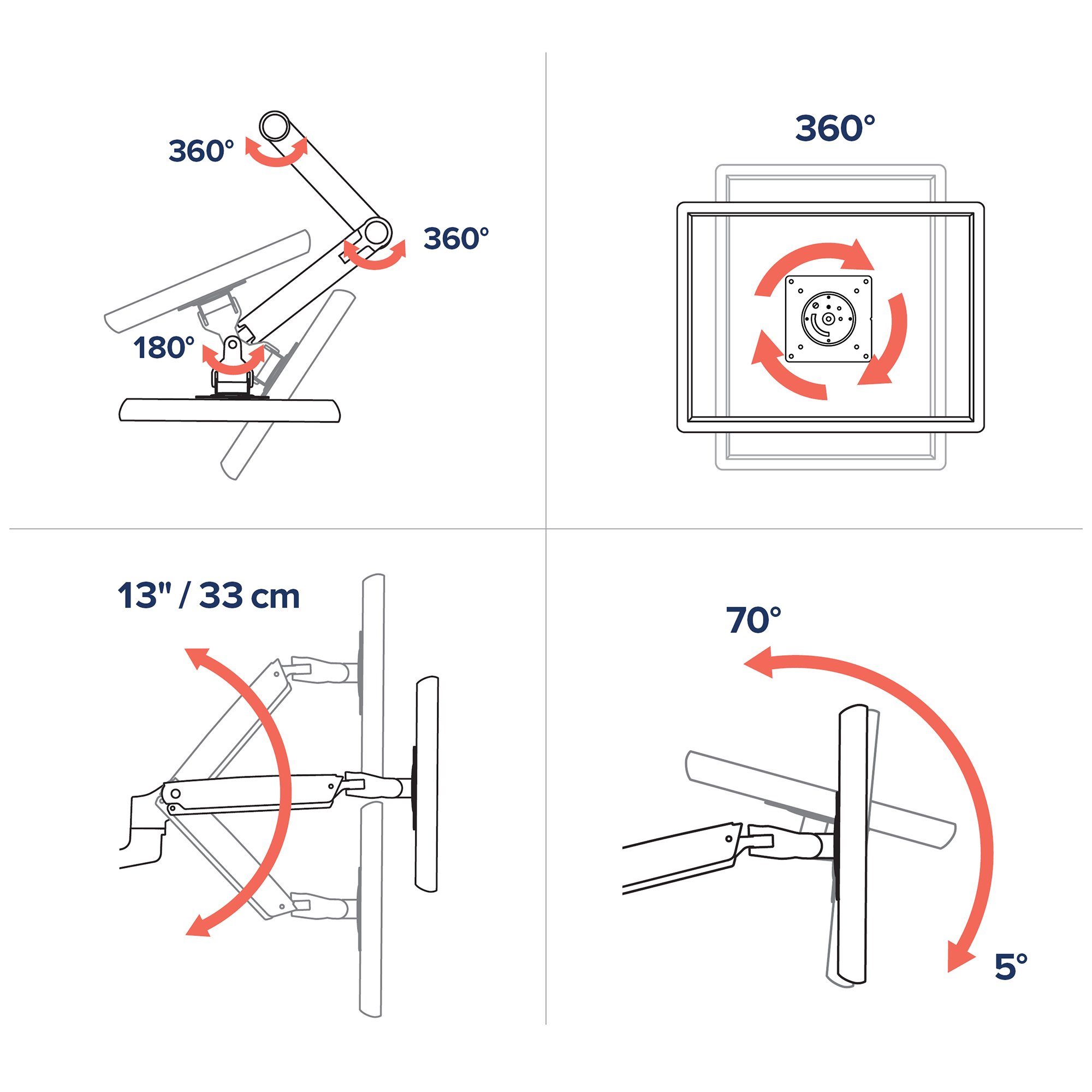

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
LCD Size Capacity Lift Tilt Pan Rotation VESA
Up to 34"

7 - 25 lbs

3.2 - 11.3 kg


33 cm

75° 360° 360° MIS-D

Product Information

Part Number 45-243-026
Description LX Wall Mount LCD Monitor Arm (polished aluminum)

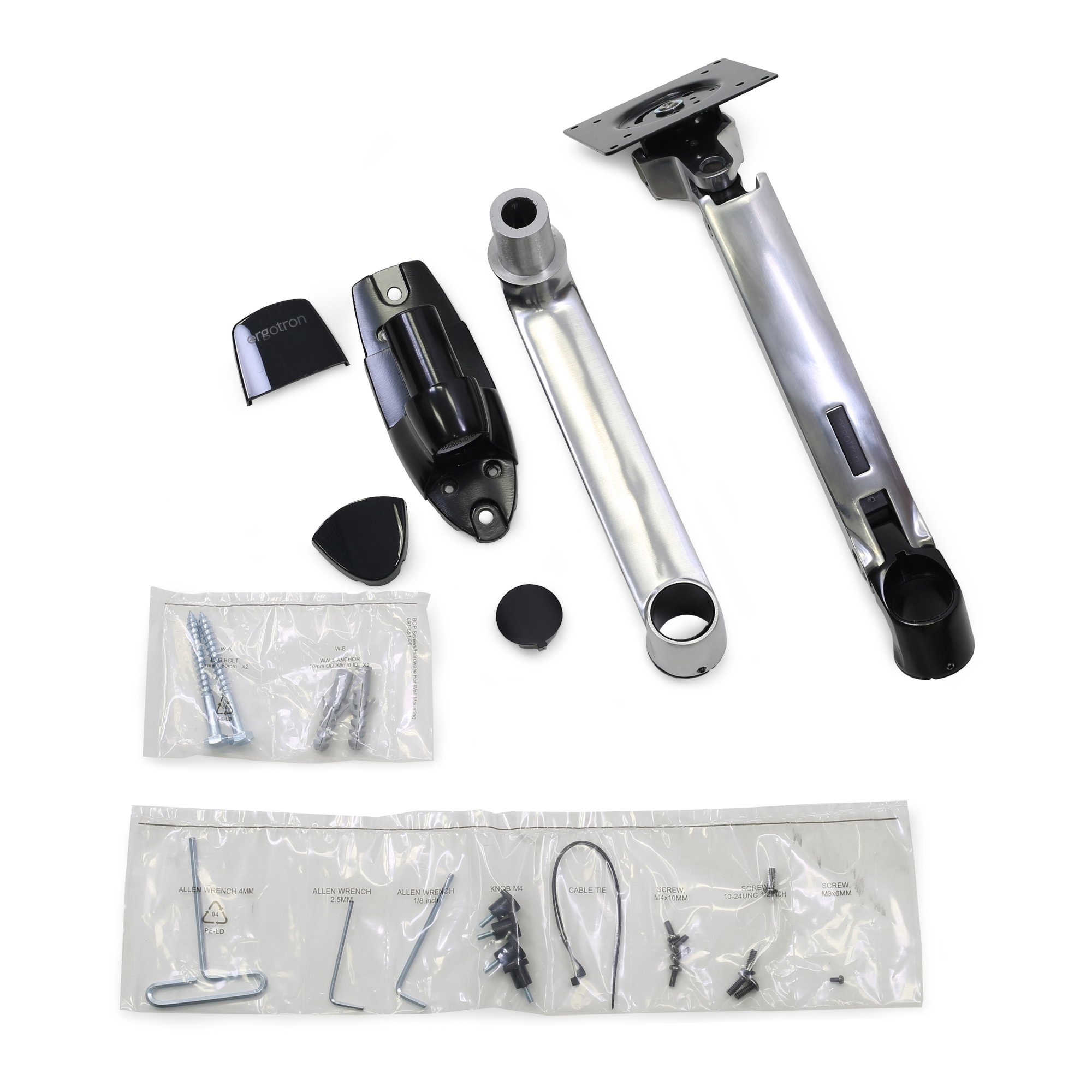

  • LX arm
  • Extension
  • Wall mount base
LX Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200).
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment.
Weight Capacity 7 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Monitor Tilts 70 degree up and 5 degree down
Improved LX Arm Features and Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics.
  • Arm folds back over the base into a compact retracted position.
  • Snap-fit cap secures interface of arm to extension for greater stability.

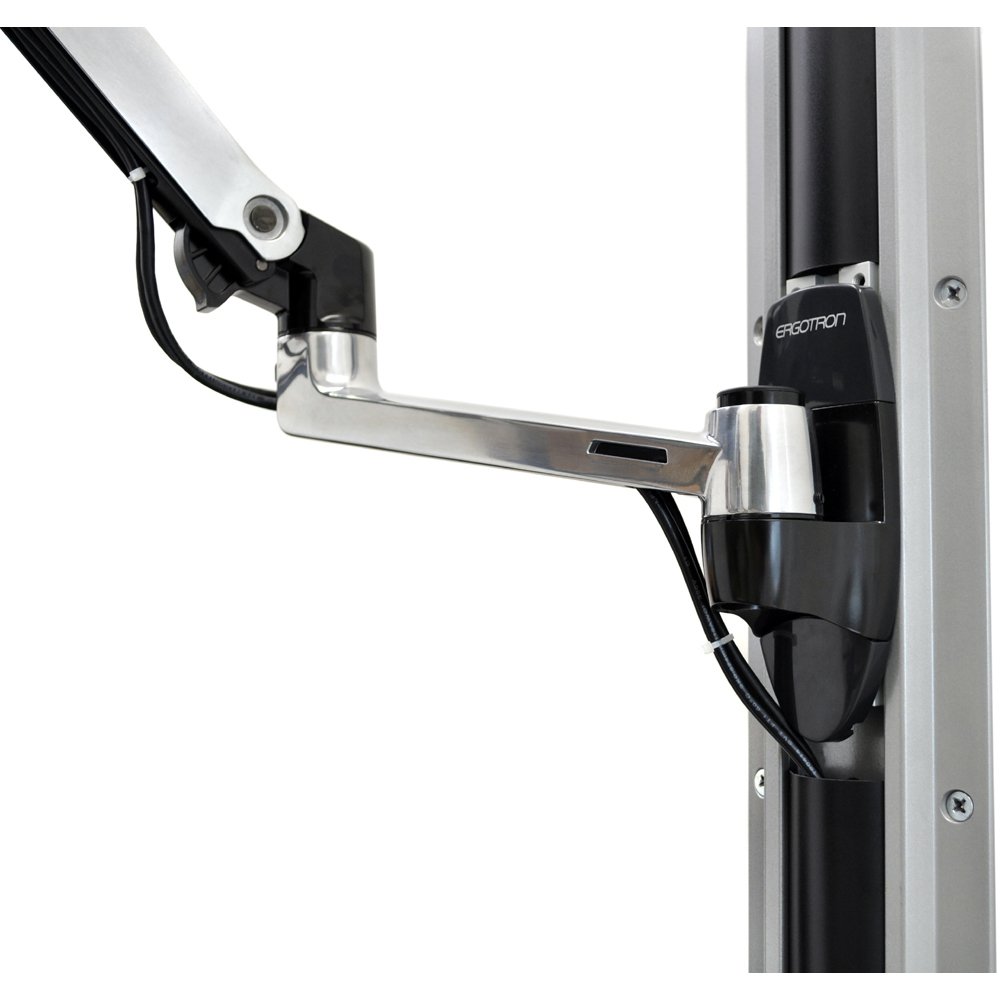

Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Base Includes theft deterrent anchor holes for cable locks.
Shipping Dimensions 17.5"H x 7.7"W x 6.9"D (44.5 x 19.5 x 17.5 cm)
Shipping Weight 6.2 lbs (2.8 kg)
Warranty Ten (10) years


  • The LX Wall Mount Arm provides ergonomic comfort
  • By adjusting the display according to the user’s needs, this arm reduces shoulder, neck, back and eye stress
  • The cable management feature clubs the cables under the arm and out of sight and way of the user
  • The arm extends 25" from the wall, enabling the display to be pushed out of the way, when not in use
  • The 13" height adjustment of the display makes it suitable for most users
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment
  • Patented CF motion technology provides premium ease-of-use display adjustment
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Frequently Asked Questions

q I am looking for an arm just like this but with a keyboard mouse tray underneath the monitor. Do you have an attachment for the monitor which will accommodate a keyboard mouse tray with the monitor?

You have a couple of options. This particular arm does not have an attachment for a keyboard tray but you can install a keyboard tray arm underneath this arm. Or you can purchase an all in one system.

q I notice that there are a bunch of extra add-ons with this product. Will I be able to hang a 24" monitor if I just buy this wall mount monitor arm or do I have to buy a bracket?

As long as you have studded walls, you do not need any additional accessory to mount this arm to the wall. When you buy this product, it comes with a wall mount bracket, that will attach the arm to the wall.

Model 45-243-026
Manufacturer Ergotron
Part Number 45-243-026
UPC 698833011531
Weight lb(s)
Color Polished Aluminum
Monitor Size Up to 34"
Weight Capacity 7–25 lbs (3.2–11.3 kg)
Lift (33 cm) 13 in
Tilt Up 70 degree and down 5 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions 17.5"H x 7.7"W x 6.9"D (44.5 x 19.5 x 17.5 cm)
Shipping Weight 6.2 lbs (2.8 kg)
Warranty Ten (10) years
Mounting Options Wall
Monitor Arm Types 1 Monitor
Weight 5.4 lbs (2.5 kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 2
  • 5 stars 2
(4.5 out of 4)
Great quality

by Luc S, Terrebonne, Quebec, Jun 14, 2017

Unlike many other arms, these stay where you put them.
Here we have had others that were less expensive but they were either raising or lowering the screens by themself.
The wall mount is well made and not bulky.
This product has a great finish, and the quality/price is good!

Works great in my office; just what I needed

by William C, California, Nov 18, 2015

Product works great, everything I expected

Well built professional quality mount.

by Joseph S, New York, Aug 18, 2015

Two of these mounts were purchased for use in dental treatment rooms for patients to view video entertainment while being treated. They are well built and look professional. They installed easily and worked perfectly. The mount allows great flexibility of movement except we would have liked to be able to tilt it downward more. Definitely recommended.

Decent arm for the money.

by Chris S, Oregon, Apr 23, 2015

Good wall mount. It is made out of durable material. It can be a bit difficult to re-adjust but that is with an extension arm and 23" monitor. The product does what it's supposed to do. Only thing I have trouble with is that I would like more wire space in the arms because some setups might have more than two wires.
