Ergotron 50-193-200 Notebook/Laptop Tray

Product ID 14715
HIGHLIGHTS
Ergotron 50-193-200 Notebook/Laptop Tray
Technical drawing

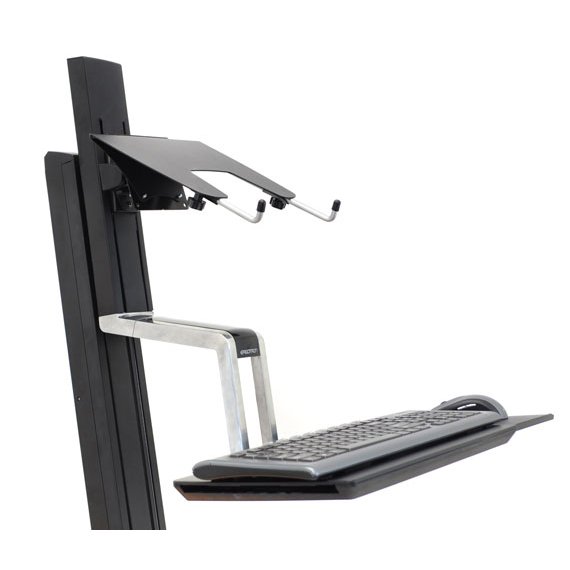

Ergotron 50-193-200 laptop tray on a WorkFit-S

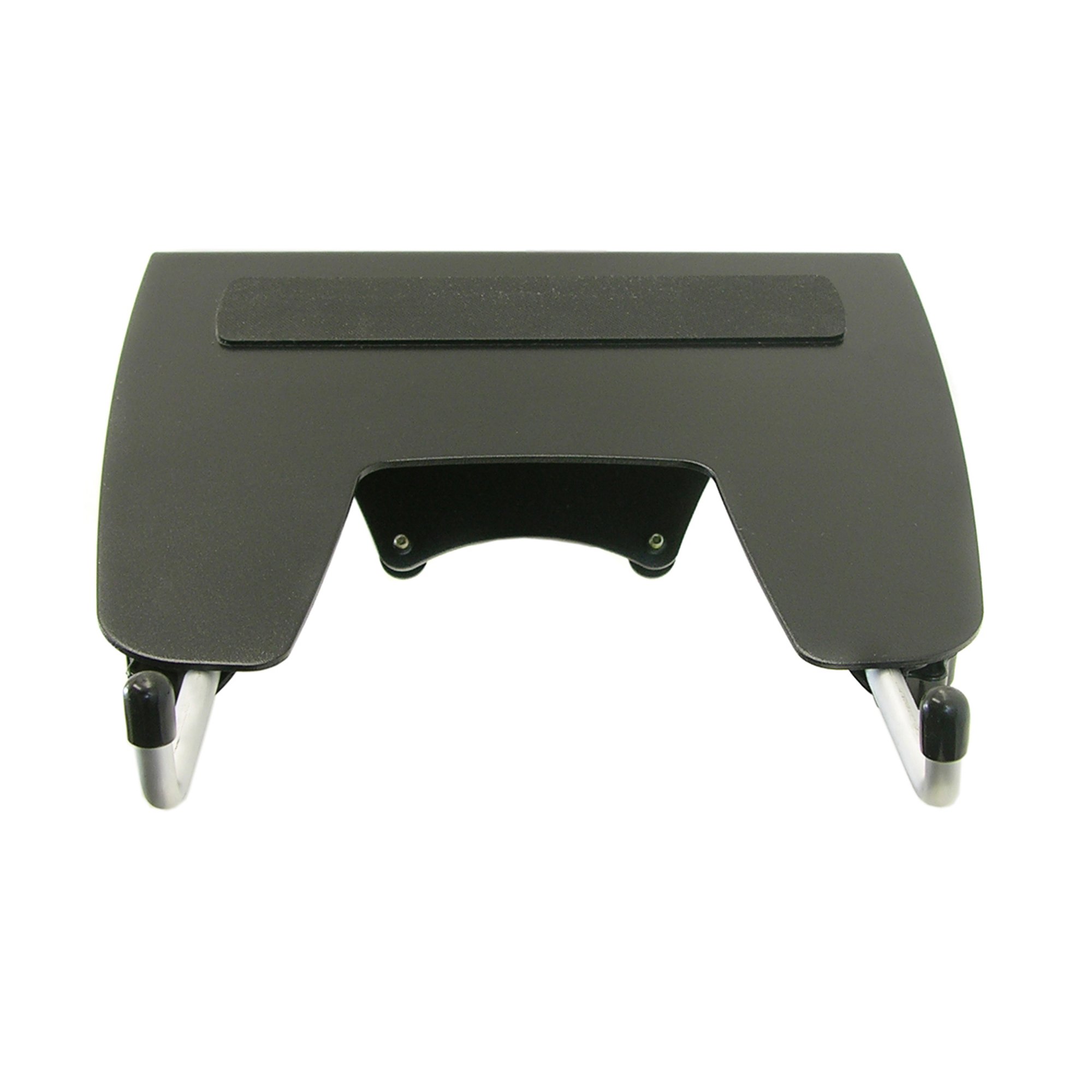

Front view
Ergotron 50-193-200 Notebook/Laptop Tray

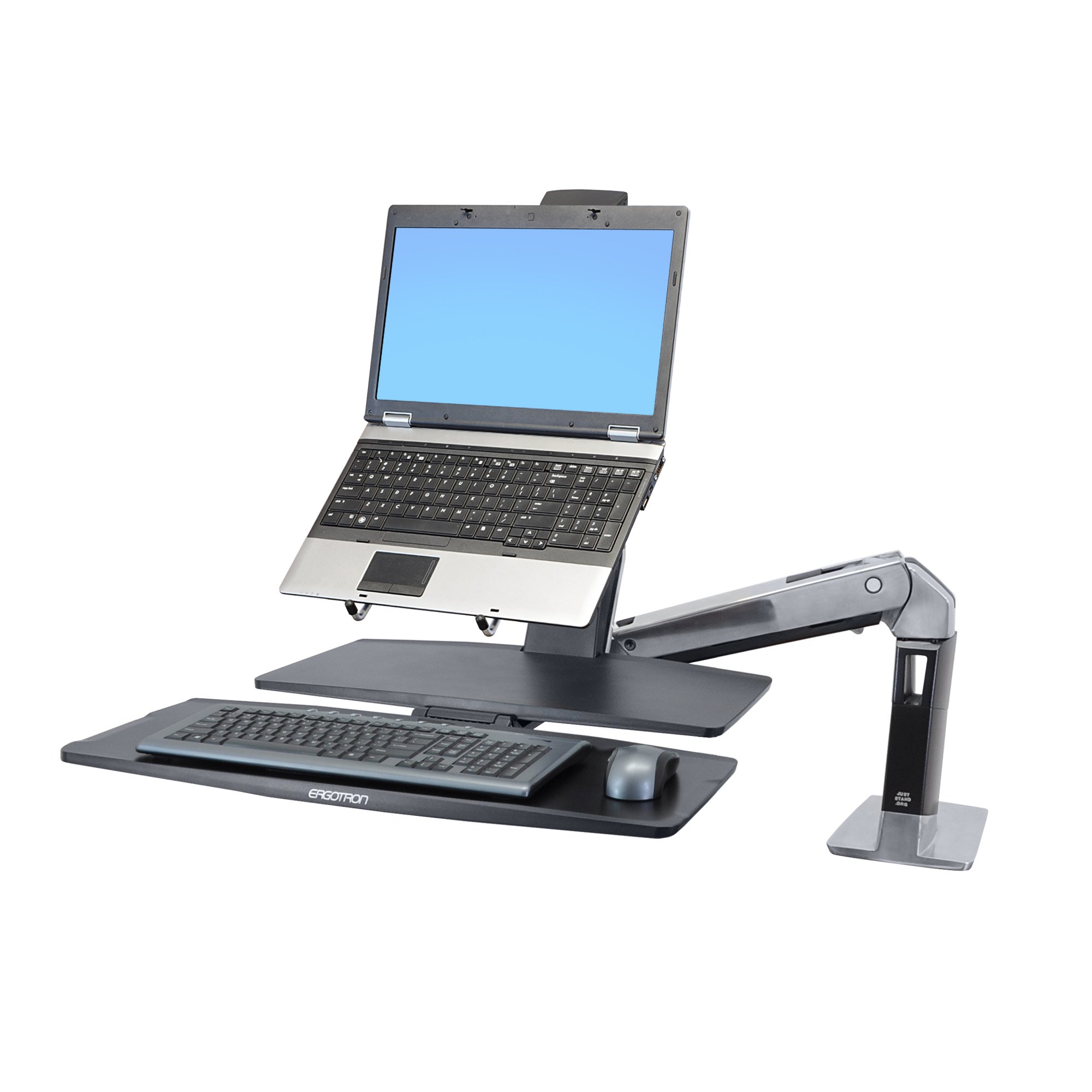

Notebook tray with WorkFit-A workstation

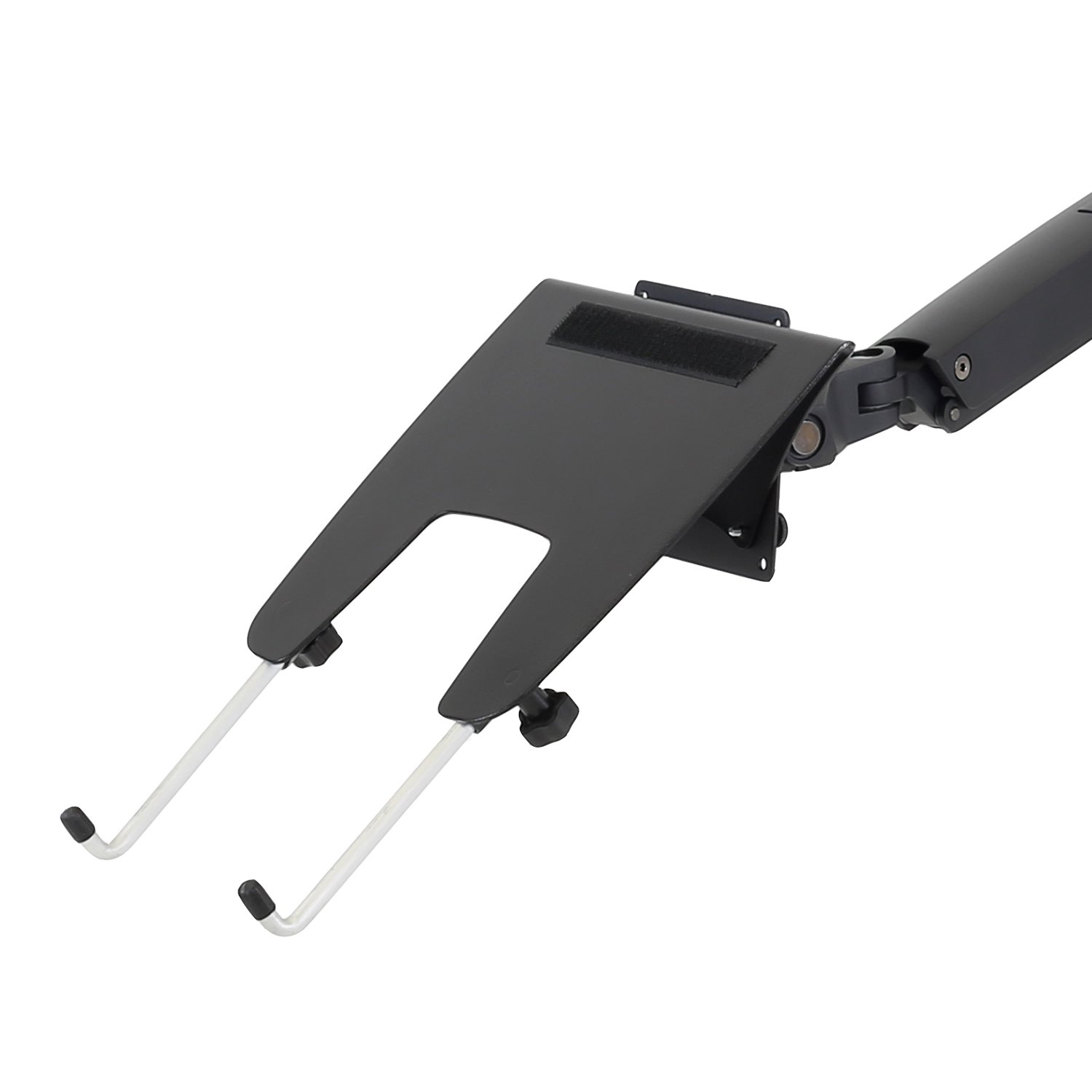

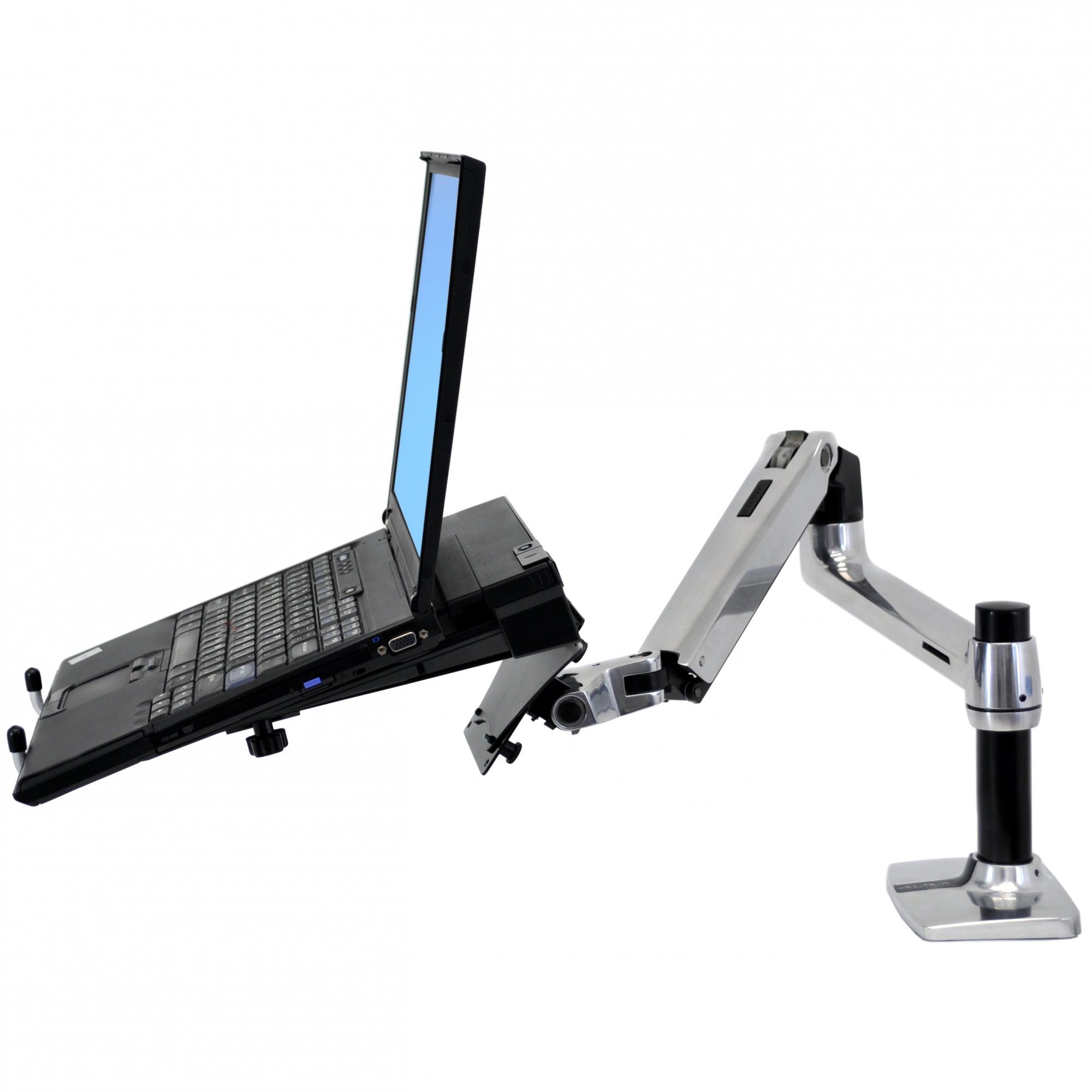

Notebook tray with LX desk mount arm
Ergotron 50-193-200 Notebook/Laptop Tray
Ergotron 50-193-200 Notebook/Laptop Tray
Technical drawing
Ergotron 50-193-200 laptop tray on a WorkFit-S
Front view
Ergotron 50-193-200 Notebook/Laptop Tray
Notebook tray with WorkFit-A workstation
Notebook tray with LX desk mount arm
Ergotron 50-193-200 Notebook/Laptop Tray

Highlights

  • Laptop tray: Attaches a laptop to an arm or a workstation
  • Compatibility: Can be attached to any monitor arm with 75 x 75 mm VESA
  • Weight capacity: Carries laptops weighing from 2.5-12 lbs
  • Please see, if you are interested in a different variety of laptop holder

Description

Ergotron 50-193-200 is an accessory to be attached to a LCD arm, workstation or a cart. It will let you position your laptop onto a wall mounting arm. Recommended mounts include LX LCD Arms, 200 Series Arms, 100 Series Pivots and Ergotron carts utilizing an LCD monitor pivot. Laptops attach to the tray with a non-slip rubber pad but if you are using your laptop on a docking station, velcro is used for attachment (please see page 3-5 in the installation manual of this product in the Downloads tab).

Add the laptop tray accessory to an LCD arm, pivot or workstation and position your notebook computer where you need it most. Works with a traditional laptop or with a convertible notebook, in either tablet or laptop mode.

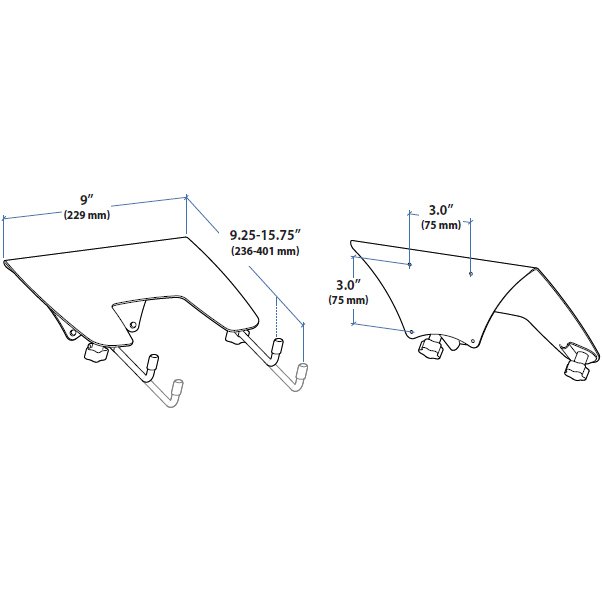

Technical Drawing

Technical Drawing for Ergotron Laptop Mount Tray

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 17.3"

2.5 - 12 lbs

1.1 - 5.4 kg

- - - - MIS-D

Product Information

Part Number 50-193-200
Description Notebook Tray for laptops and convertible notebooks (black)

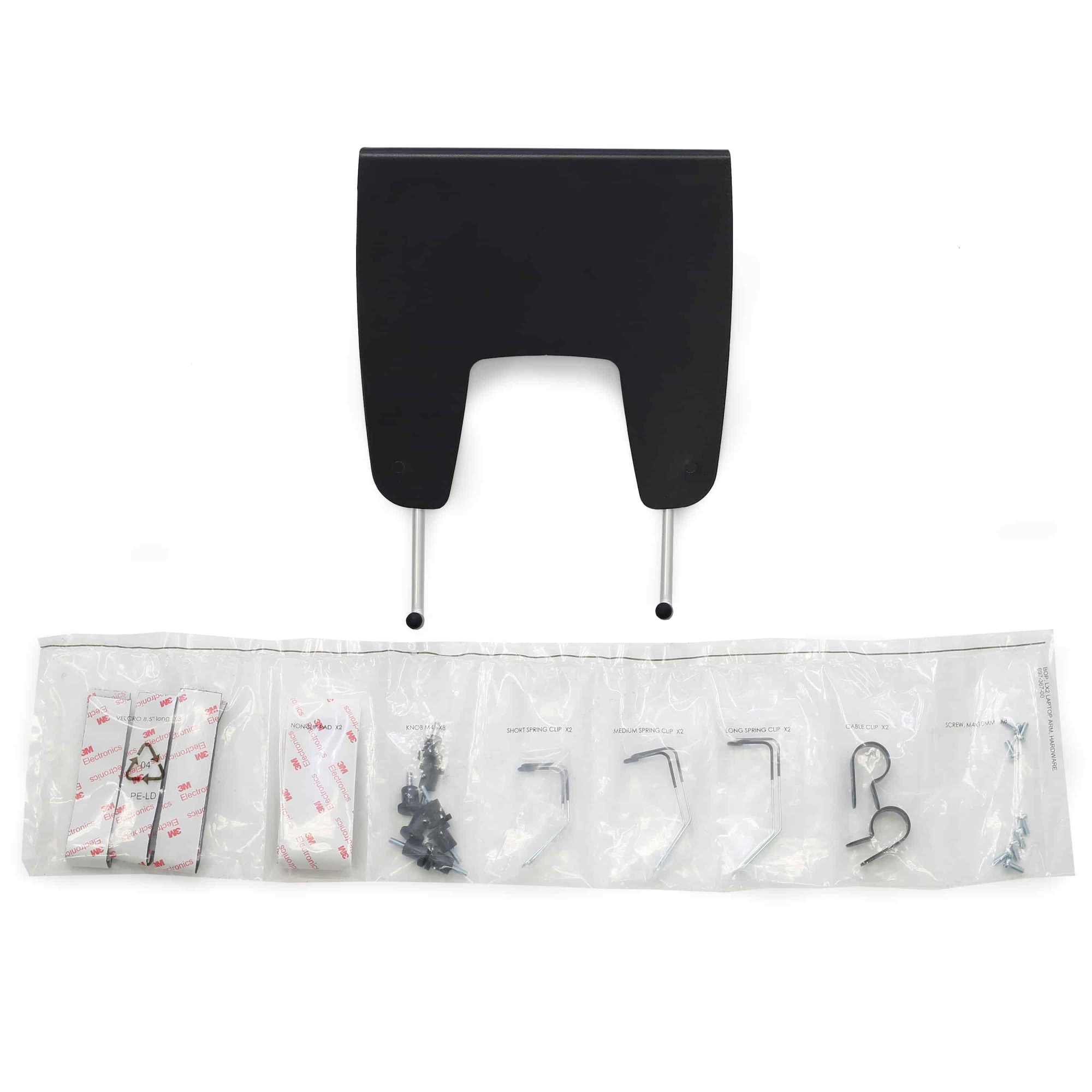

Includes
  • Laptop tray
  • Adjustable rails
  • Velcro
  • Non-slip pad
  • Clips
  • Attachment hardware
Note This is not a stand-alone product. It should be combined with a separately ordered arm, pivot or cart for a complete solution
Weight Capacity When combined with an LX arm, the arm will hold notebooks weighing 2.5–12 lbs (1.1–5.4 kg). When combined with other arms or pivots, contact Ergotron regarding load limitations
Attachment To a separate LCD mount requires a VESA MIS-D 75 x 75 mm hole pattern interface on the mount. Recommended mounts include LX LCD Arms, 200 Series Arms, 100 Series Pivots and Ergotron carts utilizing an LCD monitor pivot
Product Weight 2.3 lbs
Shipping Dimensions 9.6" x 9.25" x 3.5" (24.5 x 23.5 x 9 cm)
Shipping Weight 3 lbs (1.4 kg)
Warranty Five (5) years

Benefits

  • Adapt most any monitor mount to hold a laptop and create an ergonomic workstation for your notebook computer
  • Adjustable, open-sided mounting plate accommodates the size of virtually all laptops
  • Use the fastening kit to hold the laptop in place - take your pick: Velcro, non-slip pads or clips
  • Can be used with or without docking stations
  • Works with almost all laptops
  • Easy attachment
  • Sturdy metal construction

Product Options/Accessories

Model 50-193-200
Manufacturer Ergotron
Part Number 50-193-200
UPC 698833006179
Color Black
Weight Capacity When combined with an LX arm, the arm will hold notebooks weighing 2.5–12 lbs (1.1–5.4 kg). When combined with other arms or pivots, contact Ergotron regarding load limitations
VESA MIS-D 75 x 75 mm hole pattern
Shipping Weight 3 lbs (1.4 kg)
Warranty Five (5) years
Monitor Size Up to 17.3"
Weight 2.3 lbs
Shipping Dimensions 9.6" x 9.25" x 3.5" (24.5 x 23.5 x 9 cm)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 2
(5 out of 2)
Good Experience with this Tray.

by Charles O, Pennsylvania, May 04, 2016

Have used this tray for years now. Always found it to be more than adequate for our purposes. Do not wish to send the I/T Departments from our new and or old facilities onto the internet without giving them direction. This Tray Unit has worked for everyone to their satisfaction. Whether we install on our medication carts here, in the field, or send the unit to a facility, everyone finds it easy to install.
Chuck

perfect

by Dominique E, Florida, Sep 03, 2015

perfect product
