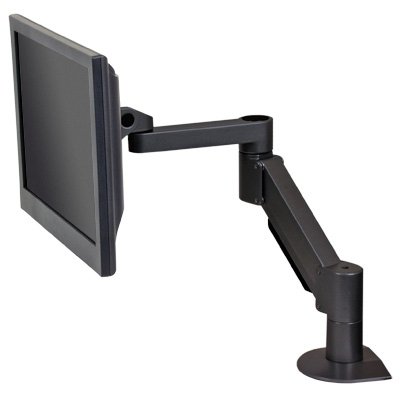

Innovative 3500 Short Reach Monitor Arm (19.75")

Standard lead time on this product: 20 business days

9.72" Vertical range and 19.78" horizontal range for Monitor Weight up to 38 lbs. Monitor Compatibility: VESA 75mm and 100mm

Product ID 16261

Description

Save space and reclaim your desktop with Innovative 3500 monitor mount. This adjustable monitor mount is a short reach arm that is ideal for small spaces while maintaining ergonomic comfort.

Ideal for tight spaces, the 3500 short monitor arm provides flexibility in a convenient space-saving configuration. Users are able to freely reposition the monitor mount, which floats your flat panel monitor above the desk. Easily reclaim valuable desk space and work in greater ergonomic comfort.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount

Innovative 8524 Top Down Mount



Innovative FLEXmount

Technical Drawing

Technical Drawing for Innovative 3500 Short Reach Monitor Arm (19.75

Technical Specifications

Color 104 - Vista Black, 124 - Silver, 248 - Flat White
Screen Size Up to 27"
Height Adjustment 9.5"
Extension Range 19.7"
Pivot Landscape / Portrait
Rotation 360 degrees at three joints
Tilt 200 degrees
VESA Compatibility 100 x 100mm, adapter included
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Warranty 10 Years
Weight Capacity
  • 3500-250: 1.5 - 12 lbs (0.5 - 5.4 kg)

  • 3500-350: 5.5 - 15.5 lbs (2.5 - 7.0 kg)

  • 3500-450: 10 - 23 lbs (4.5 - 10.4 kg)

  • 3500-600: 13 - 28 lbs (5.9 - 12.7 kg)

  • 3500-800: 14 - 38 lbs (6.4 - 17.2 kg)

Features

  • FLEXmount with six mounting options is available for Monitor arm

  • Height adjustable mount offers 9 ½" of vertical range and 19 ¾" of horizontal range; the arm also folds to occupy just 3" of space

  • Rotate the monitor arm 360 degrees at three joints

  • Monitor tilter mechanism can tilt over 200 degrees

  • VESA-monitor compatible - 100 x 100mmVESA adapter included; please call for non-VESA options

  • Optional upgrade to quick install/release monitor bracket; consult your sales rep for details

  • Optional 6" extender tube available to raise the monitor (see Extender Tubes under Available Accessories)

Model 3500-250, 3500-350, 3500-450, 3500-600, 3500-800
Manufacturer Innovative LCD Arms
Part Number 3500-250, 3500-350, 3500-450, 3500-600, 3500-800
Weight lb(s)
Mounting Options Desk
Mounting Options Wall
Mounting Options Pole
Mounting Options Slatwall
Monitor Arm Types 1 Monitor
Tilt 200 degree
Mounting Pattern VESA 100mm
Number of Monitors 1 Monitor
Weight Capacity 1.5 to 38 lbs (0.5 to 17.2 kg)
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Monitor Size Up to 27"
Height Adjustment 9.5"
Extension 19.7"
Pivot Landscape/Portrait
Rotation At three joints 360 degree
Mounting Options Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Warranty 10 Years
