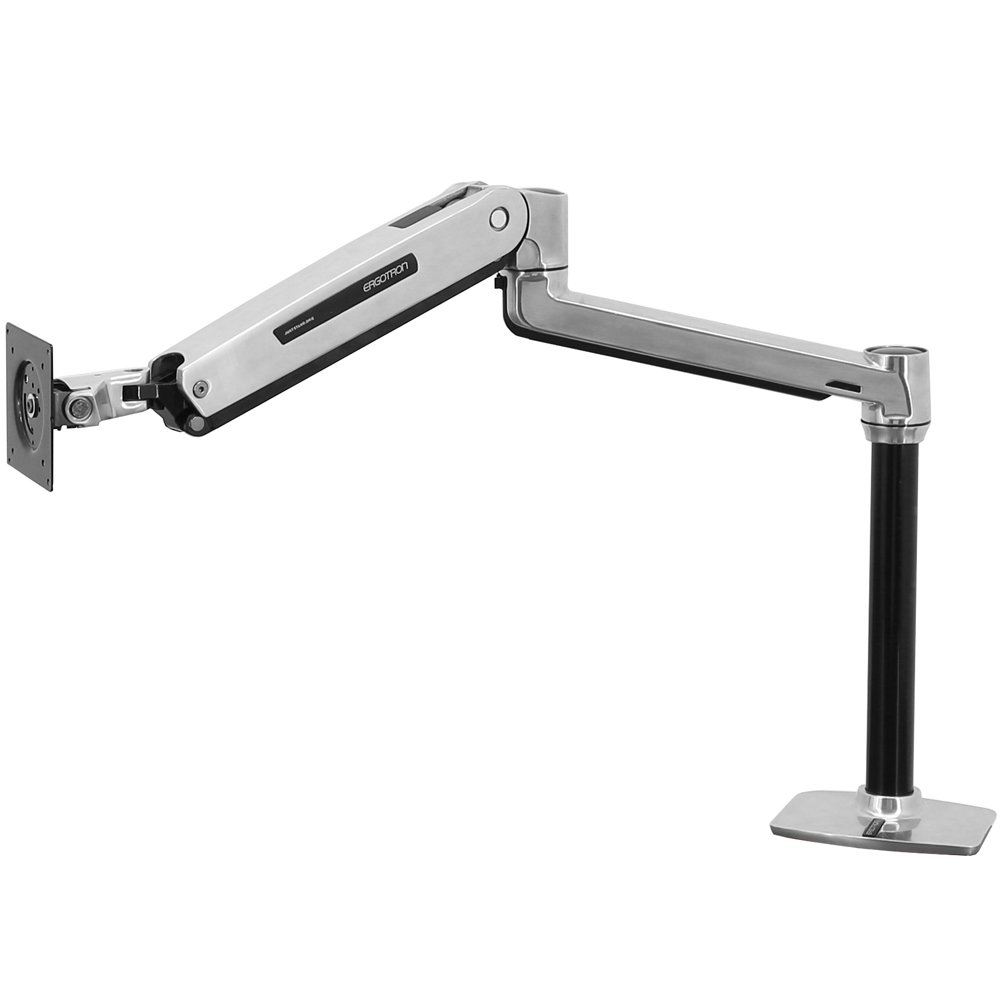

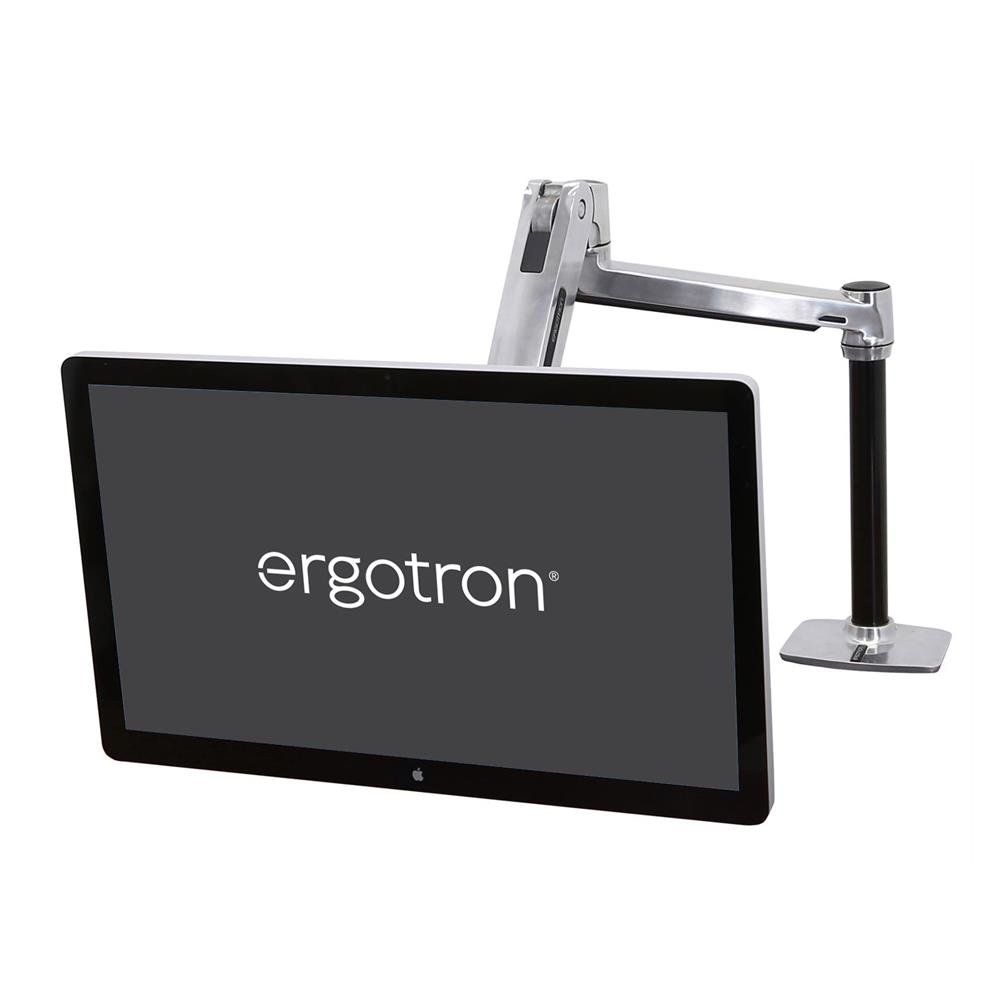

Ergotron 45-360-026 LX Sit-Stand Desk Mount Monitor Arm

4.3 out of 5 (based on 3 reviews)
Product ID: 17796
Highlights
  • Desk mount Monitor arm
  • 20" height adjustabilityProvides sit-stand capability
  • 62" side-to-side adjustability
  • 7-25 lbs weight: Can hold displays weighing from 7-25 lbs
  • 42" screen size: Carries displays up to 42" in screen size
  • Adding Dual Monitor Kit: Please note that 97-783 kit "decreases" total weight capacity to 19 lbs for this arm. Also the outside width of the monitors should be between 14" to 24.5". Monitors greater than 24.5" are not compatible and monitors with less than 14" in outside width will have a gap between the two monitors.

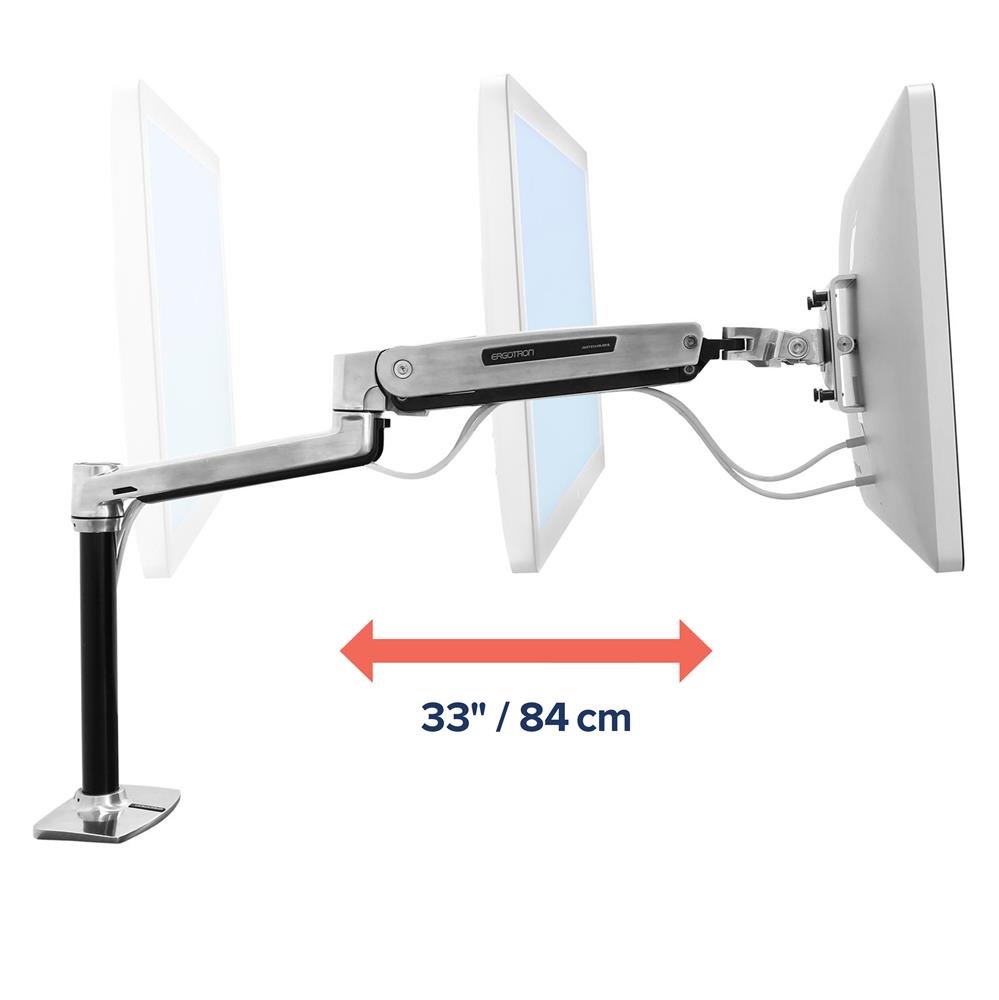

  • 33" horizontal extension: Extends display and pushes it out of the way when not in use
  • Apple compatibilityCan mount 21.5" 2013 iMac with built-in VESA adapter
  • Please see, if your display is larger and heavier
Recommended Accessories
List Price: $575.00
Our Price: $265.99
Shipping: $14.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

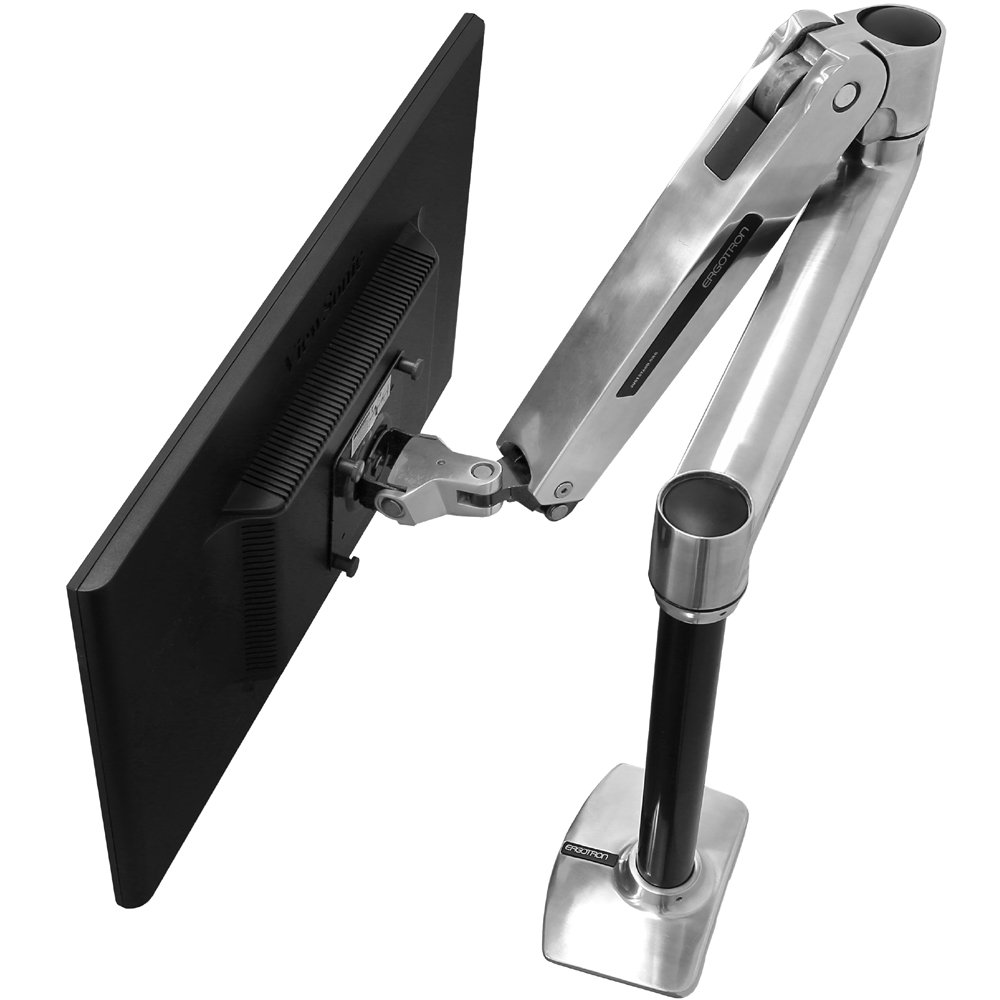

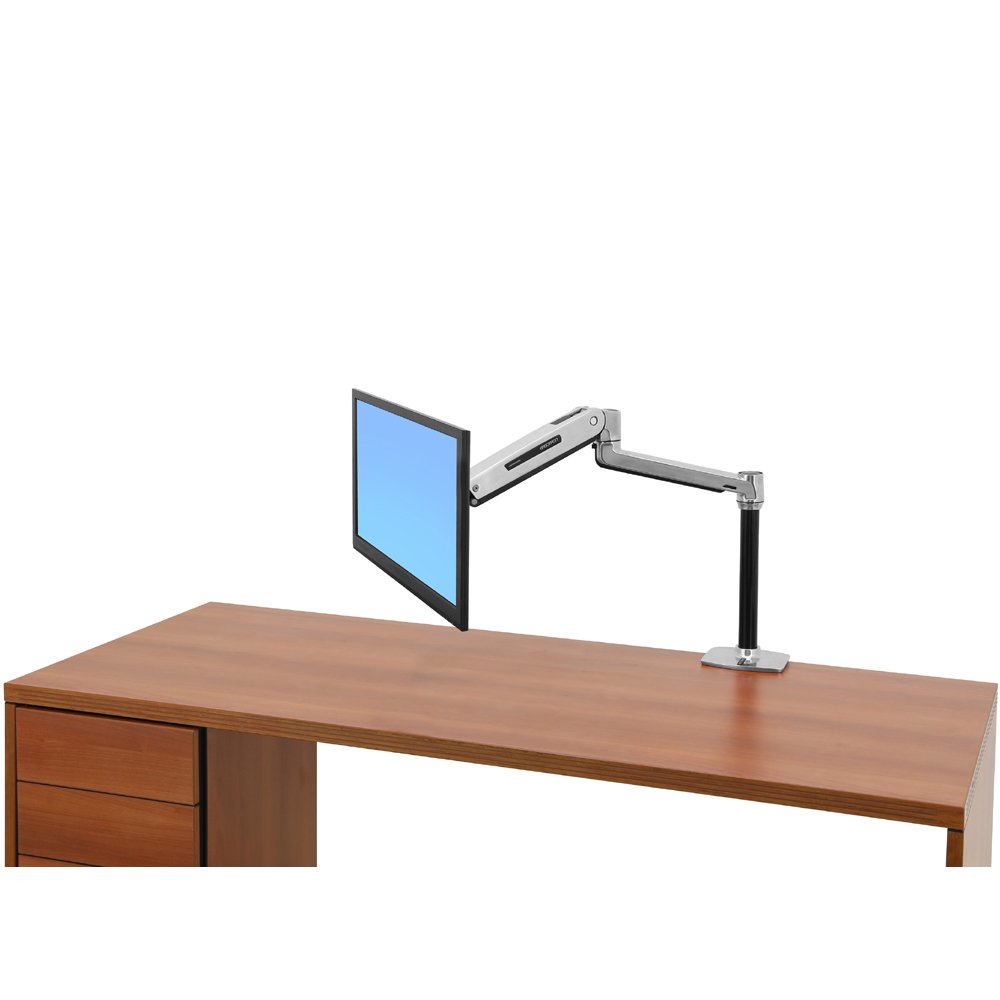

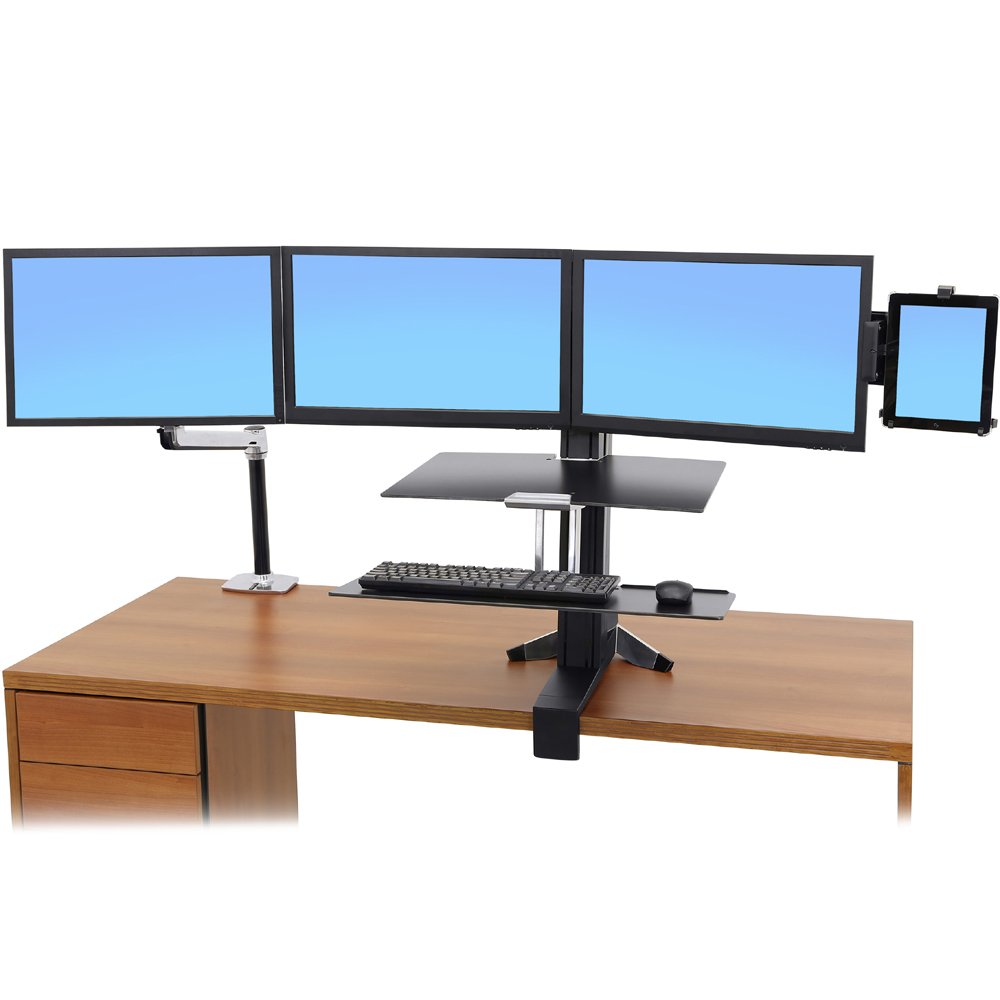

The Ergotron 45-360-026 is a versatile arm. Use it to mount a second monitor within a sit-stand workstation or mount a large monitor or TV where you want!

This versatile arm can be used in a variety of applications: attach a smaller monitor for use within a sit-stand workstation or position a large display up to 25 lbs (11.3 kg) wherever you want it.

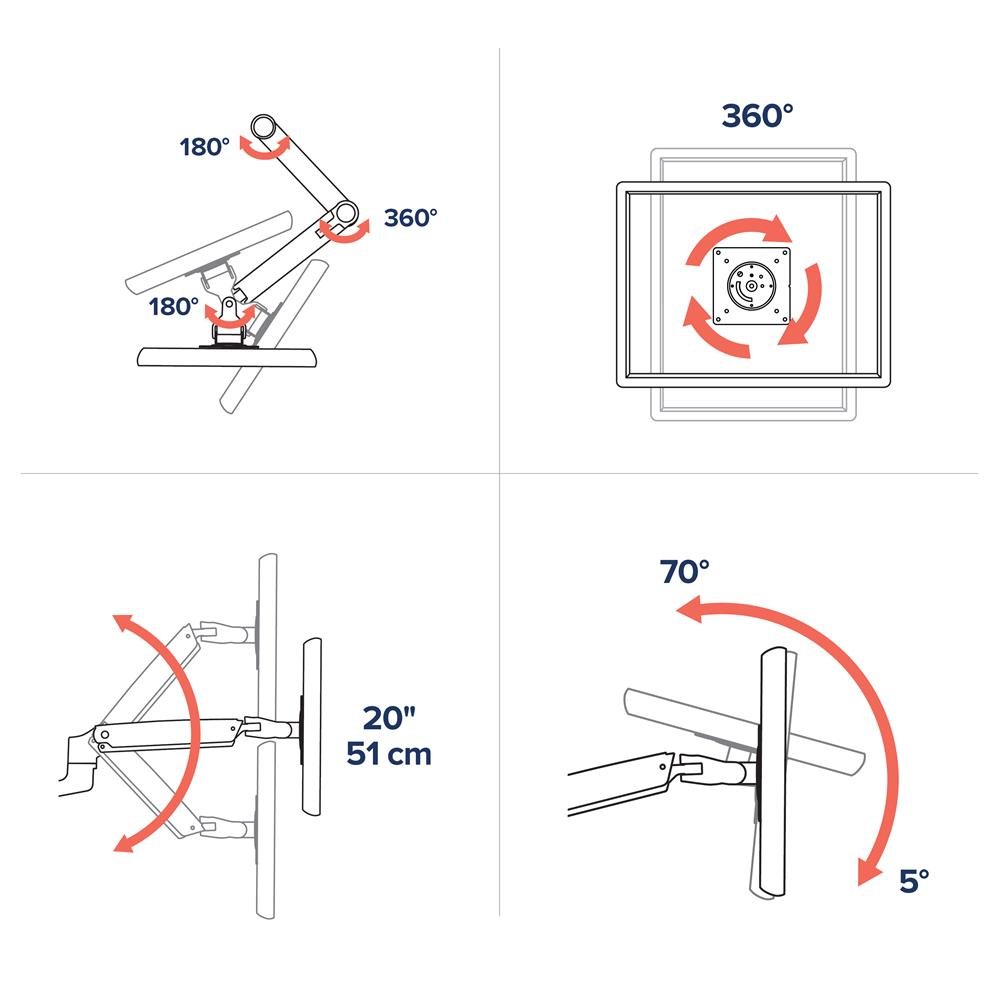

The LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture. Features include 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side motion.

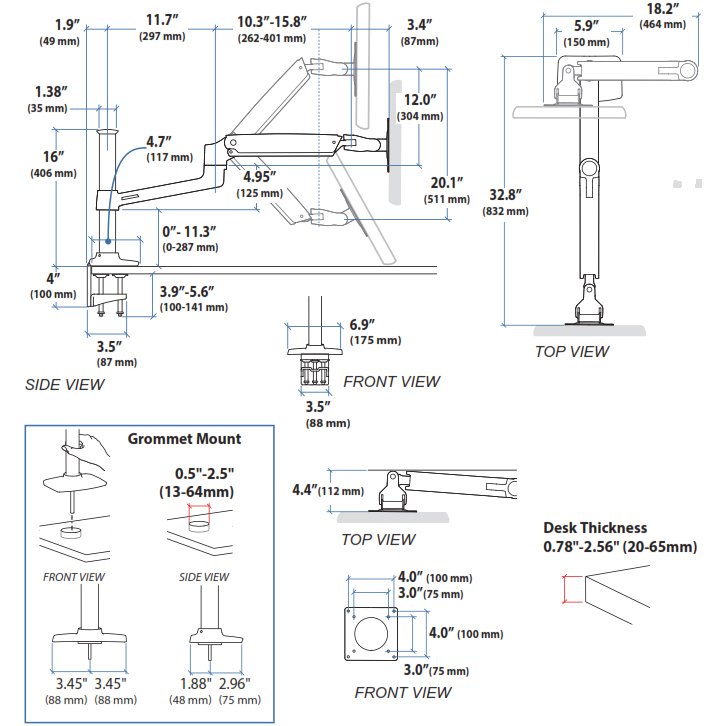

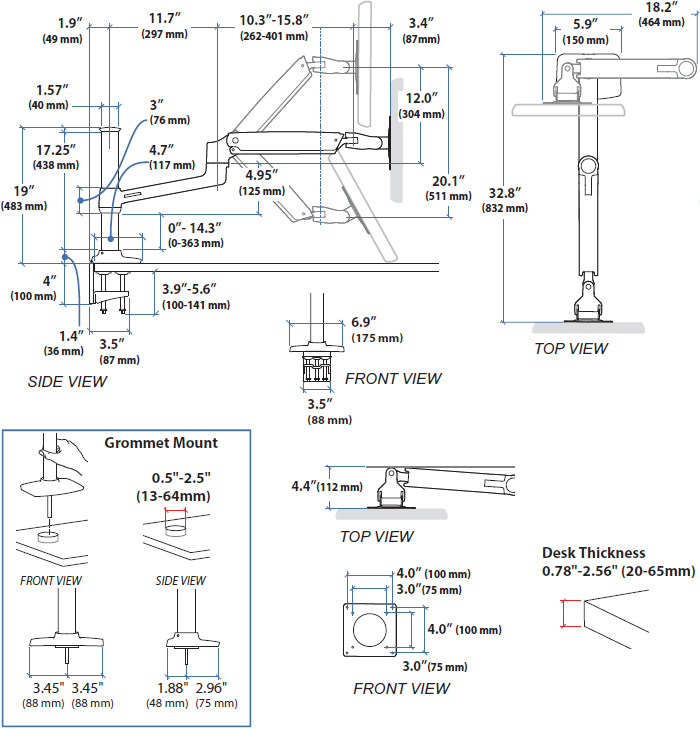

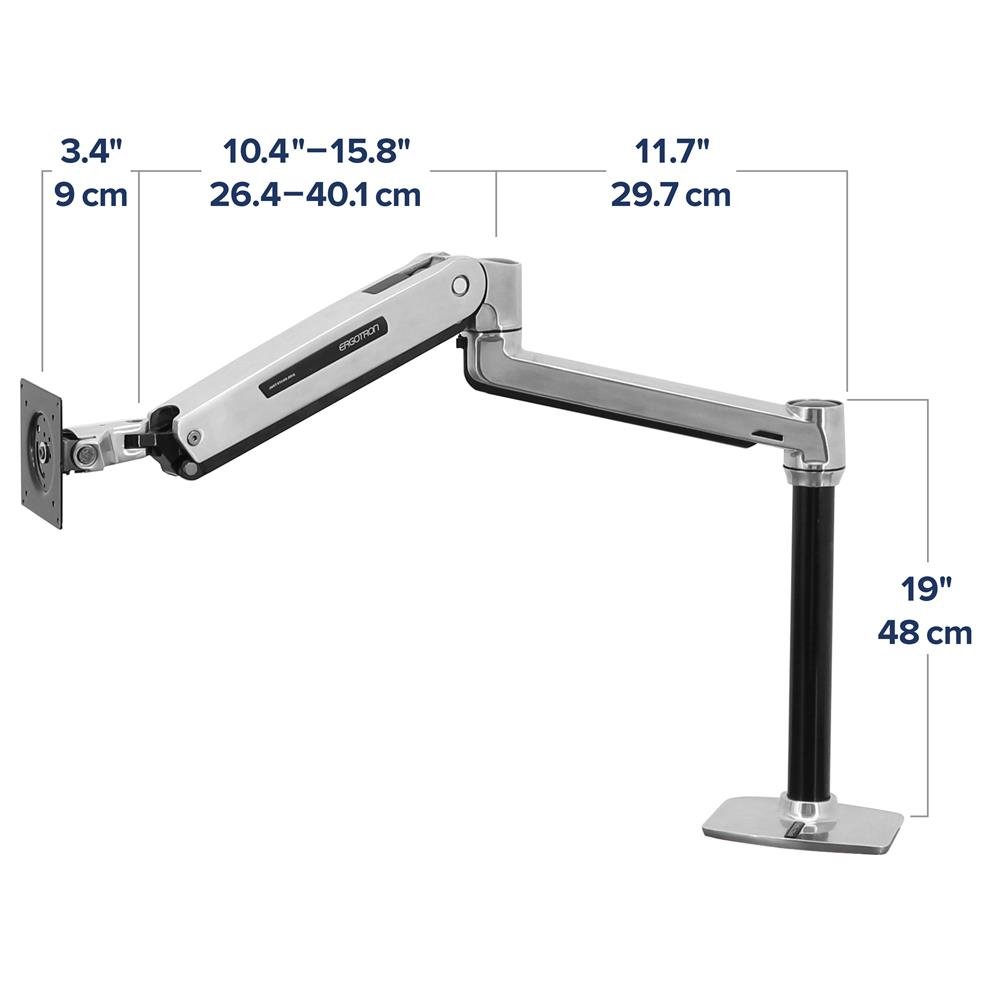

Technical Drawing

Technical drawing for Ergotron 45-360-026 LX Sit-Stand Desk Mount LCD Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 42"

7 - 25 lbs

3.2 - 11.3 kg

20"

51 cm

75° 360° 360° MIS-D/E/F

Product Information

Part Number 45-360-026
Description LX Sit-Stand Desk Mount LCD Arm (polished aluminum)
Includes
  • LX sit-stand arm
  • Extension
  • Desk clamp base
  • Grommet-mount base
  • 42 cm pole
  • VESA brackets
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Weight Capacity 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
Monitor Tilt 70° up and 5° down
Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Locking Connections Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Mounting Options Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick

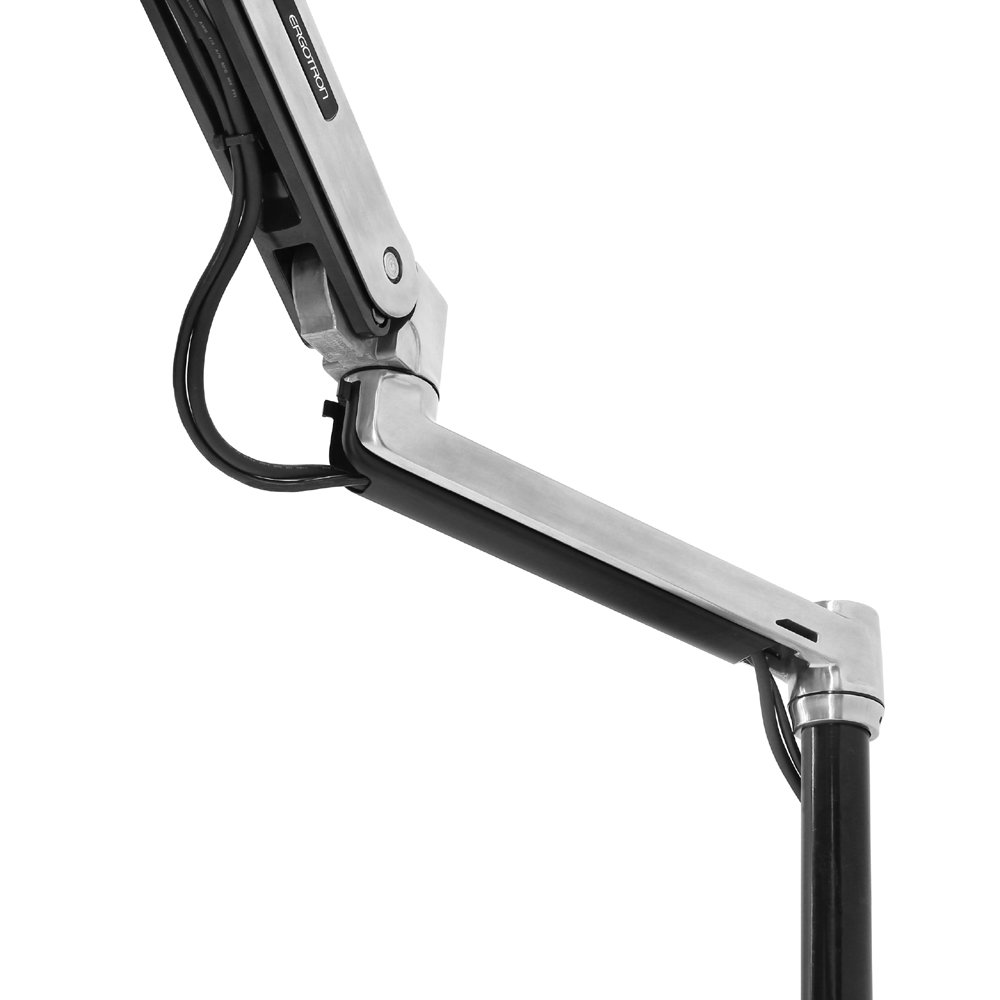

Cable Management Clips on the under side of the arm route and hide cords

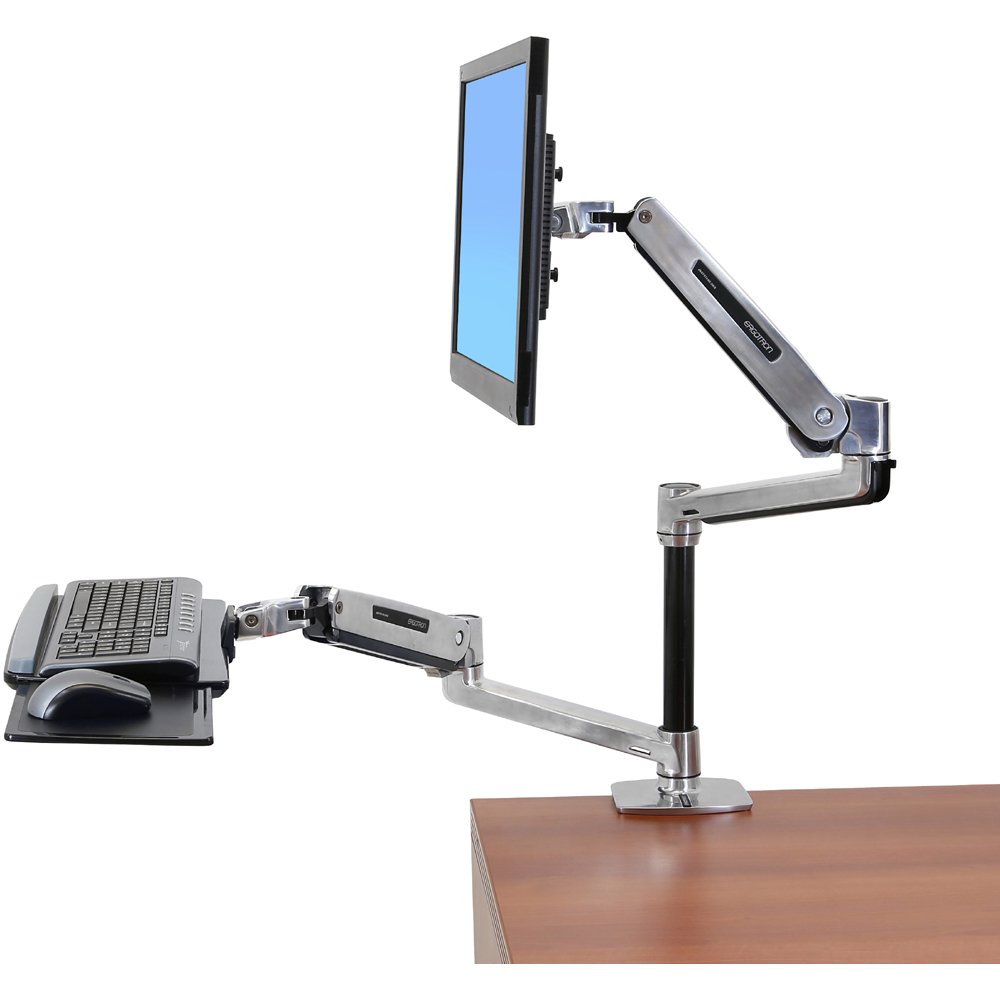

LX Sit-Stand Keyboard Arm To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused
NOTE Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight 19.5 lbs (8.9 kg)
Shipping Dimensions 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
Shipping Weight 22 lbs (10 kg)
Warranty Ten (10) years

Benefits

  • 20" height adjustability allows users to alternate between sitting and standing positions while working on the display
  • Extends LCD up to 33" and pushes display out of the way when not in use
  • Vertical, horizontal adjustability provides ergonomic relief and relieves stress on the back, shoulder and neck
  • Increase viewing comfort - help reduce eye, back and neck strain
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment
  • Patented CF motion technology provides premium ease-of-use adjustment
  • Cable management clips on the under side of the arm route and hide cords
  • Ideal for space-constrained spaces - folds to within 4.5" (12 cm) of back of desk in storage position
  • Secure installation - locking connections between arm, extension and base
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Frequently Asked Questions

Question: Can 2 of these arms be mounted on a single pole? I need both the monitors to swivel individually. Answer: No, you cannot mount 2 arms on a single pole.
Question: The top of my desk is 19mm thick, and the specs say 20mm is the minimum. Can I get away with it as-is, or would I need to bolster the thickness with an appropriately-sized wood block on the underside of the desk in the location of the mount? Answer: The 45-360-026 Desk Mount Arm attaches to a desk of thickness from 20 mm (0.79") to 65 mm (2.5") with a desk clamp. The manufacturer of this product, Ergotron, had the following to say about this particular situation, "According to the picture the desk top is 19mm - the customer may want to double check to make sure, because we only warranty the 45-360-026 for a minimum of 20mm to a max of 65mm. It is their discretion to use this mount on her table, as it ALMOST meets the minimum requirement. That being said, we do not necessarily advise this as our engineers have tested these desk thickness specs, so that is why 20mm is our minimum requirement." So though a 19mm thick desk may work, the arm will not be covered under Ergotron's warranty.
Model 45-360-026
Manufacturer Ergotron
Part Number 45-360-026
UPC 698833033984
Color Polished aluminum
Monitor Size Up to 42"
Weight Capacity 7 to 25 lbs (3.1 to 11.3 kg)
Adjustments 20" (51 cm) of vertical adjustment and 62" (157 cm) of side-to-side adjustment
Tilt Up 70 degree and down 5 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY).
Weight 19.5 lbs (8.9 kg)
Shipping Dimensions 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
Shipping Weight 22 lbs (10 kg)
Warranty Ten (10) years
Mounting Options Desk
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
