Ergotron 45-354-026 LX Sit-Stand Wall Mount Keyboard Arm

Product ID 17441
Ergotron 45-354-026 LX Sit-Stand Wall Mount Keyboard Arm

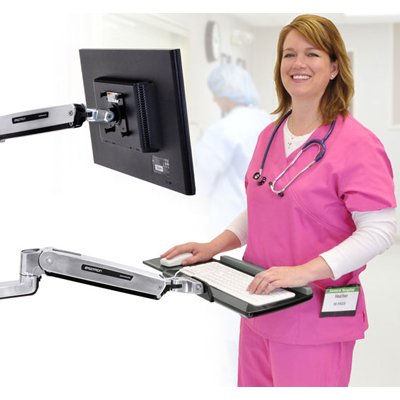

Stand and work with the Ergotron 45-354-026 in a high-traffic area

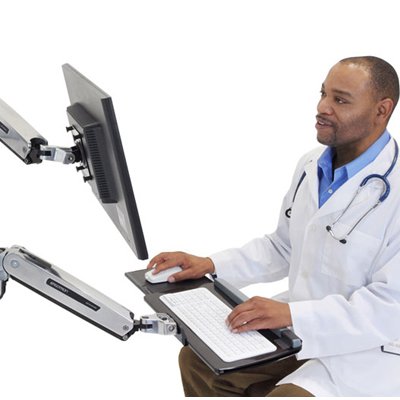

Sit and work with the Ergotron 45-354-026

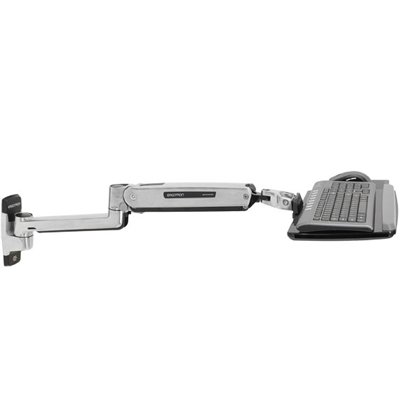

Ergotron 45-354-026

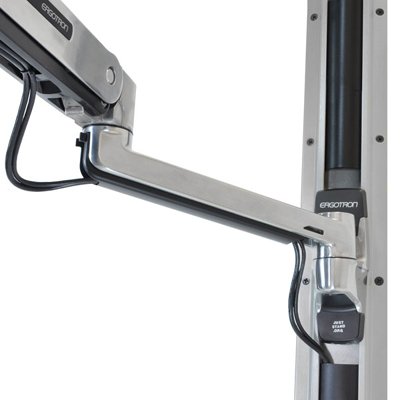

Neat cable management of Ergotron 45-354-026
Technical Drawing I
Technical Drawing II
Technical Drawing III
Ergotron 45-354-026 LX Sit-Stand Wall Mount Keyboard Arm
Stand and work with the Ergotron 45-354-026 in a high-traffic area
Sit and work with the Ergotron 45-354-026
Ergotron 45-354-026
Neat cable management of Ergotron 45-354-026
Technical Drawing I
Technical Drawing II
Technical Drawing III


  • A Wall Mounting Keyboard Arm
  • 20" height adjustment: Provides sit-stand ability, especially useful during data entry
  • 42" horizontal extension: Extends the keyboard horizontally
  • Foldability: Folds to within 5.8" from the wall when not in use
  • Dimensions: Keyboard tray is 18.3" x 8.9"
  • Weight capacity: Carries 5 lbs weight, keyboard, mouse together should not exceed 5 lbs
  • Mouse tray: Slides to the right or left allowing for dual mousing option
  • Please see if you are looking for a complete ergonomic set-up with a dual monitor and keyboard tray sit-stand workstation

Animation for Ergotron 45-354-026 LX Sit-Stand Wall Mount Keyboard Arm


Ergotron 45-354-026 is a sit-stand wall mounting keyboard tray that is ideal for high-traffic, public spaces. Combine it with a wall mounting monitor arm and you have a complete ergonomic set-up.

Effortlessly position a keyboard to the most comfortable typing position, while seated or standing. The LX provides a very stable platform for a keyboard and mouse - tested to be 3x more rigid than other keyboard arms. The tray’s side-to-side adjustment mechanism allows the surface to be parallel, no matter where the keyboard is positioned, while its fore-aft back-tilt angle keeps hands and wrists in a comfortable, ergonomic position.

Technical Drawing

Technical drawing for Ergotron 45-354-026 LX Sit-Stand Wall Mount Keyboard Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA

Up to 5 lbs

2.3 kg


50.8 cm

85° 360° - -

Product Information

Part Number 45-354-026
Description LX Sit-Stand Wall Mount Keyboard Arm (polished aluminum)
  • LX sit-stand arm

  • Extension

  • Wall-mount base

  • Keyboard tray

  • Slide-out mouse tray

  • Wrist rest

  • Mouse holder

Arm Can be used with or without the extension
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Position When in down position, tray features a back-tilt of 5°; folds upright 90° in storage position
Rotation Stop On wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall
Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately)
Fasteners Fasteners for direct attachment to wood/metal studs or concrete surface are not included - customer supplied
Base Includes theft-deterrent anchor holes for cable locks
Keyboard Tray Dimensions 18.3" x 8.9" (46 x 23 cm)
Mouse Tray Dimensions 8" x 8" (20 x 20 cm)
Mouse Tray Slides out to either left or right side, depending on user preference
Note Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight 14.4 lbs (6.5 kg)
Shipping Dimensions 22.4" x 13.7" x 7.8" (57 x 35 x 20 cm)
Shipping Weight 17.1 lbs (7.8 kg)
Warranty Ten (10) years


  • 20-inch (51 cm) height range allows users to move between sitting and standing positions during data entry

  • Extends keyboard up to 42" (107 cm); fold the keyboard back out of the way when not in use

  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Mouse tray slides out to left or right, depending on user preference

  • Patented CF motion technology provides premium ease-of-use adjustment

  • Cable management feature routes cables under the arm, out of the way

  • Ideal for space-constrained spaces - folds to within 5.8" (15 cm) of wall in storage position

  • Secure installation - locking connections between arm, extension and base

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Frequently Asked Questions

q The animation for this product shows the mouse on left and right. My question is can the mouse pad be extended on both sides at the same time? I intend to use this for a personal office space and I have a "command pad" which sits to the left of my keyboard almost like a left-handed mouse.

The mouse tray travels on the underside of the keyboard tray- it is either pulled out on the right or left, it cannot be pulled out on both sides at the same time.

q I'm interested in buying six of your Ergotron 45-354-026 LX Sit-Stand Wall Mount Keyboard Arms. I'd like to know if the mounting kit is included in the price or is it something that I'd need to buy separately.

The wall mount base is included in the package, and with this base you can attach the arm directly to sturdy vertical surfaces. If you are interested in attaching the arm to a wall plate for extra support, or if you consider the wall track (Option 1) for more vertical adjustment, then you would need to order those separately.

q Can the keyboard of the Ergotron 45-354-026 LX Sit-Stand Wall Mount Keyboard Arm sit flat on a desk surface?

This keyboard arm cannot sit flat on a desk surface. It is meant for the wall and possibly to be combined with a wall mounting monitor arm to create a complete workstation. The 45-354-026 folds up 90° in order to be able to stow away flat and has 5° of negative tilt (where the f keys would be tilted downward and space key would be tilted upward) in order to discourage carpal tunnel.

Model 45-354-026
Manufacturer Ergotron
Part Number 45-354-026
UPC 698833028690
Color Polished aluminum
Weight Capacity Up to 5 lbs (2.3 kg)
Lift (50.8 cm) 20 in
Pan 360 degree
Extension Extends keyboard up to 42" (107 cm)
Weight 14.4 lbs (6.5 kg)
Shipping Dimensions 22.4" x 13.7" x 7.8" (57 x 35 x 20 cm)
Shipping Weight 17.1 lbs (7.8 kg)
Warranty Ten (10) years
Tilt When in down position, tray features a back-tilt of 5 degree; folds in storage position upright 90 degree
Keyboard Tray Dimensions 18.3" x 8.9" (46 x 23 cm)
Mouse Tray Dimensions 8" x 8" (20 x 20 cm)
