Durable polished aluminum construction. Ergotron 45-260-216 also
features a worksurface with pull-out keyboard tray, which facilitates

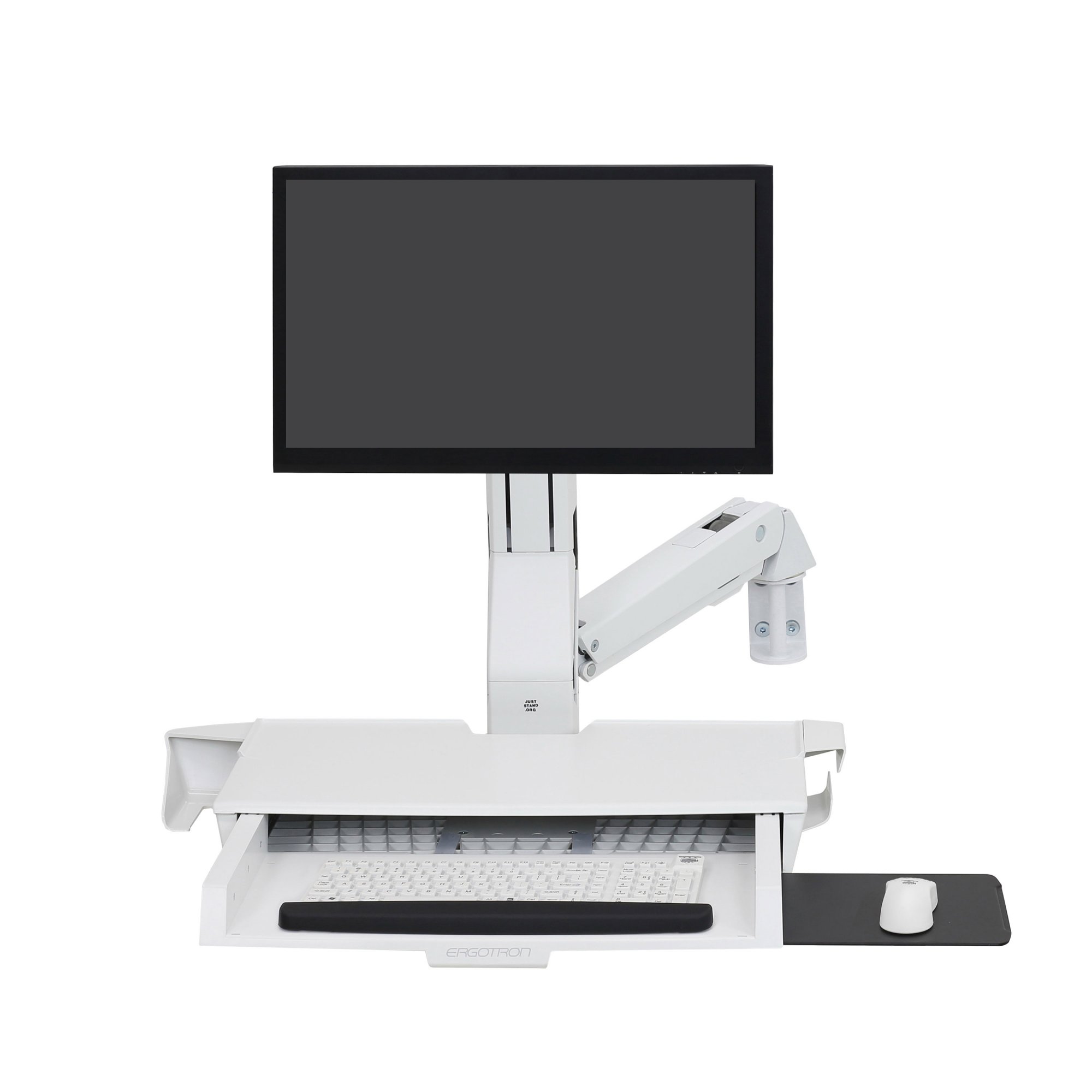

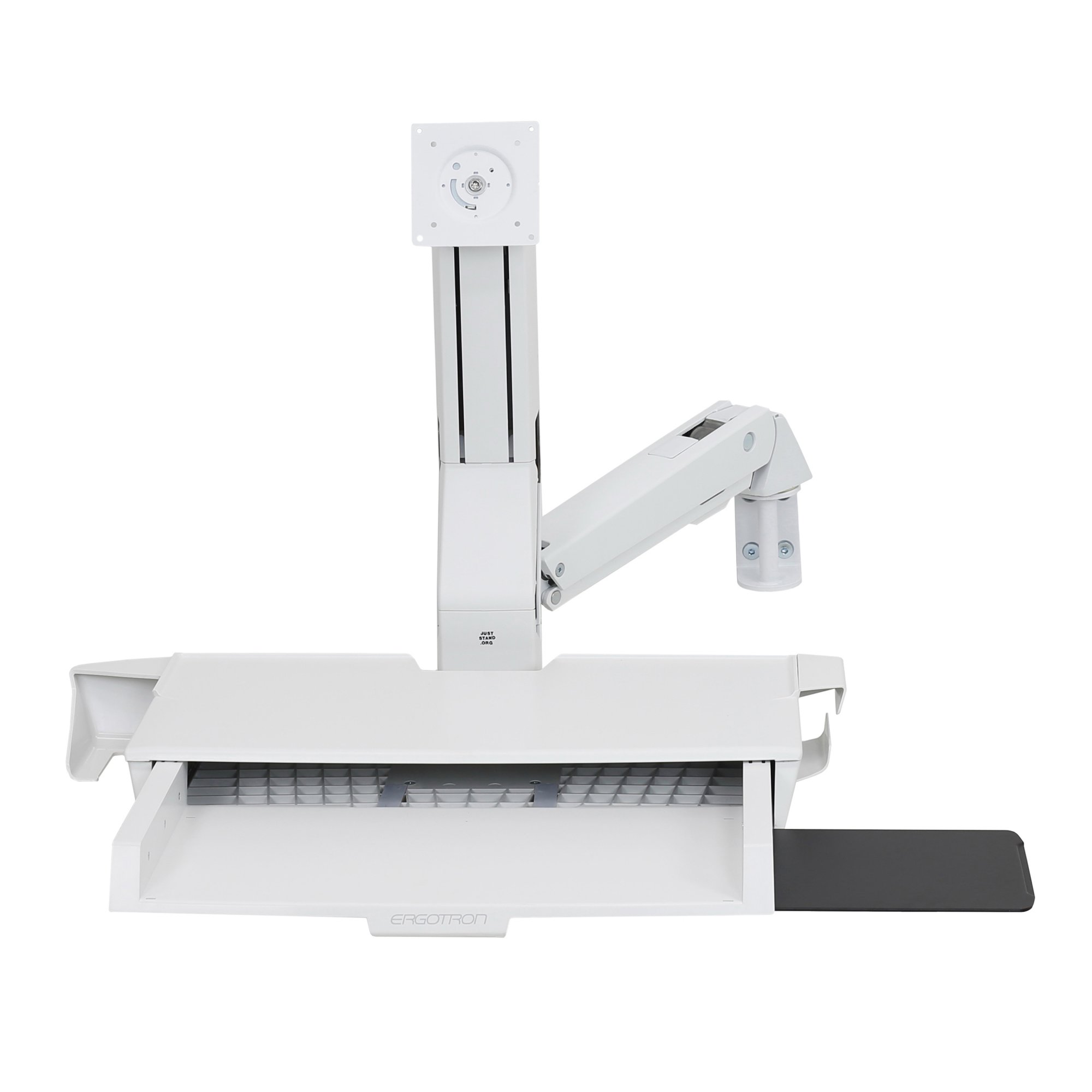

Ergotron 45-260-216 holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment. But most importantly it allows you to sit or stand comfortably while working with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
|Up to 24"||
Up to 32 lbs
|Description||StyleView Sit-Stand Combo Arm with Worksurface (white)|
|Exterior||Durable, easy-to-clean exterior composed of aluminum, high-grade plastic|
|Weight Capacity||Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)|

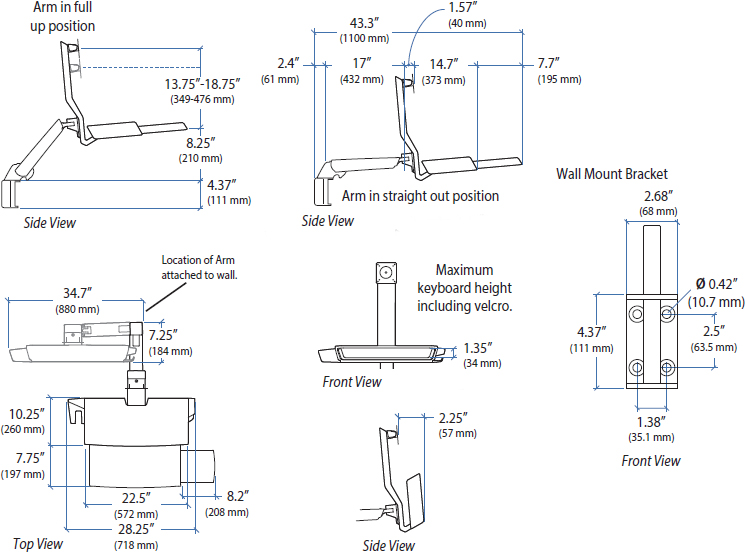

|Lift Range||LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)|
|Monitor up/down Tilt||+25°/-5°|
|CF Technology||Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt|
|Mounting Standards||VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)|
|Scanner||Integrated mouse and barcode scanner holder provide easy access|

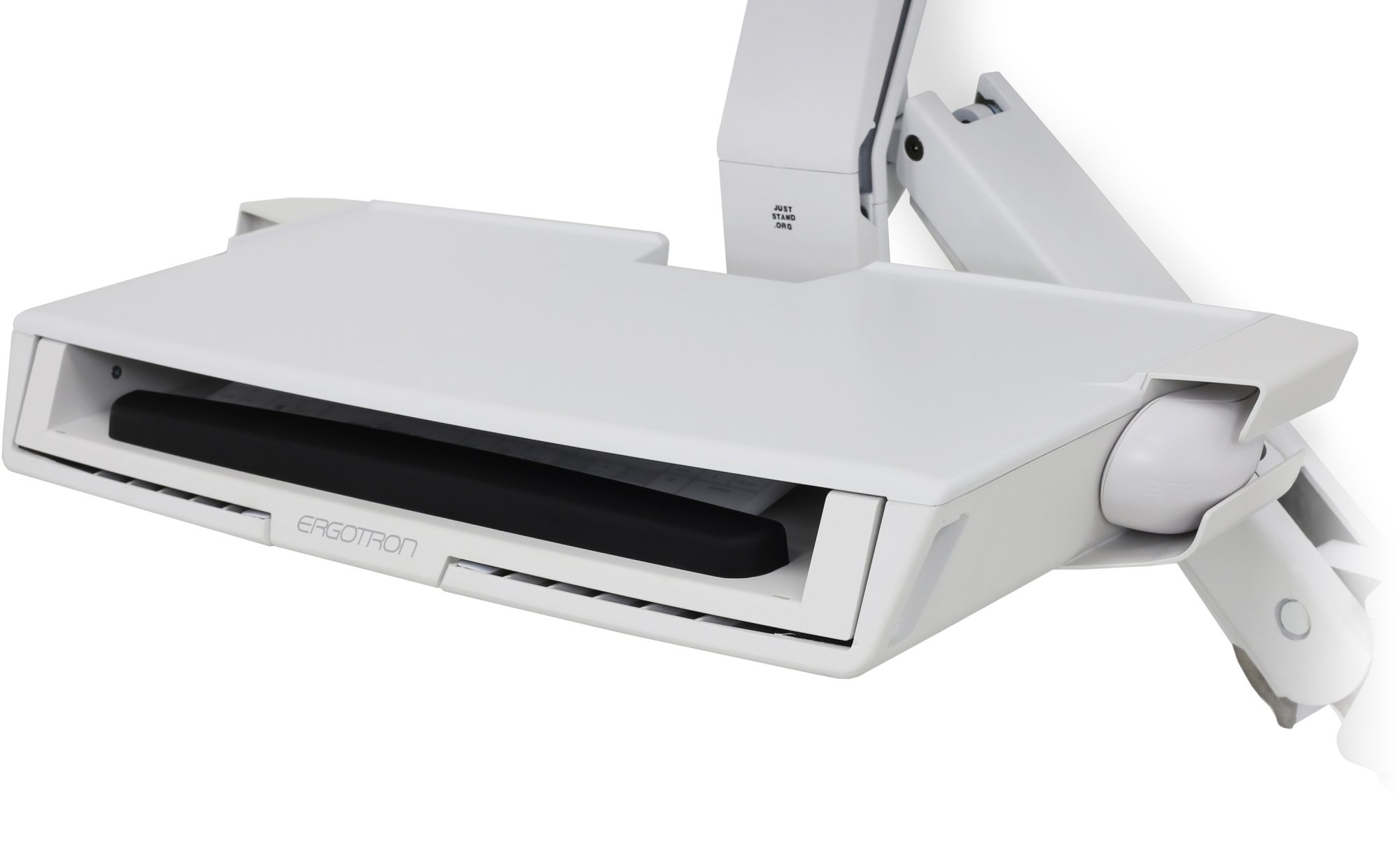

|Worksurface/Keyboard Tray||Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)|
|Keyboard Tray||Back-tilt keyboard tray adjustable from 0° to -10°|
|Extender||Optional Extender (45-261-026) increases range of motion for even greater reach|
|Notebook Tray||Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)|
|Product Weight||32 lbs (14.6 kg)|
|Shipping Dimensions||26.7" x 26.3" x 10.6" (677 x 668 x 270 mm)|
|Shipping Weight||39 lbs (17.7 kg)|
|Warranty||Five (5) years|
Support workflow needs with sturdy worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)
Handle-contact surfaces and Wrist Rest are treated with Agion Antimicrobial for product protection
Flexible, open-architecture design is scalable for future computer equipment
Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) single-motion lift adjustment
Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users
Easy-to-clean features promote superior infection control
Barcode scanner holder provides easy access to hand-held scanner

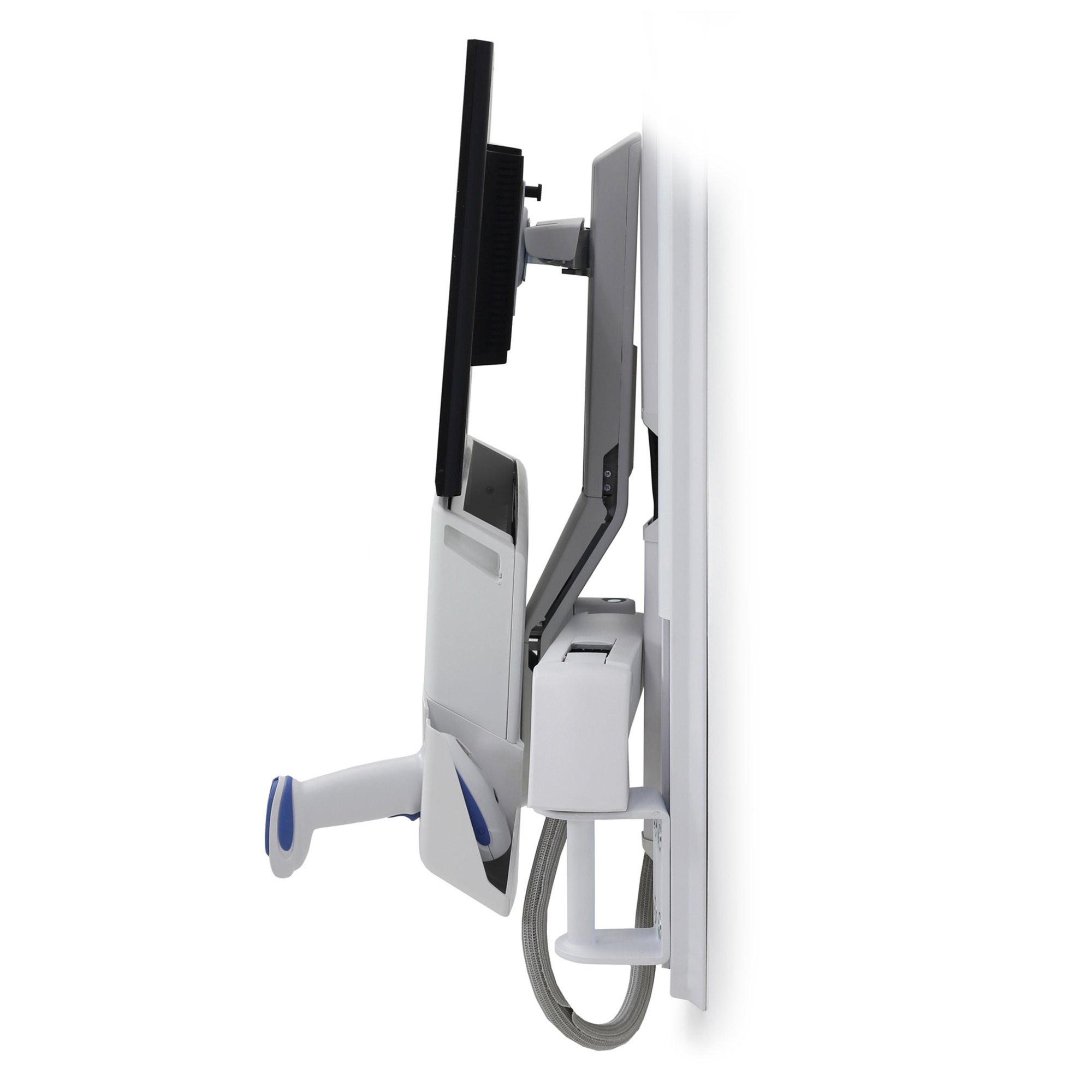

Extend LCD and keyboard up to 43" (109 cm) from wall; fold equipment back out of the way when not in use. With worksurface/keyboard in storage position, system depth is as little as 8" (20.3 cm)
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
Maintains the relative position of screen and keyboard throughout full range of motion
Clean, concealed and neat routing of cables through the expansive cable management system
Product Options/AccessoriesErgotron 50-193-200 Laptop Tray $70.00 $61.00 31-016-182 Wall Track 10" $80.00 $63.05 31-018-182 Wall Track 34" $170.00 $133.00 97-091 Track Mount Bracket Kit $55.00 $43.99 31-017-182 Wall Track 26" $125.00 $106.00 31-039-182 Wall Track 42" $195.00 $157.85 97-468-202 Universal CPU Holder $125.00 $92.21 97-466-214 Medical-Grade Power Strip $230.00 $178.96 SRVC-PI-03 Tier 3 Service Program $500.00 $401.33 97-563-057 Cable Management Kit $55.00 $43.99 80-105-064 Universal CPU Holder $85.00 $60.54 97-747 USB 2.0 Extension Cable 6' $20.00 $19.00 97-749 Power Cord 10' $35.00 $33.00 97-748 - 10 ft. SVGA/VGA Monitor Cable with RGB Coax $55.00 $46.00 97-750 DVI Dual Link TMDS Cable $60.00 $52.00 Ergotron 97-783 Dual Monitor & Handle Kit $109.00 Ergotron 97-815 VESA Scanner Shelf $85.00 $77.51 Ergotron 80-107-200 Thin Client Mount ( Black) $130.00 $69.00 Ergotron 31-018-216 - 34" Wall Track (white) $170.00 $133.00 45-261-216 SV Sit-Stand Combo Extender $275.00 $226.99 80-063-216 Small Vertical CPU Holder $105.00 $80.85 97-858-216 SV Sit-Stand Combo Extender, Short in White $230.00 $184.11 Ergotron 45-460-026 Lockable Tablet Mount $185.00 $119.00 Ergotron 80-107-216 Thin Client Mount (White) $130.00 $69.00 Ergotron 98-150-055 Keyboard Tray with Debris Barrier Upgrade Kit $125.00 $109.16 Ergotron 98-150-062 Keyboard Tray with Debris Barrier Upgrade Kit $125.00 $109.16
|Monitor Size||Up to 24"|
|Weight Capacity||Up to 32 lbs (14.5 kg)|
|Lift||(64 cm) 25 in|
|Mounting Pattern||VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)|
|Worksurface||22.75" W x 10.6" D (57.8 x 26.9 cm)|
|Keyboard Tray Dimensions||18.6" W x 9" D (47.2 x 22.8 cm)|
|Weight||32 lbs (14.6 kg)|
|Shipping Dimensions||26.7" x 26.3" x 10.6" (677 x 668 x 270 mm)|
|Shipping Weight||39 lbs (17.7 kg)|
|Warranty||Five (5) years|
Be the first to review this product
All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and
limitations as set forth below.
Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014
Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)
Ten-year warranty on LearnFit Sit-Stand Desks
Three-year warranty on all Neo-Flex Ergotron Products
Two-year warranty on WorkFit-Z Mini
Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted
The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder
One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)
Two-year warranty on Power Modules by Ergotron
Sealed Lead-Acid (SLA) Power Systems, SLA Batteries
Two-year warranty on all SLA power system components by Ergotron
Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)
Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law
Lithium Iron (LiFe) Power Systems, LiFe Batteries
LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)
Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)
Service Programs - 30-day warranty
Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies
Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer
- StyleView Electric Lift motor: Three (3) years on motor and switch
Further Exclusions and Limitations
In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void
Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void
Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law
- The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations
SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history
SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history
LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)
The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.
These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.
Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.
Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.
Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.
For products that are not covered under warranty, Ergotron offers you the following options:
You may upgrade to a newer, functionally equivalent product at a normal MSR list price
Ergotron will return the product to you
You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law
Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.
Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.
Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.
This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
