Dimensional Diagram for Adjustable Mouse over Keyboard Platform
The Platform that works for everyone:

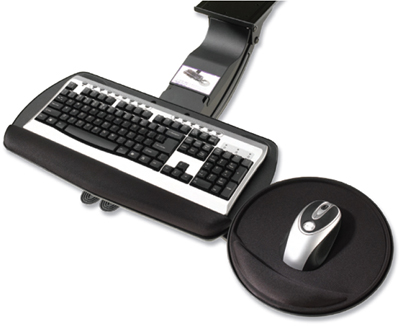

The mouse-over platform provides a number of high-end features. Ideal for universal use, the ambidextrous mouse-over platform has a quick-connect feature plus tilt and swivel adjustment. For added comfort, the smooth contoured keyboard platform includes a gel palm support.
Platform Highlights:
Strength and durability. Platform and mouse are rigid and light weight, constructed
using injection molding.
Switch your mouse from right to left without any tools!
Non-skid surface pads keep keyboard stationary.
Limited lifetime warranty.
Platform Features:
Arm Mechanism Options:
Model PPM1824 platform (PFM1824 with AKP115)
Ambidextrous swivel/tilt mouse tray with gel palm support; reposition to left or right side without tools; mouse platform tilts +/- 20 º
Comfort Plus design is an injection molded construction providing a smooth, snag free surface, preventing interference with knees or clothing
Rigid, lightweight design
Lycra gel palm rest
Non-skid surface pads keep keyboard stationary
Finish : black texture
KEY-3 and KEY-23: One Touch adjustment for both height and tilt
2KEY-1 and 2KEY-3: Dual paddle adjustment for both height and tilt
KEY-23 and KEY-3: 9¾" of height adjustment (2½" above the surface AKP55)
2KEY-1 and 2KEY-3: 9½" height adjustment (2½" above work surface AKP75)
All systems: 360º swivel; 15º +/- tilt (-15º/+10º on AKP115)
EZ-Glide track in multiple lengths, all are 5½" wide
Cable management system
Steel construction with durable powder coat finish
Surpasses ANSI/BIFMA standards
Patented mechanism on "2KEY" preconfigured systems
Positive tilt lock-out option available
Lycra gel rest for keying comfort
Tilt range meets ANSI /BIFMA standards
Generous mousing surface quickly slides into position
Works with virtually all workcenters
Available Mechanisms:
All mechanisms provide at least -15˚/+10˚ tilt and are available in two track lengths.

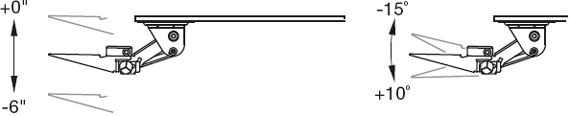

Polaris AKP115 Mechanism
Polaris Lift-n-Lock Arm: AKP115
Features low profile design in a lever free mechanism.
Track Length : 18" Weight : 14 Model : PLP-1
Track Length : 21" Weight : 14 Model : PLP-3

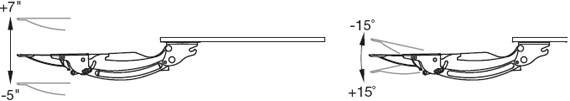

Keynetix2 AKP85 Mechanism
Keynetix2 Dual Paddle Arms: AKP85
The revolutionary dual paddle AKP85 mechanism with extended reach.
Track Length : 24" Weight : 10 Model : 2STS-5
Keynetix2 AKP75 Mechanism
Keynetix2 Dual Paddle Arms: AKP75
The revolutionary dual paddle AKP75 mechanism for all work stations.
Track Length : 18" Weight : 16 Model : 2KEY-1
Track Length : 21" Weight : 16 Model : 2KEY-3

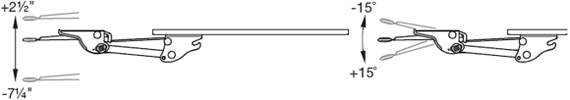

Keynetix AKP55 Mechanism
Keynetix Single Paddle Arm: AKP55
The single paddle keyboard mechanism that offers rock solid performance.
Track Length :18" Weight : 15 Model : KEY-23
Track Length : 21" Weight : 15 Model : KEY-3
Literature(Please open the following document for more technical information)
