Description

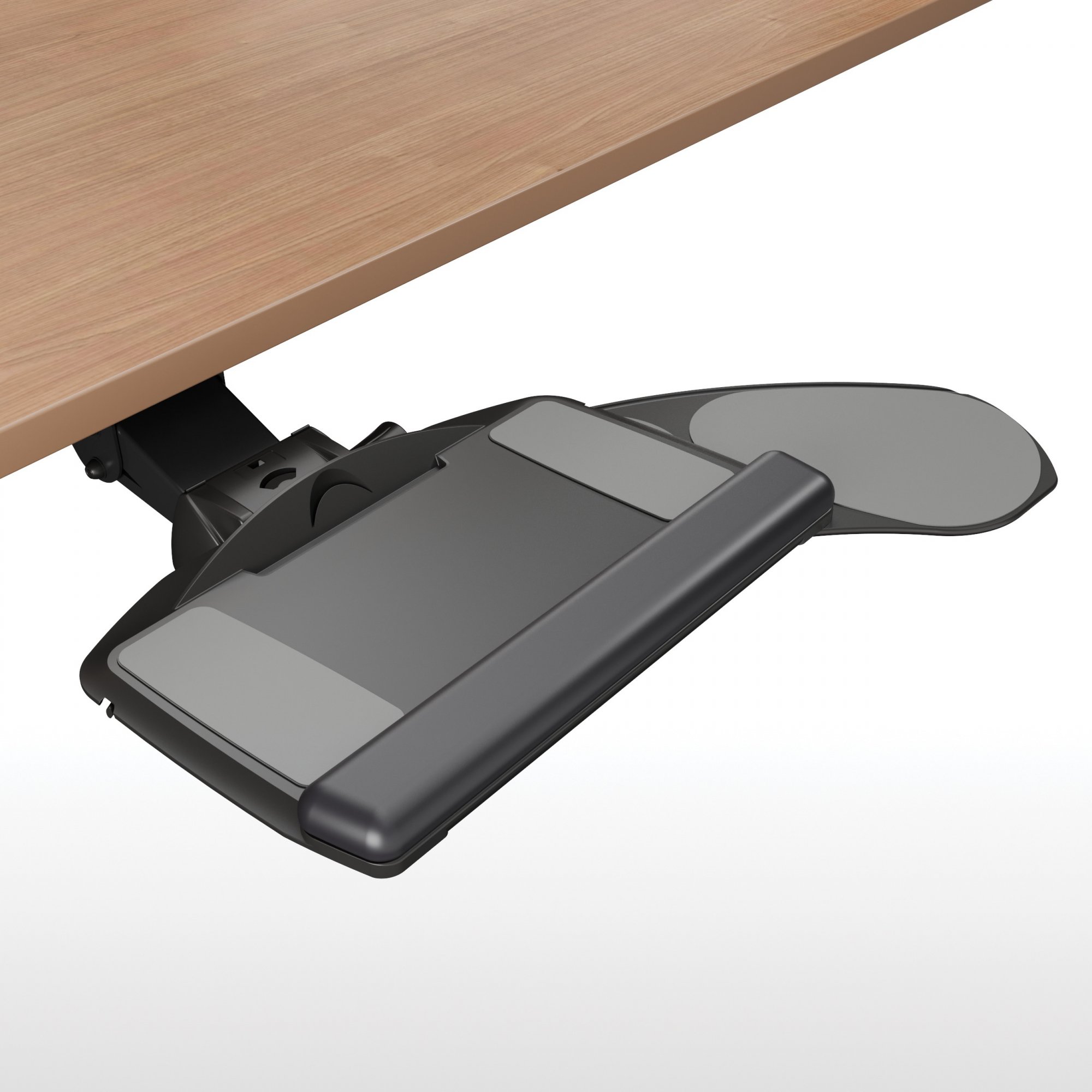

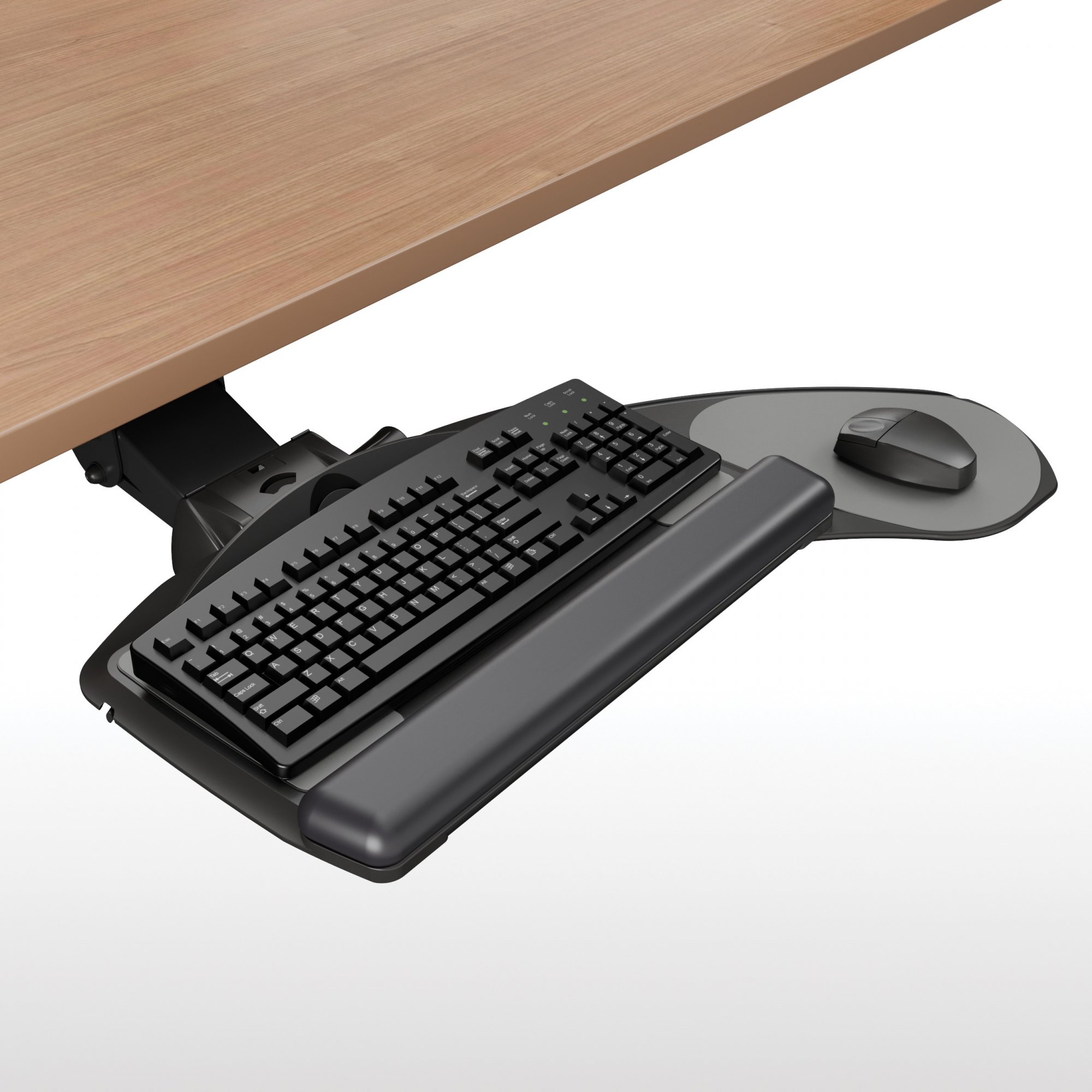

The Banana-Board is WorkRite's most popular and patented keyboard tray system. Fully modular, the Banana-Board is available as a solo platform or a complete keyboard tray system. We provide a variety of arms of various track lengths, wrist rest and mouse support for you to build a complete keyboard tray system.

Please note the part numbers as you choose various options -

• (2180S): Keyboard tray only and palm support with sliding mouse platform for left or right handed use. No Adjustable Arm. Patented Platform is Functional and Stylish: Contemporary, hi-tech style looks great while allowing superior comfort while working. Unique Mouse Forward Design: Mouse slide creates Mouse-Forward position for improved ergonomic comfort.
• (2128-17): Keyboard tray with Adjustable Arm, 17" Track
• (2128-22): Keyboard tray with Adjustable Arm, 22" Track (Recommended track length)

Other Features

• Built-in paper holder and line guide
• Integrated cord management
• Mouse-Trap keeps mouse in place
• Removable LeatheRite palm support

Fits the Following Worksurfaces

• Straightaways
• Diagonal corners 12" or wider
• Curved corners 12" or larger radius
• 90 degree (converted to diagonal with 179ACD)

Adjustability: The Pinnacle 2 adjustable keyboard arm is easy to use and features no-knob, no-lever height adjustment. The dual adjustable lift-assist springs provide optimal balance and smooth movement.

Adaptable: The ½" thin molded high impact polyresin platform minimizes the distance between the forearm and thigh, for a greater range of ergonomic fit. The keyboard platform also features a built-in document holder and cord manager.

Unmatched Flexibility: The Banana-Board System fits the widest variety of office workstations. For demanding facility managers who want to avoid the hassle of supporting an extensive line of keyboard platforms for various workstation configurations, the Banana-Board is the ideal choice.

Functional: The Banana-Board System fits virtually all workstation shape and size requirements.

Durability: The Banana-Board System meets or exceeds the ANSI/BIFMA standards for performance, durability, and cycle testing, and is backed by Workrite`s Limited Lifetime Warranty.

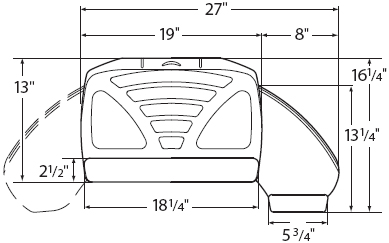

Technical Drawing

With Mouse Palm Support

Without Mouse Palm Support

Desk Compatibility

Features

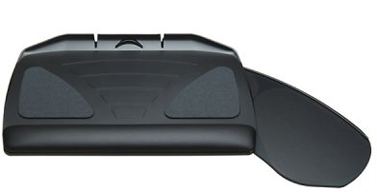

Banana Board

• Adjustable mouse platform is constructed from ultra-thin phenolic material and slides easily from side to side for both left or right handed users
• Features Mouse-Forward design for improved comfort.
• Injection molded plastic platform includes built-in document holder and cord management for keyboard and mouse
• Mouse-trap keeps mouse in place.
• Removable memory foam palm support
• Available in black
• Mouse platform palm support sold separately
• Platform requires radius or diagonal of 12″ or more for proper installation and use

Keyboard Arm

• Pinnacle 2 Arm with 17" or 22" low profile ball bearing track
• Height range: flush to 6" below the worksurface
• Tilt range: -15 degree to +10 degree
• 360 degree swivel - easy positioning and storage
• No-knob, no-lever Lift-N-Lock
• Maximum knee clearance

LEED Eligibility

• All Banana-Board Systems exceed LEED requirement MR4.2 (20% recycled content) and may be eligible for up to 2 points.
• Available in black only

Option 1: Color

Option 2: Arm Type

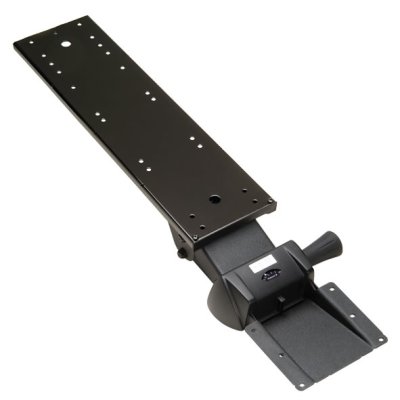

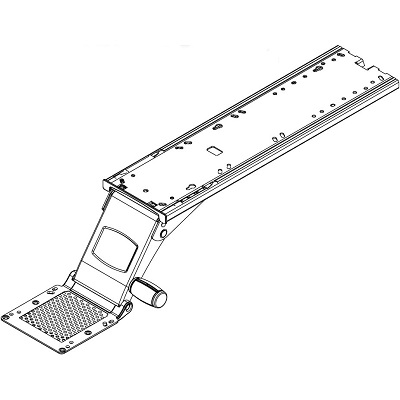

Pinnacle 2 Arm - Pinnacle 2 Extended Arm - Pinnacle AD Arm - Budget Arm - Locking Lever Arm

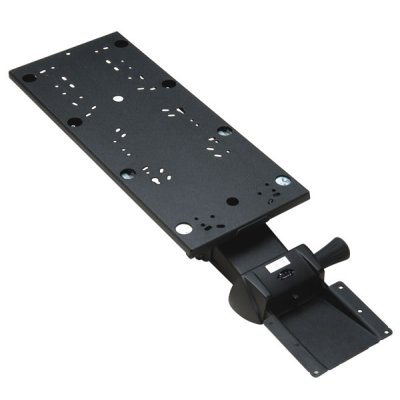

Pinnacle 2 Arm

22" Track (recommended track length)

Pinnacle 2 Arm (Short Track)

17" Track (short track)

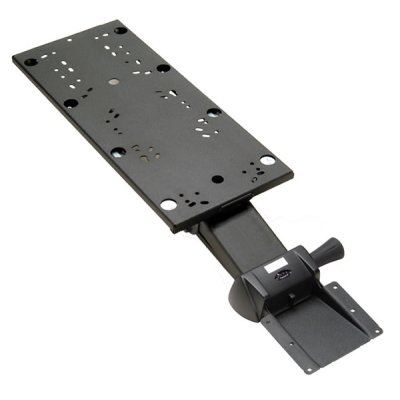

Pinnacle Arm 2 Extended

Longer Arm for corner area

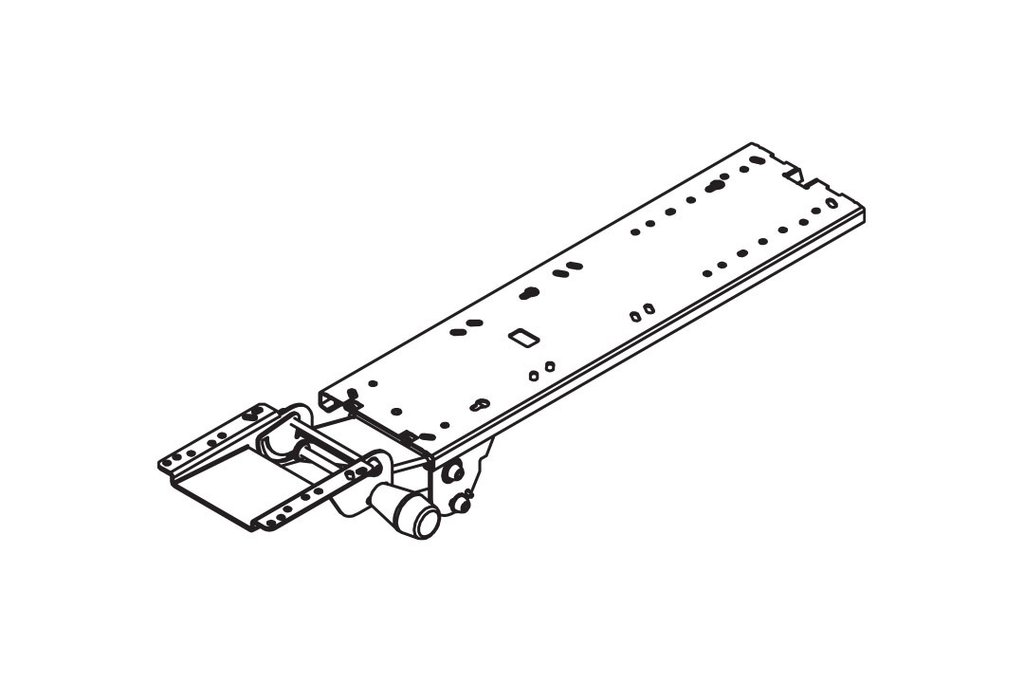

Pinnacle Budget Arm

22" or 17" Budget Arm

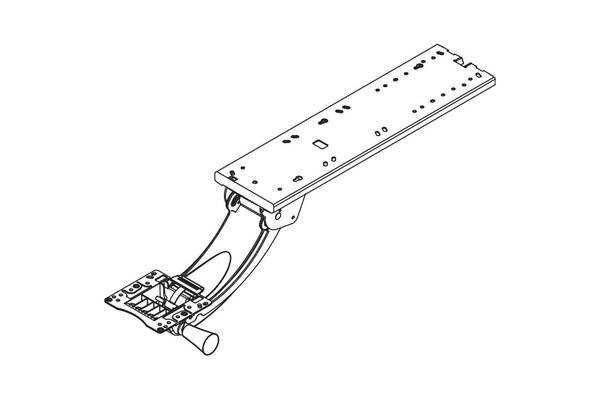

Pinnacle AD Arm

Above Desk Range

Option 3: Wrist Rest

Jel inside Synthetic Leather "Jel-LetherRite"

WorkRite 128 Wrist Rest: Palm support for use with existing keyboard trays and roll-out keyboard drawers. For use with roll-out keyboard drawers and other applications.

Option 4: Clip-On Mouse Support

Easily clips on and off for storage

Clip On Mouse Support Model 2120

• Supports Wrist for Ergonomic Mousing
• Adds mouse area palm support to the following products
• Banana-Board REVO Platforms Mouse-Under Platforms 180S Platforms
• Easy to Attach
• Easily clips on and off for storage

Option 5: Swivel Plate

Swivel Plate 2179-SP: The swivel plate allows you to swivel your keyboard tray horizontally independent from the arm.

Allows keyboard and mouse platform to pivot an extra 45 degree for special mounting requirements.

• Easy to Install
• Mounts between the arm and keyboard platform.
• Weight 3 lbs

Option 6: Mounting Spacer

• Mounting Spacer (1/4" Thickness)
• Mounting Spacer (1/2" Thickness)
• Mounting Spacer (3/4" Thickness)
• Mounting Spacer (1" Thickness)
• Mounting Spacer (1 1/4" Thickness)
• Mounting Spacer (1 1/2" Thickness)
• Mounting Spacer (1 3/4" Thickness)
• Mounting Spacer (2" Thickness)

• Mounting Spacer is required only when the edge of your desk is thicker than the rest of the worksurface.
• Used to attach adjustable arm tracks when edge is thicker than worksurface.
• You can add spacer to make a flat surface under the desktop from front to back in order to install the Adjustable Arm.
• Available in 16" and 21" lengths (please specify).

Option 7: Corner Solution

179ACD

• Dimensions: 12" W x 1 3/4" H.
• Adjusts to fit 1" to 2" thick work surfaces.
• Clamping design eliminates spacers.
• Converts 90 degree to useable work area.
• Weight: 3 Lbs.
• Color: Black

179CCD

• a = 17.5" ... b = 9.25" ... c = 1.5"
• Move operator closer to work surface
• Designed specifically to fit model # 321 with Pinnacle 2 Arm. Also work with the following platform models: 187,188,487,488
• Converts 90 degree corners and diagonal corners less than 17" to useable work area
• Weight: 4 Lbs
• Color: Black/Gary

179CR

• a = 26" ... b =15" ... c = 1 1/2"
• Fits all platforms up to 28" wide
• Works with all WorkRite keyboard arms
• Converts 90" corners and corners with keyboard cutouts to useable diagonal area
• Weight: 4 Lbs
• Color: Black/Gray

Option 8: Track Length

• Desk has more than 22" clear space under desktop, front to back
• Less than 22" and more than 17" clearance under desktop, front to back
• Desk has less than 17" clear space under desktop, front to back

Option 9: Positive Tilt Lock

It is a pin that is inserted in the arm to prevent the tilt from going to positive. It restricts the adjustable arms going to negative tilt range from -6 to -15 degrees.
