Ergotron 33-326-085 Neo-Flex All-In-One Lift Stand

Be the first to review this product
Product ID: 15919
Highlights
  • All-in-One Lift Stand enables the user to mount CPU, monitor and keyboard to one stand
  • Ideal for tight areas and moving the stand from one area to the other
  • Monitor size: up to 24"; Monitor weight: 6 - 16 lbs
  • CPU size: Min. 7"H x 1.8" D and Max. 14" H x 4" D
  • Total Stand capacity: 37 lbs
Recommended Accessories
List Price: $135.00
Our Price: $79.00
You Save: $56.00
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

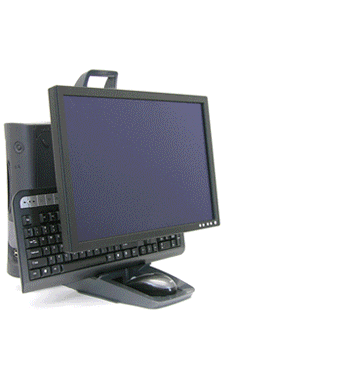

Animation of Ergotron Neo-Flex All-In-One Stand

Description

Add ergonomic adjustability and portability while saving space with this Ergotron 33-326-085 unique all-in-one stand. The perfect accessory for space-constrained areas, it enables you to mount both a CPU and display while providing effortless height adjustment of the monitor.

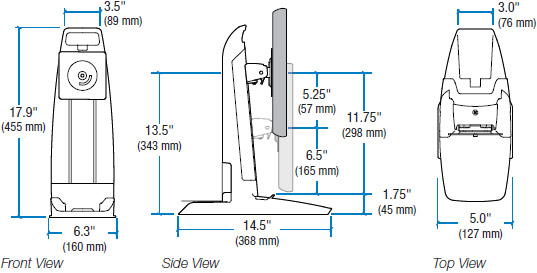

Technical Drawing

Technical drawing for Ergotron 33-326-085 Neo-Flex All-In-One Lift Stand



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24" 6-16 lbs

2.7-7.2 kg

5"

12.7 cm

30° 360° 360° MIS-D



Product Information

Part Number

33-326-085

Description

Neo-Flex All-In-One Lift Stand (black)

Includes

  • Stand

  • CPU strap

  • Buckle cover

  • VESA monitor mounting kit

  • Cable ties

No Included

CPU and monitor not included.

Weight Capacity

6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse.

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Meets

Tip test requirements of UL Specification 1678

Compatible

With most 15"–24" displays, and most small or ultra small form factor CPUs, notebook computers, and gaming consoles.

CPU Size

Maximum CPU size: 14" H x 4" D (36 x 10 cm); minimum CPU size = 7" H x 1.8" D (18 x 4.6 cm). The CPU should be centered on the stand.

Motion

May be restricted when using 22"–24" monitors in portrait mode.

Removal of Lock Screw

Allows portrait to landscape rotation.

Mounting Option

Two M4 threaded screw inserts are located at the bottom of the base to allow for attachment of the stand to worksurface. Screws not supplied. Hole-spacing from center to center = 4.5" (11.4 cm)

Product Weight

5.4 lbs (2.4 kg)

Shipping Dimensions

24" x 20" x 8" (610 x 508 x 203 mm)

Shipping Weight

8 lbs (3.6 kg)

Warranty

Three (3) years



Benefits

  • Transport a workstation anywhere easily and quickly

  • Deploy multiple, complete computer systems with ease; pick up systems using the integrated handle and lock them up at night

  • Open architecture design allows users to attach a variety of systems, including gaming platforms like Playstation and Xbox

  • Mix and match CPU box and monitor from different vendors; update the display or CPU without disturbing full system

  • Position your display for maximum ergonomic comfort to relieve eye, neck and back strain

  • Compact design and small footprint keeps workspace manageable - great for computer labs

  • Easy to use: Simple installation and effortless operation

  • Buckle cover for added security; conceals release-buckle clamp from sight and deters disengagement of CPU

  • Patented Constant Force lift-and-pivot motion technology





Model 33-326-085
Manufacturer Ergotron
Part Number 33-326-085
UPC 698833009798
Color Black
Monitor Size Up to 24"
Weight Capacity 6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse.
Lift (12.7 cm) 5 in
Tilt 30 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimension Maximum CPU size = 14" H x 4" D (36 x 10 cm); minimum CPU size = 7" H x 1.8" D (18 x 4.6 cm). The CPU should be centered on the stand
Shipping Dimensions 24" x 20" x 8" (610 x 508 x 203 mm)
Shipping Weight 8 lbs (3.6 kg)
Warranty Three (3) years
Mounting Options Desk Stand
Monitor Arm Types 1 Monitor
Weight 5.4 lbs (2.4 kg)
