Ergotron 45-180-194 LX Wall Mount LCD Arm DISCONTINUED replaced by 45-243-026

Be the first to review this product
Product ID: 14360
Our Price: $143.73
Shipping: $11.44 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States




Accessories for Ergotron 45-180-194 LX Wall Mount LCD Arm Silver

Ergotron 45-189-194 LX Extension silver

Ergotron LX Extension silver 45-189-194

Ergotron 60-589-060 Quick Release LCD Bracket

Ergotron Quick Release 60-589-060

Ergotron 97-101-003 Wall Plate

Ergotron 97-101-003 Wall Plate

Ergotron 97-091 Track Mount Bracket Kit for Arms, Pivots and Universal CPU Holder

Ergotron Track Mount Bracket 97-091

Ergotron 45-186-195 LX Wall Mount Keyboard Arm (black)

Ergotron LX Keyboard Arm 45-186-195



Ergotron 80-102-064 Universal CPU Holder

Ergotron Universal CPU Holder 80-102-064


Ergotron Small CPU Holder 80-063-200

Ergotron 50-193-200 LX Notebook Tray

Ergotron LX Notebook Tray 50-193-200

Ergotron 97-435-009 Display Security Bracket

Display Security Bracket 97-435-009


Ergotron Command Post 20-076-100

Ergotron 60-499-200 Interface Bracket for Motion Computing FlexDock

60-499-200 Motion Computing Bracket

Ergotron 60-579-200 Interface Bracket for Motion Computing Tablet PC

60-579-200 Motion Computing Bracket

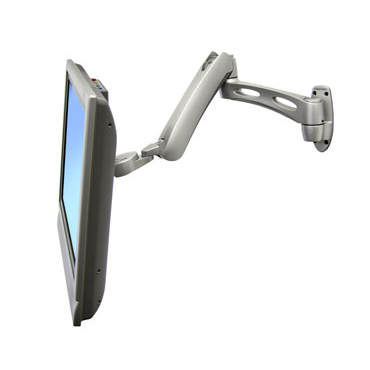

Ergotron 45-180-194 LX Wall Mount LCD Arm Silver Animated image










General Information









Buy from an Authorized Dealer

Please check Ergotron's "Where to Buy" section and look for a list of Authorized Dealers

sorted alphabetically






Ergotron 45-180-194 LX Wall Mount LCD Arm SilverErgotron 45-180-194 LX Wall Mount LCD Arm Silver



Ergotron 45-180-194 LX Wall Mount LCD Arm Silver:



Sleek and streamlined, the LX frees up space and allows

positioning of your display for

greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of

motion.

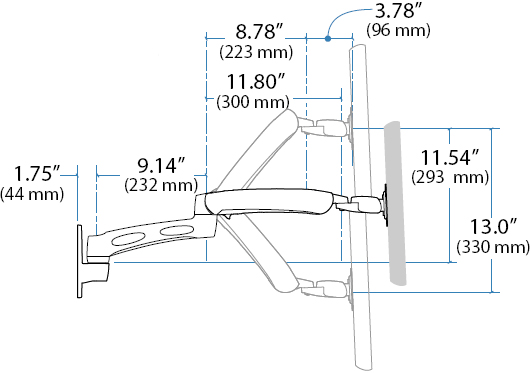

Dimensional Diagram for Ergotron LX Wall Mount Arm

Dimensional Diagram for Ergotron LX Wall Mount Arm





Technical Specifications:


icon_weight.jpg icon_height.jpg icon_tilt.jpg icon_pan.jpg icon_pl.jpg icon_vesa.jpg

     LCD Size

 Wt. Capacity      Lift Tilt Pan Rotation VESA

up to 20"

up to 51 cm

5-20 lbs

2.3-9.1 kg

13"

33 cm

80° 180° 90° P/L MIS-D





Product Information:

Part Number: Ergotron 45-180-194
Description: LX Wall Mount LCD Arm (silver), also available in black and white
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately).
Mounting Standards: VESA FDMI, MIS-D, 75/100, C hole pattern: 100 x 100 mm (3.937" x  3.937") and 75  x  75 mm  (2.952" x 2.952"))
Weight Capacity: 5 to 20 lbs (2.3 to 9.1 kg)
Monitor depth: Greater than 2" (5 cm) may diminish capacity.
Shipping Dimensions: 19" x 16" x 6" (483 x 406 x 152 mm)
Shipping Weight: 33 lbs (15 kg)
Warranty: Five (5) years






Benefits:

Upgrade LCD Monitors or TVs with improved ergonomic adjustment.
Patented CF motion technology provides premium ease-of-use display adjustment.
Extends/retracts LCD up to 24"; push your display out of the way when not in use.
Cable management feature routes cables under the arm, out of the way.
13" height range meets the ergonomic needs of more than nine out of ten adults.
Compact design frees up space.


Images:

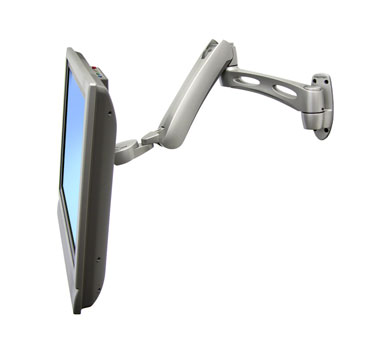

Ergotron 45-180-194 LX Wall Mount LCD Arm Silver inuse image

Ergotron 45-180-194 LX Wall Mount LCD Arm Silver inuse image







Ergotron 45-180-194 LX Wall Mount LCD Arm Silver inuse image

Ergotron 45-180-194 LX Wall Mount LCD Arm Silver inuse image



Wall Track


Wall Plate








Literature (Please open the following documents for more technical information)

Description

File Type

File Size

Dimensional Illustration

reader-14.jpg - pdf

204 KB

Product Sheet

reader-14.jpg - pdf

386 KB

Installation Manual

reader-14.jpg - pdf

7460 KB
