Peerless SF660 or SF660P SmartMount Universal Flat Wall Mount

Be the first to review this product
Product ID: 14465
Recommended Accessories
List Price: $199.00
Our Price: $81.99
Shipping: $11.61 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Description

The SmartMount Universal Flat Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. The SF660(P) models’ low-profile design offers the sleek, aesthetically pleasing look to fit into any décor. Security screws provided in the SF660 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

Helpful Hints: The SF660’s design positions the display just 1.20" from the wall, perfect for almost any low-profile application.

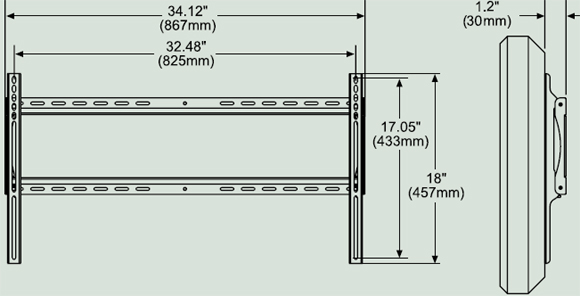

Technical Drawing

Technical drawing for Peerless SF660 or SF660P SmartMount Universal Flat Wall Mount



Specifications

Minimum to Maximum Screen Size

39" to 80"

VESA Pattern

800 x 400

Weight Capacity

200 lbs (90.7 kg)

Color

Black

Finish

Powder Coat

Distance from Wall

1.20" (30mm)

Mounting Pattern

824 x 405mm (32.44 x 15.95")

Security Features

Security Hardware

Product Dimensions

34.12" x 16.89" x 1.20" (867 x 429 x 30mm)

Product Weight

5.60 lbs (2.54 kg)

Shipping Dimensions

36.41" x 1.57" x 10.71" (925 x 40 x 272mm)

Shipping Weight

7.60 lbs (3.45 kg)

Package Contents

  • Wall mount

  • Wall and display installation hardware

  • Installation instructions

UPC Code

SF660: 735029235590

SF660P: 735029235620

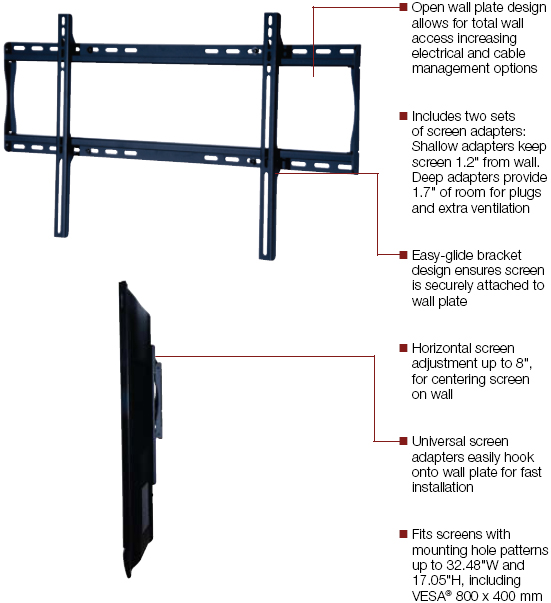

Features

  • Design is UL listed and tested to four times stated load capacity

  • Integrated security options available

  • Includes all necessary wall and display attachment hardware

  • Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)

  • Horizontal display adjustment up to 8.00" (203mm) for centering display on wall

  • Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post installation leveling and height adjustment fine-tuning

  • Low-profile design holds display only 1.20" (30mm)

  • Universal mount fits displays with mounting patterns up to 824 x 405mm (32.44" W x 15.95" H)





Model SF660, SF660P
Manufacturer Peerless Mounts
Part Number SF660, SF660P
UPC 735029235590
Color Black
Monitor Size 39"-80"
Mounting Pattern 824 x 405mm (32.44 x 15.95")
Weight Capacity 200 lbs (90.7 kg)
Distance From Wall 1.20" (30mm)
Dimensions 34.12" x 16.89" x 1.20" (867 x 429 x 30mm)
Weight 5.60 lbs (2.54 kg)
Shipping Dimensions 36.41" x 1.57" x 10.71" (925 x 40 x 272mm)
Shipping Weight 7.60 lbs (3.45 kg)
Warranty Limited 5 year
Mounting Options Wall
Number of Monitors 1 Monitor
