$565.00

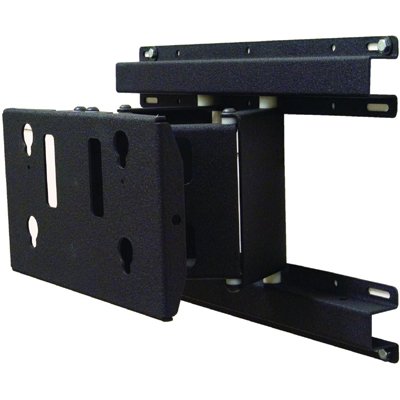

Chief MPWUB Medium Swing Arm Wall Mount - 8" Extension

Product ID 16702
Chief MPWUB Medium Swing Arm Wall Mount - 8" Extension

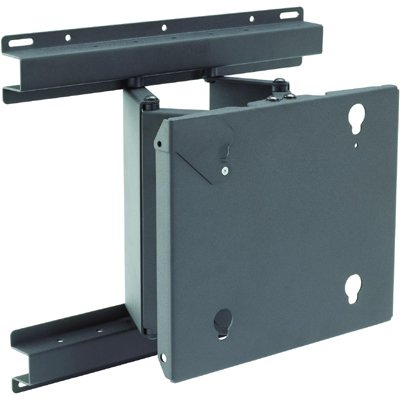

Side view of Chief MPWUB Medium Flat Panel Swing Arm Wall Mount for 30"-55" Displays

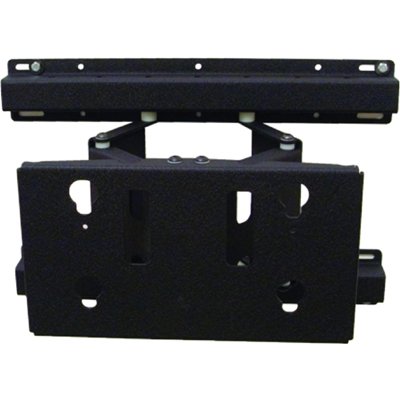

Front view of Chief MPWUB Medium Flat Panel Swing Arm Wall Mount for 30"-55" Displays
Chief MPWUB Medium Swing Arm Wall Mount - 8" Extension
Side view of Chief MPWUB Medium Flat Panel Swing Arm Wall Mount for 30"-55" Displays
Front view of Chief MPWUB Medium Flat Panel Swing Arm Wall Mount for 30"-55" Displays

Description

Chief MPWUB swing arm wall display mount provides ultra smooth extension for flat panel displays and monitors, and remains low profile in the home position.



Technical Drawing

Technical Drawing of Chief MPWVB Medium (30-55") Swing Arm Wall Mount



Specifications

Color

Black

Lateral Shift

4.5" (114.3mm)

Maximum Extension

8.75" (222.3mm)

Minimum Depth

1.5" (38.1mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 709 x 431mm

Notes

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

18.0" x 23.6" x 3.4" (457 x 600 x 87mm)

Shipping Weight

34.00 lbs

Solution Type

Universal

Typical Screen Sizes

30 - 55"

Wall Stud Compatibility (inches)

16"

Weight Capacity

100 lbs (45.4kg)



Features

  • Smooth extension up to 8.75" (222 mm) to achieve ideal viewing angle
  • Ultra low-profile in the home position, only 1.5" (38 mm) deep
  • Provides up to 45º of swivel in either direction (depending on screen size)
  • Locable in home position to prevent articulation (pin included)
  • Installs on 16" center studs
  • Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
  • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
Model MPWUB
Manufacturer Chief Mounts
Part Number MPWUB
UPC 841872104485
Color Black
Lateral Shift 4.5" (114.3 mm)
Maximum Extension 8.75" (222.3 mm)
Minimum Depth 1.5" (38.1 mm)
Mounting Pattern 100 x 100 mm - 709 x 431 mm
Overall Dimensions 18.0" x 23.6" x 3.4" (457 x 600 x 87 mm)
Screen Size 30 - 55 in
Wall Stud 16"
Weight Capacity 100 lbs (45.4 kg)
Shipping Weight 34.00 lbs
Mounting Options Wall

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
