Chief PACLR1 Left or Right Speaker Adapter (30-50")

Product ID 15946
Chief PACLR1 Left or Right Speaker Adapter (30-50")
Chief PACLR1 Left or Right Speaker Adapter (30-50")

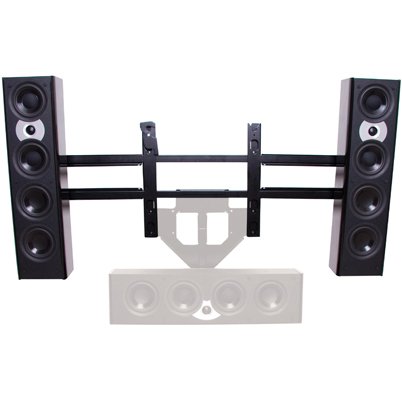

Chief PACLR1 Flat Panel Left or Right Speaker Adapter for 30 to 50 inch Displays


Chief PACLR1 adapter allows easy integration of side speakers with Chief flat panel mounting solutions.

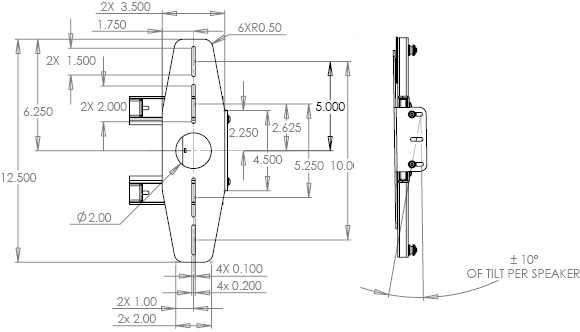

Technical Drawing

Technical Drawing for Chief PACLR1 Flat Panel Left or Right Speaker Adapter





Equipment Weight Capacity

25 lbs (11.3kg)


Weight capacity is per speaker

Shipping Weight

22.55 lbs

TV Width Range

30 - 55" (762 - 1397mm)

Typical Screen Sizes

30 - 50"



  • Comes fully assembled for faster installation
  • Provides multiple adjustments for perfect leveling of speaker with flat panel display
  • Low-profile, adds only 0.94" (24 mm) depth to installation
  • Provides fore/aft and roll adjustment to level speaker with front of TV
  • Fine-tuning adjustment to fit most speakers

Product Options/Accessories

Model PACLR1
Manufacturer Chief Mounts
Part Number PACLR1
UPC 841872107806
Mounting Options Wall
Color Black
Weight Capacity 25 lbs (11.3kg)
Shipping Weight 22.55 lbs
TV Width Range 30 - 55" (762 - 1397mm)
Screen Size 30 - 50 in
