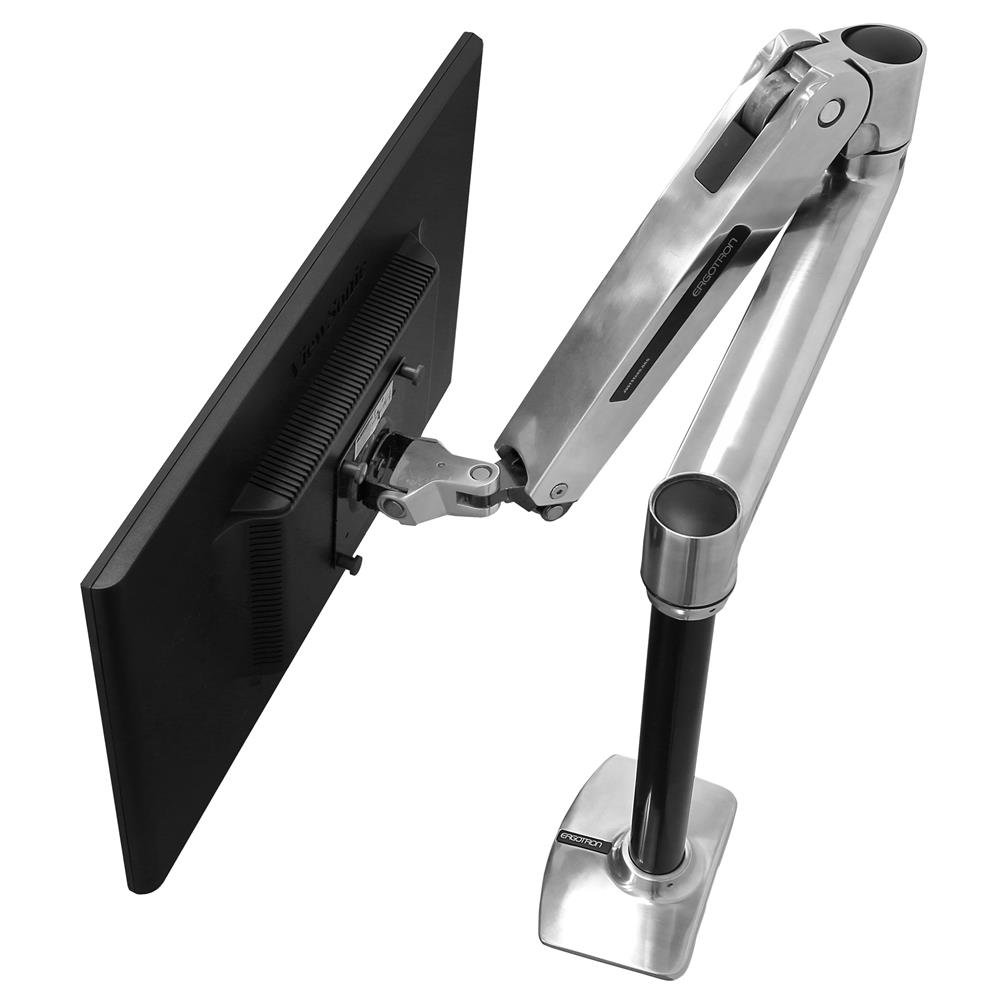

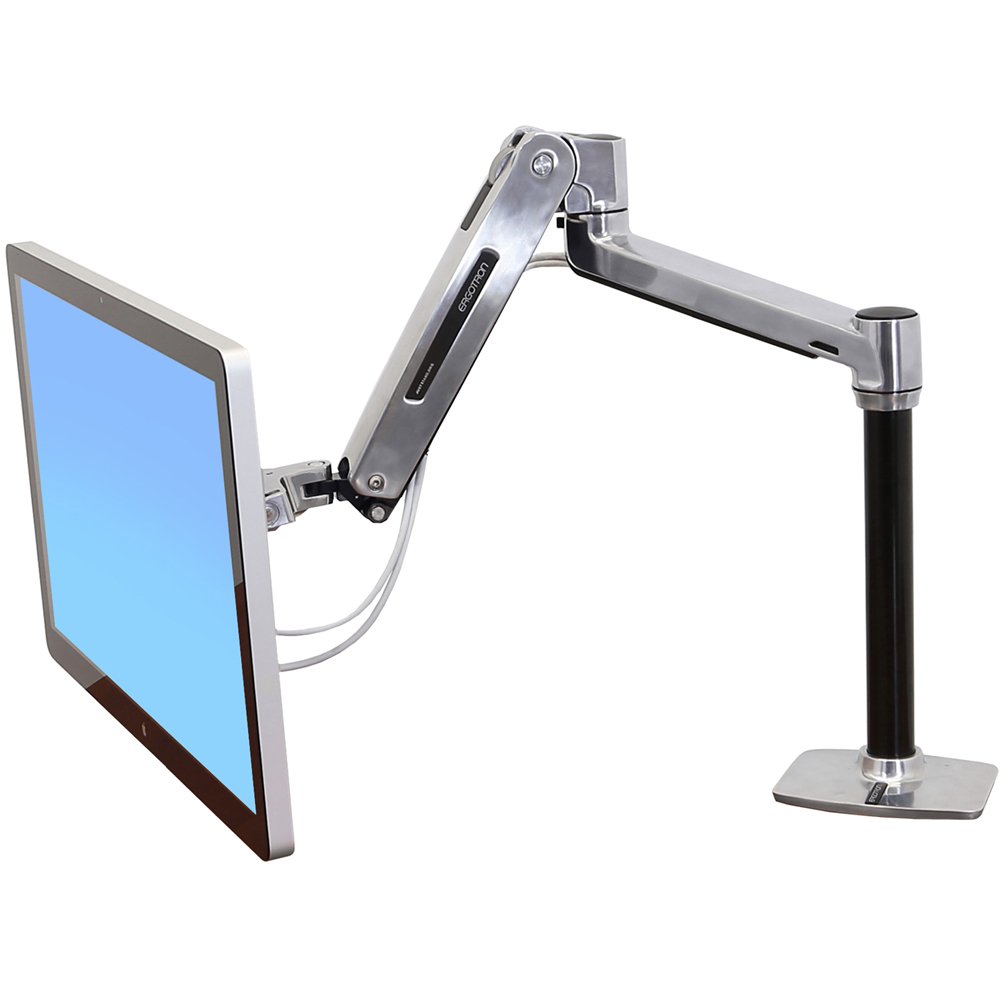

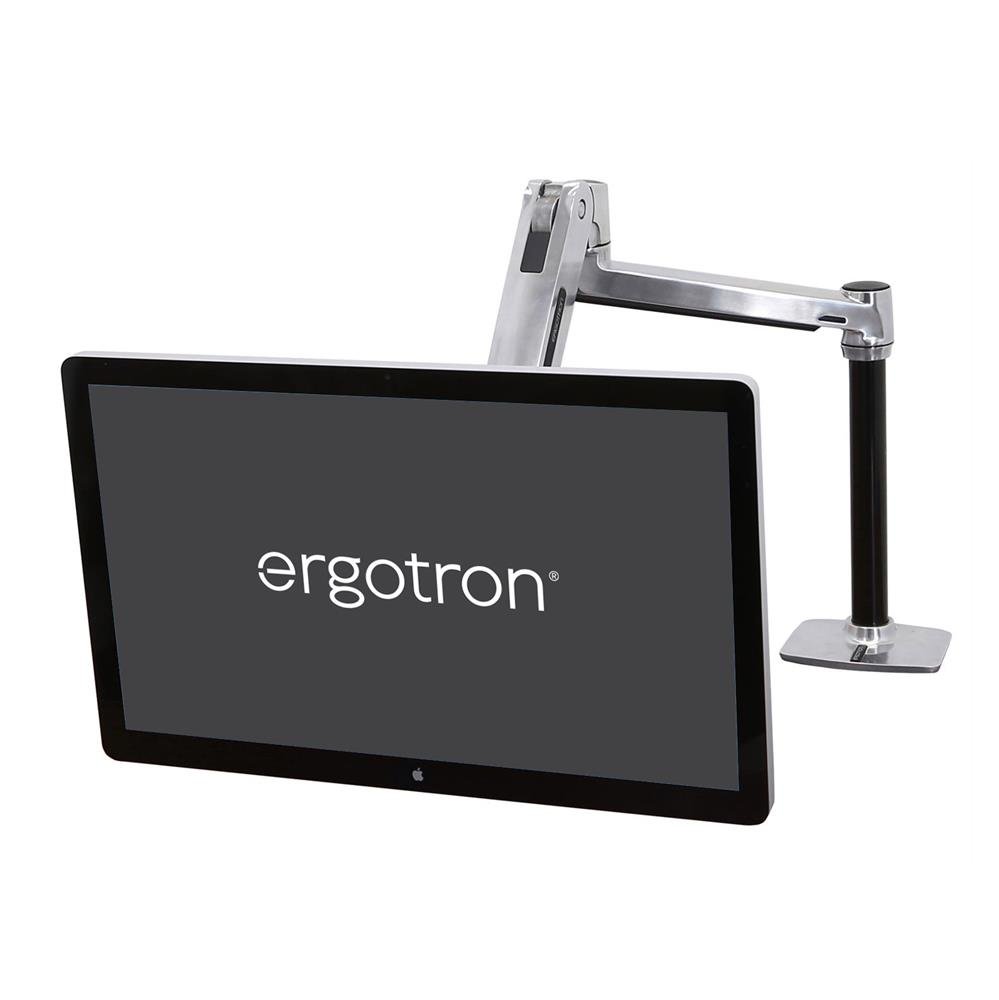

Ergotron 45-384-026 LX HD Sit-Stand Desk Mount Monitor Arm

There is no Extension option for 45-384-026 monitor arm

5 out of 5 (based on 10 reviews)
Product ID: 17795
Highlights
  • Desk mounting LX arm
  • 20" height adjustability: Provides sit-stand capability
  • 62" side-to-side adjustability
  • 14-30 lbs weightCan hold large monitors or mid-sized TVs weighing up to 30 lbs
  • 46" screen size: Carries displays up to 46" in screen size

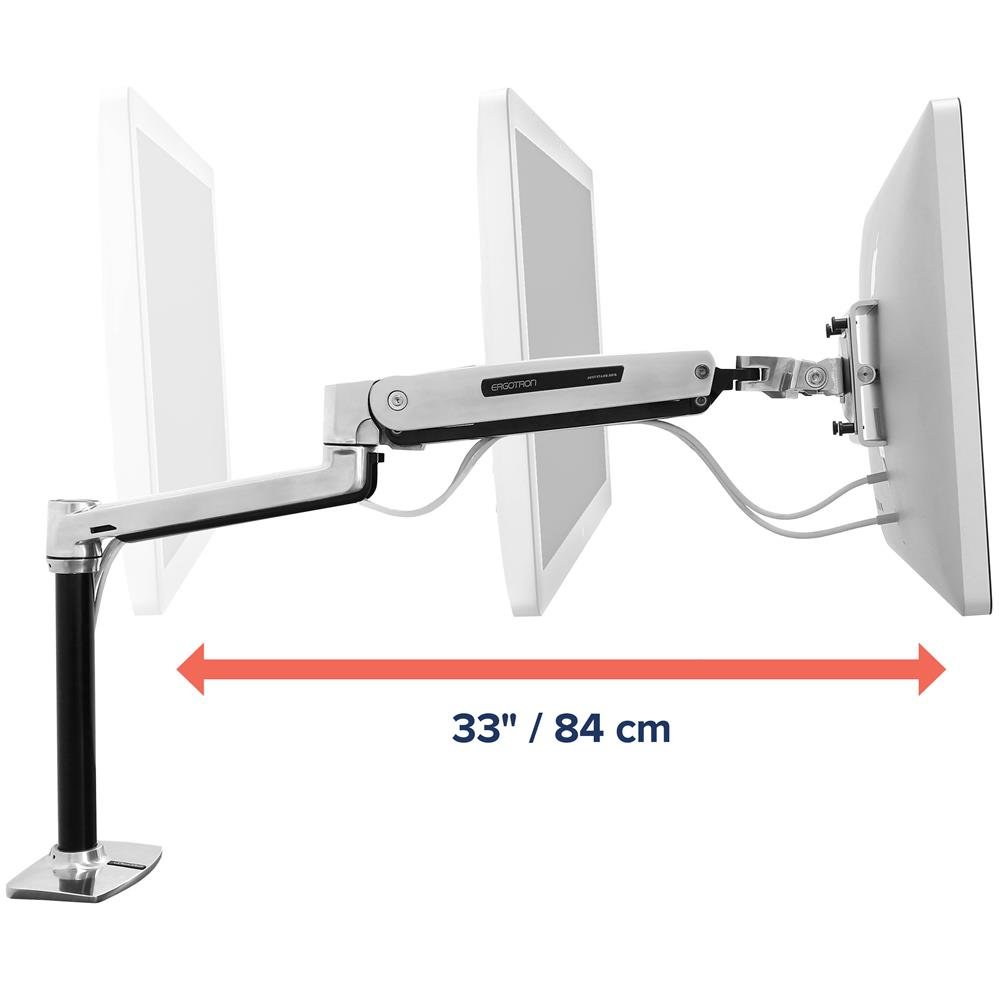

  • 33" horizontal extension: Extends display pushing it out of the way when not in use

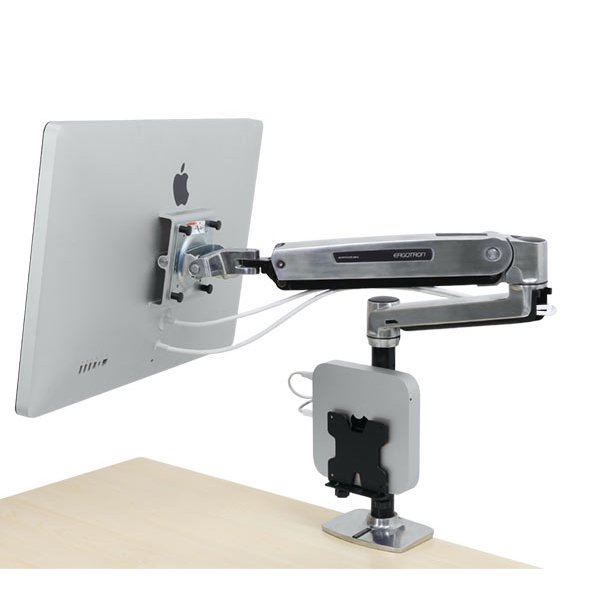

  • Apple compatibility: Can mount 27" 2013 iMac with built-in VESA adapter
  • Please see, if your display is smaller and lighter
Recommended Accessories
List Price: $600.00
Our Price: $279.95
Shipping: $24.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

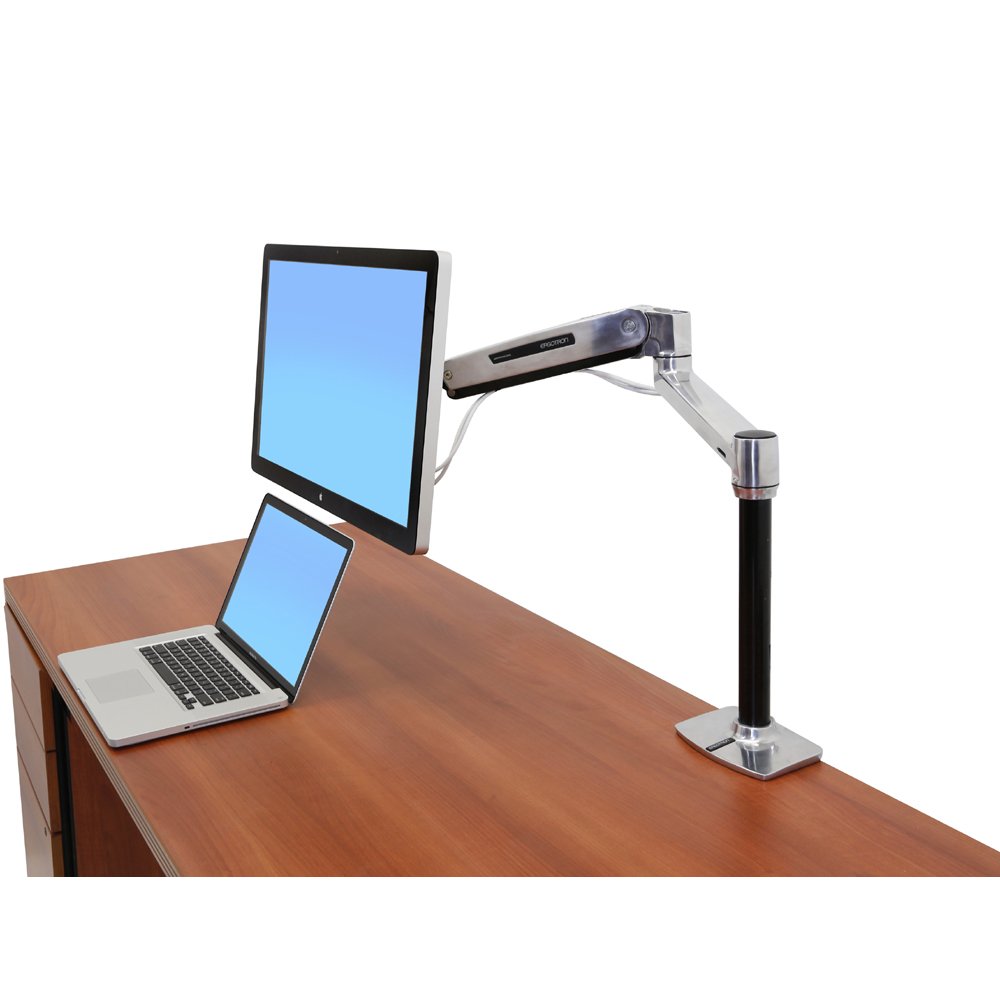

The Ergotron 45-384-026 is a versatile arm. Use it in your office to mount a large monitor to analyze data or mount a mid-sized TV for digital signage in a retail store weighing up to 30 lbs (13.6 kgs)

The LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture. Features include 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side motion.

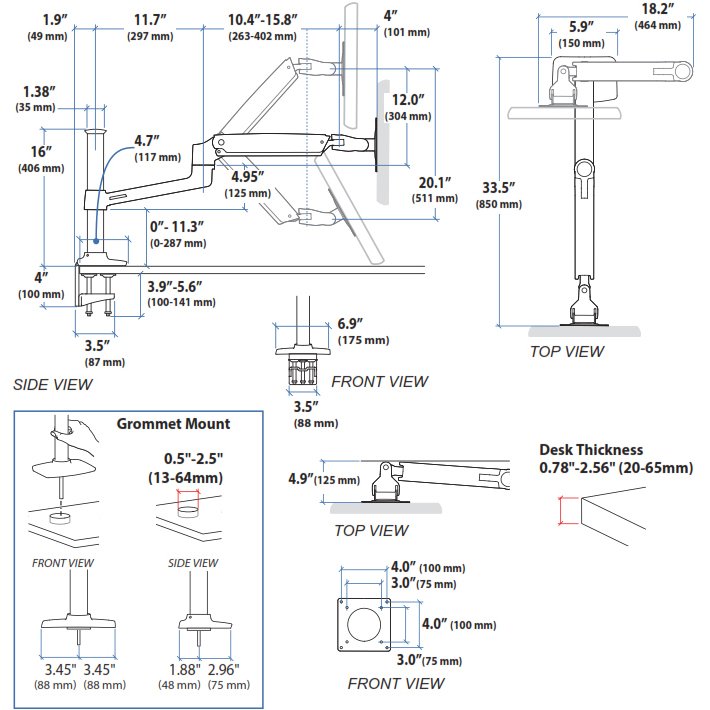

Technical Drawing

Technical Drawing for Ergotron 45-384-026 LX HD Sit-Stand Desk Mount LCD Arm

Technical Specifications

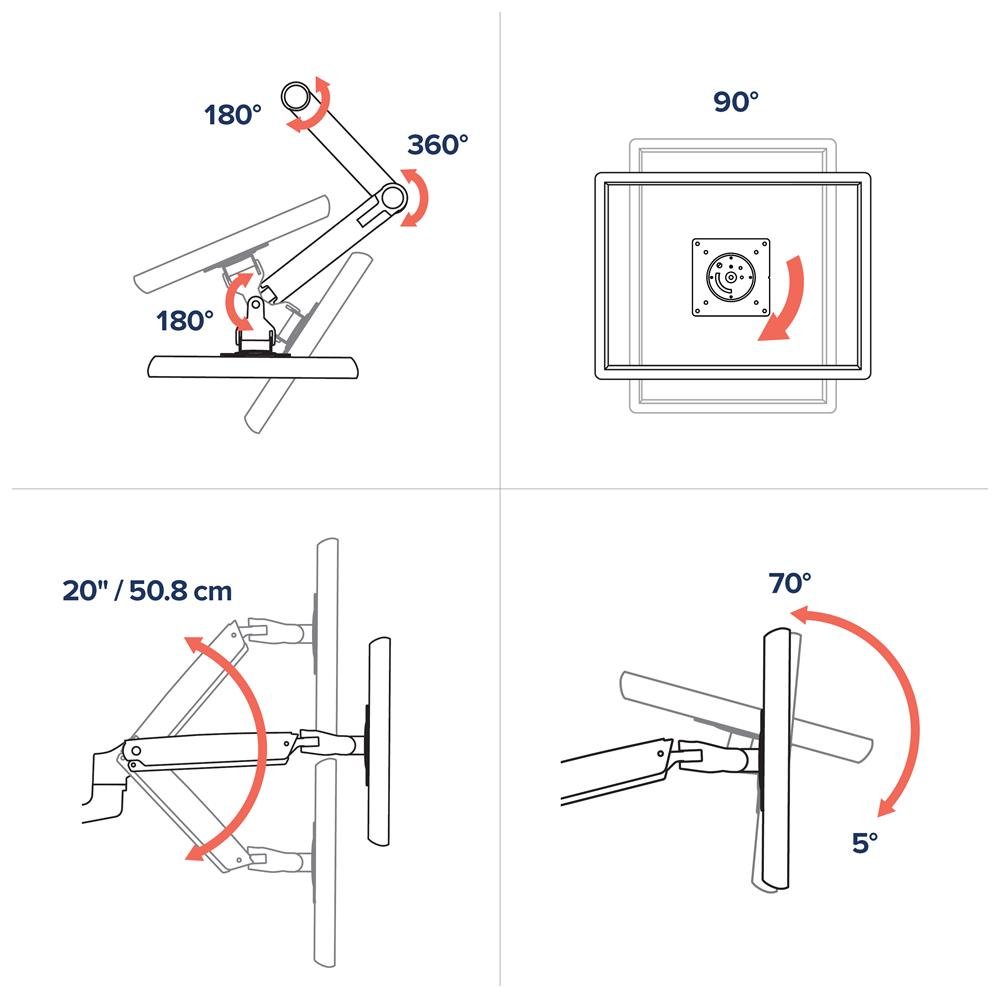

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 46"

14 - 30 lbs

6.3 - 13.6 kg

20"

51 cm

80° 360° 90° MIS-D/E/F

Product Information

Part Number 45-384-026
Description LX HD Sit-Stand Desk Mount LCD Arm (polished aluminum)
Includes
  • LX HD sit-stand arm
  • Extension
  • Desk clamp base
  • Grommet-mount base
  • 40 cm pole
  • VESA brackets
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Weight Capacity 14 to 30 lbs (6.3 to 13.6 kg). Monitor depth may affect weight capacity
Monitor Tilt 75° up and 5° down
Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Locking Connections Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts

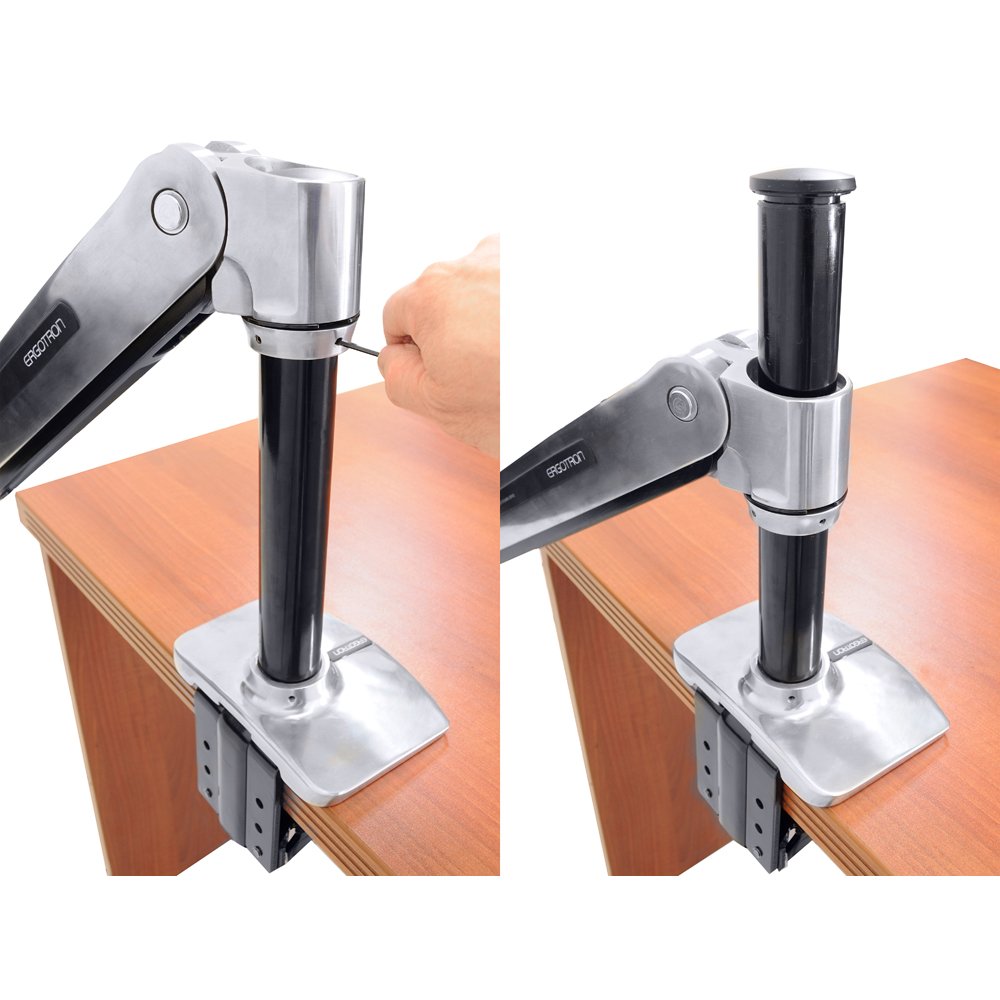

Mounting Options Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick

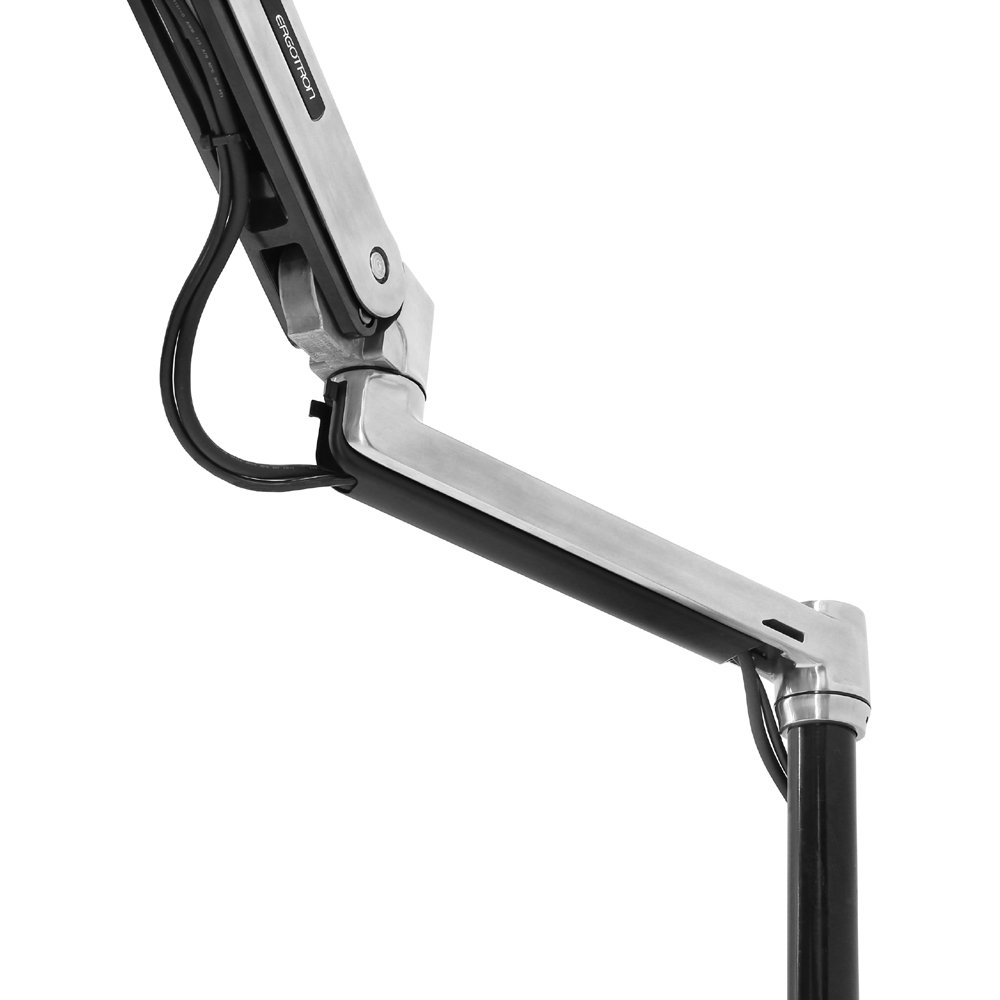

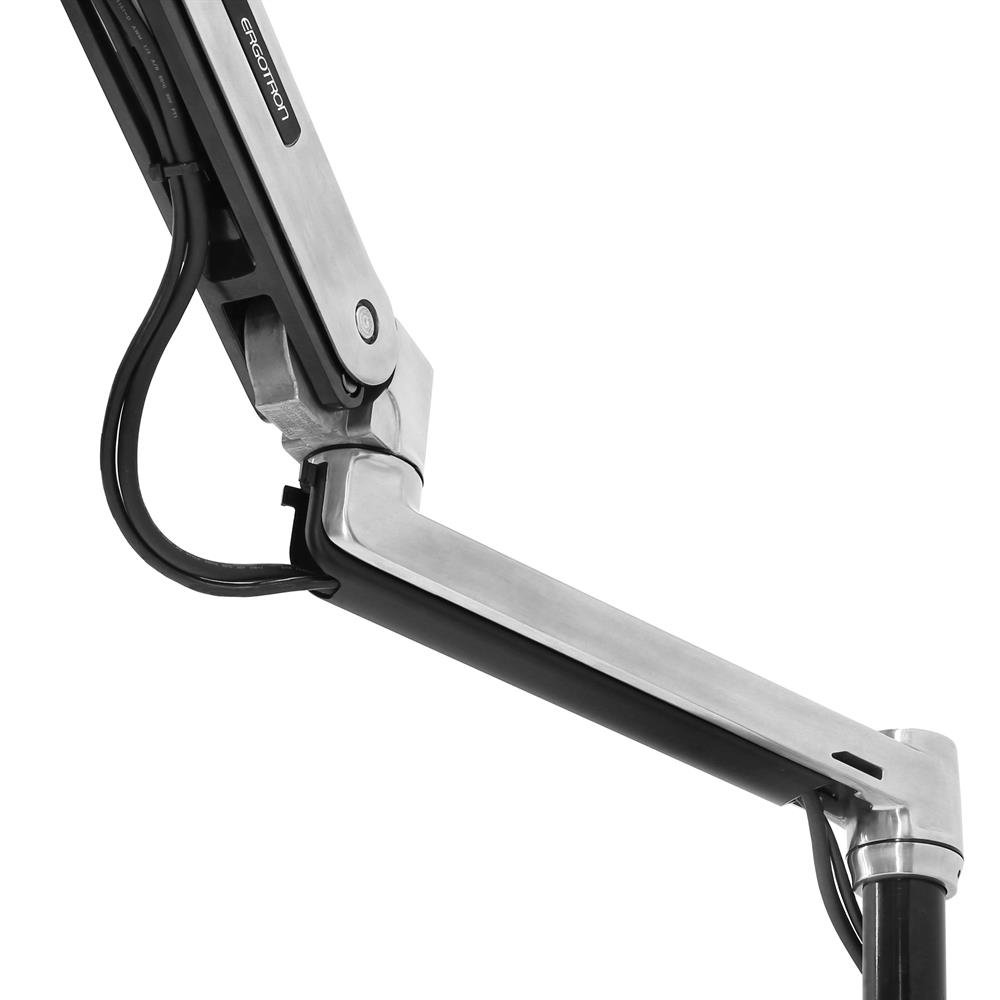

Cable Management Clips on the under side of the arm route and hide cords
LX Sit-Stand Keyboard Arm To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused.
NOTE Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
Product Weight 17.5 lbs (8 kg)
Shipping Dimensions 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
Shipping Weight 20 lbs (9.1 kg)
Warranty Ten (10) years

Benefits

  • 20" height adjustability allows users to alternate between sitting and standing positions while working on the display
  • Extends LCD up to 33" and pushes display out of the way when not in use
  • Vertical, horizontal adjustability provides ergonomic relief and relieves stress on the back, shoulder and neck
  • Increase viewing comfort - help reduce eye, back and neck strain
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment
  • Patented CF motion technology provides premium ease-of-use adjustment
  • Cable management clips on the under side of the arm route and hide cords
  • Ideal for space-constrained spaces - folds to within 4.5" (12 cm) of back of desk in storage position
  • Secure installation - locking connections between arm, extension and base
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Frequently Asked Questions

Question: I have two questions about this Ergotron product. First question is my user is 5'7", will this work as a sit/stand option with the pole only being 16"? Secondly, with the dual monitor kit, how heavy can both monitors be and the arm still articulate for sitting/standing? Answer: Even though the pole is only 16", this arm will work as a sit-stand option for your user. If you add a dual monitor kit, the weight capacity of the arm will reduce from 30 lbs to 24 lbs as the dual monitor kit adds 6 lbs weight of its own. Also both the monitors need to be between 17-24" in screen size with an outside width of 14-24.5". Even if you add the dual monitor kit, arm will still articulate for sitting/standing, that is, 20" height adjustment.
Question: With the Ergotron 45-384-026 clamped onto a desk, at its highest extension how many inches above the desk does it hold the monitor? I know that'll ultimately vary by monitor size but just trying to understand how many inches higher this provides at its peak. Also, just to confirm is it flexible enough so that at its lowest point it holds the monitor as low as the surface of the desk? Answer: At its highest extension, the LX HD Sit-Stand Mount Monitor arm is 26” above the desk from the center of the monitor. The post is 16”, so if you mount the arm at the top of the post, plus the 10” height adjustment (arm adjust 10” up and 10” down), you get the 26” at the highest at the center of the monitor. Yes, it is flexible enough it can go as low as hitting the bottom of the surface of the desk.
Model 45-384-026
Manufacturer Ergotron
Part Number 45-384-026
UPC 698833040098
Color Polished aluminum
Monitor Size Up to 46"
Weight Capacity 14–30 lbs (6.3–13.6 kg)
Adjustments 20" (51 cm) of vertical adjustment and 62" (157 cm) of side-to-side adjustment
Tilt Up 75 degree and down 5 degree
Pan 360 degree
Rotation 90 degree
Mounting Pattern VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY)
Weight 17.5 lbs (8 kg)
Shipping Dimensions 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
Shipping Weight 20 lbs (9.1 kg)
Warranty Ten (10) years
Mounting Options Desk
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
