Description

Mosaic provides flexibility, customization and scalability for healthcare systems seeking a new standard. Configure a workstation-on-wheels that matches the needs of nurses to do their jobs comfortably, safely and efficiently. Modular accessories, an expansive adjustment range and an easy-to-service design enable quick redeployment as future workflows and requirements evolve.

Note: Mosaic is a modular platform that is highly customizable. Ergotron representatives are ready to assist you in configuring a solution that matches your workflow requirements.

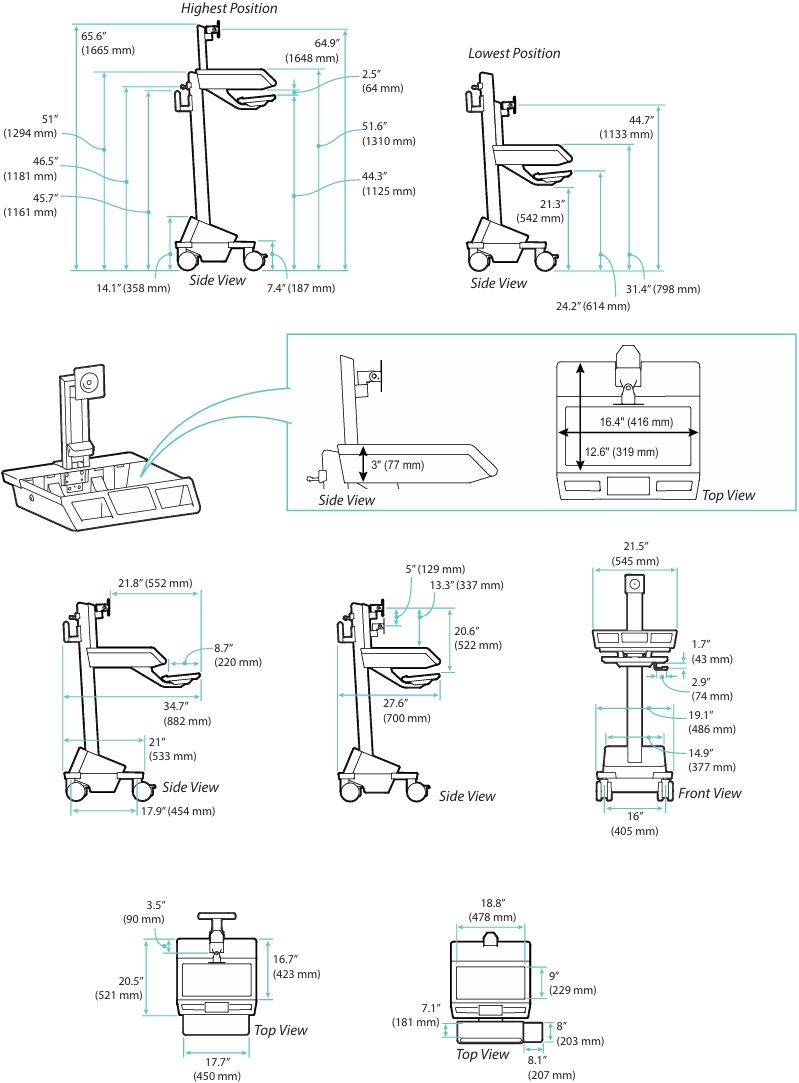

Technical Drawing

Technical Drawing for Ergotron M111-1101-100000-1-1 Mosaic LCD Cart, AC Power, No Drawer

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 43 lbs

19.5 kg

25"

63.5 cm

35° 180° 360° MIS-D

Product Information

GTIN 00698833093841
Part Number M111-1101-100000-1-1
Description Mosaic LCD Cart, AC Power with LiFe Battery, No Drawer
Ships Fully assembled
Includes
  • Cart
  • LCD mount
  • Touchscreen control panel
  • Technology storage enclosure
  • 4-port USB hub
  • 4 power receptacles
  • Worksurface
  • Document holder
  • Badge-scanning location
  • Front and rear handles
  • Height-adjustment brake
  • Keyboard tray with slide-out mouse area
  • Wrist rest
  • Mouse pouch
  • Worksurface light
  • Keyboard lights
  • 4 locking casters (1 tracking caster)
  • Power cord and hook
  • AC power system with LiFe battery
  • RhythmConnect Asset Control software
  • Shipping Weight 126.0 lbs
    Weight Capacity Total maximum load on height-adjustment assembly = 43 lbs (19.5 kg), which includes combined weight of monitor, keyboard tray, worksurface, technology enclosure and added accessories. Allowable monitor weight = 5 to 11 lbs (2.3 to 5.4 kg), or ≤ 20 lbs (9.1 kg) with lift-height locked

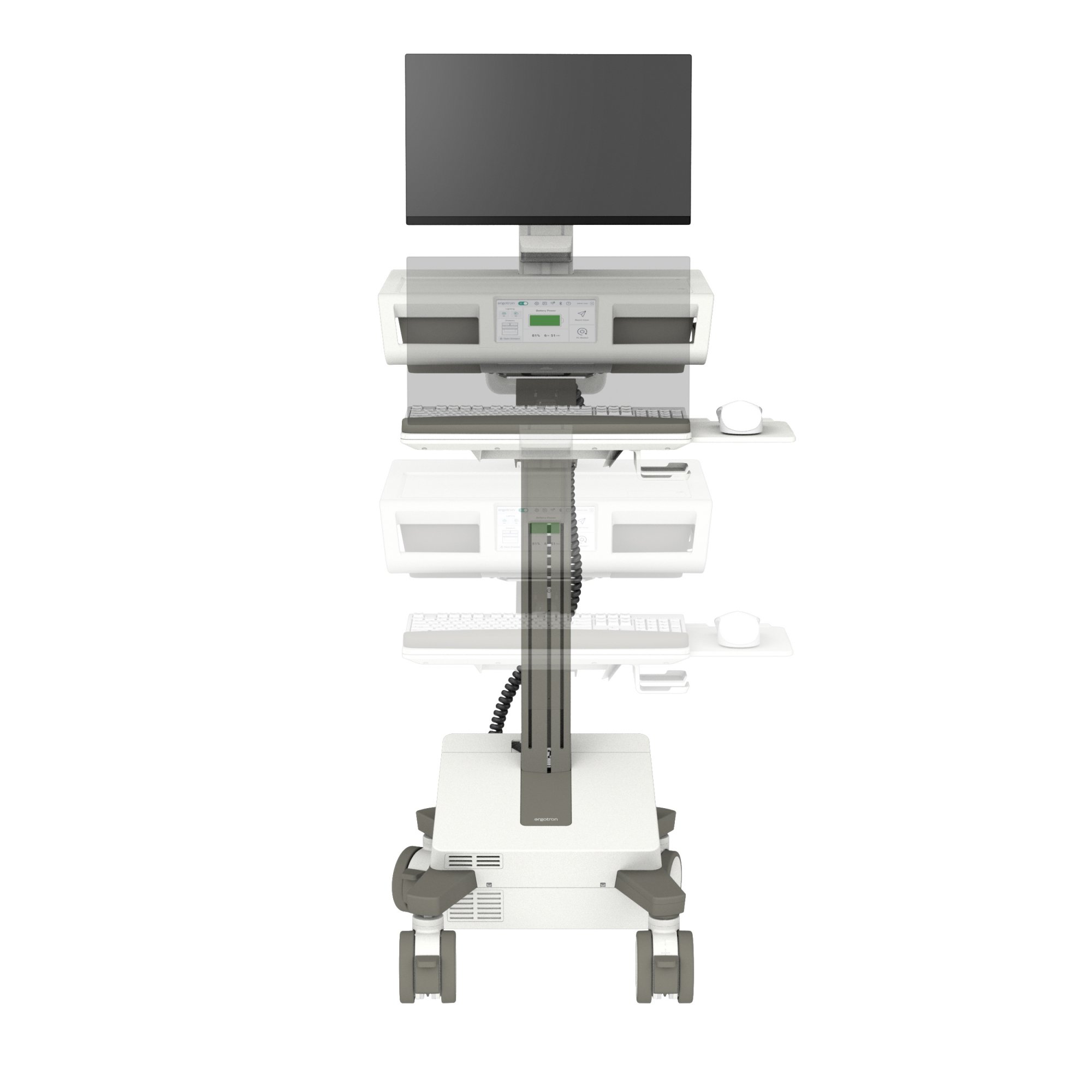

    Lift Range 25" (64 cm) total; 20" (51 cm) sit-to-stand adjustment + 5" (13 cm) independent monitor-height adjustment

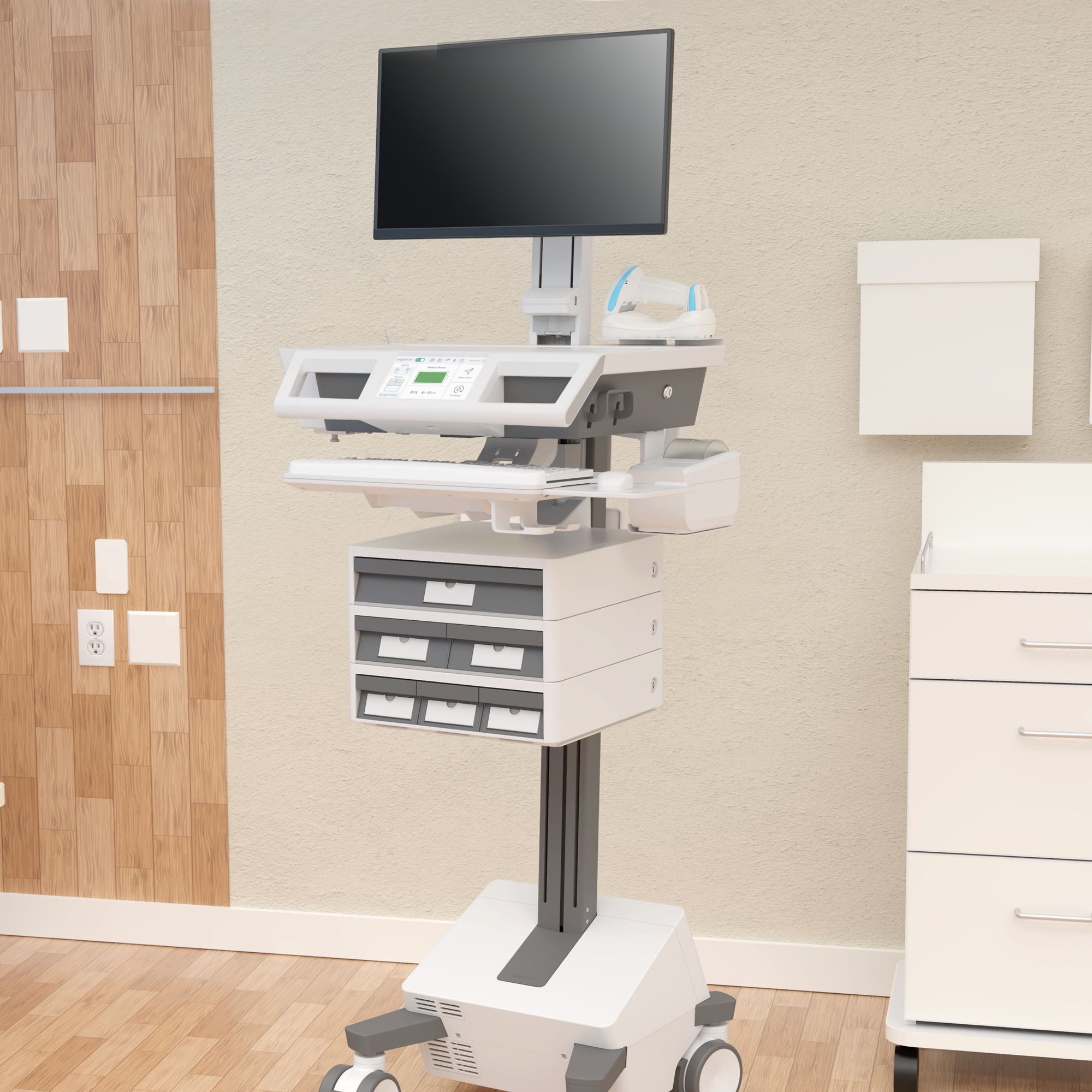

    Addition of 3 rows The addition of 3 rows of drawers will limit sit-to-stand adjustment to 16" (41 cm)
    Keyboard Tray Extends/retracts 7.5" (19 cm), turns side to side up to 180° and tilts back up to 12°
    Portrait/Landscape Rotation 360°; lock-out screw can be engaged to fix rotation position
    Warranty Five years for mechanical and electrical components; for onboard LiFe battery, 5 years against manufacturer defects and 3 years for 70% rated capacity (requires performance evaluation with RhythmConnect software)
    Electrical System
  • Output: 120VAC/60Hz, 150VA, 150W
  • Grounded Plug: NEMA 5-15P Hospital Grade
  • Integrated 45Ah Lithium Iron Phosphate (LiFe) battery
  • Temperature Range: operating 10° to 30°C (50° to 86°F); storage -20°C to 50°C (-4° to 122°F)
  • Relative Humidity Range: 5% to 95% (non-condensing)
  • Key Features
  • Open-architecture design accommodates future hardware upgrades
  • RhythmConnect cloud-based connectivity for proactive cart management

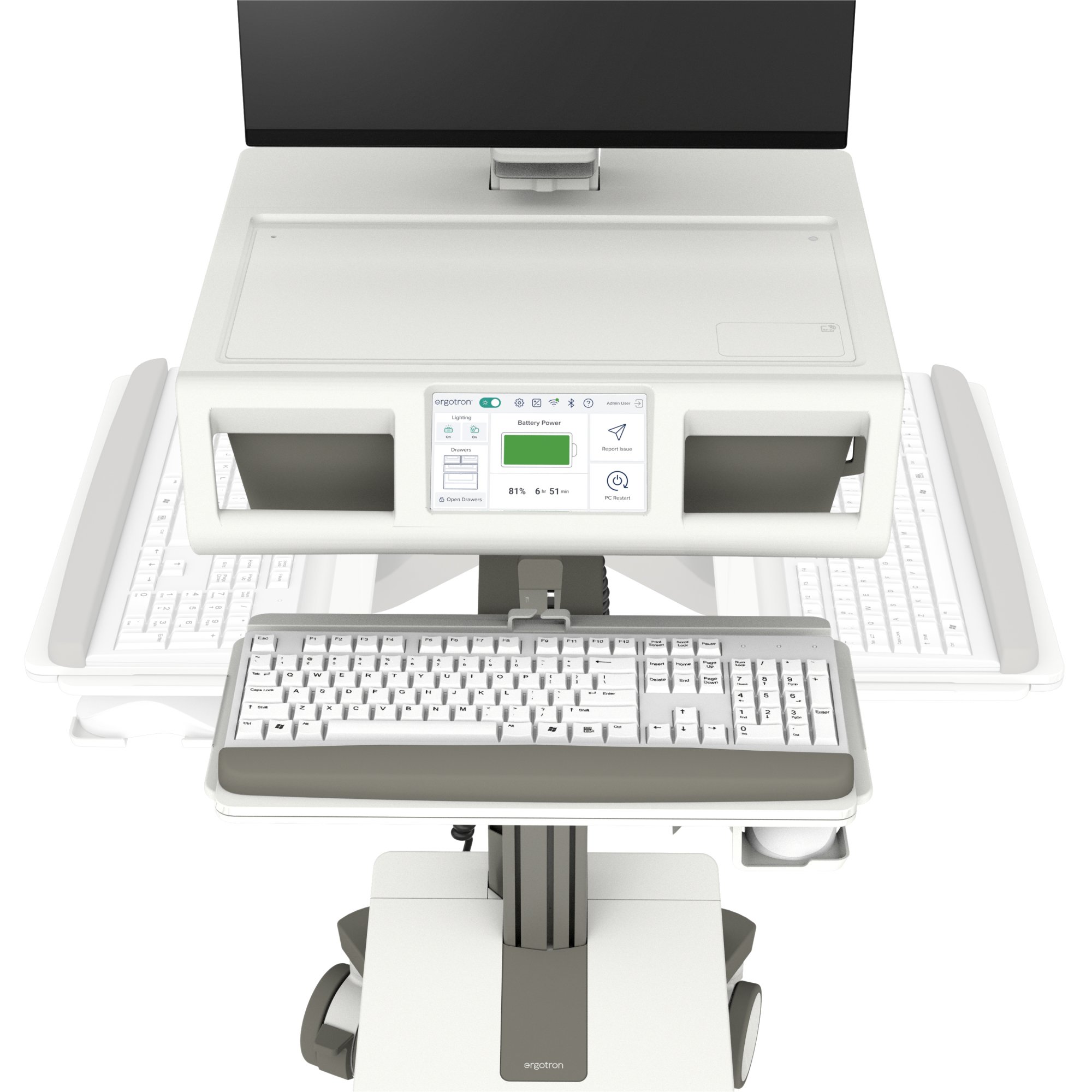

  • Integrated 7-inch touchscreen controls all lights and power system on/off; displays battery-charge levels and alerts operator when battery is low; includes issue-reporting submission interface; includes drawer-lock control when drawers are installed
  • Badge-scanning location accommodates customer-supplied RFID

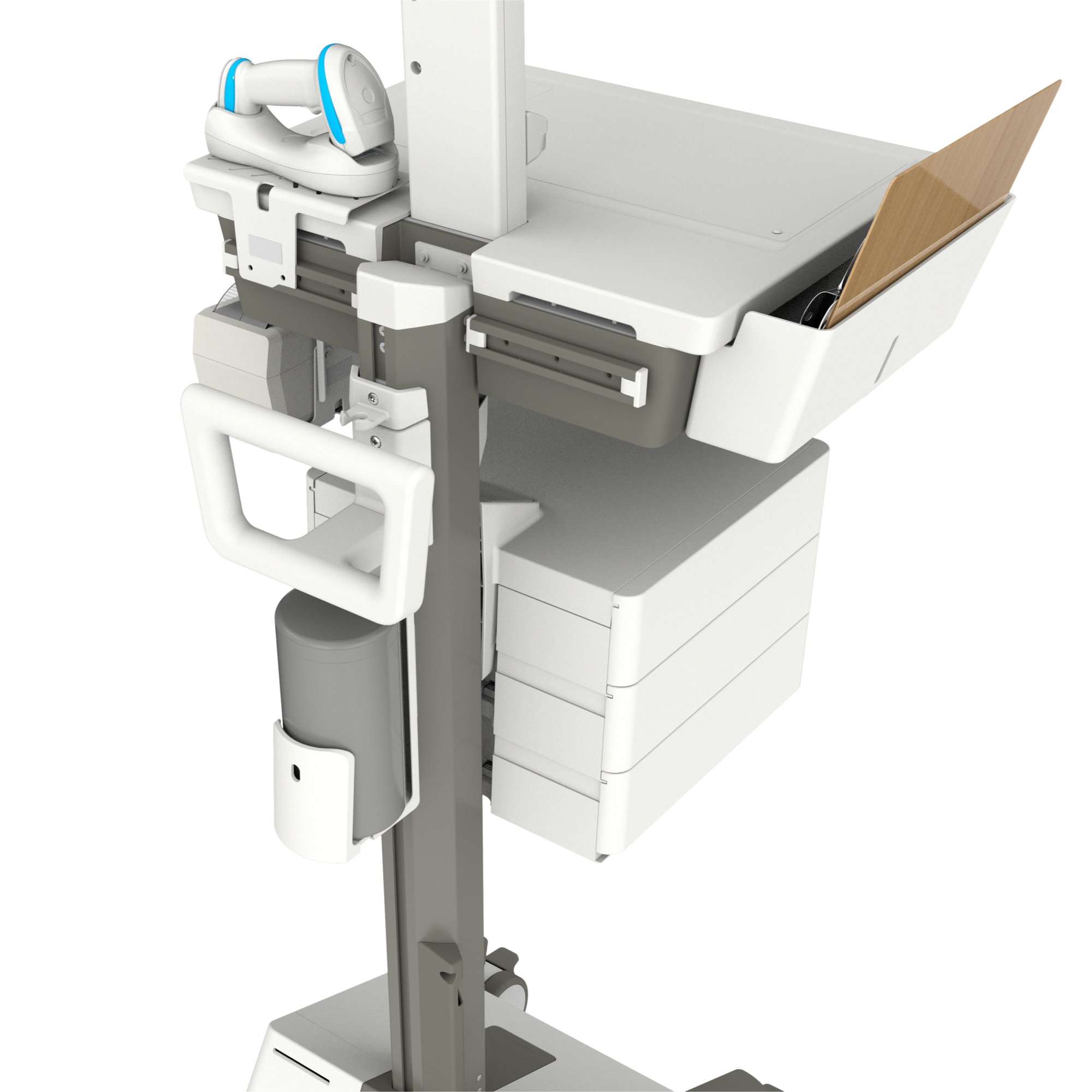

  • Multiple interfaces for attaching accessories: vertical rear T-slot; channels under technology enclosure; optional horizontal T-slots on back of technology enclosure and/or adjacent to VESA interface
  • Technology enclosure is outfitted with a removable, key-locked top worksurface for easy yet secure access to contents; stores PC and excess cables; enables data and power connectivity with USB hub and power receptacles
  • Technology enclosure interior dimensions: 16.4" x 12.6" x 3" (41.5 x 32 x 7.5 cm)
  • True Ergonomics

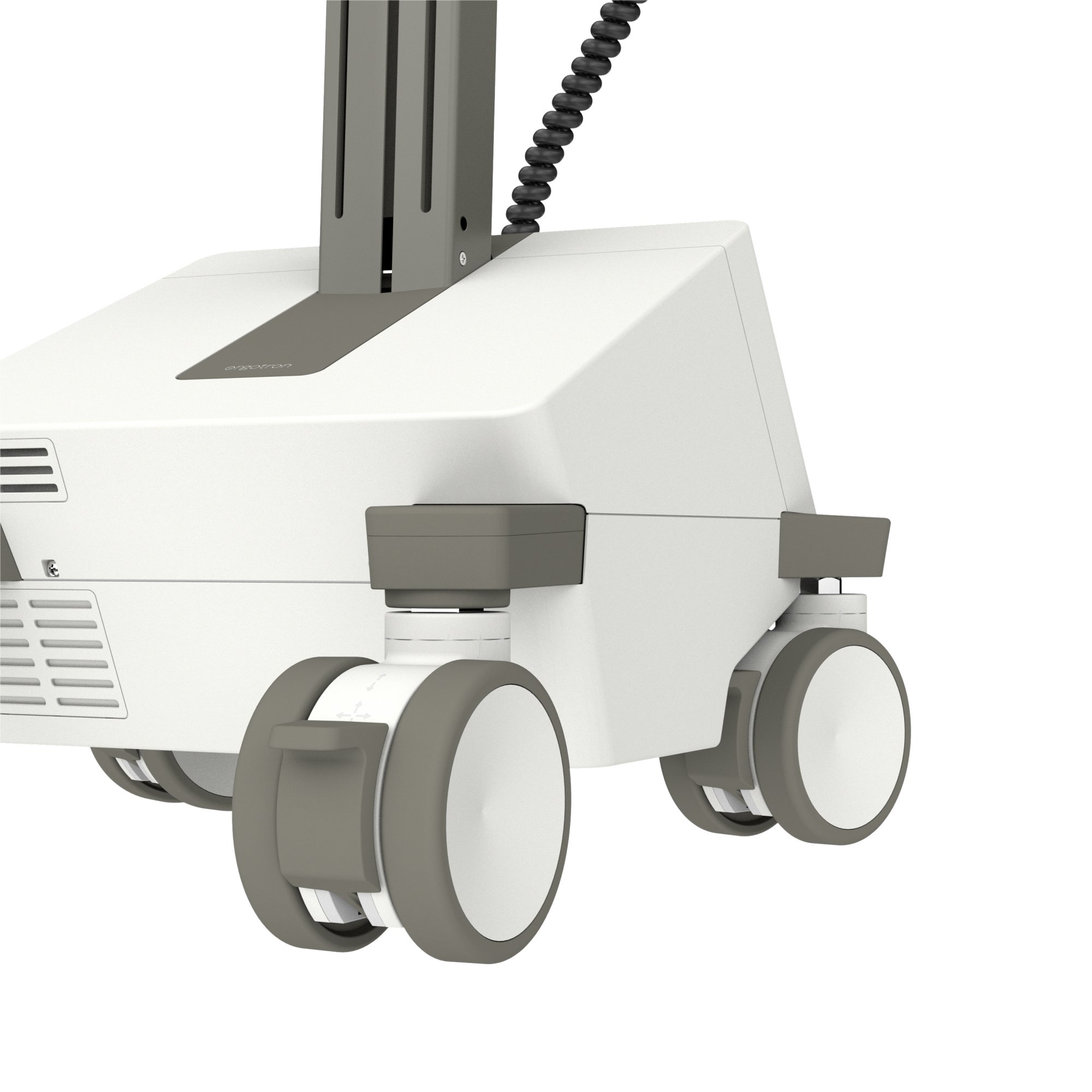

  • Dual-wheel 5" (13 cm) casters for easy push/pull mobility (all locking, 1 tracking)
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Optimally designed for users 5'0" to 6'1" (152 to 185 cm) tall to work comfortably when sitting or standing, even for prolonged periods. The exceptional height adjustment range means shorter and taller users can use the same workstation without compromising productivity
  • Patented Constant Force motion technology reduces forces required to adjust cart: change worksurface height as well as monitor and keyboard position with minimum effort
  • Safety
  • The entire power system and the FULL cart are certified to ANSI/AAMI ES60601-1 and CAN/CSA-C22.2 No. 60601-1. Also complies with EMI limits of FCC Part 15 Class A
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Designed to meet guidelines established by the American National Standards Institute for computer use
  • Benefits

    • Standardize with confidence: Modular accessory options can accommodate specialty workflows; easy servicing allows quick redeployment as needs change

    • Ergonomic design: Exceptional adjustment capability and a thoughtful design help caregivers work comfortably, reducing strain during long shifts

    • Improved patient care: Streamlines documentation so nurses can spend more time with patients and less time navigating cumbersome equipment

    • Effortless maneuverability: A compact footprint and ultra-smooth premium casters enable easy travel to the point of care, even in space-constrained areas

    • Long-lasting battery: Integrated Lithium Iron Phosphate (LiFe) battery keeps carts safely powered for more cycles to alleviate power anxiety

    • Minimized downtime: Use RhythmConnect software to remotely manage assets: Keep carts running and gain actionable insights for effective deployment

    Frequently Asked Questions

    Model M111-1101-100000-1-1
    Manufacturer Ergotron
    Part Number M111-1101-100000-1-1
    UPC 698833093841
    Monitor Size Up to 27"
    Weight Capacity Up to 43 lbs (19.5 kg)
    Lift (63.5 cm) 25 in
    Tilt 35 degree
    Pan 180 degree
    Rotation 360 degree
    Mounting Pattern MIS-D
    Shipping Weight 126 lbs
    Temperature Operating 10° to 30°C (50° to 86°F); storage -20°C to 50°C (-4° to 122°F)
    Humidity 5% to 95% (non-condensing)
    Interior Dimensions 16.4" x 12.6" x 3" (41.5 x 32 x 7.5 cm)
    Warranty 5 years
