$1,876.00

Innovative Winston Quad Monitor Sit-Stand Workstation

For optimal performance, select the model that will support the total weight of your monitors and all items that will be placed on the Winston work surface. This will include your keyboard and mouse. The typical weight of keyboard and mouse is between 2-4 lbs. Please note the monitor and the worksurface move in tandem and not independent of each other.

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.

Product ID 18192
HIGHLIGHTS
Innovative Winston Quad Monitor Sit-Stand Workstation
Quad Clamping Sit-Stand
Quad Clamp
Innovative Winston Quad Monitor Sit-Stand Workstation
Innovative Winston Quad Monitor Sit-Stand Workstation
Innovative Winston Quad Monitor Sit-Stand Workstation
Innovative Winston Quad Monitor Sit-Stand Workstation
WNST-4-124 Winston Workstation Back
Winston Workstation Worksurface
WNST-4-104 Vista Black
WNST-4-248 White
Innovative Winston Quad Monitor Sit-Stand Workstation
Quad Clamping Sit-Stand
Quad Clamp
Innovative Winston Quad Monitor Sit-Stand Workstation
Innovative Winston Quad Monitor Sit-Stand Workstation
Innovative Winston Quad Monitor Sit-Stand Workstation
Innovative Winston Quad Monitor Sit-Stand Workstation
WNST-4-124 Winston Workstation Back
Winston Workstation Worksurface
WNST-4-104 Vista Black
WNST-4-248 White

Highlights

  • Mounts 4 monitors 24" in size
  • Freestanding with silver cross bar
  • Height adjustment: 17"
  • Great for glass desktops (no drill needed)
  • All quad configurations have a silver cross bar
  • White color post does not come with compact work surface
  • 24-40 lbs weight capacity
  • Looking for a single or dual monitor workstation?
  • This unit cannot be converted to a single, dual or triple Winston workstation

Description

The Winston 4 monitor stand can mount up to four 24" monitors weighing 24-40 lbs. Mount onto a glass desktop without drilling, and move this adjustable workstation up or down 17" by simply pulling on the side of the workstation with your hands. Easily alternate between a sitting and standing positions to ease body pain and boost your health.

Standing for just three hours a day can offer the same health benefits as running 10 marathons a year, and even extend your life by 2 years. Standing desks like this Winston workstation often counter several health concerns caused by too much sitting including obesity, type 2 diabetes, cardiovascular disease, and cancer.

This quad monitor stand is the first of its kind to have a locking cylinder that keeps your workspace in place to eliminate wobbling while you work. A spacious work surface means you'll have plenty of space for 24-30 lbs or documents, electronic devices, monitors, and other necessary items for your adjustable monitor stand.

With a sleek professional design, this multi monitor stand is perfect for a wide variety of users including IT and security desk managers, medical office associates, gamers, programmers, and graphic designers.

Convert your desk to a healthy sit-stand workstation in minutes. Winston Workstation quad freestanding sit-stand supports a four monitor setup and features push-button height adjustment. The only quad monitor mount in the industry. Freestanding base retrofits to any desk. Compact work surface, push-button height adjust, locking cylinder provides stability.

Winston Workstation - Energizing your body. Inspiring your mind. Instantly converts any desk into a sit-stand workspace boosting health and productivity. Recent studies have shown that sitting throughout the day can have the same negative health consequences as smoking. Winston seamlessly integrates into your workday for a boost in health and wellness. Winston Workstation now comes with a compact work surface, ideal for users with smaller spaces who want to take advantage of a healthy sit stand workstation.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter

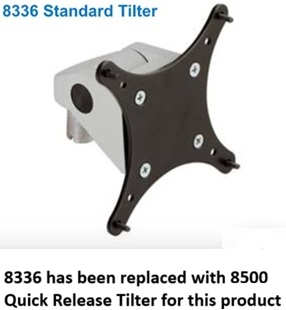

Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter


Technical Drawing

Technical Drawing for Innovative Winston Quad Monitor Sit-Stand Workstation

Technical Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Height Adjustment Mechanism Pneumatic
Screen Size Up to 24"
Vertical Height Adjustment 17" (43.2 cm)
Work Surface Size WNST-4 - 23" x 30", WNST-4-CW - 17" x 30"
Weight Capacity 24 - 40 lbs (10.9 - 18.1 kg)
Monitor Tilt 200 degree
Monitor Pivot Landscape to portrait
Mount Configurations Freestanding
Monitor Compatibility VESA 100mm
Cable Management Cables are clipped to column
Warranty 5 years

Features

  • Quick, easy monitor install. Take the work out of adjusting and replacing monitors. Simply attach, adjust, and remove all at the face of the beam. No need to slide monitors to remove.

  • Quick and Easy Monitor Install

  • Engineered for stability. Designed to accommodate standing work without the distraction of unwanted movement.

  • Engineered for stability

  • Expansive work space. Large surface and convenient storage tray allow you to bring all necessities with you when you stand.

  • Expansive work space

  • Upgrade your space. Retrofit your existing desk into a healthy workspace with the freestanding base.

  • Seamless height adjustment. Features a 17" range of vertical height adjustment and a locking cylinder to keep the workstation in place. No manual adjustment needed.

    Seamless height adjustment

  • Cable management. Cable clips in the column and beam keep the cables organized and out of the way.

    Cable Management

  • Ethical manufacturing. Winston is assembled in the USA using components created through a green manufacturing process.

  • Winston is designed and assembled in the US

  • Additional mounting options: clamp mount and thru mount also available.

  • VESA-monitor compatible - 100mm VESA adapter included.

  • This is a special order item with an average lead time of 4 weeks.

Model WNST-4-104, WNST-4-124, WNST-4-248
Manufacturer Innovative LCD Arms
Part Number WNST-4-104, WNST-4-124, WNST-4-248
Color 104 - Vista Black, 124 - Silver, 248 - Flat White
Height Adjustment Vertical 17" (43.2 cm)
Tilt 200 degree
Mounting Pattern VESA 100mm
Monitor Weight 8 - 58 lbs (depending upon the model)
Worksurface Dimensions WNST-4: 30" W x 23" D. WNST-4-CW: 30" W x 17" D
Desk Type Desk Mount
Price $1000 and above
Weight Capacity 24 - 40 lbs (10.9 - 18.1 kg)
Height Adjustment Mechanism Pneumatic
Monitor Size Up to 24"
Mounting Options Freestanding
Warranty 5 Years
