Ergotron 33-387-085 Neo-Flex Touchscreen Monitor Stand

Be the first to review this product
Product ID: 17818
Highlights
  • Monitor Stand: For touchscreen displays, all-in-one PCs
  • Display: Holds a monitor 14-23.7 lbs in weight
  • 6.5" of height adjustment: optimizes screen viewing
  • 115 degree of tilt adjustment: moves the screen parallel to the desktop
  • 360 degree of rotation: enables effortless sharing of the screen with other viewers
Recommended Accessories
Our Price: $89.00
Shipping: $12.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Ergotron 33-387-085 has a robust hinge mechanism that provides an incredible 115 degrees of tilt adjustment while simultaneously controlling monitor height. This flexibility allows the screen to be moved parallel with the desktop - perfect for touchscreen applications.

This stand’s strength and heavy-duty design also make it well suited for use with all-in-one PCs and hefty displays.

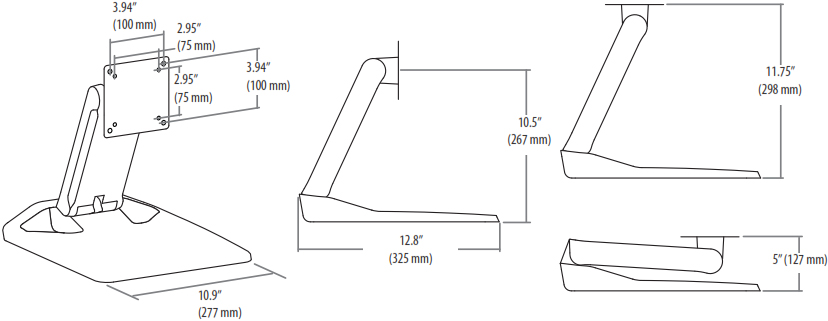

Technical Drawing

Technical drawing for Ergotron 33-387-085 Neo-Flex Touchscreen Stand



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 27" 14-23.7 lbs

6.5-10.8 kg

6.5"

17 cm

115° 360° - MIS-D



Product Information

Part Number

33-387-085

Description

Neo-Flex Touchscreen Stand (black)

Includes

  • Base

  • Hinged arm and pivot

  • Adjustment tool

Large Screens

May contact the worksurface when moved to the lower position with the screen perpendicular to desktop: height-adjustment range may be limited

Tilt Range

+25°/-90°; 115° total

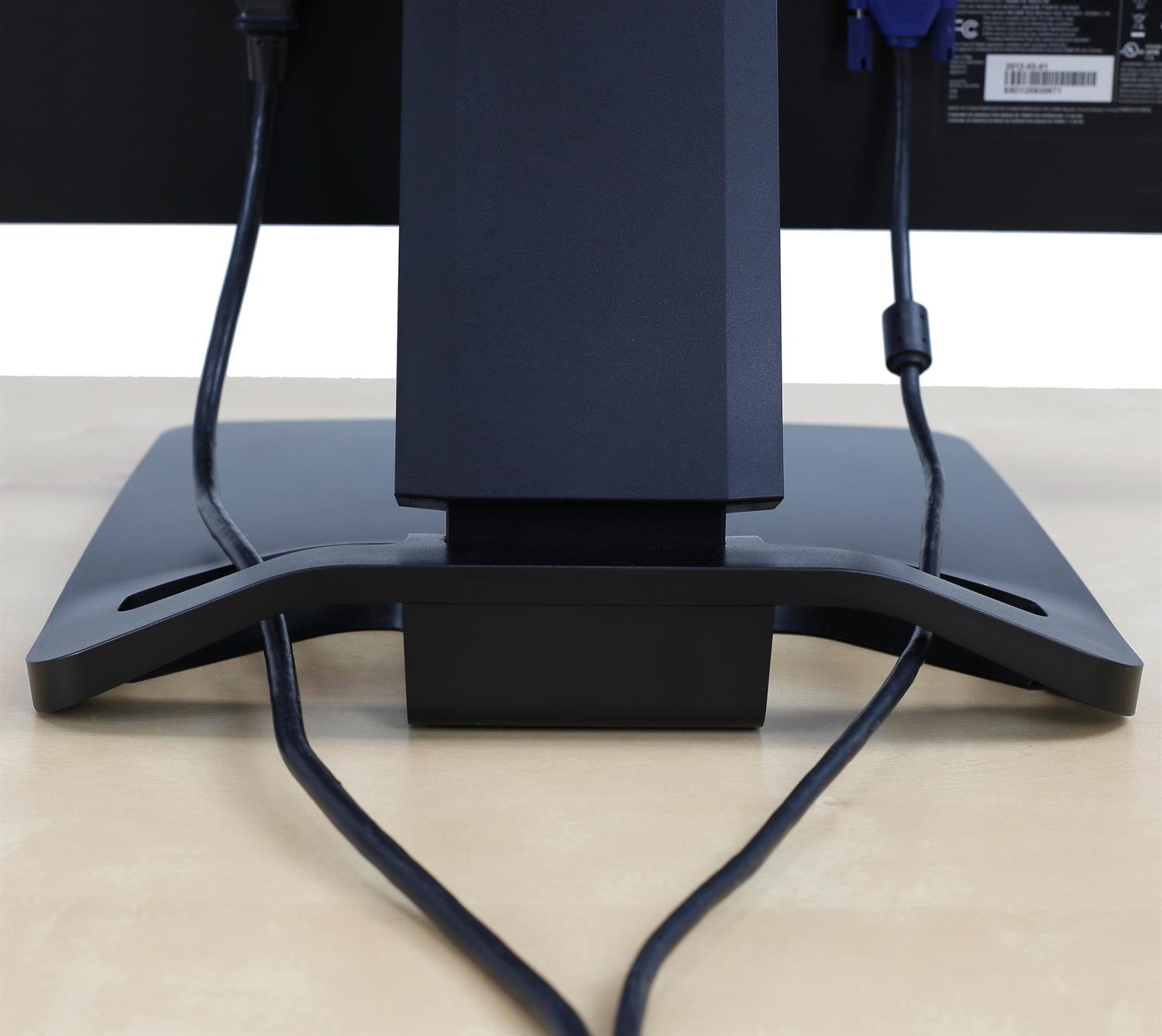

Cable Management

Simple cable management feature routes cords

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately

Shipping Dimensions

16" x 13.5" x 9" (40.6 x 34.3 x 23 cm)

Shipping Weight

10 lbs (4.5 kg)

Warranty

Three (3) years



Benefits

  • Ideal for touchscreen and all-in-one PC applications

  • Solid platform: screen remains stable when touched

  • Easy adjustment, easy installation

  • Up to 6.5 inches (17 cm) of height adjustment for customized, ergonomic viewing of the screen

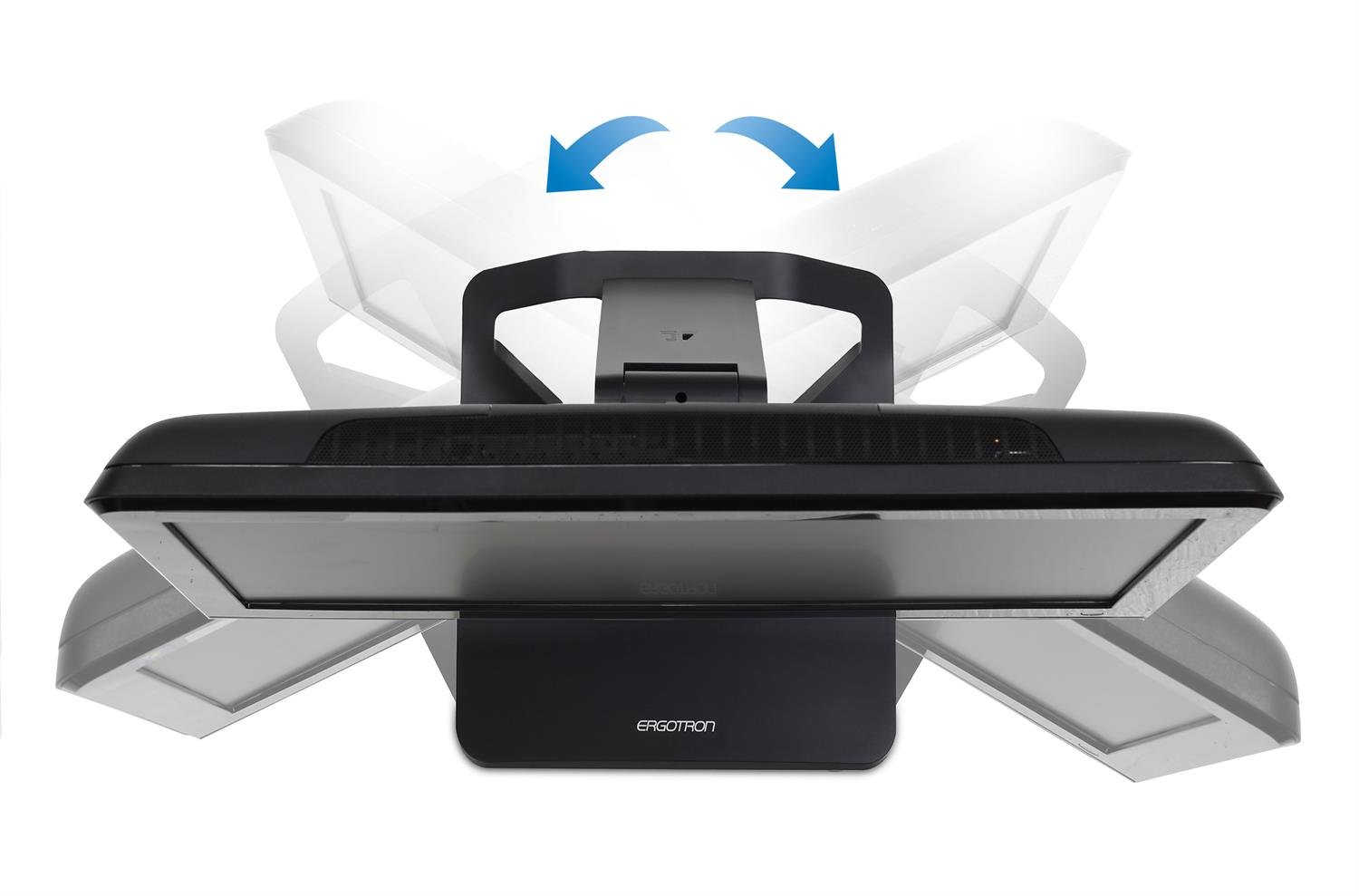

  • Full 360-degree rotation, which allows effortless screen sharing with others

  • A great solution for bi-focal viewing when screen is lowered and tilted upward

  • Heavy-duty design and extra capacity make it the perfect monitor stand for hefty displays or all-in-one computers

  • A visual indicator on back of stand lets you know when the proper counter-balance tension is achieved during setup, ensuring optimum motion adjustment





Model 33-387-085
Manufacturer Ergotron
Part Number 33-387-085
UPC 698833040920
Color Black
Monitor Size Up to 27"
Weight Capacity 14–23.7 lbs (6.5–10.8 kg)
Lift (17 cm) 6.5 in
Tilt +25 degree/-90 degree; total 115 degree
Pan 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). For displays that use a 200 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Shipping Dimensions 16" x 13.5" x 9" (40.6 x 34.3 x 23 cm)
Shipping Weight 10 lbs (4.5 kg)
Warranty Three (3) years
Mounting Options Desk Stand
Monitor Arm Types 1 Monitor
