Ergotron 33-326-085 Neo-Flex All-In-One Lift Stand

Be the first to review this product
Product ID: 15919
Highlights
  • All-in-One Lift Stand enables the user to mount CPU, monitor and keyboard to one stand
  • Ideal for tight areas and moving the stand from one area to the other
  • Monitor size: up to 24"; Monitor weight: 6 - 16 lbs
  • CPU size: Min. 7"H x 1.8" D and Max. 14" H x 4" D
  • Total Stand capacity: 37 lbs
Recommended Accessories
List Price: $145.00
Our Price: $83.99
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

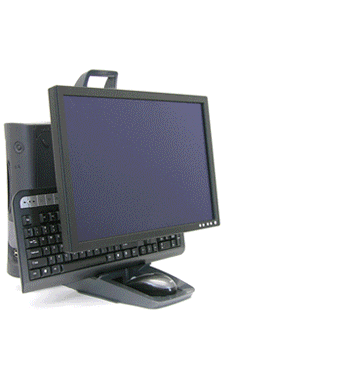

Animation of Ergotron 33-326-085 Neo-Flex All-In-One Lift Stand

Description

Add ergonomic adjustability and portability while saving space with this Ergotron 33-326-085 unique all-in-one stand. The perfect accessory for space-constrained areas, it enables you to mount both a CPU and display while providing effortless height adjustment of the monitor.

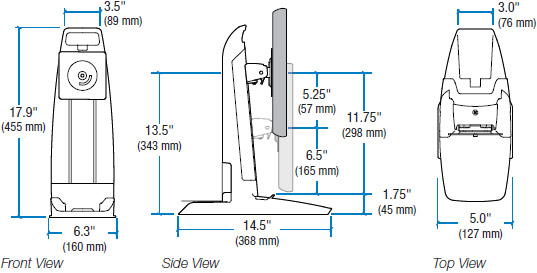

Technical Drawing

Technical Drawing for Ergotron 33-326-085 Neo-Flex All-In-One Lift Stand

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

6 - 16 lbs

2.7 - 7.3 kg

5"

12.7 cm

30° 360° 90° MIS-D

Product Information

Part Number 33-326-085
Description Neo-Flex All-In-One Lift Stand (black)
Includes
  • Stand

  • CPU strap

  • Manual

  • VESA monitor mounting kit

  • Cable ties

Not Included CPU and monitor not included
Weight Capacity 6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg)
Monitor up/down Tilt +25°/-5°
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
UL Compliant Meets UL Specification 1678 Tip Test
Compatible Compatible with most 15"–24" displays, and most small or ultra small form factor CPUs, notebook computers, and gaming consoles. Maximum CPU size = 14" x 14" x 4" (36 x 36 x 10 cm)
Motion Motion may be restricted when using 22"–24" monitors in portrait mode
Mounting Option Two M4 threaded screw inserts are located at the bottom of the base to allow for attachment of the stand to worksurface. Screws not supplied. Hole-spacing from center to center = 4.5" (114 mm)
Shipping Dimensions 24" x 20" x 8" (610 x 508 x 203 mm)
Shipping Weight 8 lbs (3.6 kg)
Warranty Three (3) years

Benefits

  • Transport a workstation anywhere easily and quickly

  • Deploy multiple, complete computer systems with ease; pick up systems using the integrated handle and lock them up at night

  • Open architecture design allows users to attach a variety of systems, including gaming platforms like Playstation and Xbox

  • Mix & match CPU box and monitor from different vendors; update the display or CPU without disturbing full system

  • Position your display for maximum ergonomic comfort to relieve eye, neck and back strain

  • Compact design and small footprint keeps workspace manageable - great for computer labs

  • Easy to use: Simple installation and effortless operation

Model 33-326-085
Manufacturer Ergotron
Part Number 33-326-085
UPC 698833009798
Color Black
Monitor Size Up to 24"
Weight Capacity 6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse.
Lift (12.7 cm) 5 in
Tilt 30 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimension Maximum CPU size = 14" H x 4" D (36 x 10 cm); minimum CPU size = 7" H x 1.8" D (18 x 4.6 cm). The CPU should be centered on the stand
Shipping Dimensions 24" x 20" x 8" (610 x 508 x 203 mm)
Shipping Weight 8 lbs (3.6 kg)
Warranty Three (3) years
Mounting Options Desk Stand
Monitor Arm Types 1 Monitor
Weight 5.4 lbs (2.4 kg)

Be the first to review this product

Ergotron 33-326-085 Neo-Flex All-In-One Lift Stand

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
