$792.00

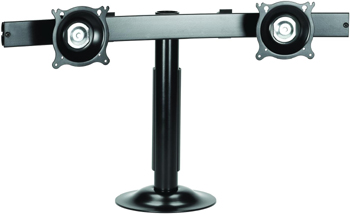

Chief Dual Horizontal Grommet Mount KTG220B or KTG220S

Product ID 15753
Chief Dual Horizontal Grommet Mount KTG220B or KTG220S
Chief Dual Horizontal Grommet Mount KTG220B or KTG220S
Chief Dual Horizontal Grommet Mount KTG220B or KTG220S
Silver color
Chief Dual Horizontal Grommet Mount KTG220B or KTG220S
Chief Dual Horizontal Grommet Mount KTG220B or KTG220S
Chief Dual Horizontal Grommet Mount KTG220B or KTG220S
Silver color

Description

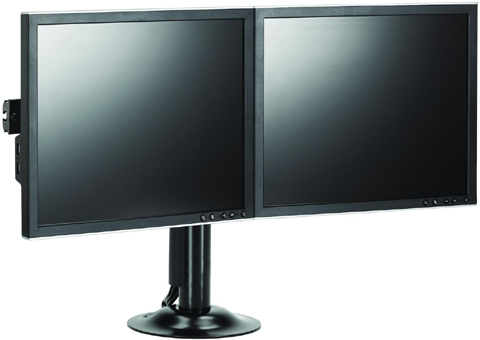

Chief KTG220 provides a rock solid, bolt-down solution for graphic designers, broadcasters and other users who commonly work with multiple small flat panel TVs or monitors.

  • Provides ergonomic adjustability for hassle-free, fingertip positioning of each monitor

Technical Drawing

Technical Drawing for Chief Dual Horizontal Grommet Mount KTG220B or KTG220S

Specifications

Color Black, Silver
Desktop Thickness Range 0.5 - 5" (13 - 127mm)
Grommet Hole Size Range 0.38 - 3.5" (10 - 89mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Overall Dimensions (H x W x D) 14.5" x 27.3" x 5.9" (368 x 694 x 149mm)
Pole Length 14" (356 mm)
Post-Installation Leveling Roll Yes
Shipping Weight 17.5 lbs (7.94 kg)
Solution Type Universal
Tilt + 15° , - 15°
TV Height Range 10 - 26" (254 - 660mm)
TV Width Range 10 - 22.7" (254 - 577mm)
Typical Screen Sizes 10 - 24"
Weight Capacity 35 lbs (15.9 kg)
Orientation Landscape, Portrait

Features

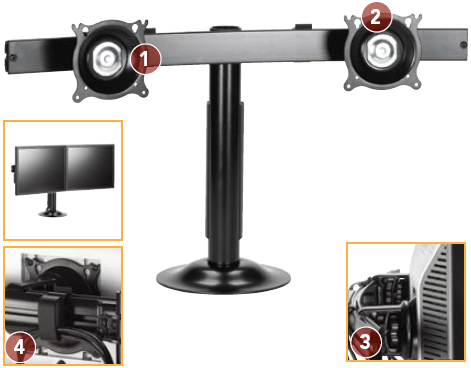

  • Centris Technology provides smooth, fingertip tilt in all directions

  • Screen angle stays set in place until you decide to re-adjust

  • Independent adjustment of each screen for proper ergonomic alignment

  • Teardrop hole pattern makes mounting the screens quick and easy

  • Heavy-duty, solid steel base and oversize pole for unmatched stability

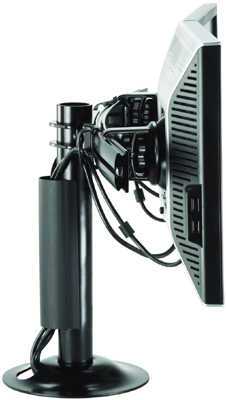

  • Conceal and protect cables using snap-on covers and cable clip

  • Heavy-duty, solid steel bolting plates and oversized pole for unmatched stability

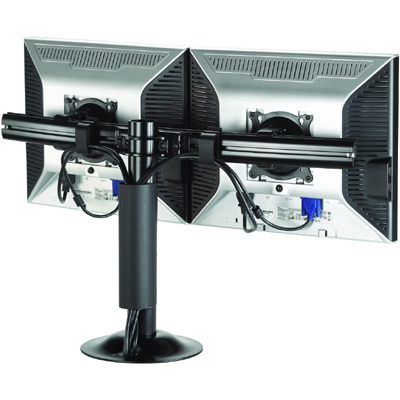

  • Integrated cable management

  • VESA 75 x 75 mm and 100 x 100 mm compatible

Frequently Asked Questions

q Can this mount accomodate 2 24 inch monitors (Samsung-E2420L) in the landscape position?
a

Yes, your monitors will fit with KTG220 and they can go in landscape position.

Model KTG220B, KTG220S
Manufacturer Chief Mounts
Part Number KTG220B, KTG220S
UPC 841872098128
Weight lb(s)
Mounting Options Desk
Number of Monitors 2 Monitors
Monitor Arm Types 2 Monitors
Color Black and Silver
Desktop Thickness Range 0.5 - 5
Grommet Hole Size Range 0.38 - 3.5
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 14.5
Pole Length 14
Shipping Weight 17.5 lbs (7.94 kg)
Tilt + 15 degree, - 15 degree
TV Height Range 10 - 26
TV Width Range 10 - 22.7
Screen Size 10 - 24 in
Weight Capacity 35 lbs (15.9 kg) per monitor
Orientation Landscape, Portrait
Maximum Monitor Size 24
Monitor Placement Side-by-Side
Price $300 - $399

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
