Chief TPM2000B Large Tilt Pole Mount (without interface)

Clamps TPK for different size poles and truss work are required and must be ordered separately.
Chief TPM2000B Large Tilt Pole Mount (without interface) click image to enlarge
This product has the following options available:
List Price: $259.00
Our Price: $189.60
You Save: $69.40
Shipping: $0.00 *  - Free Ground Shipping
* applies to Contiguous United States
Add to Cart

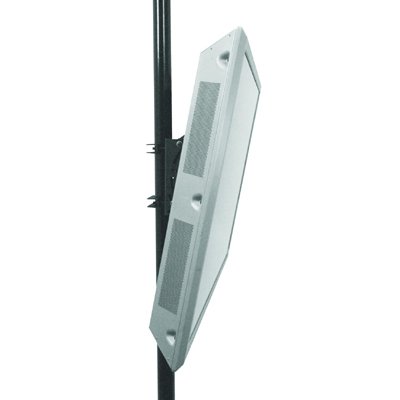

Chief TPM-2000B Large (42"-71") Tilt Pole Mount (without interface)



Chief TPM-2000B Large (42"-71") Tilt Pole Mount (without interface)









Features of Chief TPM 2000B:



  • Three Mount Options: Truss/Pole Static Mount, Pole Pitch-Adjustable Mount, and Truss Pitch-Adjustable Mount.

  • Three Tilt Adjustment Options on TPM and TPP: +/- 15 º tilt on gravity centered axis point, lockable tilt, pre-set tilt locking points at 0º, 5º, 10º and 15 º to quickly and easily align multiple displays.

  • Install mount horizontally and use pitch adjustment for side-to-side pivot.

  • Install on vertical or horizontal truss.

  • Attach displays in portrait or landscape orientation.

  • TPS/TPP span most truss systems up to 14" (OD).

  • Truss/Pole clamps fit a wide variety of truss and pole dimensions.

  • Finishing Cover accessories enhance aesthetics and cover hardware for added security.

  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch.

  • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen).

  • Integrated security allows display to be locked to mount by adding a padlock.

  • Compatible with TPK clamp accessories.

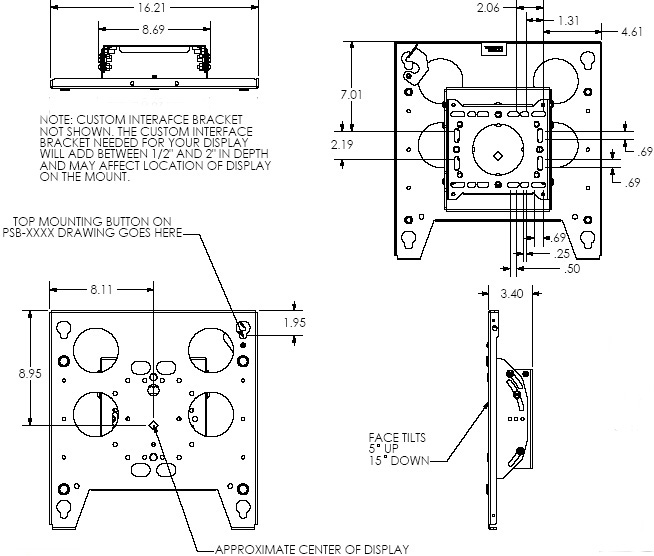

Technical Drawing of Chief TPM2000B Large Tilt Pole Mount Black



Technical Drawing of Chief TPM2000B Large Tilt Pole Mount Black









Description of Chief TPM-2000B:



Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.

  • Clamps for different size poles and truss work are required and must be ordered separately.







Specifications of Chief TPM 2000B:



Color:

Black

Minimum Depth:

3.4" (86.4mm)

Mounting Method (universal Versions):

200 x 200mm - 862 x 517mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

16.2" x 17.1" x 3.4" (412 x 433 x 86mm)

Post Installation Leveling (Roll):

Yes

Typical Screen Sizes:

42" - 71"

Weight Capacity:

150 lbs (68.kg)







Literature (Please open the following documents for more technical information)




Chief TPM2000B Large (42-71") Tilt Pole Mount (without interface) - Catalog Page

- pdf

Chief TPM2000B Large (42-71") Tilt Pole Mount (without interface) - Installation Assembly

- pdf

Chief TPM2000B Large (42-71") Tilt Pole Mount (without interface) - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products



Model TPM2000B
Manufacturer Chief Mounts
Part Number TPM2000B
Color Black
Minimum Depth 3.4" (86.4mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions (H x W x D) 16.2" x 17.1" x 3.4" (412 x 433 x 86mm)
Screen Size 31-45" in
Weight Capacity 150 lbs (68.kg)
Screen Size 46-60" in
Screen Size 61" and larger in
