$69.00

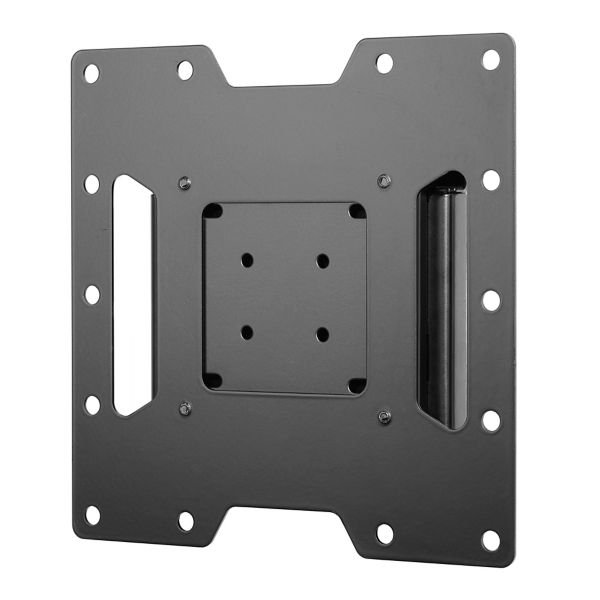

Peerless SF632 or SF632P SmartMount Flat Wall Mount for 22" to 43" Displays

Product ID 14463
HIGHLIGHTS
Peerless SF632 or SF632P SmartMount Flat Wall Mount for 22" to 43" Displays
Peerless SF632 or SF632P SmartMount Flat Wall Mount for 22" to 43" Displays

Highlights

  • SF632: For mounts requiring theft resistant hardware, installed with security tool( included)

  • SF632P: For mount requiring standard hardware, installed with a Philips screwdriver

  • Design is UL listed and tested to four times stated load capacity

  • Integrated security options available

  • Includes all necessary wall and display attachment hardware

  • Accommodates 75, 100, 200 x 100, or 200 x 200mm VESA mounting patterns

  • Display adaptor simply slides into the wall plate for quick and easy installation

  • Slim design positions the display only 1.02" (26mm) from the wall

Description

The SmartMount Flat Wall Mount series offers the most versatile installation features and mounting options. Peerless SF632(P) models low-profile design offers the sleek, aesthetically pleasing look to fit into any décor. Security screws provided in peerless SF632 model deter tampering and theft. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

Helpful Hints: The SF632’s design positions the display just 1.02" from the wall, perfect for almost any low-profile application.

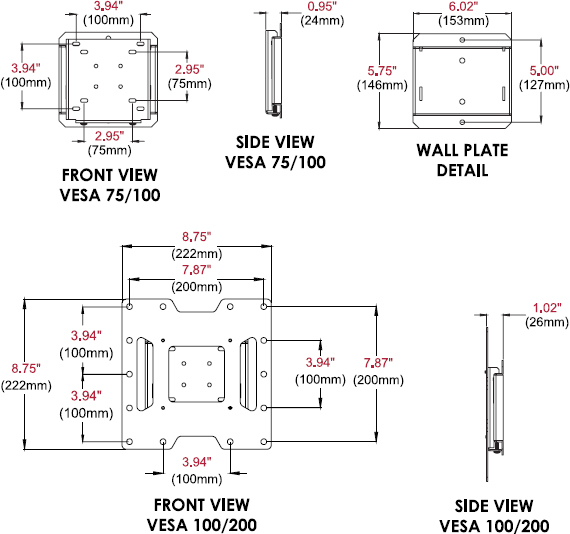

Technical Drawing

Technical drawing for Peerless SF632 or SF632P SmartMount Flat Wall Mount for 22"-40"



Specifications

Minimum to Maximum Screen Size

22" to 40"

VESA Pattern

75 x 75, 100 x 100, 200 x 100, 200 X 200

Weight Capacity

115 lbs (52.0 kg)

Color

Black

Finish

Powder Coat

Distance from Wall

1.02" (26mm)

Mounting Pattern

75 x 75, 100 x 100, 200 x 100, 200 x 200mm (2.95 x 2.95, 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87")

Security Features

Security Hardware

Product Dimensions

8.75" x 8.75" x 1.02" (222 x 222 x 26mm)

Product Weight

2.85 lbs (1.29 kg)

Shipping Dimensions

11.38" x 3.60" x 10.50" (289 x 91 x 267mm)

Shipping Weight

3.8 lbs (1.7 kg)

Package Contents

  • Wall mount

  • Wall and display installation hardware

  • Installation instructions

UPC Code

SF632: 735029241621

SF632P: 735029241645



Model SF632, SF632P
Manufacturer Peerless Mounts
Part Number SF632, SF632P
UPC 735029241621
Weight lb(s)
Color Black
Monitor Size 22"-40"
Mounting Pattern 75 x 75, 100 x 100, 200 x 100, 200 x 200mm (2.95 x 2.95, 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87")
Weight Capacity 115 lbs (52 kg)
Distance From Wall 1.02" (26 mm)
Dimensions 8.75" x 8.75" x 1.02" (222 x 222 x 26mm)
Shipping Dimensions 11.38" x 3.60" x 10.50" (289 x 91 x 267mm)
Shipping Weight 3.8 lbs (1.7 kg)
Warranty Limited 5 year
Weight 2.85 lbs (1.29 kg)
Mounting Options Wall
Number of Monitors 1 Monitor
