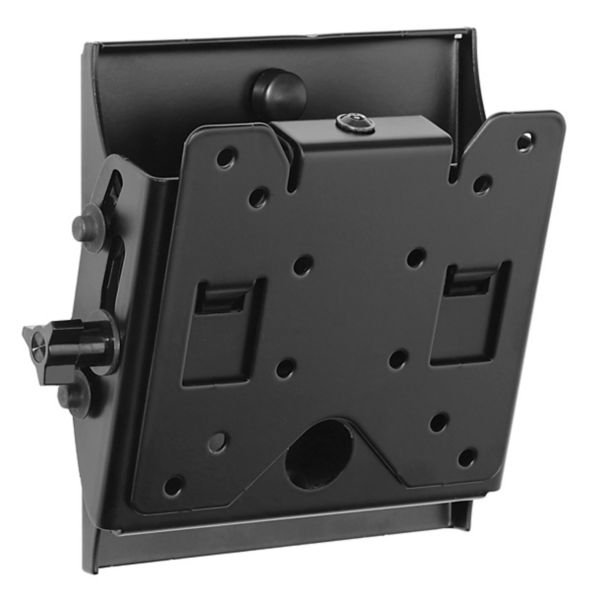

Peerless ST630 or ST630P SmartMount Tilt Wall Mount

Product ID 14468
Peerless ST630 or ST630P SmartMount Tilt Wall Mount
Peerless ST630 or ST630P SmartMount Tilt Wall Mount


Peerless ST630 SmartMount Tilt Wall Mount series offers the most versatile installation features and mounting options. Quickly and easily adjust the viewing angle without the use of tools. Security screws provided in the ST630 model deter tampering and theft. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy- Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

Helpful Hints: The ST630’s adjustable viewing feature provides 15° of forward tilt and 5° backward tilt, creating the most optimal viewing angle.


Technical Drawing



Minimum to Maximum Screen Size

10" to 29"

VESA Pattern

75 x 75, 100 x 100

Weight Capacity

80 lbs (36.0 kg)




Powder Coat

Distance from Wall

1.58 - 2.23" (40 - 57mm)

Mounting Pattern

75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94")

Security Features

Security Hardware


+15 / -5 degree

Product Dimensions

6.61 x 6.20 x 1.58 - 2.23" (168 x 157 x 40 - 57mm)

Product Weight

2.20 lbs (1.00 kg)

Shipping Dimensions

9.38" x 2.90" x 8.25" (238 x 74 x 210mm)

Shipping Weight

2.8 lbs (1.3 kg)

Package Contents

  • Wall mount

  • Wall and display installation hardware

  • Installation instructions

UPC Code

  • ST630 - 735029236627

  • ST630P - 735029236641



  • Design is UL listed and tested to four times stated load capacity

  • Integrated security options available

  • Includes all necessary wall and display attachment hardware

  • Mount accommodates displays with VESA 75 and 100mm hole patterns

  • Display adaptor simply slides into the wall plate for quick and easy installation

  • Display is positioned only 1.58" (40mm) from wall for a low-profile application

  • Tilt angle locks into place with simple tightening of thumbscrew

  • Adjustable 15° forward tilt and -5° backward tilt for finding the optimal viewing angle



Model ST630, ST630P
Manufacturer Peerless Mounts
Part Number ST630, ST630P
UPC 735029236627
Weight lb(s)
Color Black
Monitor Size 10"-29"
Weight Capacity 80 lbs (36.0kg)
Distance From Wall 1.58 - 2.23" (40 - 57mm)
Mounting Pattern 75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94")
Tilt +15 / -5 degree
Dimensions 6.61" x 6.20" x 1.58"-2.23" (168 x 157 x 40-57mm)
Weight 2.20 lbs (1.00kg)
Shipping Dimensions 9.38" x 2.90" x 8.25" (238 x 74 x 210mm)
Shipping Weight 2.8 lbs (1.3kg)
Warranty Limited 5 year
Mounting Options Wall
Number of Monitors 1 Monitor

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
