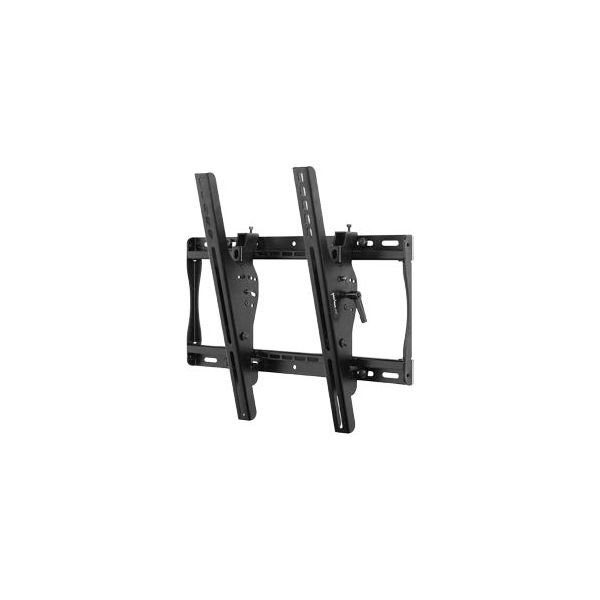

Peerless ST640 or ST640P SmartMount Universal Tilt Wall Mount

Product ID 14471
Peerless ST640 or ST640P SmartMount Universal Tilt Wall Mount
Peerless ST640 or ST640P SmartMount Universal Tilt Wall Mount


The SmartMount Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok tilt technology. Security screws provided in the ST640 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

Helpful Hints: The ST640’s adjustable viewing feature provides 15° of forward tilt and 5° backward tilt, creating the most optimal viewing angle.


Technical Drawing

Technical drawing for Peerless ST640 or ST640P SmartMount Universal Tilt Wall Mount



Minimum to Maximum Screen Size

32" to 50"

VESA Pattern

400 x 400

Weight Capacity

150 lbs (68.0 kg)




Powder Coat

Distance from Wall

2.63 - 5.71" (67 - 145mm)

Increlock Increments

-5, 0, 5, 10, 15

Mounting Pattern

458 x 405mm (18.02 x 15.95")

Security Features

Security Hardware


+15 / -5 degree

Product Dimensions

22.14" x 16.89" x 2.62"-5.40" (562 x 429 x 67-137mm)

Product Weight

6.07 lbs (2.75 kg)

Shipping Dimensions

21.69" x 2.95" x 10.71" (551 x 75 x 272mm)

Shipping Weight

7.82 lbs (3.55 kg)

Package Contents

  • Wall mount

  • Wall and display installation hardware

  • Installation instructions

UPC Code

ST640: 735029235699

ST640P: 735029235712



  • Includes all necessary wall and display attachment hardware

  • Mounts to wood studs, concrete cinder block or metal studs (metal stud accessory required)

  • Horizontal display adjustment up to 6.00" (152mm) for centering display on wall

  • Landscape to portrait mounting options increases installation versatility. Please check display dimensions against the wall plate when used in portrait mode*

  • Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning

  • Included IncreLok feature offers fixed tilt lock in 5° increments when used

  • Easy-Grip ratcheting handle locks tilt angle into place

  • Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle

  • Universal mount fits displays with mounting patterns up to 458 x 405mm (18.02" W x 15.95" H)

  • Integrated security options available

  • Design is UL listed and tested to four times stated load capacity



Model ST640, ST640P
Manufacturer Peerless Mounts
Part Number ST640, ST640P
UPC 735029235699
Weight lb(s)
Color Black
Monitor Size 32"-50"
Mounting Pattern 458 x 405mm (18.02 x 15.95")
Weight Capacity 150 lbs (68.0 kg)
Distance From Wall 2.63 - 5.71" (67 - 145mm)
Tilt +15 / -5 degree
Dimensions 22.14” x 16.89” x 2.62”-5.40” (562 x 429 x 67-137mm)
Weight 6.07 lbs (2.75 kg)
Shipping Dimensions 21.69" x 2.95" x 10.71" (551 x 75 x 272mm)
Shipping Weight 7.82 lbs (3.55 kg)
Mounting Options Wall
Number of Monitors 1 Monitor
Warranty Limited 5 year
