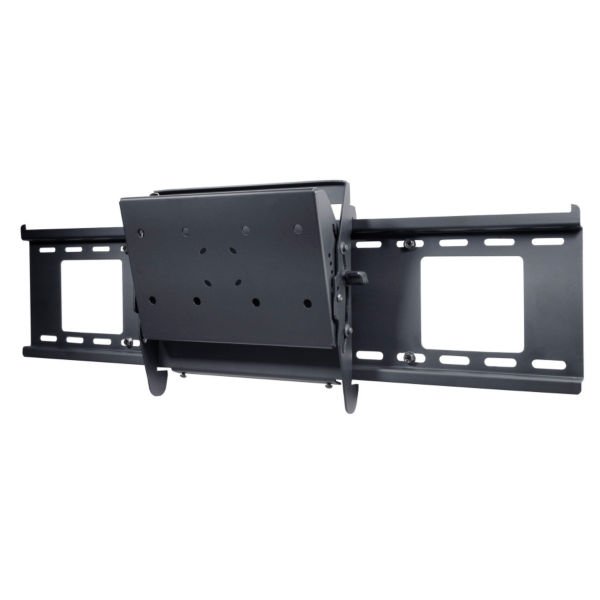

Peerless ST16D Display-Specific Tilt Wall Mount up to 71"

Product ID 14483
Peerless ST16D Display-Specific Tilt Wall Mount up to 71"
Peerless ST16D Display-Specific Tilt Wall Mount up to 71"


Peerless ST16D Dedicated line provides display-specific solutions for mounting medium to large sized displays. Peerless ST24D is compatible with Peerless-AV’s comprehensive inventory of display-specific PLP adaptor plates, ensuring a precise fit for almost any display. This wall mount offers tilt adjustment of +15°/-5° for perfect viewing options. Additionally, installers can choose from either a wall plate for 16" stud centers, perfect for any portrait-style applications, or a more versatile wall plate for 16"-24" stud centers. All models ship pre-assembled for fast and easy installation.


Technical Drawing

Technical drawing for Peerless SF16D or SF24D Display-Specific Flat Wall Mount up to 71"



Minimum to Maximum Screen Size

  • ST16D: 22" to 71"

Weight Capacity

200 lbs (90.0 kg)




Powder Coat

Distance from Wall

3.01" (76mm)

Increlock Increments

-5, 0, 5, 10, 15 degree

Security Features

Security Hardware


+15 / -5 degree

Product Dimensions

  • ST16D: 19.25" x 10.48" x 2.98"-4.02" (489 x 266 x 76-102mm)

Product Weight

  • ST16D: 8.8 lbs (4.0 kg))

Shipping Dimensions

  • ST16D: 20.25" x 12.25" x 4.25" (514 x 311 x 108mm)

Shipping Weight

  • ST16D: 10.1 lbs (4.6 kg)

Package Contents

  • Wall plate

  • Interface plate and hardware

UPC Code

  • ST16D: 735029240143



  • Tilt allows adjustment of +15/-5° without the use of tools

  • Included IncreLok feature offers fixed tilt lock in 5° increments when used

  • Horizontal display adjustment up to 8" (203mm) for centering display on wall

  • Easy-Glide design ensures display is securely attached to wall plate

  • Choose from 16" (406mm) only or 16"-24" (406-610mm) stud center wall plate

  • Fits any display-specific PLP or LC adaptor plate

  • Model ST16D ships with 19.25" (489mm) wide wall plate, perfect for portrait style installations

  • Wall plate knockouts provide wall access, improving cable management options



Model ST16D
Manufacturer Peerless Mounts
Part Number ST16D
UPC 735029240143
Weight lb(s)
Color Black
Monitor Size ST16D: 22"-71". ST24D: 32"-71"
Weight Capacity 200 lbs (90.0kg)
Distance From Wall 3.01" (76mm)
Tilt +15 / -5 degree
Dimensions ST16D: 19.25" x 10.48" x 2.98"-4.02" (489 x 266 x 76-102mm). ST24D: 30.75" x 10.48" x 2.98"-4.02" (781 x 266 x 76-102mm)
Weight ST16D: 8.8 lbs (4.0kg). ST24D: 10.3 lbs (4.7kg)
Shipping Dimensions ST16D: 20.25" x 12.25" x 4.25" (514 x 311 x 108mm). ST24D: 31.75" x 12.25" x 4.25" (807 x 311 x 108mm)
Shipping Weight ST16D: 10.1 lbs (4.6kg), ST24D: 12.2 lbs (5.5kg)
Warranty Limited 5 year
Mounting Options Wall
Number of Monitors 1 Monitor
